6.7.2 Setting the Fixed Conveyor Side (single and dual conveyor) Modular PCB Conveyor System
Service Manual SIPLACE D1/D1i/D2/D2i 263
6.7.2
6.7.2 Setting the Fixed Conveyor Side (single and dual conveyor)
Setting the Fixed Conveyor Side (single and dual conveyor)
Two requirements for changing the fixed conveyor sides:
▪ Extra wide conveyor – moves the fixed conveyor side 34 mm outwards.
▪ Widened conveyor – moves the sides of the 2nd conveyor to the limit switch.
Single conveyor control mode (D-series up to 380 mm/HF, X lines up to 450 mm)
6.7.2.1
6.7.2.1 Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode)
Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode)
► In the SITEST conveyor menu Options and Configurations select Change Widening of Conveyor to
widen the conveyor.
► The conveyor rails of conveyor 2 (right side fixed (track 1 left side fix)) are moved to the limits.
► The SITEST SW ask for connecting the lifting tables.
Widening the board conveyor (from its standard width) allows you to use boards up to 380 mm wide.
Widening the board conveyor from the mode "Widened" to the mode "Extra Wide" allows you to place
boards up to a width of 430 mm.

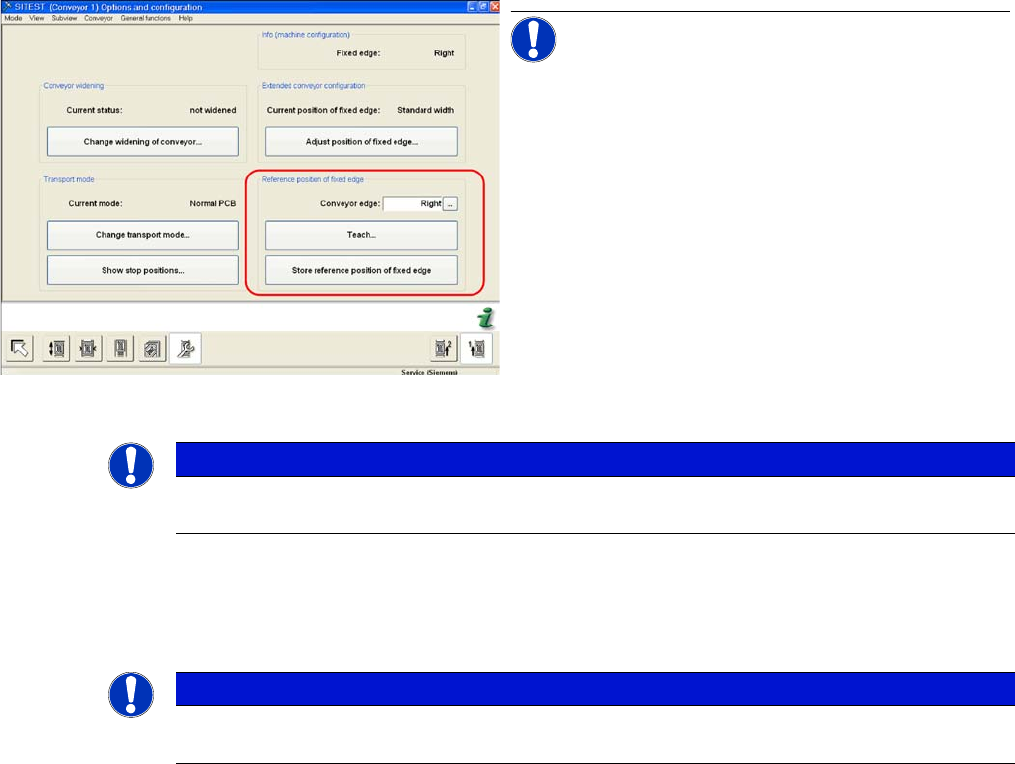

SITEST "Set fixed conveyor side"
NOTICE! The menu Referenzposition feste
Wange is protected with the Siemens Service password.
▪ The fixed conveyor side can be set in SITEST if re-
quired.
▪ If the position taught for the fixed conveyor side is
saved, these values will be used for the function
Move all conveyor edges in standard position.
The default values will be overwritten and will need to
be retaught.
▪ If these dimensions are incorrectly set on the single
or dual conveyor, the PCB reference corner may be
moved, leading to fiducial errors during placement.
NOTICE
In the SR/MC station SW, the fixed conveyor side of all lanes can be adjusted in the conveyor
firmware (flexible). However, this may only be set with the SITEST software.
NOTICE
In the D series machines, you need to remove the clamping rings on the fixed conveyor side in
advance.
Settings
Modular PCB Conveyor System 6.7.2 Setting the Fixed Conveyor Side (single and dual conveyor)
264 Service Manual SIPLACE D1/D1i/D2/D2i

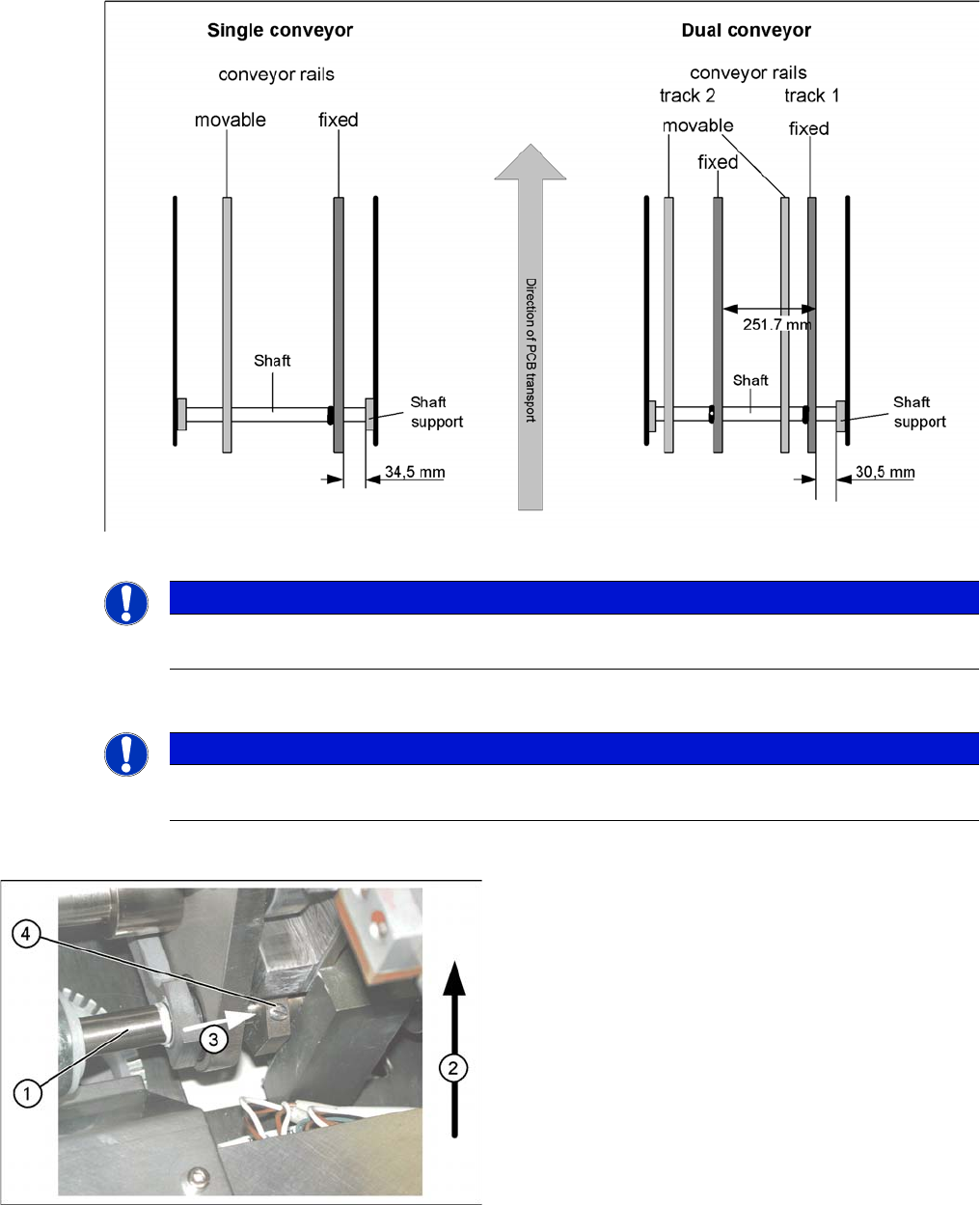

Setting the "fixed conveyor side" in SIPLACE D series
6.7.2.2
6.7.2.2 Connecting the Dual Conveyor Lifting Tables
Connecting the Dual Conveyor Lifting Tables
► Remove the lifting table plate on conveyor lane 2 in PA1 and on lane 1 in PA2.
► Loosen the lockscrew(s) (4) and use a screwdriver to push the hexagonal circlip over the shaft on
lifting table 1.
► Perform lifting table connection for all placement areas (arrangement rotated by 180°.)
NOTICE
The fixed conveyor side should be adjusted only with the SITEST software and the width ad-
justment devices. This ensures that the conveyor runs straight.
NOTICE
This option is only a mechanical necessity when you use the dual conveyor as a single convey-
or. The two lifting tables move parallel when they are connected.
Lifting table
▪ The drive shaft (1) is connected to the piston rod of
the pneumatic cylinder. This shaft is connected to the
shaft of the lifting table for the dual conveyor. The lift-
ing table drive shaft also has an additional rod with a
hexagonal circlip. This pipe is pushed over the shaft
of lifting table 1.
▪ Direction of transport (2).
▪ Direction (3) in which the hollow shaft from lifting ta-
ble 2 (1 in PA 2) is to be moved to lifting table 1 (2 in
PA 2).
▪ Lock screws (4).
Settings
6.7.3 Moving the Fixed Conveyor Edge for ’Extra Wide Conveyor’ Modular PCB Conveyor System
Service Manual SIPLACE D1/D1i/D2/D2i 265
► Configure the new conveyor mode in SIPLACE Pro
6.7.2.3
6.7.2.3 Converting the Single Conveyor Mode Back to Flexible Dual Conveyor Mode
Converting the Single Conveyor Mode Back to Flexible Dual Conveyor Mode
► In the SITEST conveyor menu Options and Configurations, select the menu Change Widening of
Conveyor to set the default conveyor mode.
► The moveable conveyor rail of conveyor 1 (right side fixed (lane 1 left side fix)) is moved to a small
conveyor width.
► The SITEST SW requests that you disconnect the lifting tables - Do so-.
► The SITEST SW will now use the conveyor control SW to move the fixed side of conveyor 2 (right
side is fixed (lane 1 left side fixed)) back to its standard position. Check the distances between the
two fixed conveyor lanes. (see "6.7.2.1 Widening the Conveyor (Flexible Dual Conveyor for Single
Conveyor Mode)" [ ➙ 263])
► Now adjust the conveyor width of both lanes to the required values.
6.7.3
6.7.3 Moving the Fixed Conveyor Edge for ’Extra Wide Conveyor’
Moving the Fixed Conveyor Edge for ’Extra Wide Conveyor’
The standard positions of the fixed conveyor sides are preset.
► In the SITEST conveyor menu Options and Configurations and select the menu Conveyor Excess
Width, to set the conveyor mode "Extra wide".
► The fixed conveyor side of conveyor 2 (right side fixed (track 1 left side fix)) remains in its position.
► The ’fixed conveyor of track 1(right side fixed (track 2 left side fix)) is moved 34mm to the outside.
This allows you to use wider boards. The flexible conveyor side on lane 2 (lane 1 left fixed) can now
be set to accommodate boards which are wider than 216 mm (242 mm).
NOTICE
When converting the dual conveyor to a single conveyor (flexible dual conveyor, connect the
lifting tables when requested to do so by SITEST (we recommend doing this without com-
pressed air supply to the lifting table).
This function is supported by SIPLACE Pro.
NOTICE
This operating mode is possible for D machines with single or dual conveyors.
CAUTION
After the conversion process, you need to measure/calibrate the board reference corner and
the conveyor sides and then save this information in the machine data.
