Settings Pneumatic Cutter 6.9.1 Jumper setting on the control unit at the tape cutter 278 Service Manual SIPLACE D1/D1i/D2/D2i ► Lift or lower the component trolley tab le to the required heigh t. Make sure that t he hol…
Settings
6.8.1 Setting the COT Basic Height Changeover Table
Service Manual SIPLACE D1/D1i/D2/D2i 277
6.8.1.2
6.8.1.2 Adjusting the Component Trolley to the Board Transport Height
Adjusting the Component Trolley to the Board Transport Height
6.8.1.3
6.8.1.3 Adjusting the Component Trolley Height
Adjusting the Component Trolley Height

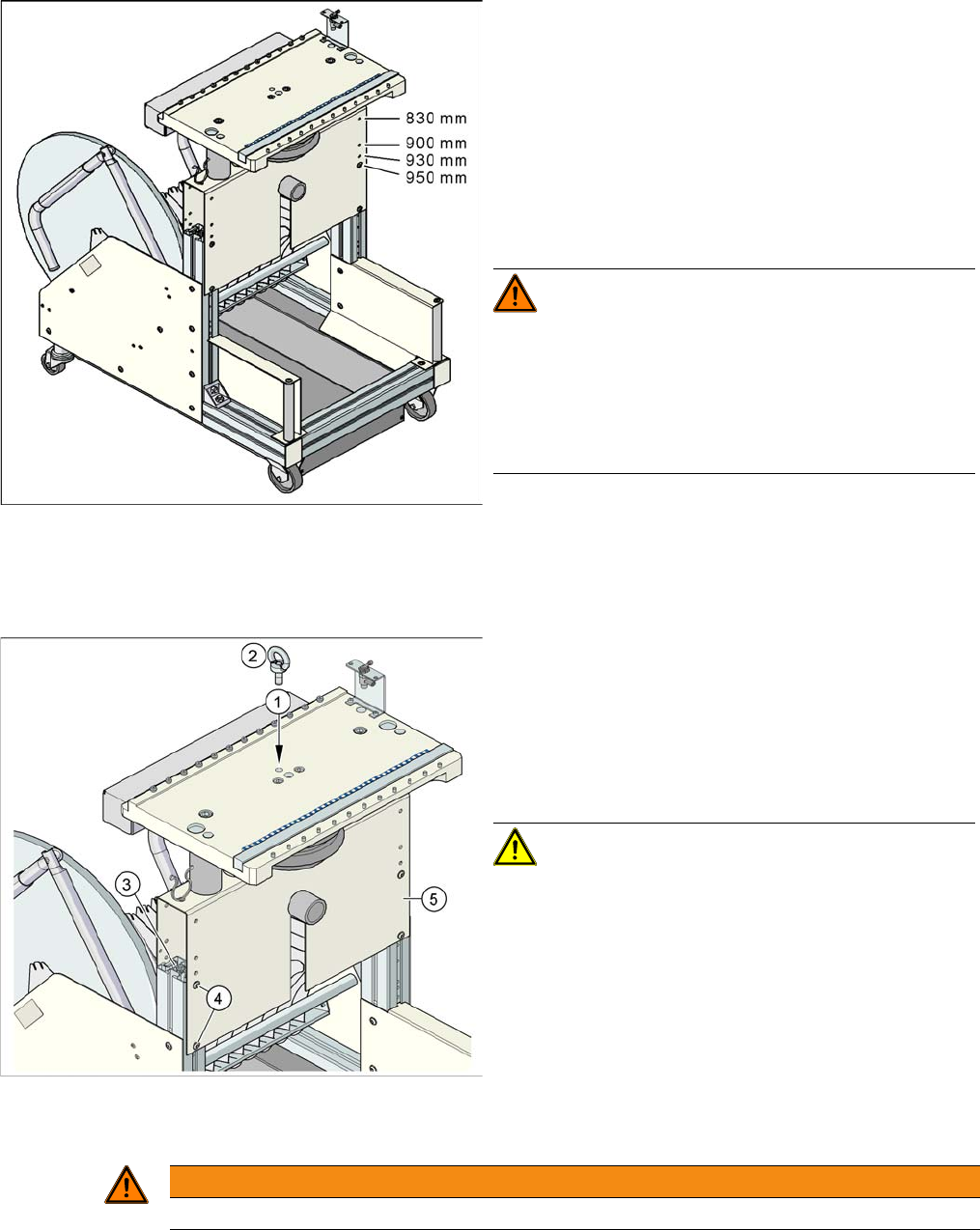

► Screw the eyebolt into the M12 hole provided (1) on the component trolley table.
► Hook the leverage device into the eyebolt (2).
► Tighten the rope of the leverage device.
► Loosen the 8 hexagon socket-head screws, M6x12 (4).
Component trolley with a PCB conveyor height of
950 mm (on example of D4)
Legend
▪ Holes drilled for board transport heights 830 -
950 mm in the guidance bars
The component trolley for the S feeder modules can be
easily and quickly adjusted to the following board trans-
port heights:
830 mm ±15 mm standard height
900 mm ±15 mm SMEMA height
930 mm ±15 mm SMEMA height
950 mm ±15 mm SMEMA height
WARNING! The component trolley height may
only be set by SIEMENS technicians or other qualified
and officially authorized (certified) personnel.
Observe the applicable accident prevention regulations.
Remove all feeder modules from the changeover table
plate, before you adjust the height of the changeover ta-
ble.
Position of eyebolt on component trolley (on example of
D4)
Legend
1. M12 hole drilled for eyebolt
2. Eyebolt DIN 580 M12-St
3. Vertical profile bar
4. 8 x hexagon socket-head screw SN 62355, M6x12
5. Bridge
CAUTION! Always use the fit-up aid (screwed
eyelet) to fix the table plate, irrespective of whether you
want to raise or lower the component trolley.
WARNING
Lift all feeder modules off the component trolley table plate.
Settings
Pneumatic Cutter 6.9.1 Jumper setting on the control unit at the tape cutter
278 Service Manual SIPLACE D1/D1i/D2/D2i
► Lift or lower the component trolley table to the required height. Make sure that the hole for the re-
quired height in the bridge (5) is level with the top hole in the vertical profile bar (3).
► Fasten the bridge (5) to the vertical profile bar (3) with the 8 hexagon socket-head screws M6x12 (4).
► Unscrew the eyebolt from the component trolley table.
6.9
6.9 Pneumatic Cutter
Pneumatic Cutter
6.9.1
6.9.1 Jumper setting on the control unit at the tape cutter
Jumper setting on the control unit at the tape cutter
The jumper for the CAN bus addressing must be set according to the corresponding location in the ma-
chine.
Jumper setting tape cutter
Legend - jumper SIPLACE D1/D2
1. X12 – Jumper for location code of cutter:
1a: Location 1
1b: Location 2
1c and 1d: for D1/D2 without function.
2. X5 – Voltage supply to valve (left)
3. X8 – Proximity switch for stroke cylinder out (left)
4. X7 – Proximity switch for stroke cylinder in (left)
5. X4 – CAN bus connection
6. X2 – Voltage supply for cutter +24 V and +5 V
7. X9 – Proximity switch for stroke cylinder in (left)
8. X10 – Proximity switch for stroke cylinder out (right)
9. X6 – Voltage supply to valve (right)
