Service Work 4.1.1 Power Supply Unit Electrical System Service Manual SIPLACE D1/D1i/D2/D2i 49 Side View Power supply - side view - parts overview Legend Measuring voltages at rectifiers V1 to V8 The diagram a bove shows…
Service Work
Electrical System 4.1.1 Power Supply Unit
48 Service Manual SIPLACE D1/D1i/D2/D2i
F4 Fuse unit - X/Y axes 3 x 200 VAC
F3 Fuse unit 230VAC for 5V power supply 3 x 220 VAC
Z2 Reactor
F14 24 V DC board conveyor and monitors 24 VDC against ground
F13 24 V DC Box PC, axis unit (fan) 24 VDC against ground
F12 24 V DC internal power supply, Micro Box PC 24 VDC against ground
F11 24 V DC sector distributor 24 VDC against ground
F10 48 V DC Vision illumination, DC/DC converter 48 VDC against ground
F9 8 V DC changeover table 8 VDC against ground
F8 40 V DC PCB handling (conveyor) 40 VDC against ground
F7 40 V DC changeover table 40 VDC against ground
F6 40 V DC/DP axes (servo card) 40 VDC against ground
F5 150V DC star axis (servo card) 150 VDC against ground
BU1 Service socket 115 / 130 / 220 / 230 / 240 VAC
X1 Feed in - terminal strip 3 x 204 V~ / 3 x 230 V~ / 3 x 380 V~
/ 3 x 400 V~ / 3 x 415 V~
FBU Fuse 6.3 AT 1 x 220 V~ against ground
FW Fuse 6.3 AT 1 x 220 V~ against ground
FV Fuse 6.3 AT 1 x 220 V~ against ground
fu Fuse 6.3 AT 1 x 220 V~ against ground
SZ4 Contactor control "ON software" 24 VDC
R1 Relay control "ON button"
K1 Protective contactor combination (PCC) 24 VDC against ground
Item Designation Voltages
Service Work
4.1.1 Power Supply Unit Electrical System
Service Manual SIPLACE D1/D1i/D2/D2i 49
Side View

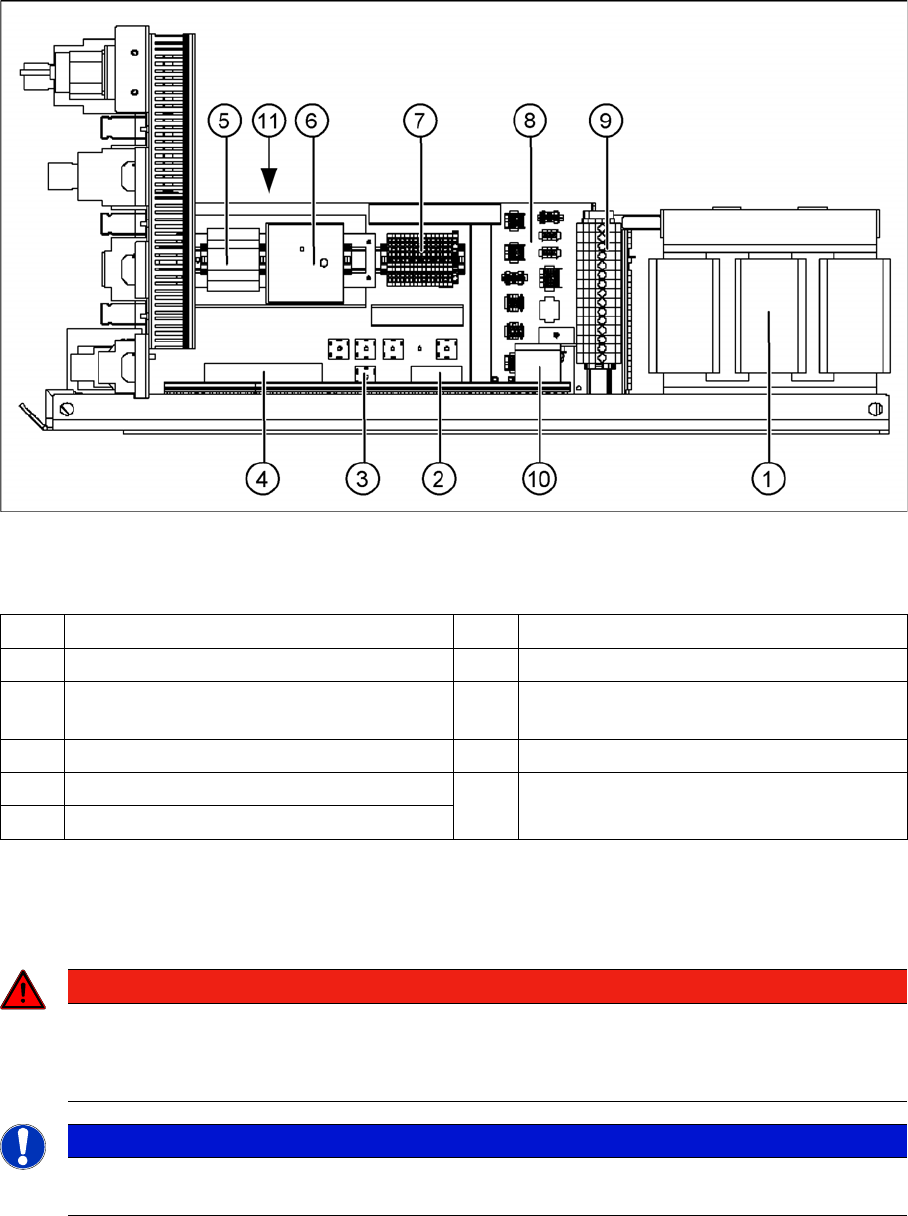

Power supply - side view - parts overview
Legend
Measuring voltages at rectifiers V1 to V8
The diagram above shows the position of rectifiers V1 to V7.
To measure rectifier V1, first remove the perspex panel.
1 T1 transformer 11.1 kVA 7 Terminal strip X1
2 V1 rectifier 8 Connector strip X2 to X10, X12, X13
3 V2, V3, V4, V6, V7 rectifier S101-B6U 160-
08
9 Secondary terminal strip with fuses (output
voltage T1)
4 Z1 mains filter - input voltage 10 Electrolytic capacitor C1
5 A2 current supply (5V/6.3A) 11 A1 power supply unit 24 V direct current
(located behind A1 and A2)
6 A3 Power fail board
DANGER
RISK OF DEATH BY ELECTRIC SHOCK
► Switch the placement system off at the main switch.
► Disconnect the placement system from the power supply.
NOTICE
The placement system must have started, otherwise there will be no AC voltage (3 x 140 VAC)
at rectifier V1.
Service Work
Electrical System 4.1.1 Power Supply Unit
50 Service Manual SIPLACE D1/D1i/D2/D2i
Measuring voltages at main power filter Z1 and electrolytic capacitor C1
The diagram above shows the position of the power supply filter and the electrolytic capacitor C1.
▪ 4 main power filters for 36 A 3-phase systems
▪ 10 electrolytic capacitors 33000 µF / 63 V
Measuring voltages at transformer T1
Primary side of transformer T1
The transformer can be connected to the following main power supplies:
3 x 230 VAC for the "on-board electrical system" is drawn at terminals 1U5, 1V5 and 1W5. These are
used to supply the PC and the monitor.
Rectifiers Input Output
V1 3 x 140 VAC 200 VDC
V2 150 VDC 150 VDC
V3 3 x 32.5 VAC 40 VDC
V4 3 x 32.5 VAC 40 VDC
V6 3 x 40.7 VAC 48 VDC
V7 3 x 24.4 VAC 24 VDC
NOTICE
► Remember to replace the perspex safety panel over rectifier V1, when the measurements
have been completed.
DANGER
RISK OF DEATH BY ELECTRIC SHOCK
► Switch the placement system off at the main switch.
► Disconnect the placement system from the power supply.
Assembly Terminal Voltages
Main power filter Z1 L1, L2, L3 3 x 204 V~ / 3 x 230 V~ / 3 x 380 V~ / 3 x 400 V~/
3x415V~
Electrolytic capacitor
C1
+ / - 52 VDC
Voltage Terminals
3 x 200-210 V~ (U.S.A) ± 5 %, 50/60 Hz 1U6, 1V6, 1W6
3 x 230 VAC ± 5 %, 50/60 Hz 1U5, 1V5, 1W5
3 x 380 VAC ± 5 %, 50/60 Hz 1U4, 1V4, 1W4
3 x 400 VAC (Europe) ± 5 %, 50/60 Hz 1U3, 1V3, 1W3
3 x 415 VAC ± 5 %, 50/60 Hz 1U1, 1V1, 1W1
