IP-III-17 - 第123页

36.ｶﾊﾞｰ 2(QPK) 36.Cover 2(QPK) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 2 KPK0350 1 COVER ｶﾊﾞｰ 3 KPK0490 1 PLATE ﾌﾟﾚｰﾄ 4 Y3066H 1 UNION ﾕﾆｵﾝ KQ2E04-00 5 PPA0132 1 BED ﾍﾞｯﾄﾞ…

100%1 / 299
IP-
III
PARTS LIST ver17

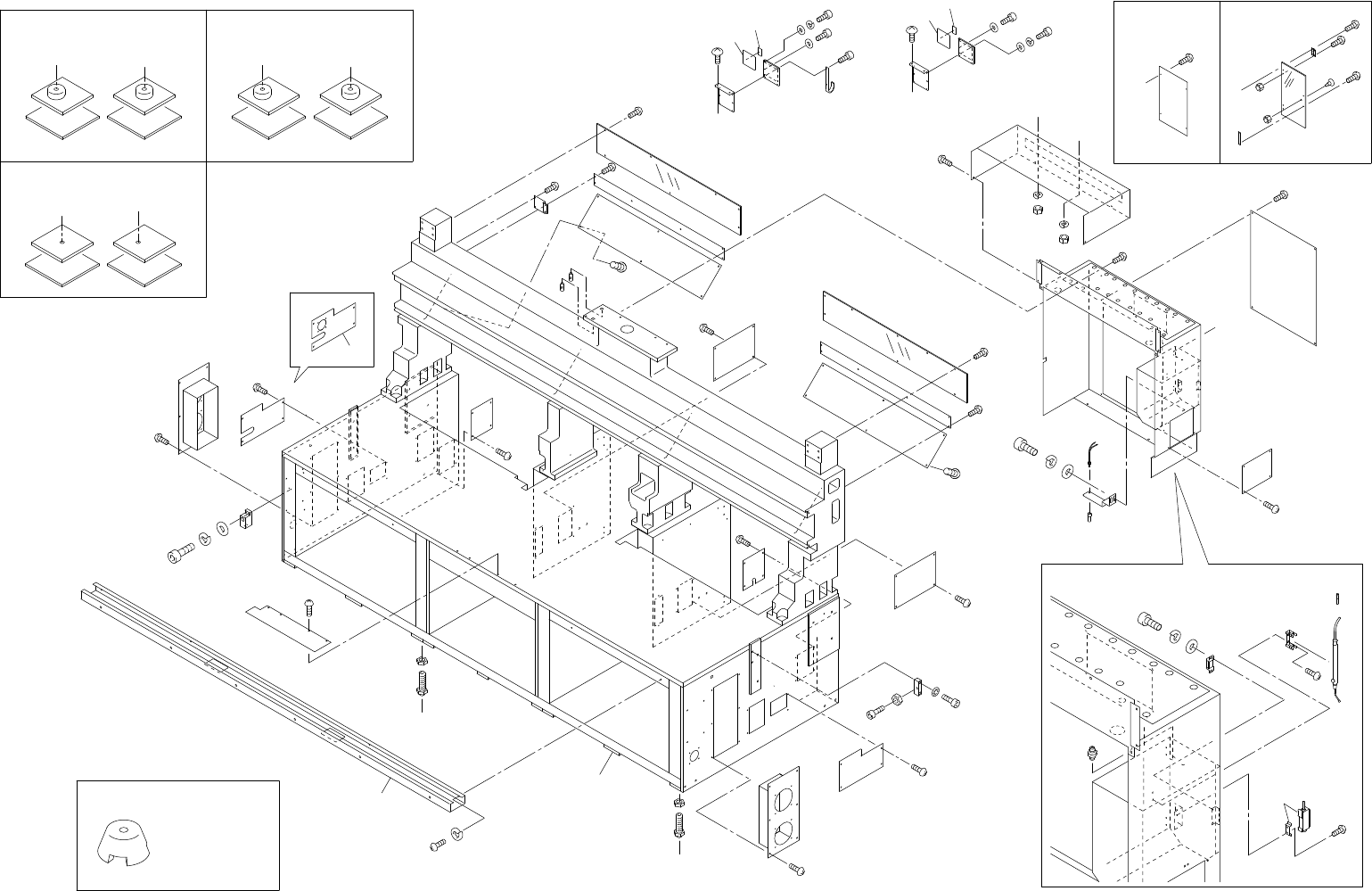

36.カバー 2(QPK)
36.Cover 2(QPK)
36 - 1
36.カバー 2(QPK)
36.Cover 2(QPK)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
107
45
49
87
64
60
70
42
53
4
52
52
91
94
52
90
55
95
89
104
50
50
86
86
3
2
48
41
43
93
63
59
69
47
52
30
74
52
73
28
74
96
47
52
52
29
52
C
C
51
110
Option
44
101
C
E
105
114
60
106
103
D
102
111
112
105
108
101
64
60
109
109
114
109
64
108
113
112
113
111
102
103
D
E
97
52
39
39
88
52
48
27
52
8
65
66
54
56
71
52
19
52
81
80
5
57
46
6
81
80
46
31
7
61
57
68
20
52
72
52
75
79
76
79
98
A
B
H=912
A
B
H=900･・･82
H=930･・･83
H=950･・･84
H=965･・･85
99
79
100
79
B
A
H=965
78
79
77
79
B
A
H=950
73
x23
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
36.ｶﾊﾞｰ 2(QPK)
36.Cover 2(QPK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
2 KPK0350 1 COVER ｶﾊﾞｰ
3 KPK0490 1 PLATE ﾌﾟﾚｰﾄ
4 Y3066H 1 UNION ﾕﾆｵﾝ KQ2E04-00
5 PPA0132 1 BED ﾍﾞｯﾄﾞ
6 PPA0406 1 BKT BKT
7 PPA0700 1 TERMINAL ﾀｰﾐﾅﾙ
8 PPA0831 1 BLOCK ﾌﾞﾛｯｸ
19 PPK0580 1 COVER ｶﾊﾞｰ
20 PPK0590 1 COVER ｶﾊﾞｰ
27 PPK1261 2 COVER ｶﾊﾞｰ Option
28 PPK1290 2 COVER ｶﾊﾞｰ
29 PPK1300 1 COVER ｶﾊﾞｰ
30 PPK1310 1 COVER ｶﾊﾞｰ
31 PPK1330 1 COVER ｶﾊﾞｰ 注2. Note.2
39 H3170A 2 PLUNGER, BALL ﾌﾟﾗﾝｼﾞｬ ﾎﾞｰﾙ BSU-16
41 R4023H 1 LENS UNIT ﾚﾝｽﾞﾕﾆｯﾄ F3H
42 A1040C 1 AMPLIFIER ｱﾝﾌﾟ FS2-62
43 H3005T 1 FIBER UNIT ﾌｧｲﾊﾞ ﾕﾆｯﾄ FU-35F
44 H2101T 1 TWEEZERS, AIR ﾋﾟﾝｾｯﾄ ｴｱｰ VTB-W-SET
45 H5055A 1 HOLDER ﾎﾙﾀﾞ VUK07
46 K5216A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M6X10L
47 K5215C SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X12L
48 K5209A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L
49 K5207A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X5L
50 K5205H SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X10L
51 K5203A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X6L
52 K5214A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X8L
53 K5173A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X10L
54 N1094A 1 NUT, HEX ﾅｯﾄ 六角 M10 P=1.5
55 N1076A NUT, HEX ﾅｯﾄ 六角 M3 P=0.5
56 N4075A 1 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M10X40L
57 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
59 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
60 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
61 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
63 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
64 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
IP-Ⅲ PARTS LIST ver17
36 - 2
36.ｶﾊﾞｰ 2(QPK)
36.Cover 2(QPK)
36.ｶﾊﾞｰ 2(QPK)
36.Cover 2(QPK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
65 W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H
66 H5342A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25L
68 H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L
69 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
70 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
71 QPK1630 1 COVER ｶﾊﾞｰ
72 QPK1640 1 COVER ｶﾊﾞｰ
73 QPK1650 2 COVER ｶﾊﾞｰ
74 QPK1660 2 COVER ｶﾊﾞｰ
75 GXA2071 6 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ
76 KPA3011 8 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ
77 GXA2121 6 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ
78 KPA3020 8 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ
79 GXA2100 14 PAD, ANTI-VIBRATION ﾊﾟｯﾄ 防振
80 LGA0060 12 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ
81 LGA0070 12 NUT ﾅｯﾄ
82 BB42330 14 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ H=900
83 GGA8060 14 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ H=930
84 GGA8030 14 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ H=950
85 GGA8040 14 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ H=965
86 T3001E 1 KNOB, KNURLED ﾂﾏﾐﾛｰﾚｯﾄ TYHA-00429
87 M1011Z 1
MAGNET CATCH
ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-148
88 PPK0441 1 COVER ｶﾊﾞｰ Option
89 T2132A 2 HINGE 蝶番 H2-0016
90 QPK2682 1 COVER, REAR ｶﾊﾞｰﾘﾔ-
91 QPK2692 1 COVER ｶﾊﾞｰ
93 QPK2720 1 BKT, SENSOR BKT ｾﾝｻ
94 QPK2700 1 COVER ｶﾊﾞｰ
95 AQPK2740 1 DOOR 扉
96 AQPK2750 1 COVER ｶﾊﾞｰ
97 AQPK2760 1 COVER ｶﾊﾞｰ
98 QPK1700 1 COVER ｶﾊﾞｰ
99 QPA1040 8 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ
100 WAB0541 6 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ
101 KPD5010 2 RACK ﾗｯｸ Option
102 KPD5020 2 NAMEPLATE 銘板 Option
103 KPD5030 1 SEAL ,BAR CODE ｼｰﾙ ﾊﾞｰｺｰﾄﾞ Option
