38.ﾌｪﾝｽ(ｵﾌﾟｼｮﾝ)(QPK) 38. Fence(Option)(QPK) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 1 KPK3041 2 BKT BKT 2 KPK3051 2 BKT BKT 3 KPK3121 2 BKT BKT 4 KPK3130 2 BKT BKT 5 QPK23…
IP-
III
PARTS LIST ver17

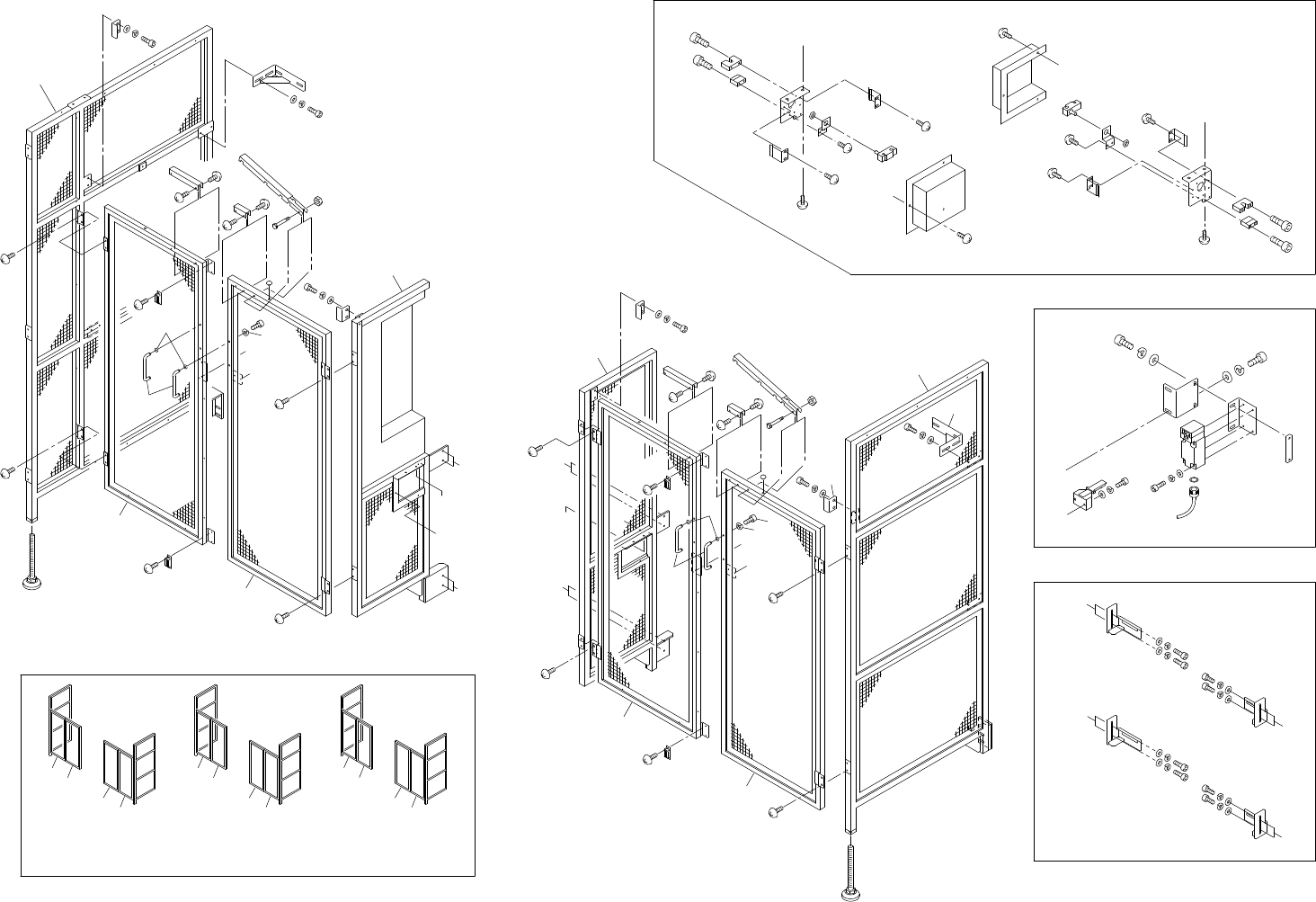

38.フェンス(オプション)(QPK)
38.Fence(Option)(QPK)
38 - 1
38.フェンス(オプション)(QPK)
38.Fence(Option)(QPK)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
E
B
C
D
A
B
D
A
C
F
K
J
H
G
H
G
K
J
E
F
F
E
MTU-4無し
When MTU-4 not used.
MTU-4L付
When MTU-4L used.
MTU-4R,L付
When MTU-4R,L used.
2
45
42
47
47
42
45
1
2
45
42
47
47
42
45
1
26
4
53
43
48
53
43
48
3
28
54
46
44
50
51
44
46
29
10
11
52
52
35
16
40
7
27
40
40
16
14
38
14
38
52
10
11
52
16
40
27
7
40
40
35
16
21
22
21
22
60
22
21
22
60
22
21
59
30
9
47
42
45
18
47
42
45
15
37
43
49
37
21
56
40
22
37
37
40
56
57
58
32
17
34
25
39
13
39
39
39
12
15
45
42
47
20
47
42
45
15
19
37
15
45
42
47
8
45
42
47
39
39
12
39
39
13
25
34
17
32
56
40
24,61
38
38
30
21
59
56
40
37
43
49
55
58
57
5
6
x9
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
38.ﾌｪﾝｽ(ｵﾌﾟｼｮﾝ)(QPK)
38. Fence(Option)(QPK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 KPK3041 2 BKT BKT
2 KPK3051 2 BKT BKT
3 KPK3121 2 BKT BKT
4 KPK3130 2 BKT BKT
5 QPK2380 1 BKT, SW BKT SW
6 QPK2390 1 BKT, SW BKT SW
7 QPK2430 2 BKT, SW BKT SW
8 QPK2510 1 BKT, SUPPORT BKT 支え
9 QPK2590 1 BKT, SUPPORT BKT 支え
10 QPK2450 2 GUIDE, SIDE ｶﾞｲﾄﾞ ｻｲﾄﾞ
11 QPK2460 2 GUIDE, SIDE ｶﾞｲﾄﾞ ｻｲﾄﾞ
12 KPK3090 2 COVER ｶﾊﾞｰ
13 KPK3100 2 COVER ｶﾊﾞｰ
14 QPK2580 2 COVER, SWITCH ｶﾊﾞｰ SW
15 KPK3140 4 STOPPER ｽﾄｯﾊﾟ
16 QPK2440 4 SPRING, PLATE ｽﾌﾟﾘﾝｸﾞ 板
17 KPK3110 2 PIN ﾋﾟﾝ
18 QPK2301 1 FENCE ﾌｪﾝｽ
19 QPK2540 1 FENCE ﾌｪﾝｽ
20 QPK2551 1 FENCE ﾌｪﾝｽ
21 QPK2601 2 FENCE (Fence with MTU-4R) ﾌｪﾝｽ(MTU-4R付)
22 QPK2612 1 FENCE (Fence with MTU-4R) ﾌｪﾝｽ(MTU-4R付)
24 QPK2620 1
FENCE (Fence without MTU 4)
ﾌｪﾝｽ(MTU4無し)
25 KPK3060 2 HOLDER ﾎﾙﾀﾞ
26 KPK3160 2 NUT, HEX ﾅｯﾄ 六角
27 S3167A 2 SW, MICRO SW ﾏｲｸﾛ BZ-ZRQ1-T4-J
28 S31970 2 SW, LIMIT SW ﾘﾐｯﾄ XCS-A501
29 S31973 2 SW, LIMIT SW ﾘﾐｯﾄ XCS-Z03
30 H5146A 2 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ C-275-A-4
32 A1003H 2 LEG, RUBBER 脚 ｺﾞﾑ C-30CS-6
34 N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
35 K5203A SCREW, TRUSS 小ﾈﾞｼ ﾄﾗｽ M3X6L
37 K5207A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X5L
38 K5215A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X10L
39 K5213Z SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X5L
40 K5216A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M6X10L
42 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
IP-Ⅲ PARTS LIST ver17
38 - 2
38.ﾌｪﾝｽ(ｵﾌﾟｼｮﾝ)(QPK)
38. Fence(Option)(QPK)
38.ﾌｪﾝｽ(ｵﾌﾟｼｮﾝ)(QPK)
38. Fence(Option)(QPK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
43 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
44 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
45 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
46 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
47 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
48 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
49 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
50 H5296A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X40L
51 H5293A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X25L
52 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
53 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
54 S2037A 2 SEAL ｼｰﾙ DE9-PL112043
55 K4020A 2 CABLE, GROUNDING ｹｰﾌﾞﾙ ｱｰｽ DE9-PL113044
56 M1012B 4 MAGNET CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-272No.2
57 T5003N 4 HANDLE 取手 THA-239No.7
58 W1001Z 8 WASHER ﾜｯｼｬ THA-272No.3
59 QPK2660 1 FENCE ﾌｪﾝｽ MTU-4R付(Fence with MTU-4R)
60 QPK2670 1 FENCE ﾌｪﾝｽ
61 QMK3100 1 FENCE ﾌｪﾝｽ ･
IP-Ⅲ PARTS LIST ver17
38 - 3
38.ﾌｪﾝｽ(ｵﾌﾟｼｮﾝ)(QPK)
38. Fence(Option)(QPK)
