IP- III P ARTS LIST ver17 3 9 . エアー機器 1 ( Q P Z ) 3 9 . A i r d e v i c e 1 ( Q P Z ) 3 9 - 1 3 9 . エアー機器 1 ( Q P Z ) 3 9 . A i r d e v i c e 1 ( Q P Z ) R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 3 - 7 1 …
38.ﾌｪﾝｽ(ｵﾌﾟｼｮﾝ)(QPK)
38. Fence(Option)(QPK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
43 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
44 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
45 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
46 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
47 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
48 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
49 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
50 H5296A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X40L
51 H5293A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X25L
52 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
53 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
54 S2037A 2 SEAL ｼｰﾙ DE9-PL112043
55 K4020A 2 CABLE, GROUNDING ｹｰﾌﾞﾙ ｱｰｽ DE9-PL113044
56 M1012B 4 MAGNET CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-272No.2
57 T5003N 4 HANDLE 取手 THA-239No.7
58 W1001Z 8 WASHER ﾜｯｼｬ THA-272No.3
59 QPK2660 1 FENCE ﾌｪﾝｽ MTU-4R付(Fence with MTU-4R)
60 QPK2670 1 FENCE ﾌｪﾝｽ
61 QMK3100 1 FENCE ﾌｪﾝｽ ･
IP-Ⅲ PARTS LIST ver17
38 - 3
38.ﾌｪﾝｽ(ｵﾌﾟｼｮﾝ)(QPK)
38. Fence(Option)(QPK)
IP-
III
PARTS LIST ver17

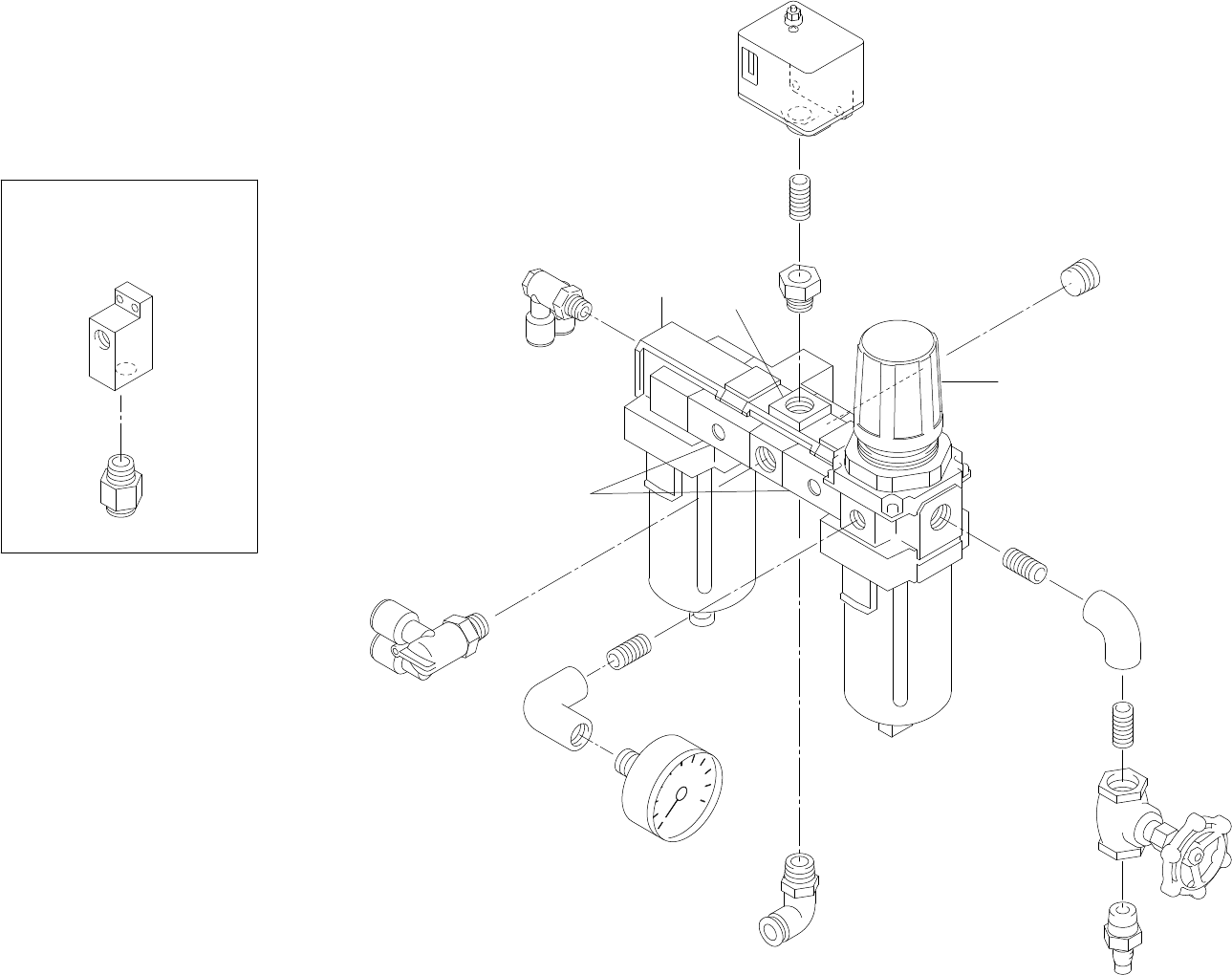

39.エアー機器 1(QPZ)
39.Air device 1(QPZ)
39 - 1
39.エアー機器 1(QPZ)
39.Air device 1(QPZ)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
10
3
5
15
13
8
6
4
6
16
12
19
2
3
14
17
18
7
1
11
20
x9
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
39.ｴｱｰ機器 1(QPZ)
39. Air device
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 PPZ0290 1 TERMINAL ﾀｰﾐﾅﾙ
2 A4053A 1 ELBOW ｴﾙﾎﾞ 1/4.
3 H1214A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X25L
4 A4060A 1 ELBOW ｴﾙﾎﾞ 3/8.
5 H3075Z 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4
6 H1282A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25L
7 S4016T 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM4000-03R
8 H30302 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW4000-C3CGR
10 S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02L5
11 Y3085A 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2H10-02S
12 Y3086A 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H10-03S
13 Y3021E 1 UNION ﾕﾆｵﾝ PA10-03
14 Y3021Z 1 UNION ﾕﾆｵﾝ PAX12-03
15 A3036A 1 PLUG 埋栓 3/8.
16 H1046A 1 VALVE, STOP ﾊﾞﾙﾌﾞ ｽﾄｯﾌﾟ 3/8B
17 H3201A 2 BKT BKT Y40L
18 S3060H 1 SPACER ｽﾍﾟｰｻ Y44-03
19 A10303 1 PRESSURE GAUGE 圧力計 G46-7-02
20 K1086T 1 COUPLER ｶﾌﾟﾗ 30PM
･
IP-Ⅲ PARTS LIST ver17 39 - 2
39.ｴｱｰ機器 1(QPZ)
39. Air device 1(QPZ)
