IP- III P ARTS LIST ver17 3 . 2 . N o . 1 プレーシングヘッド ( R 側) ( Q P H ) 3 . 2 . N o . 1 p l a c i n g h e a d ( R - s i d e ) ( Q P H ) 3 - 5 3 . 2 . N o . 1 プレーシングヘッド ( R 側) ( Q P H ) 3 . 2 . N o . 1 p l a c i n g h e a d …

100%1 / 299
3.1 No.1 ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(R側)(QPH)
3.1 No.1 placing head(R-side)(QPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
167 . SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X2L
168 N4016A 2 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M2X2L
170 QPA1030 1 RETAINER, WIRING 押え 配線
171 S4015Z 15 SEPARATOR ｾﾊﾟﾚｰﾀ 2020･
172 S40154 15 SEPARATOR ｾﾊﾟﾚｰﾀ 2200.28･
173 QPH1391 1 DOG ﾄﾞｯｸﾞ
174 QPH1421 1 DOG ﾄﾞｯｸﾞ
175 QPH1431 1 COVER ｶﾊﾞｰ
176 QPH1440 1 TUBE ﾁｭｰﾌﾞ
177 QPH1450 1 PLATE ﾌﾟﾚｰﾄ
178 QPH1460 1 BKT, SW BKT SW
179 QPH1480 1 BKT BKT
180 QPH1500 1 BKT BKT
181 QPH1520 1 OIL PAN ｵｲﾙﾊﾟﾝ
182 A1022S 1 ADAPTER ｱﾀﾞﾌﾟﾀ KQ2N06-01S
183 A1022N 1 ADAPTER ｱﾀﾞﾌﾟﾀ KQ2N04-M5
184 Y30827 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2H06-M5
185 H1006M 1 GENERATOR, VACUUM 発生器 真空 VBH12-66P
186 H1121Y 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL SY5120-5MZ-01-F2-X19
187 H3018X 1 FILTER ﾌｨﾙﾀ KF-M5A-Z
188 Y3075A 1 CONNECTOR ｺﾈｸﾀ KQ2U06-00
190 Y3078A 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-01S
191 W1004G 1 WASHER, FLAT ﾜｯｼｬ 平 LR6-0.5
192 H5281A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X25L ･
IP-Ⅲ PARTS LIST ver17
3 - 4
3.1 No.1 ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(R側)(QPH)
3.1 No.1 placing head(R-side)(QPH)
IP-
III
PARTS LIST ver17

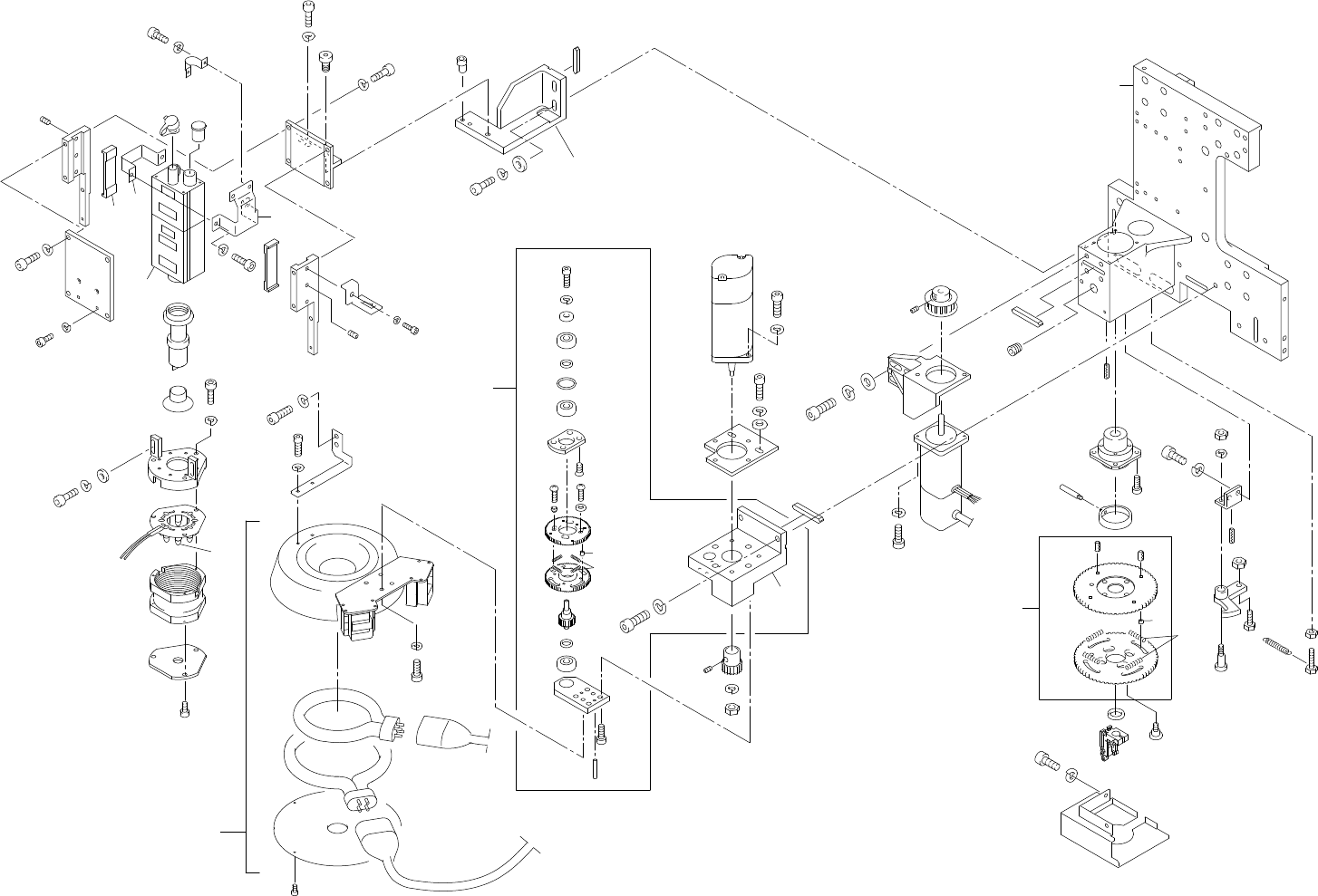

3.2.No.1プレーシングヘッド (R側)(QPH)
3.2.No.1 placing head(R-side)(QPH)
3 - 5
3.2.No.1プレーシングヘッド (R側)(QPH)
3.2.No.1 placing head(R-side)(QPH)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
57
115
32
43
41
85
164
135
129
146
136
152
32
152
130
86
21
152
130
136
146
129
166
37
130
127
13
160
131
20
116
18
19
116
17
139
142
133
5
9
141
45
11
6
28
18
116
14
149
123
194
32
40
73
135
129
145
151
130
39
130
151
22
83
131
144
169
130
153
165
23
55
131
144
56
92
102
82
23
103
54
165
130
151
132
162
58
104
38
157
131
138
131
157
75
84
89
74
76
162
126
15634
163
126
122
24
16
10
131
126
130
152
161
27
46
47
30
119
2,3
131
161
12
122
130
151
161
130
42
130
152
90
87
193
101
101
99
x3.8
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
25
26
29
124
125
33
45
3.2 No.1 ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(R側)(QPH)
3.2 No.1 placing head(R-side)(QPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
2 APPH8022 1 CHUCK ﾁｬｯｸ (Option)
3 APPH8071 1 CHUCK(Pressure Control) ﾁｬｯｸ
5 PPH0117 1 GEAR ｷﾞﾔ
6 PPH0147 1 GEAR ｷﾞﾔ
9 PPH0210 4 COLLAR ｶﾗｰ
10 PPH0220 1 BKT BKT
11 PPH0240 4 SPRING ｽﾌﾟﾘﾝｸﾞ
12 PPH0252 1 COVER ｶﾊﾞｰ
13 PPH0262 1 BKT, MOTOR BKT ﾓｰﾀ
14 PPH0271 1 BKT BKT
16 PPH0310 1 LEVER ﾚﾊﾞｰ
17 PPH0320 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
18 PPH0330 2 COLLAR, BEARING ｶﾗｰ ﾍﾞｱﾘﾝｸﾞ
19 PPH0340 1 COLLAR, BEARING ｶﾗｰ ﾍﾞｱﾘﾝｸﾞ
20 PPH0350 1 WASHER ﾜｯｼｬ
21 PPH0360 1 PLATE, ADJUSTING ﾌﾟﾚｰﾄ 調整
22 PPH0382 1 BKT BKT
23 PPH0400 2 LINER ﾗｲﾅ
24 PPH0440 1 PIN ﾋﾟﾝ
25 PPH0565 1 GEAR ｷﾞﾔ
26 PPH0574 1 GEAR ｷﾞﾔ
27 PPH0500 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
28 PPH0532 1 GEAR ｷﾞﾔ
29 PPH0587 1 GEAR ｷﾞﾔ
30 PPH0590 4 BOLT ﾎﾞﾙﾄ
32 PPH0630 3 KEY ｷｰ
33 PPH0641 4 SPRING ｽﾌﾟﾘﾝｸﾞ
34 PPH0650 1 SPRING ｽﾌﾟﾘﾝｸﾞ
37 PPH0841 1 GEAR ｷﾞﾔ
38 PPH0850 1 COVER ｶﾊﾞｰ
39 PPH0860 1 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴
40 PPH0880 1 PIN, ECCENTRIC ﾋﾟﾝ 偏心
41 PPH0912 1 BKT, MOTOR BKT ﾓｰﾀ
42 PPH0932 1 BKT BKT
43 PPH0940 1 PULLEY ﾌﾟｰﾘ
45 PPH0980 8 PIN ﾋﾟﾝ
46 PPH1001 1 DOG ﾄﾞｯｸﾞ
IP-Ⅲ PARTS LIST ver17
3 - 6
3.2 No.1 ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(R側)(QPH)
3.2 No.1 placing head(R-side)(QPH)
