48.MFU-3L 本体(QPD) 48.MFU-3L Body(QPD) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 79 H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L 80 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L 81 H5372…

100%1 / 299
48.MFU-3L 本体(QPD)
48.MFU-3L Body(QPD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
38 H1018A 1 HANDLE ﾊﾝﾄﾞﾙ A-33-6
40 T2122T 2 HINGE 蝶番 B-48-2
41 K1045T 2 FIXTURE 金具 C-25-8
43 A1010Z 4 LEG, RUBBER 脚 ｺﾞﾑ C-31-1
44 K1127A 3 CAM FOLLOWER ｶﾑﾌｫﾛｱ CF24-A
45 H1051H 2 VALVE, CHECK ﾊﾞﾙﾌﾞ ﾁｪｯｸ CVF03B
48 K1094A 2 CAM FOLLOWER ｶﾑﾌｫﾛｱ NAST15ZZ
49 S2158H 1 JOINT ｼﾞｮｲﾝﾄ PGJ12-6
50 A4049H 2 ELBOW ｴﾙﾎﾞ PL12-03
51 K5049H 1 CONNECTOR ｺﾈｸﾀ PY-12
52 S2064T 1 SEAL, DUST ｼｰﾙ ﾀﾞｽﾄ TM-131NO.1 5m
53 S2026H 3 SHEET, RUBBER ｼｰﾄ ｺﾞﾑ TM-180-312
54 T2063A 1 TUBE ﾁｭｰﾌﾞ TU0604B 4m
55 T2066A 1 TUBE ﾁｭｰﾌﾞ TU1208B 6m
56 K5216A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M6X10L
57 K5214A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X8L
58 K5210A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X10L
59 K5209A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L
60 K5174A 8 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X10L
61 K5202A 2 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X3L
62 N1073Z NUT, HEX ﾅｯﾄ 六角 M24
63 N1092A NUT, HEX ﾅｯﾄ 六角 M10 P=1.5
64 N1089A NUT, HEX ﾅｯﾄ 六角 M8 P=1.25
65 W1032A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 24M/M
66 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
67 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
68 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
69 W1046A WASHER, FLAT ﾜｯｼｬ 平 4W-8
70 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
71 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
72 H5342A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X25L
73 . BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X18L
74 H5340A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X16L
75 H5330A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X40L
76 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L
77 H5323A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18L
78 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
IP-Ⅲ PARTS LIST ver17
48 - 3
48.MFU-3L 本体(QPD)
48.MFU-3L Body(QPD)
48.MFU-3L 本体(QPD)
48.MFU-3L Body(QPD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
79 H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L
80 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
81 H5372A 2 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X80L
82 K2023K 2 CASTER ｷｬｽﾀ THN-75-PH-S-Z
83 K2025E 2 CASTER ｷｬｽﾀ KHN-75-PH
84 S2064M 1 SEAL, DUST ｼｰﾙ ﾀﾞｽﾄ TM-97N No.30 4m
85 T21254 4 HINGE 蝶番 TH-78SUS No.2
87 . 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ KPD3090
88 . 1 PANEL CONNECTOR ﾊﾟﾈﾙ ｺﾈｸﾀ SKP-5310
89 K2108A 1 BOARD 基板 CONI/F8902-0
90 K2109A 1 BOARD 基板 CONI/F8903-0
91 K2110A 1 BOARD 基板 CONI/F8904-0
92 K2112A 1 BOARD 基板 CONI/F8906-0
93 K2113A 1 BOARD 基板 CONI/F8907-0
94 K2115A 1 BOARD 基板 CONI/F8908-0
95 K5051H 37 CONNECTOR ｺﾈｸﾀ HR10A-7R-6SB
96 A4043A 1 ELBOW ｴﾙﾎﾞ PL6-01
97 S5021M 37 SOCKET ｿｹｯﾄ SMK-015
98 N1076A 24 NUT, HEX ﾅｯﾄ 六角 M3 P=0.5
99 N4024A 24 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X12L
100 K5208A 3 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L
101 K5203A 6 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X6L
102 PPD0130 3 STAND ｽﾀﾝﾄﾞ H=950,965 (Specifed part selection)
103 PPD0460 2 STAND ｽﾀﾝﾄﾞ H=950,965 (Specifed part selection)
104 H5381A 3 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X145L
105 PPD0100 3 SPACER ｽﾍﾟｰｻ H=950,965 (Specifed part selection)
106 PPD0660 1 NAME, PLATE 銘板 ･
IP-Ⅲ PARTS LIST ver17
48 - 4
48.MFU-3L 本体(QPD)
48.MFU-3L Body(QPD)
IP-
III
PARTS LIST ver17

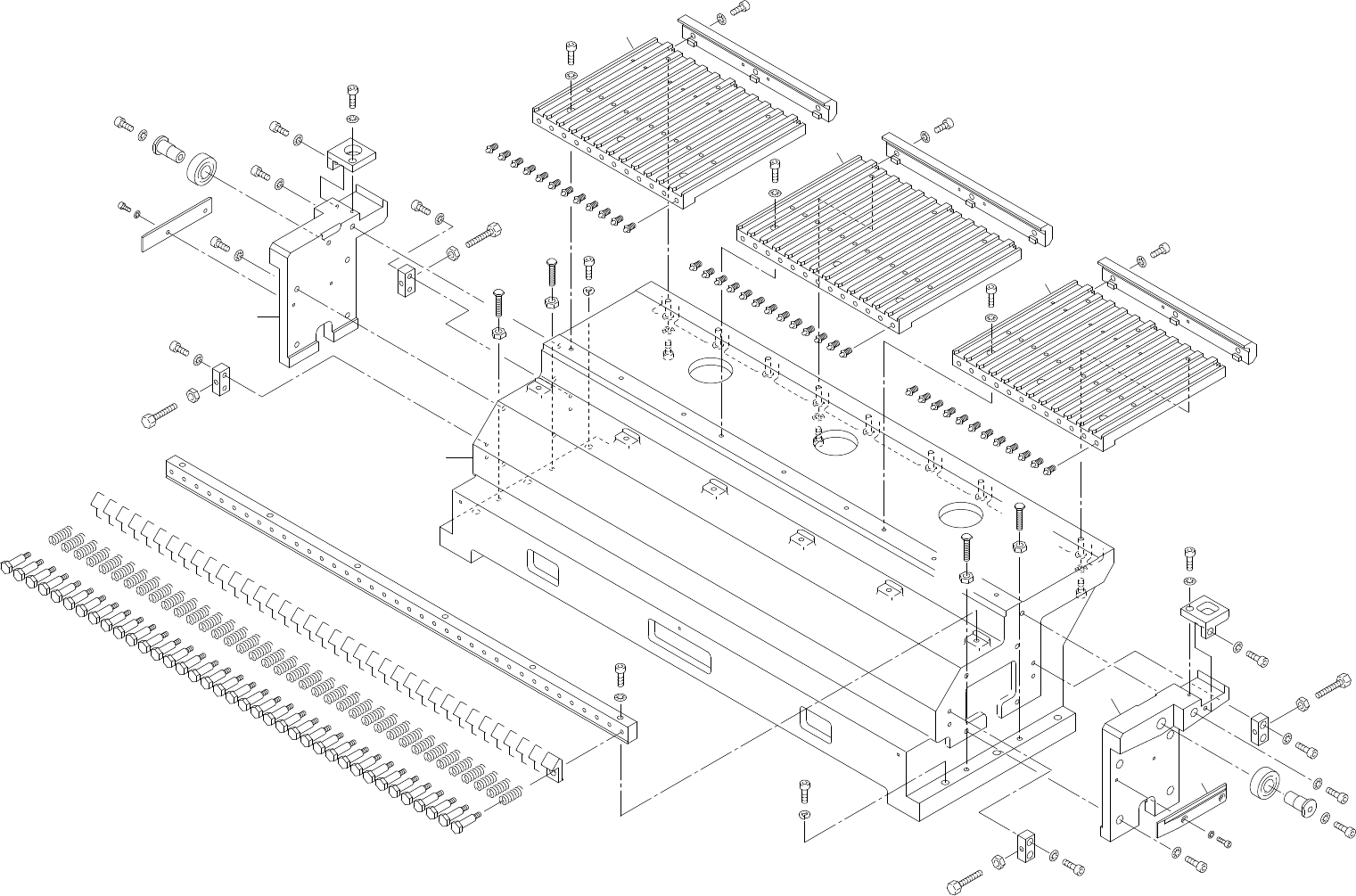

49.MFU-3L フィーダセット部(QPD)
49.MFU-3L Feeder set(QPD)
49 - 1
49.MFU-3L フィーダセット部(QPD)
49.MFU-3L Feeder set(QPD)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
30
24
7
1
3
2
28
23
15
25
33
22
27
24
31
26
35
19
14
20
16
24
29
24
31
25
33
15
22
27
25
34
10
25
34
25
30
21
17
21
17
4
34
25
8
24
31
5
4
34
25
11
24
31
6
4
8
24
31
5
25
34
25
30
25
30
23
28
21
17
21
17
25
33
22
27
15
15
24
31
22
27
25
34
25
34
9
24
31
20
16
24
31
24
31
18
26
35
13
12
x9
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
