3.2 No.1 ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(R側)(QPH)
3.2 No.1 placing head(R-side)(QPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
133 W1039A WASHER, FLAT ﾜｯｼｬ 平  2M/M
135 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
136 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
138 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
139 K5357M
SCREW,HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M3X6L
141 . SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2X5L
142 K5175N SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2X3L
144 H5320A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X10L
145 H5301A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X18L
146 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
149 H5292A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X20L
151 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
152 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
153 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
156 H5263A BOLT, HEX ﾎﾞﾙﾄ 六角 M3X18L
157 H5278A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X15L
160 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
161 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
162 H5266A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M2X6L
163 H5165A BOLT, HEX ﾎﾞﾙﾄ 六角 M3X10LBL
164 N4027A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X5L
165 N4015A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X4L
166 N4018A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X3L
169 QPH1381 1 BKT BKT
193 QCA1610 1 PLATE, DISPERSION ﾌﾟﾚｰﾄ 拡散 4800 Camera Unit
194 APPH8037 1 GEAR, INTERMEDIATE ｷﾞﾔ 中間 ･
IP-Ⅲ PARTS LIST ver17
3 - 8
3.2 No.1 ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(R側)(QPH)
3.2 No.1 placing head(R-side)(QPH)
IP-
III
PARTS LIST ver17

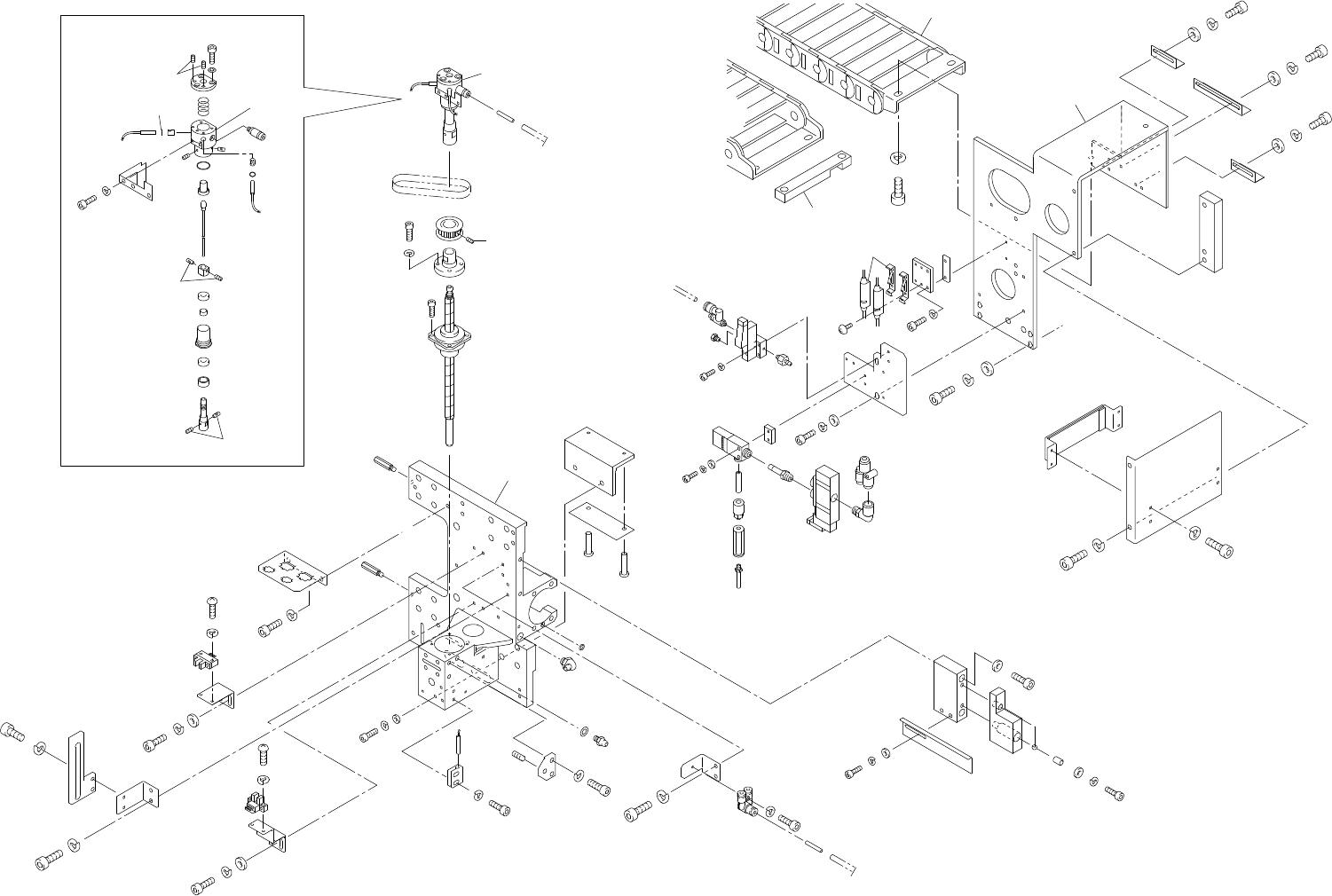

4.1.No.2プレーシングヘッド(L側)(QPH)
4.1.No.2 placing head(L-side)(QPH)
4 - 1
4.1.No.2プレーシングヘッド(L側)(QPH)
4.1.No.2 placing head(L-side)(QPH)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
1
103
102
73
32
112
15
22
143
145
116
66
63
63
34
115
137
40
38
39
99
94
168
82
76
42
114
144
77
37
115
134
156
115
136
92
116
140
103
102
117
113
129
125
116
79
69
119
115
136
125
116
80
70
119
115
136
20
115
136
21
115
136
122
130
58
56
91
118
114
130
59
119
115
136
141
123
111
152
45
86
48
51
97
78
51
78
97
111
52
116
143
98
151
150
109
111
90
47
44
90
46
43
110
165
167
163
159
162
170
116
169
153
161
164
160
154
119
115
135
155
118
114
131
116
141
53
68
78
128
116
143
114
132
29
57
A
148
8
119
115
137
119
115
137
8
7
119
115
137
157
4
113
129
149
75
116
140
88
89
54
x6
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
4.1 No.2ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(L側)(QPH)
4.1 No.2 placing head (L-side)(QPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 APPH8014 1 JOINT, ROTARY ｼﾞｮｲﾝﾄ ﾛｰﾀﾘ
4 QPA1001 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ
7 PPH0180 1 DOG ﾄﾞｯｸﾞ
8 PPH0190 2 DOG ﾄﾞｯｸﾞ
15 PPH0300 1 SHAFT, PULLEY ｼｬﾌﾄ ﾌﾟｰﾘ
20 PPH0450 1 BKT BKT
21 PPH0460 1 PLATE ﾌﾟﾚｰﾄ
22 PPH0500 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
29 QPH1340 1 RETAINER 押え
32 PPH0950 1 PULLEY ﾌﾟｰﾘ
34 PPH0992 1 BKT, TERMINAL BKT ﾀｰﾐﾅﾙ
37 PPH1020 1 HOLDER, SENSOR ﾎﾙﾀﾞ ｾﾝｻ
38 PPH1040 1 SPACER ｽﾍﾟｰｻ
39 PPH1050 2 BUSHING ﾌﾞｯｼｭ
40 PPH1062 1 BKT BKT
42 PPH1170 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
43 PPH3011 1 ADAPTER ｱﾀﾞﾌﾟﾀ
44 PPH3021 1 HOUSING ﾊｳｼﾞﾝｸﾞ
45 PPH3060 1 SPRING ｽﾌﾟﾘﾝｸﾞ
46 PPH3070 1 BUSHING ﾌﾞｯｼｭ
47 PPH3080 1 COLLAR ｶﾗｰ
48 PPH3150 1 JOINT ｼﾞｮｲﾝﾄ
51 PPH3200 2 COLLAR ｶﾗｰ
52 PPH3210 1 DOG ﾄﾞｯｸﾞ
53 PPH3230 1 BKT, SENSOR BKT ｾﾝｻ
54 PPZ0330 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL
56 QPH0121 1 STOPPER ｽﾄｯﾊﾟ
57 QPH1360 1 COVER ｶﾊﾞｰ
58 QPH0202 1 STOPPER ｽﾄｯﾊﾟ
59 QPH0223 1 DOG ﾄﾞｯｸﾞ
63 QPH0311 2 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ
66 QPH1323 1 BODY 本体
68 PPH3220 1 BKT, SENSOR BKT ｾﾝｻ
69 PPH0490 1 BKT BKT
70 PPH0150 1 BKT BKT
73 H4485T 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 212P2M6-530
75 S2146A 1 JOINT ｼﾞｮｲﾝﾄ BF4BU-M3
IP-Ⅲ PARTS LIST ver17
4 - 2
4.1 No.2ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(L側)(QPH)
4.1 No.2 placing head (L-side)(QPH)
