55.MTU-4R ｱｳﾄｺﾝﾍﾞｱ(QMQ) 55.MTU-4R Out conveyor(QMQ) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 86 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M 87 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M…
55.MTU-4R ｱｳﾄｺﾝﾍﾞｱ(QMQ)
55.MTU-4R Out conveyor(QMQ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
40 QMQ1080 4 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ
41 QMQ1091 2 BELT ﾍﾞﾙﾄ
42 QMQ1100 1 STOPPER ｽﾄｯﾊﾟ
43 QMQ1110 2 SPACER ｽﾍﾟｰｻ
44 QMQ1120 1 SEAL(English) ｼｰﾙ(英文)
45 QMQ1140 2 PLATE ﾌﾟﾚｰﾄ
50 QMQ1210 1 SEAL(French) ｼｰﾙ(仏文)
51 QMQ1300 1 SEAL(English) ｼｰﾙ(英文)
54 CKC9430 1 BKT, MOTOR BKT ﾓｰﾀ
55 CLC3430 2 SPROCKET ｽﾌﾟﾛｹｯﾄ
56 CLC9191 4 NUT ﾅｯﾄ
57 CLC9440 1 BKT, MOTOR BKT ﾓｰﾀ
58 GVC0350 4 COLLAR ｶﾗｰ
59 GVC1141 1 DOG ﾄﾞｯｸﾞ (HELPS)
60 GVC1151 1 DOG ﾄﾞｯｸﾞ (HELPS)
61 GVC1160 1 NUT ﾅｯﾄ (HELPS)
62 H4014A 2 HEAD, GEAR ﾍｯﾄﾞ ｷﾞﾔ 6RH-DZ7.5R039
63 S3122A 2 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D (HELPS)
67 H4440A 4 BEARING ﾍﾞｱﾘﾝｸﾞ L-1910ZZ
68 H4445A 8 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1050ZZ
69 K5151A 1 CONNECTOR, CABLE ｺﾈｸﾀ ｹｰﾌﾞﾙ NC-1
70 M5063A 2 MOTOR ﾓｰﾀ RM-H6A06ZMR039
71 S3034A 4 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-13T 2-Type
72 R2028H 1 RING ﾘﾝｸ RS25NP-0L
73 T2024T 1 CHAIN ﾁｪｰﾝ RS25NP 144-Link
74 T2026H 1 CHAIN ﾁｪｰﾝ RS25NP 178-Link
75 S1022A 4 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4
76 H4123A 2 BEARING ﾍﾞｱﾘﾝｸﾞ UFL000
77 N4031A SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M4X10L
78 N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
79 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
80 N1092T NUT, HEX ﾅｯﾄ 六角 M10 P=1.5
81 K5261H SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M5X12L
82 K5261A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M5X10L
83 K5359E
SCREW,HEXSOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L
84 W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
85 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
IP-Ⅲ PARTS LIST ver17
55 - 3
55.MTU-4R ｱｳﾄｺﾝﾍﾞｱ(QMQ)
55.MTU-4R Out conveyor(QMQ)
55.MTU-4R ｱｳﾄｺﾝﾍﾞｱ(QMQ)
55.MTU-4R Out conveyor(QMQ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
86 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
87 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
88 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
89 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
90 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
91 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
92 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
93 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
94 H5330A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X40L
95 H5328A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X32L
96 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L
97 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
98 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
99 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
101 H5296Z BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X100L
102 H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L
104 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
105 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
106 PQC0230 1 BKT BKT
107 QMQ1250 2 PLATE, SUPPORT ﾌﾟﾚｰﾄ 支え
108 QMQ1240 2 BALL SCREW ﾎﾞｰﾙﾈｼﾞ ･
IP-Ⅲ PARTS LIST ver17
55 - 4
55.MTU-4R ｱｳﾄｺﾝﾍﾞｱ(QMQ)
55.MTU-4R Out conveyor(QMQ)
IP-
III
PARTS LIST ver17
56.MTU-4R キャリア(QMC)
56.MTU-4R Carrier(QMC)
56 - 1

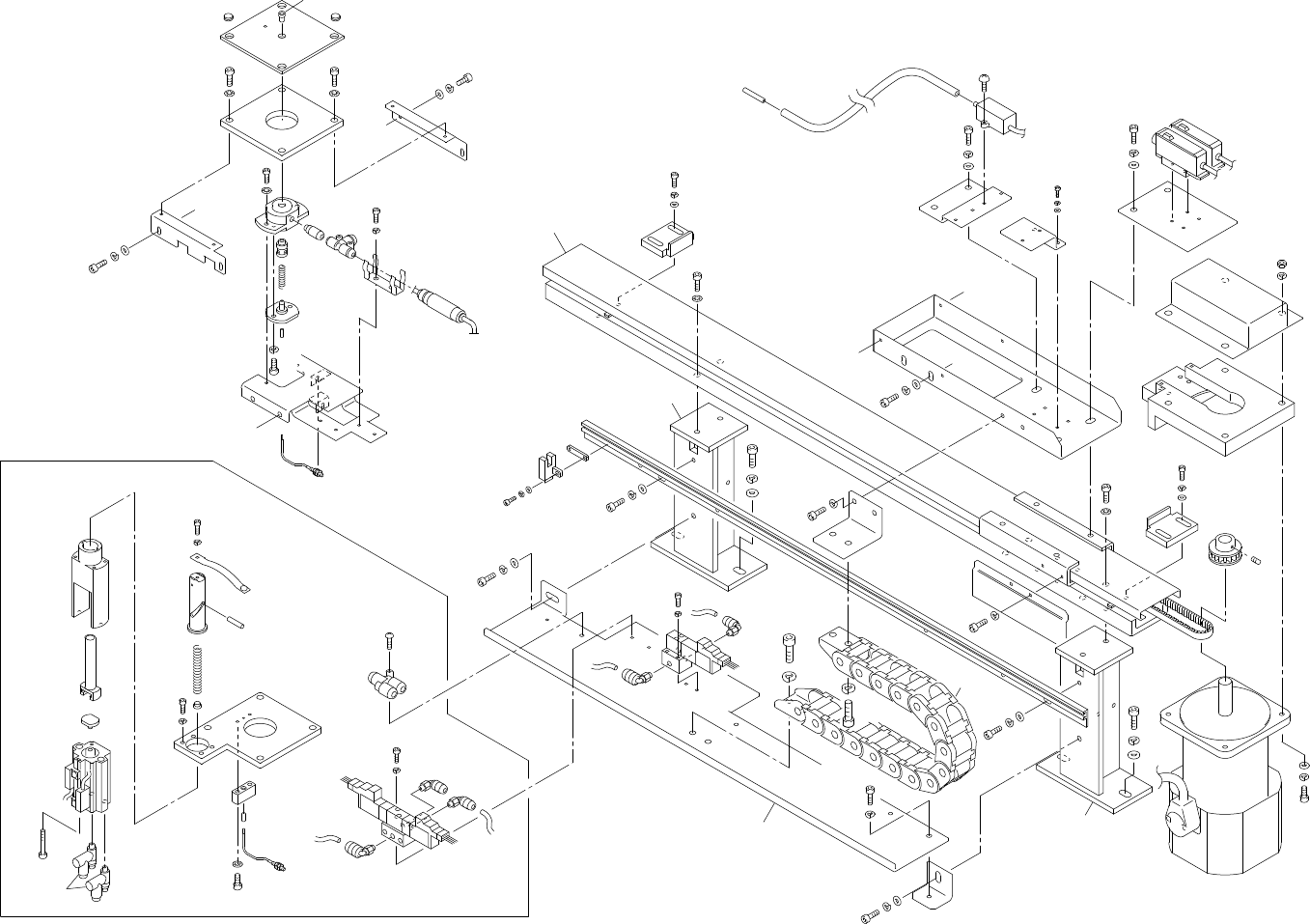

56.MTU-4R キャリア(QMC)
56.MTU-4R Carrier(QMC)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
A
B
C
82
69
73
63
11
71
75
87
10
66
45
73
69
82
12
48
50
9
69
65
40
73
69
82
2
7
64
83
70
74
82
76
8
44
29
71
88
70
84
17
46
73
69
80
78
68
72
16
73
69
81
78
68
72
16
73
69
81
5
53
75
71
86
73
69
81
71
85
49
61
51
60
49
68
79
68
79
41
70
84
39
73
69
81
36
1
83
70
74
8
82
76
18
A
B
C
28
27
88
77
4
6
28
88
77
14
75
71
88
13
75
71
88
87
71
88
71
33
52
47
43
42
34
35
32
31
71
88
3
62
66
59
58
71
85
61
61
49
60
49
77
86
62
15
31
20
88
71
21
25
56
22
19
86
71
24
23
26
54
55
57
x5
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
