64.MTU-4L ﾍｯﾄﾞ(QUH)
64.MTU-4L Head(QUH)
番号 図番 & ｺｰﾄﾞ番号 個数 Description 規格 備考
No. Drg.No. & Code No. QTY 品名 Rating Remarks
39 QMH1940 1 BKT BKT
40 QMH1951 1 HOOK ﾌｯｸ
41 QMH1970 1 PAD ﾊﾟｯﾄ
42 QMH1990 4 O RING O ﾘﾝｸﾞ
43 QMH2000 1 O RING O ﾘﾝｸﾞ
44 QMH1150 2 BKT BKT
45 QMH1190 1 BKT BKT
46 QMH1260 1 DOG ﾄﾞｯｸﾞ
47 IPL1180 1 PAD, VACUUM ﾊﾟｯﾄ ﾊｷｭｰﾑ
48 LQL0220 1 COLLAR ｶﾗｰ
49 H4198A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 6805ZZ
50 H4199H 1 BEARING ﾍﾞｱﾘﾝｸﾞ 6806ZZ
51 . 1 PIN ﾋﾟﾝ 2ﾟX7.8
53 S4044A 3 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX671A
54 H2014A 1 PIN ﾋﾟﾝ IY-G012
57 A4066H 2 ELBOW ｴﾙﾎﾞ KQ2L10-99
58 A4067A 4 ELBOW ｴﾙﾎﾞ M-3ALU-4
59 A4067Z 1 ELBOW ｴﾙﾎﾞ M-5HL-4
60 H3146A 1 PLUG ﾌﾟﾗｸﾞ M-5P
61 A4090A 1 ELBOW, UNIVERSAL ｴﾙﾎﾞ ﾕﾆﾊﾞｰｻﾙ M-5UL
62 A5165A 1 O RING O ﾘﾝｸﾞ S28
63 S1022A 4 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4
64 H1191A 1 PAD ﾊﾟｯﾄ VP4RE
65 N40210 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X8L
66 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
68 N1019H 1 NUT, FINE U ﾅｯﾄ ﾌｧｲﾝU AN04
69 K5256E SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X10L
70 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
71 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
72 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
73 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
74 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
75 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L
76 H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X25L
77 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
78 H5296A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X40L
79 H5290A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L
IP-Ⅲ PARTS LIST ver17
64 - 3
64.MTU-4L ﾍｯﾄﾞ(QUH)
64.MTU-4L Head(QUH)
64.MTU-4L ﾍｯﾄﾞ(QUH)
64.MTU-4L Head(QUH)
番号 図番 & ｺｰﾄﾞ番号 個数 Description 規格 備考
No. Drg.No. & Code No. QTY 品名 Rating Remarks
80 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
81 H5283H BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X40L
82 H5279A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X20L
83 H5263A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X18L
84 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
85 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
86 QMH2040 1 BKT BKT
87 QMH2050 1 RETAINER 押え
88 QMH2060 1 BLOCK 駒
89 Y30865 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2S10-02S
90 Y3082B 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2W10-99
91 S2110S 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQ2D12-30DCM-F7NV
92 AQMH8011 1 NOZZLE ﾉｽﾞﾙ Option (φ4）
93 QMH2090 1 NOZZLE ﾉｽﾞﾙ
94 QMH2100 1 NOZZLE ﾉｽﾞﾙ
95 QMH2110 1 HOLDER ﾎﾙﾀﾞ
97 H1191A 1 PAD ﾊﾟｯﾄ VPARE
98 A5161A 1 O RING O ﾘﾝｸﾞ S9
99 A4067H 1 ELBOW ｴﾙﾎﾞ M-3AU-4
100 . 1 TUBE ﾁｭｰﾌﾞ φ4.0
101 H3145H 2 PLUG ﾌﾟﾗｸﾞ M-3P
102 QMH2130 1 SPRING ｽﾌﾟﾘﾝｸﾞ ･
IP-Ⅲ PARTS LIST ver17
64 - 4
64.MTU-4L ﾍｯﾄﾞ(QUH)
64.MTU-4L Head(QUH)
IP-
III
PARTS LIST ver17

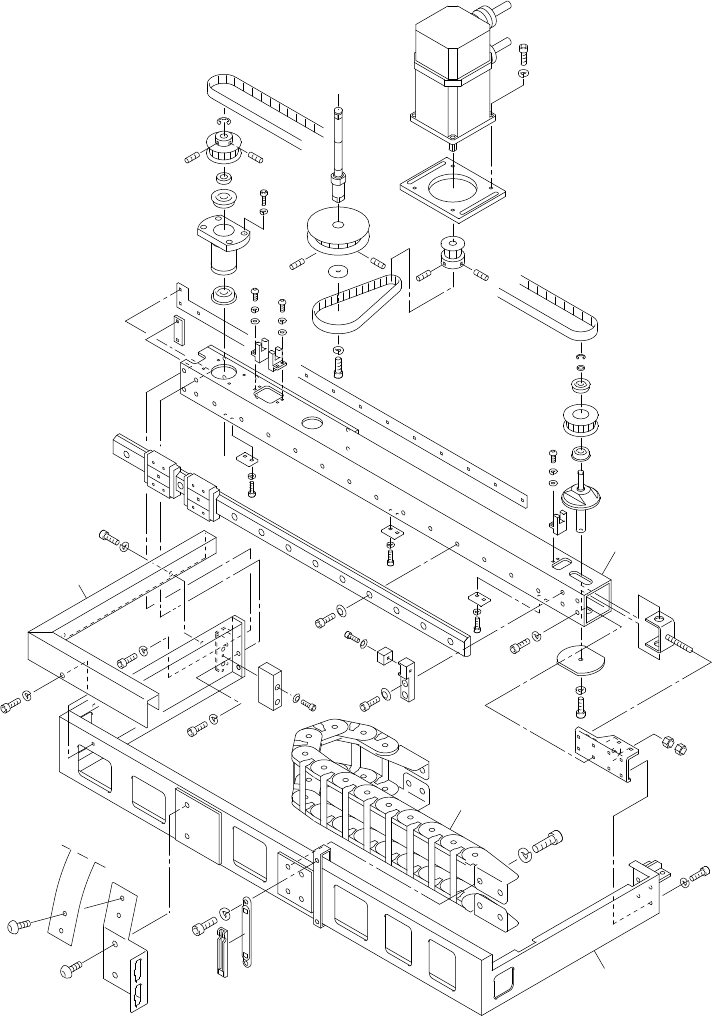

65.MTU-4L サブロボット SX(QUA)
65.MTU-4L Sub robot SX(QUA)
65 - 1
65.MTU-4L サブロボット SX(QUA)
65.MTU-4L Sub robot SX(QUA)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
A
A
52
44
6
26
7
58
4
1
8
58
27
44
52
17
17
36
19
57
2
31
54
45
3
31
15
59
41
45
46
29
35
34
30
10
30
62
41
45
46
29
11
16
63
44
52
44
52
38
5
45
55
5
45
55
5
45
55
12
44
61
47
56
54
48
14
13
47
56
18
48
53
44
52
37
42
49
44
56
20
32
33
43
50
22
40
39
23
44
61
52
44
60
21
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
