PARTS LIST ver17

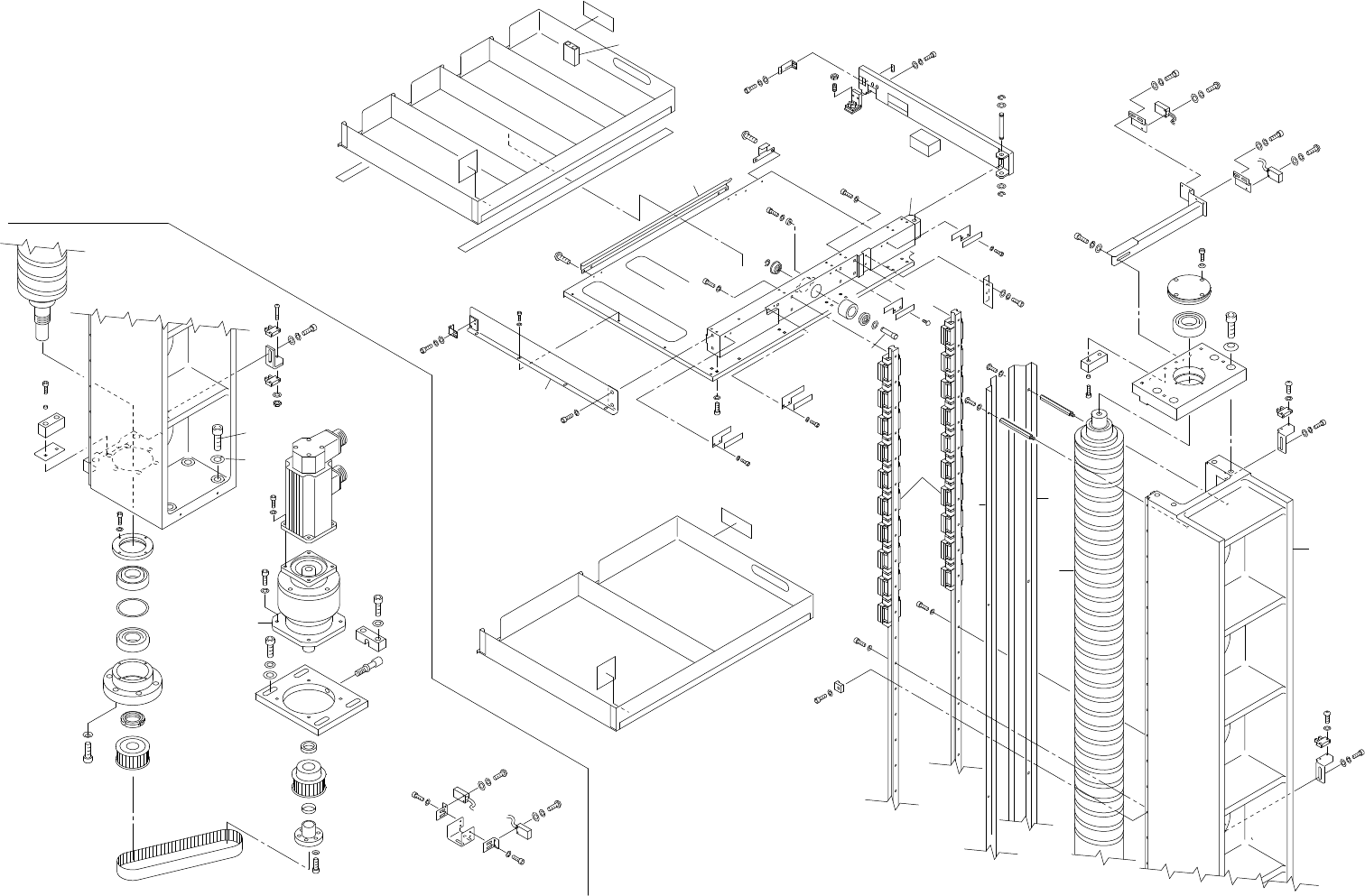

69.MTU-4L トレイユニット(QUT)
69.MTU-4L Tray unit(QUT)
69 - 1
69.MTU-4L トレイユニット(QUT)
69.MTU-4L Tray unit(QUT)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
51
89
84
105
62
85
77
51
89
84
104
62
85
77
15
97
90
39
59
6
92
104
4
111
100
20
76
84
17
84
76
18
19
92
103
92
103
22
84
104
78
62
52
62
85
74
89
84
104
94
80
100
32
23
31
104
84
3
65
8
65
2
7
57
90
97
58
89
84
104
44
66
45
88
85
75
88
85
108
45
66
88
85
75
108
85
88
16
42
69
25
68
85
109
29
70
85
109
37
64
93
110
24
68
79
28
88
85
109
25
68
85
109
36
71
86
30
26
86
71
53
83
101
33
88
85
109
73
61
34
89
84
106
14
79
84
5
106
41
79
64
71
101
83
40
109
85
35
88
85
109
84
105
38
72
72
69
43
56,112
47
46
85
108
46
85
108
66
88
85
75
11
13
67
12
91
99
9
87
81
96
1
10
81
95
60
82
98
82
99
55
84
106
27
113
113
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
69.MTU-4L ﾄﾚｲﾕﾆｯﾄ(QUT)
69.MTU-4L Tray unit(QUT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 IPT0160 1 BOLT ﾎﾞﾙﾄ
2 IPT0211 1 CASE, BEARING ｹｰｽ ﾍﾞｱﾘﾝｸﾞ
3 IPT0220 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
4 IPT0340 1 ABSORBER ｱﾌﾞｿｰﾊﾞ
5 IPT0370 20 RETAINER 押え
6 IPT0510 1 COVER ｶﾊﾞｰ
7 IPT0670 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ
8 IPT0730 1 COLLAR ｶﾗｰ
9 KPT1070 1 PLATE ﾌﾟﾚｰﾄ
10 KPT1171 1 BLOCK ﾌﾞﾛｯｸ
11 KPT1210 1 COLLAR ｶﾗｰ
12 KPT1220 1 RETAINER 押え
13 KPT1240 1 PULLEY ﾌﾟｰﾘ
14 QMT1690 10 STOPPER ｽﾄｯﾊﾟ
15 QMT1820 1 FRAME ﾌﾚｰﾑ
16 QMT1131 1 SHAFT, CAM ｼｬﾌﾄ ｶﾑ
17 QMT1140 1 COVER ｶﾊﾞｰ
18 QMT1150 1 COVER ｶﾊﾞｰ
19 QMT1161 2 GUIDE ｶﾞｲﾄﾞ
20 QMT1170 8 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ
22 QMT1211 25 GUIDE ｶﾞｲﾄﾞ
23 QMT1220 1 ABSORBER ｱﾌﾞｿｰﾊﾞ
24 QMT1300 10 PLATE ﾌﾟﾚｰﾄ
25 QMT1310 20 PLATE ﾌﾟﾚｰﾄ
26 QMT1341 10 DOOR 扉
27 QMT1350 10 HOLDER 受け
28 QMT1390 10 DOG ﾄﾞｯｸﾞ
29 QMT1410 10 PLATE ﾌﾟﾚｰﾄ
30 QMT1500 10 PIN ﾋﾟﾝ
31 QMT1510 1 PLATE ﾌﾟﾚｰﾄ
32 QMT1520 2 COLLAR ｶﾗｰ
33 QMT1552 1 RETAINER 押え
34 QMT1560 1 NUT ﾅｯﾄ
35 QMT1571 10 RETAINER 押え
36 QMT1600 10 ARM ｱｰﾑ
37 QMT1611 10 COLLAR ｶﾗｰ
38 QMT1631 10 STOPPER ｽﾄｯﾊﾟ
IP-Ⅲ PARTS LIST ver17
69 - 2
69.MTU-4L ﾄﾚｲﾕﾆｯﾄ(QUT)
69.MTU-4L Tray unit(QUT)
69.MTU-4L ﾄﾚｲﾕﾆｯﾄ(QUT)
69.MTU-4L Tray unit(QUT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
39 QMT1640 1 PLATE ﾌﾟﾚｰﾄ
40 QMT1670 10 PLATE ﾌﾟﾚｰﾄ
41 QMT1681 10 GUIDE ｶﾞｲﾄﾞ
42 QMT1703 10 TRAY ﾄﾚｲ
43 QMT1713 10 TRAY ﾄﾚｲ
44 QMT1720 1 BKT, SENSOR BKT ｾﾝｻ
45 QMT1730 2 BKT, SENSOR BKT ｾﾝｻ
46 QMT1740 2 BKT, SENSOR BKT ｾﾝｻ
47 QMT1750 1 BKT, SENSOR BKT ｾﾝｻ
51 QMT1180 2 BKT, SW BKT SW
52 QMT1191 1 BKT, SW BKT SW
53 QMT1811 10 STOPPER ｽﾄｯﾊﾟ
55 SAM1210 1 MOTOR ﾓｰﾀ
56 AIPT5030 40 GUIDE ｶﾞｲﾄﾞ
57 H3216A 1 PULLEY ﾌﾟｰﾘ 24PB8M25AF-S424
58 H4500A 1 BELT, TIMING ﾍﾞﾙﾄ ﾀｲﾐﾝｸﾞ 584P8M25
59 H4190A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 6206ZZ
60 K4181A 1 REDUCTION GEAR 減速機 BM4-15B-02NDZAK6
61 H3170T 10 PLUNGER, BALL ﾌﾟﾗﾝｼﾞｬ ﾎﾞｰﾙ BSJ-8
62 S4042A 4 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX670A
64 H4094T 20 BEARING ﾍﾞｱﾘﾝｸﾞ F608ZZ
65 H4137A 2 BEARING ﾍﾞｱﾘﾝｸﾞ HR30206J
66 S3138A 2 SW, PHOTOELECTRIC SW 光電 PZ-51L
67 R2041A 3 RING, LOCKING ﾘﾝｸﾞ 締結 RFN8006 No.22
68 S2036T 30 SEAL ｼｰﾙ S5012
69 S2036Y 20 SEAL ｼｰﾙ S5047
70 S20361 10 SEAL ｼｰﾙ S5009
71 S1024A 30 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-6
72 T4044T TAPE ﾃｰﾌﾟ #130(AS)20mm
73 N1089A NUT, HEX ﾅｯﾄ 六角 M8 P=1.25
74 N1076A NUT, HEX ﾅｯﾄ 六角 M3 P=0.5
75 K5178Z SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X16L
76 K5233A SCREW, ROUND 小ﾈｼﾞ 丸 M4X6L
77 K5225A SCREW, ROUND 小ﾈｼﾞ 丸 M3X8L
78 K5230A SCREW, ROUND 小ﾈｼﾞ 丸 M3X25L
79 K5203A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X6L
80 W1027A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 12M/M
IP-Ⅲ PARTS LIST ver17
69 - 3
69.MTU-4L ﾄﾚｲﾕﾆｯﾄ(QUT)
69.MTU-4L Tray unit(QUT)
