IP- III P ARTS LIST ver17 7 2 . 加圧力制御用ノズル( オプション) ( Q N A ) 7 2 . P r e s s u r e c o n t r o l n o z z l e ( O p t i o n ) ( Q N A ) 7 2 - 1 7 2 . 加圧力制御用ノズル( オプション) ( Q N A ) 7 2 . P r e s s u r e c o n t r o l n o z z …
71.2.MTU-4L ｺﾝﾍﾞｱｶﾊﾞｰ(HELPS)(QUK)
71.2.MTU-4L ConveyorCover(HELPS)(QUK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
2 QUK2020 1 BKT, COVER BKT ｶﾊﾞｰ
3 QUK2090 1 BAR ﾊﾞｰ
4 QUK2041 1 HINGE 蝶番
5 QUK2051 1 BKT, COVER BKT ｶﾊﾞｰ
6 QPK3150 3 HOLDER ｳｹ
7 QPK3160 1 BKT, SW BKT SW
8 IQC6072 6 NUT ﾅｯﾄ
9 CLC4251 2 STOPPER ｽﾄｯﾊﾟ
10 QUK2100 1 BKT BKT
11 QMK2110 1 COVER ｶﾊﾞｰ
12 CLC9600 1 NUT ﾅｯﾄ
13 K4020A 1 CABLE, GROUNDING ｹｰﾌﾞﾙ ｱｰｽ DE9-PL11304
14 T5011S 2
HANDLE
取手
TTHA-00425
15 K5208A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X6L
16 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
17 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
18 W1044A
WASHER, FLAT
ﾜｯｼｬ 平
4W-5
19 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L
20 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X25L
21 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
22 H5209A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X8L
23 AQUK2070 1 COVER, CONVEYOR ｶﾊﾞｰ ｺﾝﾍﾞｱ ･
24 CLC4261 2 NUT, ROUND ﾅｯﾄ ﾏﾙ
25 S2037A SEAL ｼｰﾙ DE9-PL113043
26 S31970 SW, LIMIT SW ﾘﾐｯﾄ XCS-A501
27 S31973 SW, LIMIT SW ﾘﾐｯﾄ XCS-Z03
28 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
29 W1043A
WASHER, FLAT
ﾜｯｼｬ 平 4W-4
30 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10L
31 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X15L
32 H5294A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X30L
33 H5296A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X40L
34 H5210A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X10L
35 IPK5680 1 SEAL ｼｰﾙ Japanese
36 IPK5590 1 SEAL ｼｰﾙ English
37 IPK5600 1 SEAL ｼｰﾙ French
IP-Ⅲ PARTS LIST ver17
71 - 4
71.2.MTU-4L ｺﾝﾍﾞｱｶﾊﾞｰ(HELPS)(QUK)
71.2.MTU-4L ConveyorCover(HELPS)(QUK)
IP-
III
PARTS LIST ver17
72.加圧力制御用ノズル(オプション)(QNA)
72.Pressure control nozzle(Option)(QNA)
72 - 1
72.加圧力制御用ノズル(オプション)(QNA)
72.Pressure control nozzle(Option)(QNA)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
1.AQNA6014
2.AQNA6024
3.AQNA6034
4.AQNA6044
5.AQNA6054
6.AQNA6064
7.AQNA6074
8.AQNA6084
9.AQNA6094
10.AQNA6104
11.AQNA6114
12.AQNA6124
13.AQNA6134
14.AQNA6144
15.AQNA6154
16.AQNA6164
53.AQNA6534
54.AQNA6544
55.AQNA6554
56.AQNA6564
17.AQNA6174
18.AQNA6184
19.AQNA6194
20.AQNA6204
21.AQNA6214
22.AQNA6224
23.AQNA6234
24.AQNA6244
25.AQNA6254
26.AQNA6264
27.AQNA6274
28.AQNA6284
29.AQNA6294
30.AQNA6304
31.AQNA6314
32.AQNA6324
33.AQNA6334
34.AQNA6344
35.AQNA6354
36.AQNA6364
37.AQNA6374
38.AQNA6384
39.AQNA6394
40.AQNA6404
41.AQNA6414
42.AQNA6424
43.AQNA6434
44.AQNA6444
45.AQNA6454
46.AQNA6464
47.AQNA6474
48.AQNA6484
49.AQNA6494
50.AQNA6504
51.AQNA6514
52.AQNA6524
57
58
59
61
60
φ3.75
□31
26
26
φ7.0
□31
□52
26
φ10
□102
φ20
26
□62
26
φ15.0
□52
φ3.75
26
□52
26
φ6.5
□52
φ7.0
26
□62
26
φ10.0
□102
φ15.0
26
□31
16
φ7.0
□52
16
φ10.0
□62
φ15.0
16
□10
2
φ20.0
16
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26

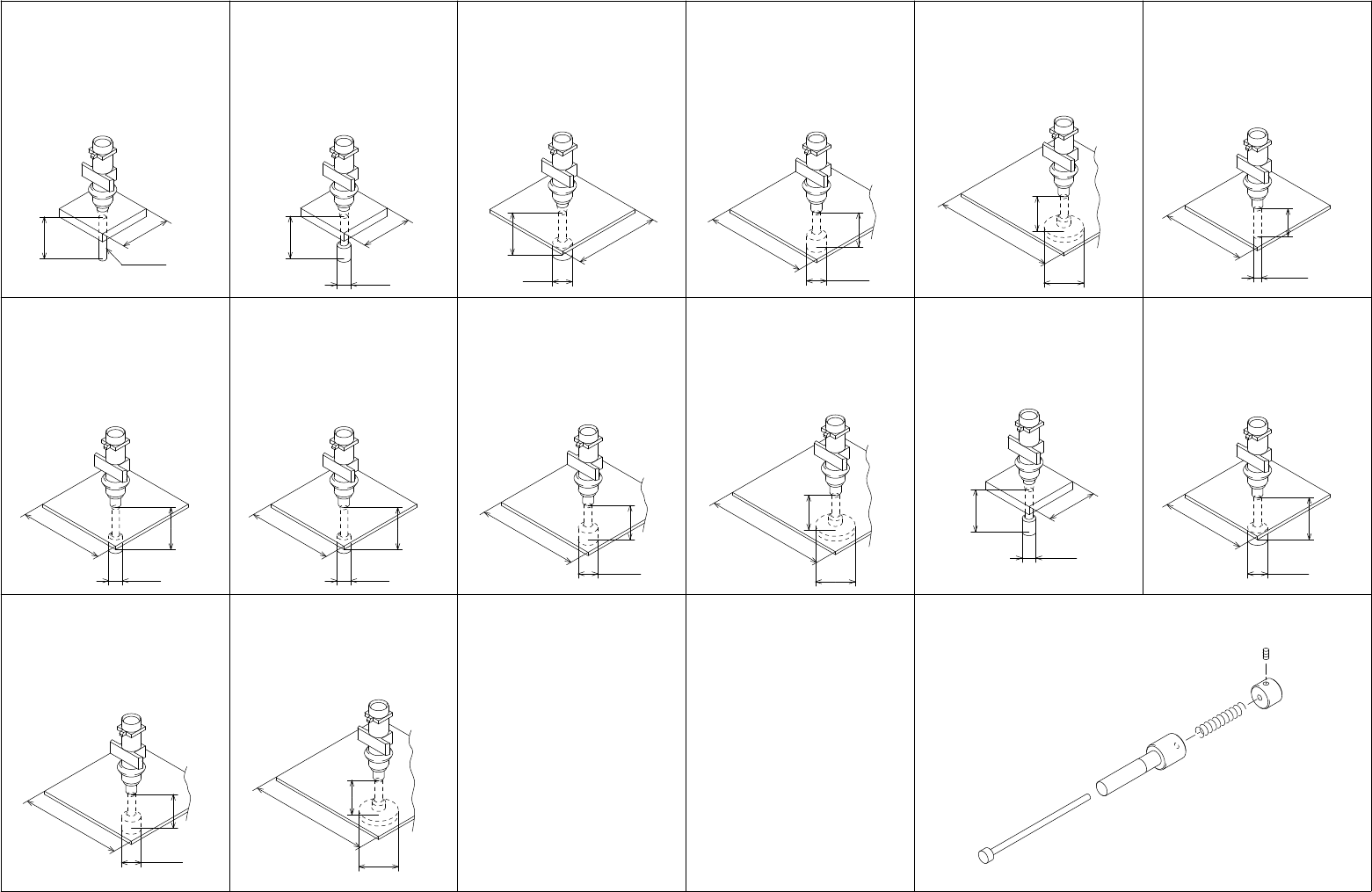

72.加圧力制御用ﾉｽﾞﾙ(ｵﾌﾟｼｮﾝ)(QNA)
72.Pressure control nozzle(Option)(QNA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 AQNA6014 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
2 AQNA6024 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
3 AQNA6034 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
4 AQNA6044 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
5 AQNA6054 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
6 AQNA6064 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
7 AQNA6074 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
8 AQNA6084 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
9 AQNA6094 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
10 AQNA6104 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
11 AQNA6114 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
12 AQNA6124 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
13 AQNA6134 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
14 AQNA6144 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
15 AQNA6154 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
16 AQNA6164 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
17 AQNA6174 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
18 AQNA6184 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
19 AQNA6194 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
20 AQNA6204 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
21 AQNA6214 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
22 AQNA6224 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
23 AQNA6234 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
24 AQNA6244 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
25 AQNA6254 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
26 AQNA6264 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
27 AQNA6274 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
28 AQNA6284 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
29 AQNA6294 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
30 AQNA6304 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
31 AQNA6314 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
32 AQNA6324 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
33 AQNA6334 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
34 AQNA6344 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 205∼337 gf
35 AQNA6354 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 302∼619 gf
36 AQNA6364 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 552∼1165 gf
37 AQNA6374 NOZZLE, ASSY ﾉｽﾞﾙ ASSY 142∼236 gf
IP-Ⅲ PARTS LIST ver17
72 - 2
72.加圧力制御用ﾉｽﾞﾙ(ｵﾌﾟｼｮﾝ)(QNA)
72.Pressure control nozzle(Option)(QNA)
