IP- III P ARTS LIST ver17 7 8 . 1 . M F U ｸ ﾗ ﾝ ﾌ ﾟ ( N o . 1 プレーシングヘッド# 1 2 , 1 3 カメラ取付時) ( オプション) ( Q P B ) 7 8 . 1 . M F U C l a m p ( N o . 1 p l a c i n g h e a d w h e n # 1 2 , 1 3 c a m e r a a r e u s e d ) ( O …

100%1 / 299
77.2.#12,13ｶﾒﾗ 光源(ｵﾌﾟｼｮﾝ)(QCA)
77.2.#12,13 camera light source(Option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QCA2540 2 BKT BKT 注1,Note.1
2 QCA2550 1 BKT BKT 注3,Note.3
3 QCA2610 1 BKT BKT 注2,Note.2
4 QPK2810 1 PLATE ﾌﾟﾚｰﾄ Xno.∼657
5 QPK2830 2 STOPPER ｽﾄｯﾊﾟ
6 QPK2840 2 STOPPER ｽﾄｯﾊﾟ
7 QPK2850 3 STOPPER ｽﾄｯﾊﾟ
8 QPK2860 1 STOPPER ｽﾄｯﾊﾟ
9 A1004L 16 LEG, RUBBER 脚 ｺﾞﾑ TK-18
10 H5463A 1 BOX, POWER SUPPLY BOX 電源 EF41024NCA-02 注3,Note.3
11 R1009T 2
LAMP
ﾗﾝﾌﾟ FCLH80A 注1,Note.1
12 H51185 4 VARIABLE RESISTOR ﾎﾞﾘｭｰﾑ FHF-PS100C-294B 注2,Note.2
13 T41467 2 POWER SUPPLY 電源 HF41024NWC 注4,Note.4
14 H1004A 1
LIGHT EMITTING BODY
発光体            
MHF-100L 注5,Note.5
15 K4018H 1
CABLE
ｹｰﾌﾞﾙ HF8014M-Fu-02
16 K40175 4 CABLE ｹｰﾌﾞﾙ FHF-LH100-SH05
17 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
18 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
19 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
20 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
21 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
22 W1040A
WASHER, FLAT
ﾜｯｼｬ 平         
1W-3
注1.1stﾋﾟﾝﾁｪｯｸ用
Note.1 : Used for first pin check function
注2.♯12,♯13ｶﾒﾗ取付時2個取付
Note.2 : Tow of the parts are necessary for mounting cameras 12 and 13
注3.♯12,♯13ｶﾒﾗ用
Note.3 : For cameras 12 and 13
注4.ﾊﾞｯｸﾗｲﾄ用
Note.4 : For backlight
注5.ﾌﾛﾝﾄﾗｲﾄ用
Note.5 : For frontlight
IP-Ⅲ PARTS LIST ver17
77 - 4
77.2.#12,13ｶﾒﾗ 光源(ｵﾌﾟｼｮﾝ)(QCA)
77.2.#12,13 camera light source(Option)(QCA)
IP-
III
PARTS LIST ver17

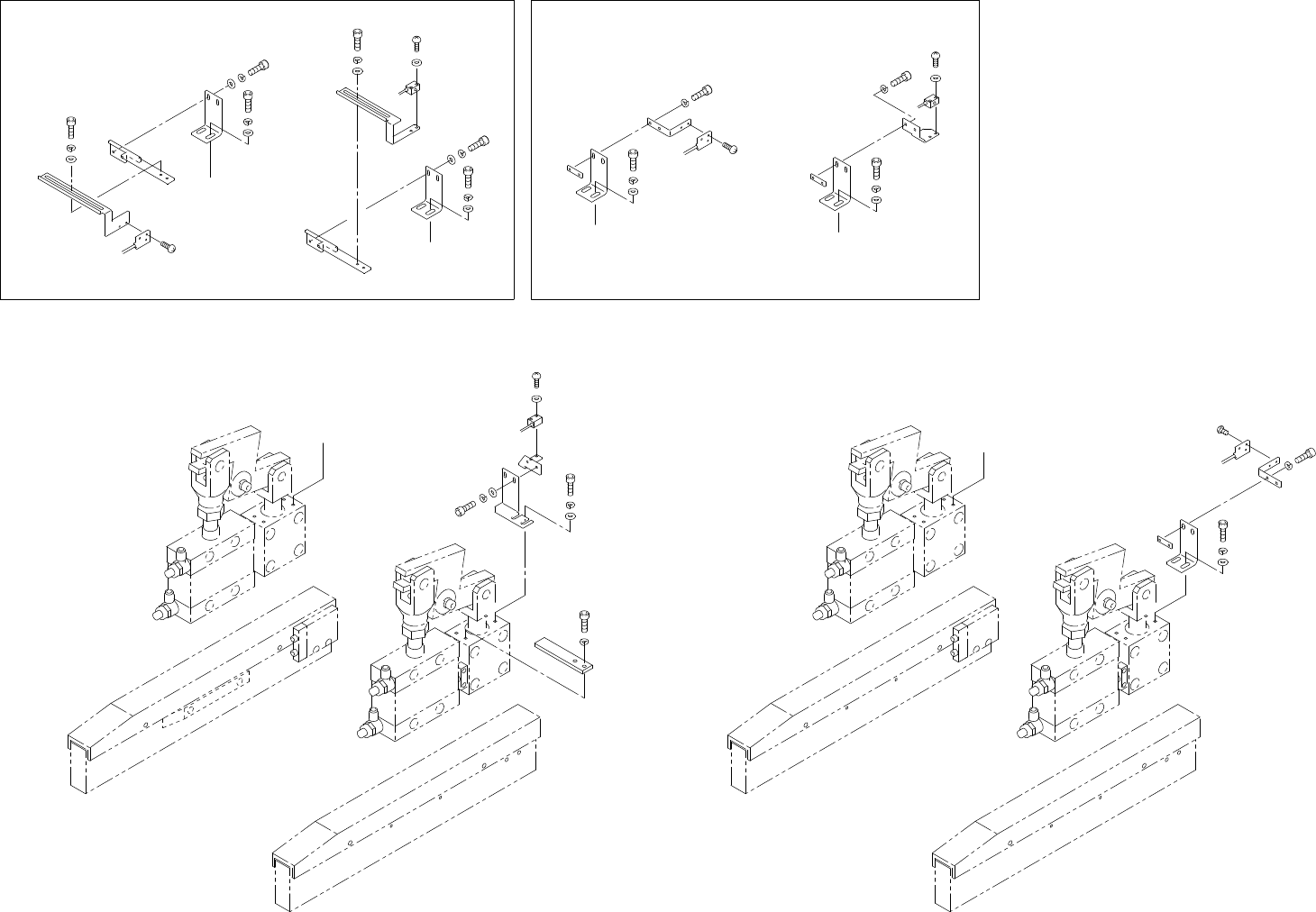

78.1.MFU ｸﾗﾝﾌﾟ(No.1プレーシングヘッド#12,13カメラ取付時)(オプション)(QPB)
78.1.MFU Clamp(No.1 placing head when #12,13 camera are used)(Option)(QPB)
78 - 1
78.1.MFU ｸﾗﾝﾌﾟ(No.1プレーシングヘッド#12,13カメラ取付時)(オプション)(QPB)
78.1.MFU Clamp(No.1 placing head when #12,13 camera are used)(Option)(QPB)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
7
8
10
20
14
12
18
19
5
15
17
22
11
2
20
22
16
12
18
21
15
8
1
20
22
13
19
No.1ステ−ション
Station No.1
No.2ステ−ション
Station No.2
3
20
22
11
22
17
21
15
B
20
13
19
1
A
4
21
B
13
19
6
B
8
22
A
7
8
20
14
9
11
22
17
7
8
10
20
14
12
18
A
NGパ−ツ排出コンベア取付無し
Non used NG parts eject conveyor
NGパ−ツ排出コンベア(M,Lタイプ）
NG parts eject conveyor(M,L type)
13
22
20
16
21
19
13
21
19
13
21
19
13
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
78.1.MFU ｸﾗﾝﾌﾟ(No.1ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ#12,13ｶﾒﾗ取付時)(ｵﾌﾟｼｮﾝ)(QPB)
78.1.MFU clump(No.1 placing head when #12,13 camera are used)(Option)(QPB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QPB0010 2 BKT BKT
2 QPB0020 1 BKT, SENSOR BKT ｾﾝｻ
3 QPB0030 1 BKT, SENSOR BKT ｾﾝｻ
4 QPB0050 1 BKT BKT
5 QPB0060 1 BKT, SENSOR BKT ｾﾝｻ
6 QPB0080 1 GUARD ｶﾞｰﾄﾞ
7 PPB1521 3 PLATE, FIXED ﾌﾟﾚｰﾄ 固定
8 PPB1530 5 BKT, SENSOR BKT ｾﾝｻ
9 PPB1561 1 BKT, SENSOR BKT ｾﾝｻ
10 PPB1571 2 BKT, SENSOR BKT ｾﾝｻ
11 S3131T 3 SW, PHOTOELECTRIC SW 光電 PS-55T
12 S3132H 3 SW, PHOTOELECTRIC SW 光電 PS-56R
13 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
14 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
15 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
16 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
17 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L
18 K5175R SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2X4L
19 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
20 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
21 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
22 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
IP-Ⅲ PARTS LIST ver17
78 - 2
78.1.MFU ｸﾗﾝﾌﾟ(No.1ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ#12,13ｶﾒﾗ取付時)
(ｵﾌﾟｼｮﾝ)(QPB)
78.1.MFU clump(No.1 placing head when #12,13 camera are used)
(Option)(QPB)
