79.1.MFU ﾃｰﾌﾟｶﾞｲﾄﾞ (#12,13ｶﾒﾗ取付時)(ｵﾌﾟｼｮﾝ)(QPD)
79.1.MFU Tape guide(When #12,13 camera are used)(Option)(QPD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QPD0100 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
2 QPD0110 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
3 QPD0120 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
4 QPD0130 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
5 QPD0140 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
6 QPD0150 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
7 QPD0160 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
8 QPD0210 BLOCK ﾌﾞﾛｯｸ
IP-Ⅲ PARTS LIST ver17
79 - 2
79.1.MFU ﾃｰﾌﾟｶﾞｲﾄﾞ (#12,13ｶﾒﾗ取付時)(ｵﾌﾟｼｮﾝ)(QPD)
79.1.MFU Tape guide(When #12,13 camera are used)(Option)(QPD)
IP-
III
PARTS LIST ver17
79.2.MFU テープガイド(#12,13カメラ取付時)(オプション)(QPD)
79.2.MFU Tape guide(When #12,13 camera are used)(Option)(QPD)
79 - 3
79.2.MFU テープガイド(#12,13カメラ取付時)(オプション)(QPD)
79.2.MFU Tape guide(When #12,13 camera are used)(Option)(QPD)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
104
2
1
36
5
10
3
2
1
8
7
4
9
9 9 99
99 99
99 9

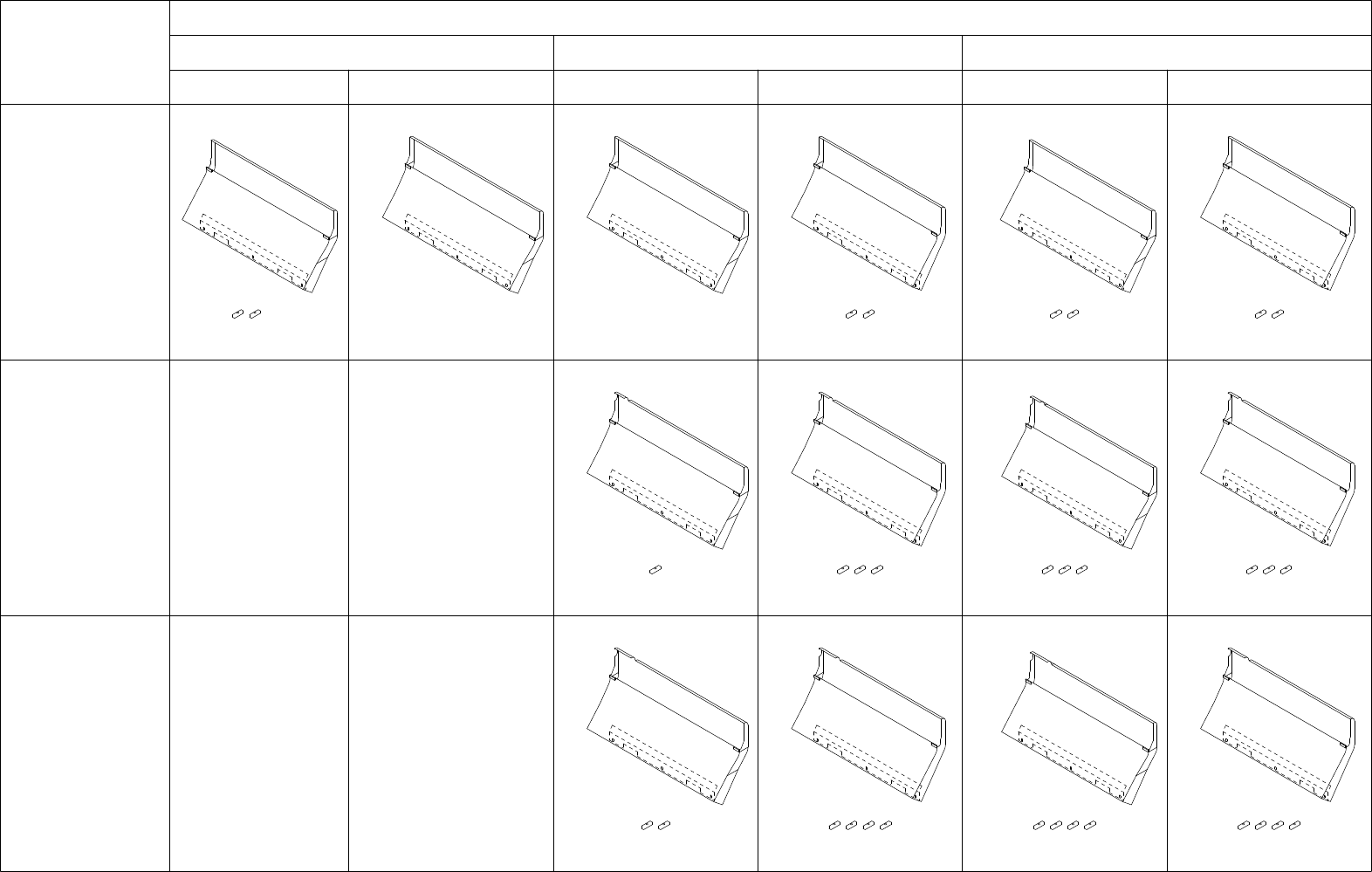

MFU左右入れ替えなし
When the MFU position is fixed
NGパ−ツ排出コンベア
Lタイプ
NG parts eject conveyor
L type
NGパ−ツ排出
コンベア無し
Non used NG parts
eject conveyor
NGパ−ツ排出コンベア
Mタイプ
NG parts eject conveyor
M type
No.1,2プレ−シングヘッド #12,13カメラ取付時
No.1,2 placing head when #12,13 camera are used
No.2ｽﾃ-ｼｮﾝ
Station No.2
No.1ｽﾃ-ｼｮﾝ
Station No.1
No.2プレ−シングヘッド #12,13カメラ取付時
No.2 placing head when #12,13 camera are used
No.1プレ−シングヘッド #12,13カメラ取付時
No.1 placing head when #12,13 camera are used
No.2ｽﾃ-ｼｮﾝ
Station No.2
No.1ｽﾃ-ｼｮﾝ
Station No.1
No.2ｽﾃ-ｼｮﾝ
Station No.2
No.1ｽﾃ-ｼｮﾝ
Station No.1
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
79.2.MFU ﾃｰﾌﾟｶﾞｲﾄﾞ (#12,13ｶﾒﾗ取付時)(ｵﾌﾟｼｮﾝ)(QPD)
79.2.MFU Tape guide(When #12,13 camera are used)(Option)(QPD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QPD0100 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
2 QPD0110 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
3 QPD0120 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
4 QPD0130 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
5 QPD0170 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
6 QPD0180 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
7 QPD0190 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
8 QPD0200 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
9 QPD0210 BLOCK ﾌﾞﾛｯｸ
10 KPD3101 GUIDE TAPE ｶﾞｲﾄﾞ ﾃｰﾌﾟ
IP-Ⅲ PARTS LIST ver17
79 - 4
79.2.MFU ﾃｰﾌﾟｶﾞｲﾄﾞ (#12,13ｶﾒﾗ取付時)(ｵﾌﾟｼｮﾝ)(QPD)
79.2.MFU Tape guide(When #12,13 camera are used)(Option)(QPD)
