9.Y軸ﾃｰﾌﾞﾙ 1(QPT) 9.Y axis table 1(QPT) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 1 NPA0190 2 COLLAR ｶﾗｰ 2 NPT1060 10 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え 3 NPT1070 4 PLATE, RETAINING ﾌ…
IP-
III
PARTS LIST ver17

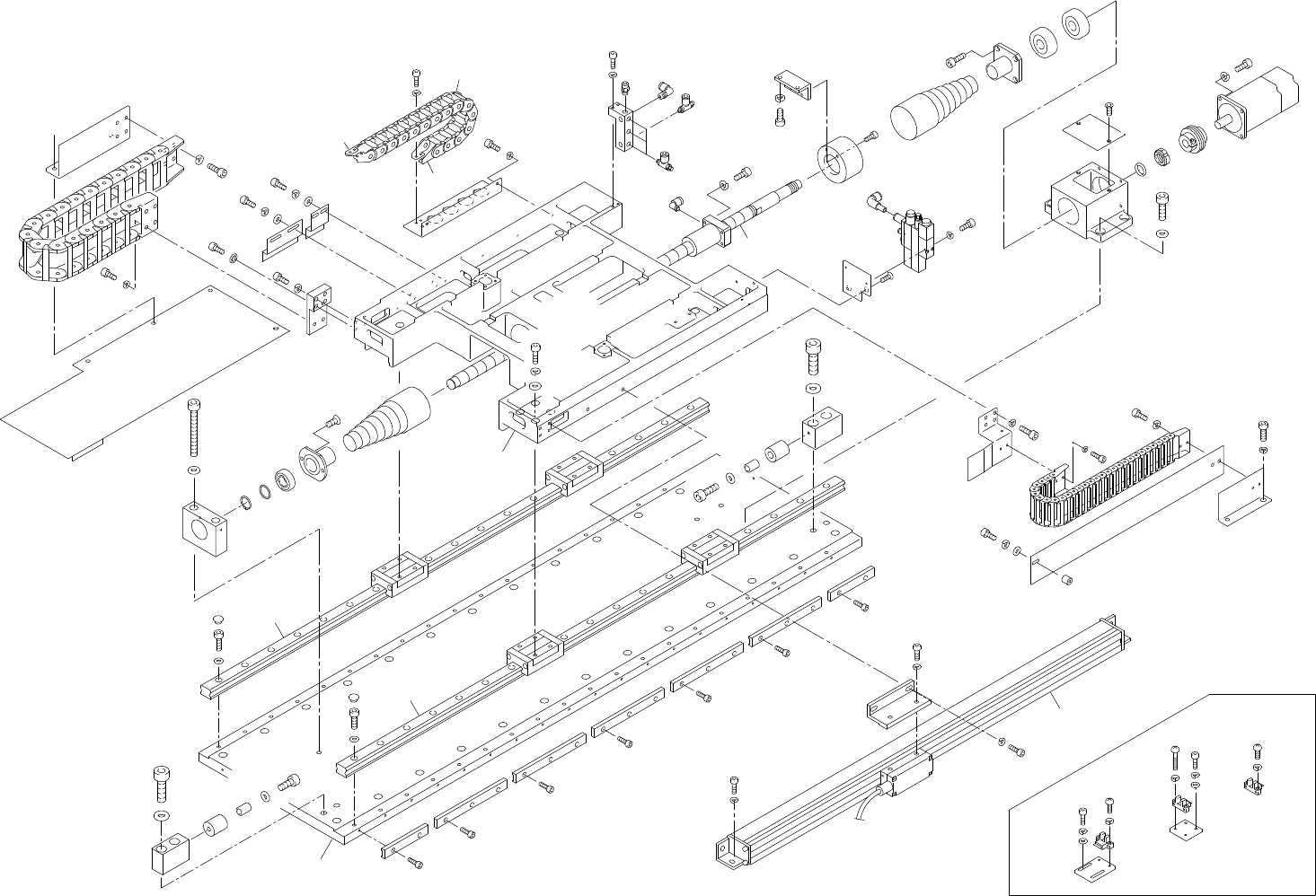

9.Y軸テーブル 1(QPT)
9.Y axis table 1(QPT)
9 - 1
9.Y軸テーブル 1(QPT)
9.Y axis table 1(QPT)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
80
62
20
95
68
64
87
94
55
64
89
64
89
13
63
86
9
60
90
65
56
47
76
71
60
11
29
57
6
63
84
38
40
24
85
39
27
89
28
63
84
92
63
82
21
53
53
52
51
12
64
87
64
88
64
89
50
37
16
68
64
88
15
68
64
88
62
77
30
72
80
5
66
62
78
22
48
49
59
65
44
91
65
69
34
44
65
58
59
65
44
35
69
65
91
62
79
42
62
80
17
88
3
88
3
88
2
88
2
88
2
88
2
88
2
7
74
70
10
14
1
67
83
72
77
43
4
43
77
72
4
83
67
1
14
74
70
10
23
54
26
41
25
39
61
71
75
93
62
81
81
62
32
31
62
80
88
62
x8.1
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
9.Y軸ﾃｰﾌﾞﾙ 1(QPT)
9.Y axis table 1(QPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 NPA0190 2 COLLAR ｶﾗｰ
2 NPT1060 10 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
3 NPT1070 4 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
4 PPT0111 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
5 PPT0123 1 SLIDE, Y-AXIS ｽﾗｲﾄﾞ Y軸
6 PPT0130 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ
7 PPT0143 1 BASE ﾍﾞｰｽ
9 PPT0220 1 PLATE ﾌﾟﾚｰﾄ
10 PPT0372 2 STOPPER ｽﾄｯﾊﾟ
11 PPT0390 1 COVER ｶﾊﾞｰ
12 PPT0402 1 TERMINAL ﾀｰﾐﾅﾙ
13 PPT0533 1 BKT BKT
14 PPT0660 2 DAMPER ﾀﾞﾝﾊﾟ
15 PPT0730 1 DOG ﾄﾞｯｸﾞ
16 PPT0740 1 DOG ﾄﾞｯｸﾞ
17 PPT0873 1 BKT BKT
20 PPT0961 1 BKT BKT
21 PPT0991 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
22 PPT1001 1 BKT, MOTOR BKT ﾓｰﾀ
23 PPT1022 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ
24 PPT1030 1 COVER, BEARING 蓋 ﾍﾞｱﾘﾝｸﾞ
25 PPT1040 1 HOLDER ﾎﾙﾀﾞ
26 PPT1060 1 COLLAR, BEARING ｶﾗｰ ﾍﾞｱﾘﾝｸﾞ
27 PPT1071 1 HOLDER ﾎﾙﾀﾞ
28 PPT1080 1 BKT, RETAINER BKT 押え
29 PPT1371 1 COLLAR ｶﾗｰ
30 PPT1700 1 BKT BKT
31 PPT1710 1 BKT BKT
32 PPT1720 1 FLEXIBLE ｹｰﾌﾞﾙﾍﾞｱ
34 PPT0721 1 SPACER ｽﾍﾟｰｻ
35 PPT0710 1 PLATE, SW ﾌﾟﾚｰﾄ SW
37 QPT1810 1 BKT BKT
38 SAM1310 1 MOTOR ﾓｰﾀ
39 K1071A 2 COVER, SCREW ｶﾊﾞｰ ｽｸﾘｭｳ 030-0750-050
40 H4157T 2 BEARING ﾍﾞｱﾘﾝｸﾞ 17TAC47B-DBC8PN7A
41 H4181A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 6003ZZ
42 S3016T 1 SCALE, LINEAR ｽｹｰﾙ ﾘﾆｱ AT2-N650 2.5Micro M
IP-Ⅲ PARTS LIST ver17
9 - 2
9.Y軸ﾃｰﾌﾞﾙ 1(QPT)
9.Y axis table 1(QPT)
9.Y軸ﾃｰﾌﾞﾙ 1(QPT)
9.Y axis table 1(QPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
43 K2009H 38 CAP ｷｬｯﾌﾟ C06
44 S4044A 3 SENSOR, PH0T0 ｾﾝｻ ﾌｫﾄ EE-SX671A
47 A4033A 1 ELBOW ｴﾙﾎﾞ GPL-61
48 K1050A 1 FIXTURE 金具 HPU2-FA0S
49 K1053A 1 FIXTURE 金具 HPU2-MAOS(Movable)
50 K4162C 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ HPU203-R3014Link MA,FAO
51 Y3084T 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H08-01S
52 Y3049T 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL06-01S
53 K5326Z 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ M6R-01-I
54 S1036A 1 CIR-CLIP, C-TYPE ｻｰｸﾘｯﾌﾟ C形 STW17
55 K4148T 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ TKP0180-2B-R2828Link IA.KA
56 H1006T 1 GENERATOR, VACUUM 発生器 真空 VDBL12P8-06SA
57 N1025T 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ ZM017
58 . SCREW, C/R RAN 小ﾈｼﾞ 十穴鍋 M3X15L
59 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L
60 K5359E
SCREW,HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M4X8L
61 K5361T
SCREW,HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M5X12L
62 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
63 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
64 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
65 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
66 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
67 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
68 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
69 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
70 W1015A WASHER, CONICAL ﾜｯｼｬ 皿 M-10-H
71 W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H
72 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
74 H5365A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X50L
75 H5350A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X70L
76 H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L
77 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L
78 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L
79 H5323A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X18L
80 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
81 H5320A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X10L
82 H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X25L
IP-Ⅲ PARTS LIST ver17
9 - 3
9.Y軸ﾃｰﾌﾞﾙ 1(QPT)
9.Y axis table 1(QPT)
