10.1.Y軸ﾃｰﾌﾞﾙ 2(QPT)
10.1.Y axis table 2(QPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 APPT8010 4 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ (15 Vacuum Pin)
2 APPT8020 3 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ (Regular Pin)
3 APPT8030 3 PIN, BACKUP ﾋﾟﾝ ﾊﾞｯｸｱｯﾌﾟ (Regular Pin)
7 PPT0310 1 DOG ﾄﾞｯｸﾞ
12 PPT0482 4 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ
13 PPT0490 2 BLOCK ﾌﾞﾛｯｸ
14 PPT0500 2 BLOCK ﾌﾞﾛｯｸ
21 PPT0640 2 GUIDE ｶﾞｲﾄﾞ
22 PPT0700 4 BKT BKT
23 PPT0900 3 PLATE ﾌﾟﾚｰﾄ
24 PPT0910 3 PIN ﾋﾟﾝ
25 PPT0980 12 BOLT ﾎﾞﾙﾄ
26 PPT1170 3 PIN, BACKUP ﾋﾟﾝ ﾊﾟｯｸｱｯﾌﾟ
27 PPT1180 6 HOLDER ﾎﾙﾀﾞ
28 PPT1470 1 TERMINAL ﾀｰﾐﾅﾙ
29 PPT1481 2 PLATE ﾌﾟﾚｰﾄ
30 PPT1490 208 PLUG ﾌﾟﾗｸﾞ
31 PPT1562 1 PLATE, VACUUM ﾌﾟﾚｰﾄ ﾊﾞｷｭｰﾑ
32 PPT1571 1 PLATE ﾌﾟﾚｰﾄ
33 PPT1581 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ
34 PPT1591 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ
36 PPT1630 3 PLATE ﾌﾟﾚｰﾄ
38 IPB5391 4 KEY ｷｰ
47 Y3084T 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H08-01S
48 A5132A 6 O RING O ﾘﾝｸﾞ S10
49 A5161T 6 O RING O ﾘﾝｸﾞ S15
53 T2064A 320 TUBE ﾁｭｰﾌﾞ TU0805B
55 H1189A 3 PAD ﾊﾟｯﾄ VP-15RS
58 K5357M 14
SCREW,HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M3X6L
60 N1085A 4 NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
62 N1082A 4 NUT, HEX ﾅｯﾄ 六角 M5 P=0.8
65 W1022A 16 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
66 W1021A 46 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
67 W1043A 8 WASHER, FLAT ﾜｯｼｬ 平 4W-4
69 W1012A 8 WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
70 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
73 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
IP-Ⅲ PARTS LIST ver17
10 - 2
10.1.Y軸ﾃｰﾌﾞﾙ 2(QPT)
10.1.Y axis table 2(QPT)
10.1.Y軸ﾃｰﾌﾞﾙ 2(QPT)
10.1.Y axis table 2(QPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
74 H5292A 5 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X20L
75 H5290A 8 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X15L
77 H5288A 8 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
78 H5287A 18 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
80 H5275A 46 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L ･
IP-Ⅲ PARTS LIST ver17
10 - 3
10.1.Y軸ﾃｰﾌﾞﾙ 2(QPT)
10.1.Y axis table 2(QPT)
IP-
III
PARTS LIST ver17

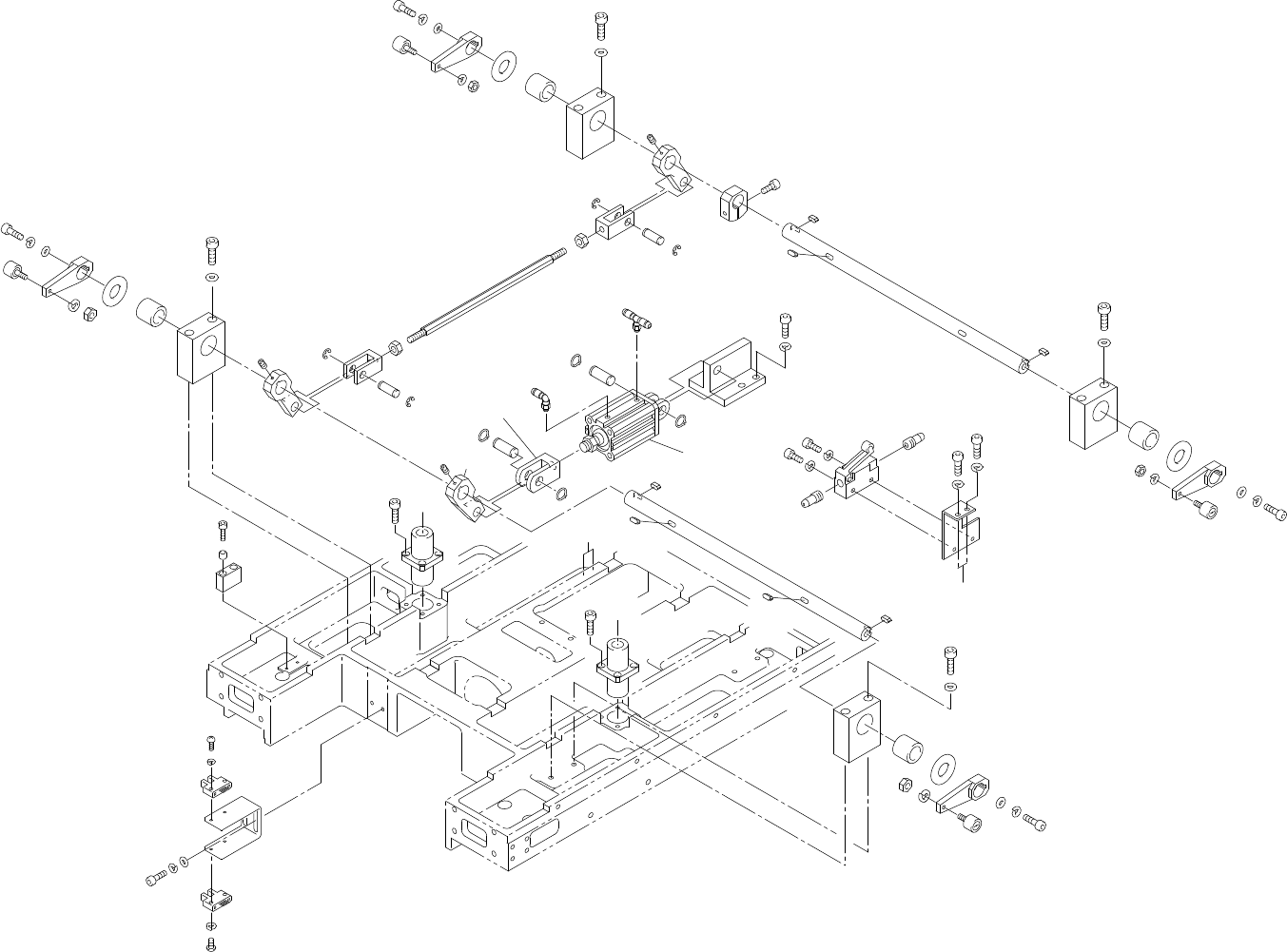

10.2.Y軸テーブル 2(QPT)
10.2.Y axis table 2(QPT)
10 - 4
10.2.Y軸テーブル 2(QPT)
10.2.Y axis table 2(QPT)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
B
A
C
C
71
64
43
35
68
52
40
65
63
20
69
72
39
39
9
39
74
16
19
59
6
51
51
4
61
18
20
69
72
52
68
35
43
64
71
65
63
40
60
5
51
6
51
19
59
20
69
72
52
68
35
43
64
71
65
63
40
59
15
56
44
46
41
71
64
8
17
65
78
45
45
65
74
72
69
39
39
9
78
50
39
39
78
50
20
52
68
35
43
64
71
63
65
40
42
66
57
42
66
57
67
65
76
37
79
10
11
54
x9
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
