12.ﾋﾟﾝ基準ﾕﾆｯﾄ(ｵﾌﾟｼｮﾝ)(QPQ) 12.Reference pin unit(Option)(QPQ) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 40 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M 41 W1023A WASHER, LOCK ﾜｯｼｬ ｽ…
12.ﾋﾟﾝ基準ﾕﾆｯﾄ(ｵﾌﾟｼｮﾝ)(QPQ)
12.Reference pin unit(Option)(QPQ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QPQ0240 1 BKT, BASE BKT ﾍﾞｰｽ
2 PPQ0022 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準
3 PPQ0031 1 SLIDER ｽﾗｲﾀﾞ
4 PPQ0041 1 SLIDER ｽﾗｲﾀﾞ
5 PPQ0050 2 PLATE, ADJUSTING ﾌﾟﾚｰﾄ 調整
6 PPQ0061 1 GUIDE ｶﾞｲﾄﾞ
7 PPQ0071 1 GUIDE ｶﾞｲﾄﾞ
8 PPQ0081 2 PLATE, GUIDE ﾌﾟﾚｰﾄ ｶﾞｲﾄﾞ
9 PPQ0091 1 PIN, DIAMOND-SHAPED ﾋﾟﾝﾀﾞｲﾔ(選択部品) (φ4) (Specified parts selection)
10 PPQ0100 1 PIN, REFERENCE ﾋﾟﾝ基準(選択部品) (φ4) (Specified parts selection)
11 PPQ0111 1 PIN, DIAMOND-SHAPED ﾋﾟﾝﾀﾞｲﾔ(選択部品) (φ3) (Specified parts selection)
12 PPQ0120 1 PIN, REFERENCE ﾋﾟﾝ基準(選択部品) (φ3) (Specified parts selection)
13 PPQ0230 2 COLLAR ｶﾗｰ
14 PPQ0142 2 PLATE ﾌﾟﾚｰﾄ
15 PPQ0150 1 PLATE, SW ﾌﾟﾚｰﾄ SW
16 PPQ0160 1 BKT, SW BKT SW
17 PPQ0190 2 SPRING ｽﾌﾟﾘﾝｸﾞ
18 PPQ0200 2 CLAMPER ｸﾗﾝﾊﾟ
19 PPQ0210 1 BKT BKT
20 PPQ2010 1 PIN ,REFERENCE ﾋﾟﾝ基準(選択部品) (φ2.4) Note.1 (Specified parts selection)
21 PPQ2101 1 PIN, DIAMOND-SHAPED ﾋﾟﾝﾀﾞｲﾔ(選択部品) (φ2.4) Note.2 (Specified parts selection)
23 NPB0130 2 PIN ﾋﾟﾝ
24 NPB0250 2 SPRING ｽﾌﾟﾘﾝｸﾞ
25 H1066H 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL A040-4E1-25-75-PSL-DC24V
27 Y3049G 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KJL04-M5(ｼﾛ)
28 Y3079N 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5
29 Y30742 4 CONNECTOR ﾕﾆｵﾝ KQ2U04-00
30 K5077A 4 CONNECTOR ｺﾈｸﾀ M-5J
31 K5325A 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ M4R-M5-O
32 H2025A 2 PIN, SNAP ﾋﾟﾝ ｽﾅｯﾌﾟ SSP-5
33 S1022A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4
34 S4032G 1 SENSOR ｾﾝｻ UM-TL50S
35 S4032M 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ UM-TR50TV1
36 N4041A 2 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M5X15L
37 N1082A 2 NUT, HEX ﾅｯﾄ 六角 M5P=0.8
38 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L
39 K5175X SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M2X8L
IP-Ⅲ PARTS LIST ver17
12 - 2
12.ﾋﾟﾝ基準ﾕﾆｯﾄ(ｵﾌﾟｼｮﾝ)(QPQ)
12.Reference pin unit(Option)(QPQ)
12.ﾋﾟﾝ基準ﾕﾆｯﾄ(ｵﾌﾟｼｮﾝ)(QPQ)
12.Reference pin unit(Option)(QPQ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
40 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
41 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
42 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
43 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
44 W1020A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2M/M
45 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
46 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
47 W1040A 2 WASHER, FLAT ﾜｯｼｬ 平 1W-3 (t=1)
48 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
49 H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L
50 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L
51 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
52 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
53 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
54 . BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X58L
55 H5279A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X20L
56 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L
57 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
58 S21271 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ JDAS12X35-CS4HB1-1311W
Note.1 PPQ2030(φ2.5),PPQ2030(φ3.15),PPQ2040(φ3.2),PPQ2050(φ3.4),PPQ2060(φ3.45),PPQ2070(φ3.5),PPQ2080(φ3.9),PPQ2090(φ3.95)
Note.2 PPQ2111(φ2.5),PPQ2121(φ3.15,)PPQ2131(φ3.2,)PPQ2141(φ3.4),PPQ2151(φ3.45),PPQ2161(φ3.5),PPQ2171(φ3.9),PPQ2181(φ3.95)
･
IP-Ⅲ PARTS LIST ver17
12 - 3
12.ﾋﾟﾝ基準ﾕﾆｯﾄ(ｵﾌﾟｼｮﾝ)(QPQ)
12.Reference pin unit(Option)(QPQ)
IP-
III
PARTS LIST ver17

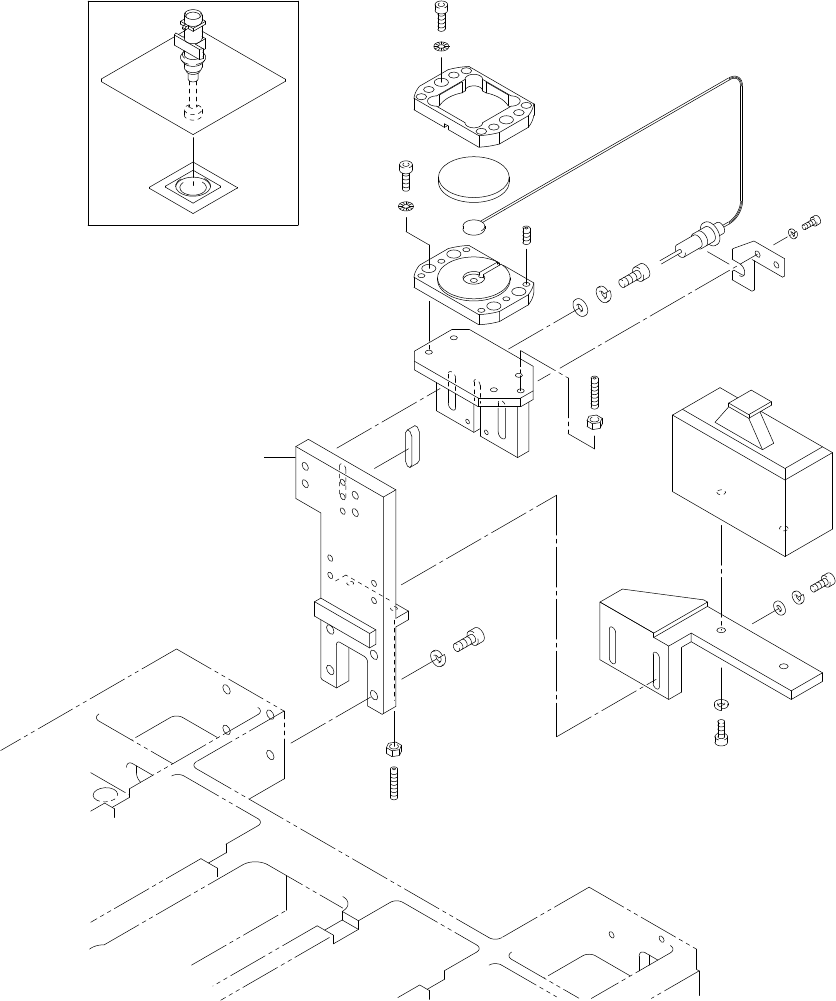

13.コプラナリティーチェック,加圧力制御(オプション)(QPT)
13.Coplanarity check,Pressure control(Option)(QPT)
13 - 1
13.コプラナリティーチェック,加圧力制御(オプション)(QPT)
13.Coplanarity check,Pressure control(Option)(QPT)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
27
22
4
27
22
11
10
5
15
6
14
16
20
17
24
12
9
19
28
7
13
2
8
21
18
25
18
26
16
29
17
24
1
3
x9
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
