IP- III P ARTS LIST ver17 1 7 . イメージセンサカメラ N o . 2 ( 大視野用) ( 4 8 0 0 2 0 M H z ) ( オプション) ( Q C A ) 1 7 . I m a g e s e n s o r c a m e r a N o . 2 ( F o r w i d e v i e w ) ( 4 8 0 0 2 0 M H z ) ( O p t i o n ) ( Q C A …

100%1 / 299
16.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(小視野用)(ｵﾌﾟｼｮﾝ)(QCA)
16.Image sensor camera No.1(For narrow view)(Option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
41 W1044A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-5
42 W1043A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-4
43 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H
44 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
45 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X20L
46 H5182A BOLT, HEX ﾎﾞﾙﾄ 六角 M6X15L
47 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X12L
48 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X18L
49 H5176A BOLT, HEX ﾎﾞﾙﾄ 六角 M5X12L
50 H5294A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X30L
51 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X20L
52 H5291A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X18L
53 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
54 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L
55 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
56 H5279A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X20L
57 H5275A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
58 H5274A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
59 K1128N 1 CAMERA, IMAGE SENSOR ｶﾒﾗ ｲﾒｰｼﾞｾﾝｻ YD2048N(50MM F2-8ｼｸﾞﾏ)
60 K5208A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ        M4X6L
61 PCA0291 1 COVER ｶﾊﾞｰ ･
62 H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X25L
63 H5175A BOLT, HEX ﾎﾞﾙﾄ 六角 M5X10L
64 H5204A SCREW, TRUS 小ﾈｼﾞ ﾄﾗｽ M3X8L
IP-Ⅲ PARTS LIST ver17
16 - 3
16.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.1(小視野用)(ｵﾌﾟｼｮﾝ)(QCA)
16.Image sensor camera No.1(For narrow view)(Option)(QCA)
IP-
III
PARTS LIST ver17

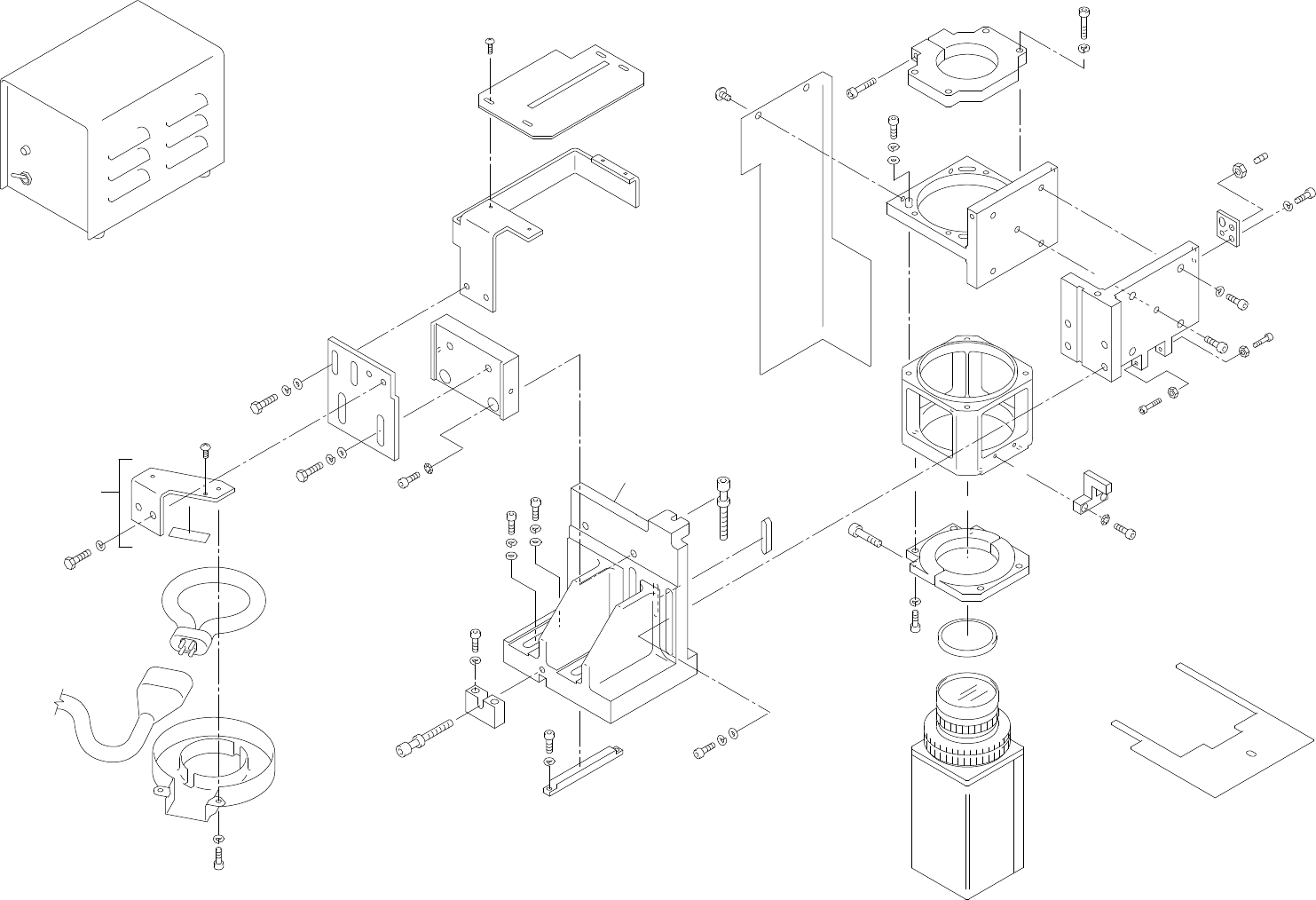

17.イメージセンサカメラ No.2(大視野用)(4800 20MHz)(オプション)(QCA)
17.Image sensor camera No.2(For wide view)(4800 20MHz)(Option)(QCA)
17 - 1
17.イメージセンサカメラ No.2(大視野用)(4800 20MHz)(オプション)(QCA)
17.Image sensor camera No.2(For wide view)(4800 20MHz)(Option)(QCA)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
54
38
13
52
53
38
42
12
4
34
33
5
38
56
37
48
35
57
35
57
31
16
14
44
58
15
51
17
37
55
20
19
60
7
10
11
36
45
2
45
36
11
1
7
58
39
9
6
43
47
40
36
46
27
41
37
49
28
29
62
21
25
26
23
37
50
39
59
32
30
22
24
3
x9
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
8
37
61
17.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.2(大視野用)(ｵﾌﾟｼｮﾝ)(QCA)
17.Image sensor camera No.2(For wide view)(Option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 Description 規格 備考
No. Drg.No. & Code No. QTY 品名 Rating Remarks
1 PCA0480 1 BLOCK ﾌﾞﾛｯｸ
2 QCA1022 1 BKT BKT
3 QCA1041 1 BKT BKT
4 QCA1071 1 BKT BKT
5 QCA1110 1 PLATE ﾌﾟﾚｰﾄ
6 QCA1121 1 PLATE ﾌﾟﾚｰﾄ
7 ICA0082 2 BOLT ﾎﾞﾙﾄ
8 ICA0110 1 BOLT ﾎﾞﾙﾄ
9 KCA0110 1 KEY ｷｰ
10 JRG0391 1 KEY ｷｰ
11 EM42301 8 WASHER, FLAT ﾜｯｼｬ 平
12 QCA1390 1 BKT BKT
13 QCA1420 1 RING, TIGHTENING ﾘﾝｸﾞ 締付け
14 QCA1430 1 BLOCK, LOCATING ﾌﾞﾛｯｸ 位置決め
15 QCA1460 1 COVER ｶﾊﾞｰ
16 QCA1600 1 COVER ｶﾊﾞｰ
17 QCA1550 1 RING, TIGHTENING ﾘﾝｸﾞ 締付け
19 R4034A 1 LENS ﾚﾝｽﾞ #1181
20 H3025Z 1 FILTER ﾌｨﾙﾀ MC-43
21 PCA1230 1 SPACER ｽﾍﾟｰｻ
22 QCA1170 1 BKT BKT
23 K40172 1 CABLE ｹｰﾌﾞﾙ HF8013M
24 T4146M 1 POWER SUPPLY 電源 EF-8424-NC
25 R1020H 1 LAMP ﾗﾝﾌﾟ 84B-NE-XT
26 K10593 1 COVER ｶﾊﾞｰ 84B27T
27 QCA1480 1 PLATE ﾌﾟﾚｰﾄ
28 AQCA1510 1 BKT, SUPPORT BKT 支え
29 QCA1540 1 BKT, SUPPORT BKT 支え
30 QCA1570 1 PLATE, DISPERSION ﾌﾟﾚｰﾄ 拡散
31 K5208A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ        M4X6L
32 K5201E
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ        M2.6X6L
33 N4031A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M4X10L
34 N1079A
NUT, HEX
ﾅｯﾄ 六角         
M4
35 N1076A
NUT, HEX
ﾅｯﾄ 六角         
M3
36 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ      6M/M
37 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ      5M/M
38 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ      4M/M
IP-Ⅲ PARTS LIST ver17
17 - 2
17.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ No.2(大視野用)(ｵﾌﾟｼｮﾝ)(QCA)
17.Image sensor camera No.2(For wide view)(Option)(QCA)
