IP- III P ARTS LIST ver17 2 0 . 1 s t ピンチェックユニット部( 1 s t ピンユニット部 N o . 1 側) ( オプション) ( Q P H ) 2 0 . 1 s t p i n c h e c k u n i t ( 1 s t p i n u n i t N o . 1 s i d e ) ( O p t i o n ) ( Q P H ) 2 0 - 1 2 0 . 1 s t ピンチ…

100%1 / 299
19.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ #12(4800 20MHZ)No.2(ｵﾌﾟｼｮﾝ)(QCA)
19.Image sensor camera #12(4800 20MHZ)No.2(Option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
43 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X25L
44 H5326A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X25L
45 H5327A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X30L
47 K5208A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L
48 K5256K
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X15L
49 K5262A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M6X10L
50 N1076A
NUT, HEX
ﾅｯﾄ 六角         
M3 P=0.5
51 N1080A
NUT, HEX
ﾅｯﾄ 六角         
M4 P=0.7
52 N4031A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M4X10L
53 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
54 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H
56 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
57 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
58 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
59 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
60 W1041A
WASHER, FLAT
ﾜｯｼｬ 平         
1W-4
61 W1043A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-4
62 W1044A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-5
63 W1045A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-6
IP-Ⅲ PARTS LIST ver17
19 - 3
19.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ #12(4800 20MHZ)No.2(ｵﾌﾟｼｮﾝ)(QCA)
19.Image sensor camera #12(4800 20MHZ)No.2(Option)(QCA)
IP-
III
PARTS LIST ver17

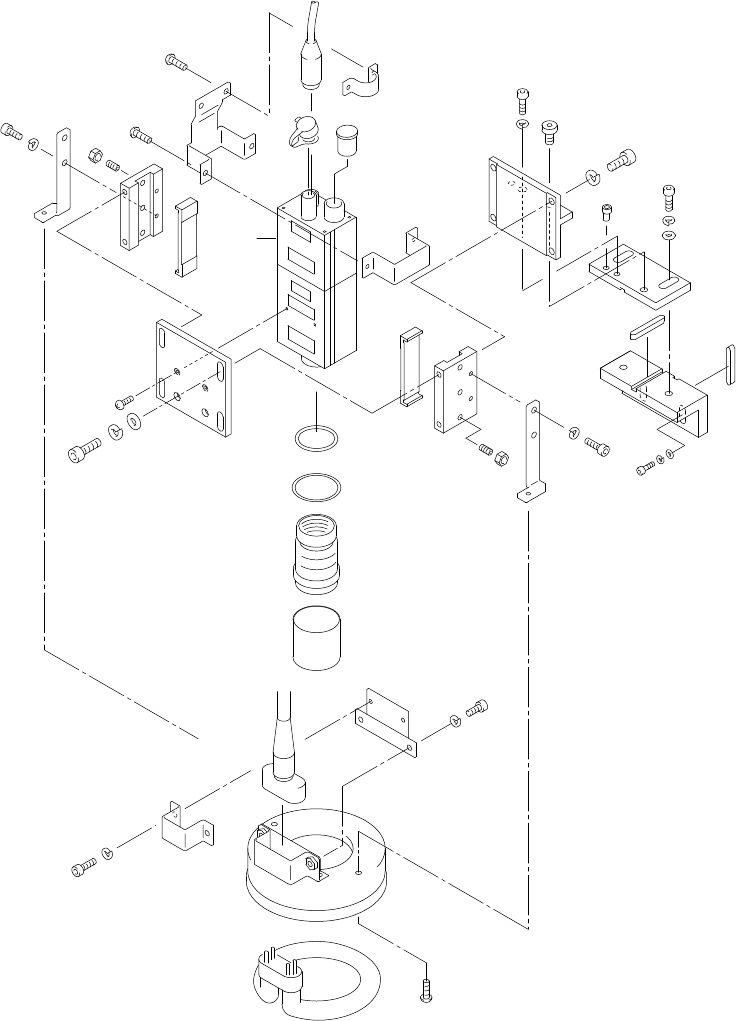

20.1stピンチェックユニット部(1stピンユニット部 No.1側)(オプション)(QPH)
20.1st pin check unit(1st pin unit No.1 side)(Option)(QPH)
20 - 1
20.1stピンチェックユニット部(1stピンユニット部 No.1側)(ｵﾌﾟｼｮﾝ)(QPH)
20.1st pin check unit(1st pin unit No.1 side)(Option)(QPH)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
32
27
30
3
13
13
5
15
28
34
14
28
34
4
16
12
10
37
40
6
29
36
38
38
24
18
23
17
19
12
10
37
40
7
29
36
2
39
31
28
33
21
20
22
1
26
8
29
36
9
29
35
38
11
25
x4
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
41
27
30
20.1st ﾋﾟﾝﾁｪｯｸﾕﾆｯﾄ部(1stﾋﾟﾝﾕﾆｯﾄ部 No.1側)(ｵﾌﾟｼｮﾝ)(QPH)
20.1st pin check unit (1st pin unit No.1 side)(Option)(QPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QPH1000 1 RING, FIXED ﾘﾝｸﾞ 固定
2 QPH1032 1 PLATE ﾌﾟﾚｰﾄ
3 QPH1050 1 PLATE ﾌﾟﾚｰﾄ
4 QPH1060 1 BKT BKT
5 QPH1070 1 BKT BKT
6 QPH1120 1 BKT, CONNECTING BKT ﾂﾅｷﾞ
7 QPH1130 1 BKT, CONNECTING BKT ﾂﾅｷﾞ
8 QPH1141 1 RETAINER 押え
9 QPH1151 1 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
10 QPH1160 2 PLATE ﾌﾟﾚｰﾄ
11 QPH1170 1 LAMP ﾗﾝﾌﾟ
12 PPH0400 2 LINER ﾗｲﾅ
13 PPH0630 2 KEY ｷｰ
14 PPH0860 1 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴
15 PPH0880 1 PIN, ECCENTRIC ﾋﾟﾝ 偏心
16 MPG3220 1 CLAMPER ｸﾗﾝﾊﾟ
17 MPG3232 1 CLAMPER ｸﾗﾝﾊﾟ
18 MPG3240 1 CLAMPER ｸﾗﾝﾊﾟ
19 K1133D 1 CAMERA ｶﾒﾗ IK541B
20 R2032A 1 RING ﾘﾝｸﾞ T=0.5MM
21 A5164A 1 O RING O ﾘﾝｸﾞ S26
22 R4017M 1 LENS ﾚﾝｽﾞ JK-L06
23 K2008A 1 CAP ｷｬｯﾌﾟ BNC-BR1
24 K2001T 1 CAP ｷｬｯﾌﾟ HR10-7R-C
25 R1009T 1 LAMP ﾗﾝﾌﾟ FCLH80A
26 K4004T 1 CABLE ｹｰﾌﾞﾙ FLC3.5M
27 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
28 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
29 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
30 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
31 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
32 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
33 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
34 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
35 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
36 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L
37 N4022T SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M3X10L
IP-Ⅲ PARTS LIST ver17
20 - 2
20.1st ﾋﾟﾝﾁｪｯｸﾕﾆｯﾄ部(1stﾋﾟﾝﾕﾆｯﾄ部 No.1側)(ｵﾌﾟｼｮﾝ)(QPH)
20.1st pin check unit (1st pin unit No.1 side)(Option)(QPH)
