27.ｲﾝｺﾝﾍﾞｱ(自動幅替え)(ｵﾌﾟｼｮﾝ)(QQC)
27.In conveyor(Auto width change) (Option)(QQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 PQC1012 1 BKT BKT
2 PQC1021 1 BKT BKT
3 PQC1030 1 BKT BKT
4 PQC1040 1 BKT BKT
5 GVC4070 1 BKT, SENSOR BKT ｾﾝｻ
6 GVC4112 1 BKT, SENSOR BKT ｾﾝｻ
7 PQC0610 1 BKT BKT
8 IQC6071 4 NUT ﾅｯﾄ
9 A4095A 1 ENCODER ｴﾝｺｰﾀﾞ LBJ-007-2000
10 K1012T 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ RAM-075(6゜X6゜)
11 S4028A 1 SENSOR ｾﾝｻ EX-M2E
12 S3122A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
13 S4041A 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX670
14 S3070T 1 SLIT ｽﾘｯﾄ OS-EX-2X5E
15 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
16 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
17 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
18 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
19 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
20 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
21 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
22 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
23 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
24 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L
25 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
26 . SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X15L
27 QQC0910 1 BKT BKT ･
28 QQC0920 1 BKT BKT
29 H5175A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
30 S3122A 2 SW, PHOTOELECTRIC SW 光電 逆流れ用(Reverse panel flow)
IP-Ⅲ PARTS LIST ver17
27 - 2
27.ｲﾝｺﾝﾍﾞｱ(自動幅替え)(ｵﾌﾟｼｮﾝ)(QQC)
27.In conveyor(Auto width change) (Option)(QQC)
IP-
III
PARTS LIST ver17

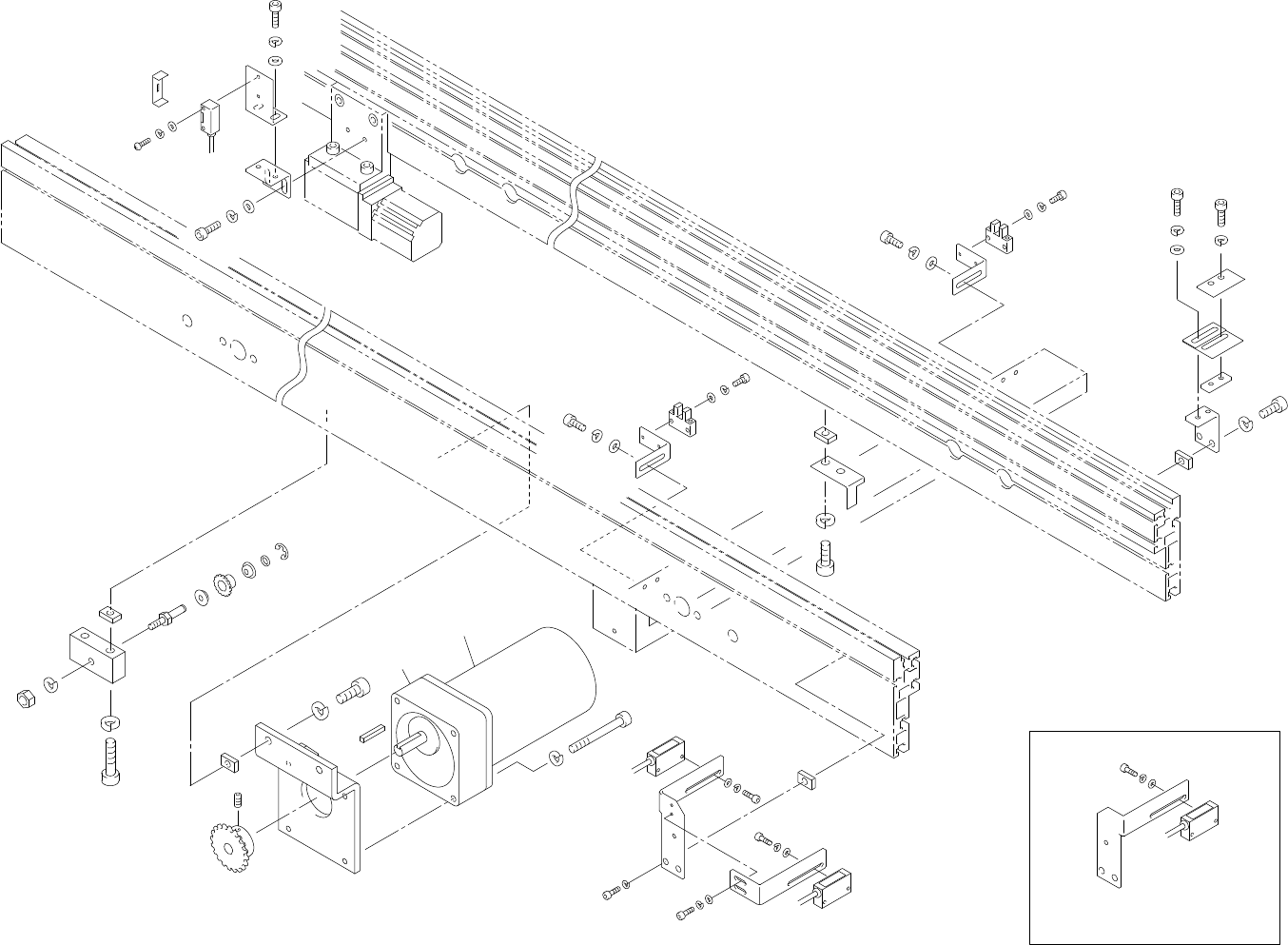

28.アウトコンベア(自動幅替え)(オプション)(QQC)
28.Out conveyor(Auto width change)(Option)(QQC)
28 - 1
28.アウトコンベア(自動幅替え)(オプション)(QQC)
28.Out conveyor(Auto width change)(Option)(QQC)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
38
28
30
38
28
14
13
15
8
11
27
37
10
30
28
38
20
31
29
39
30
28
38
10
20
31
29
39
7
5
26
34
30
28
38
4
18
23
31
29
40
3
30
28
38
7
6
26
32
27
42
2
24
22
24
12
25
7
9
26
33
41
21
27
35
17
16
x4.5
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
39
39
29
39
29
29
31
31
31
29
31
19
19
43
44
45
8
1
27
36
46
逆流れ
Reverse panel flow
28.ｱｳﾄｺﾝﾍﾞｱ(自動幅替え)(ｵﾌﾟｼｮﾝ)(QQC)
28.Out conveyor(Auto width change)(Option)(QQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 PQC0240 1 BKT BKT
2 PQC0390 1 SHAFT ｼｬﾌﾄ
3 PQC1030 1 BKT BKT
4 PQC1040 1 BKT BKT
5 PQC1060 1 DOG ﾄﾞｯｸﾞ
6 IQC5320 6 BKT BKT
7 IQC6061 4 NUT ﾅｯﾄ M6
8 IQC6071 2 NUT ﾅｯﾄ M5
9 IQC8012 2 BKT, MOTOR BKT ﾓｰﾀ
10 IQC8050 1 BKT, MOTOR BKT ﾓｰﾀ
11 IQC8090 1 BKT BKT 注1. Note.1
12 GVC0350 1 COLLAR ｶﾗｰ
13 GVC1141 1 BKT BKT
14 GVC1151 1 DOG ﾄﾞｯｸﾞ
15 GVC1160 1 BKT BKT
16 M5058A 1 MOTOR, REVERSIBLE ﾓｰﾀ ﾘﾊﾞｰｼﾌﾞﾙ PB425-401
17 H4012A 1 REDUCTION GEAR 減速器 4GN15K
18 S4028A 1 SENSOR ｾﾝｻ EX-M2E
19 S3122A 2 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
20 S4042A 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX670A
21 S3037A 1 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-20T 2-Type
22 S3034A 1 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25-13T 2-Type
23 S3070T 1 SLIT ｽﾘｯﾄ OS-EX-2X5E
24 H4445A 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1050ZZ
25 S1022A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4
26 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
27 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
28 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
29 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
30 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
31 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
32 H5329A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X35L
33 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
34 H5319H BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X8L
35 H5308A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X45L
36 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
37 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
IP-Ⅲ PARTS LIST ver17
28 - 2
28.ｱｳﾄｺﾝﾍﾞｱ(自動幅替え)(ｵﾌﾟｼｮﾝ)(QQC)
28.Out conveyor(Auto width change)(Option)(QQC)
