VEGO Series – A New Generation of Handling Modules
VEGO Compact
VEGO_Compact_BLO04_181213_DS_CC_E
Options
_ Transport height 850 mm ± 50 mm
_ Transport direction from right to left
_ Safety shutter at outlet
_ Outlet conveyor
_ Electrical width adjustment (for outlet conveyor)
_ Automatic width adjustment (for outlet conveyor)
Description

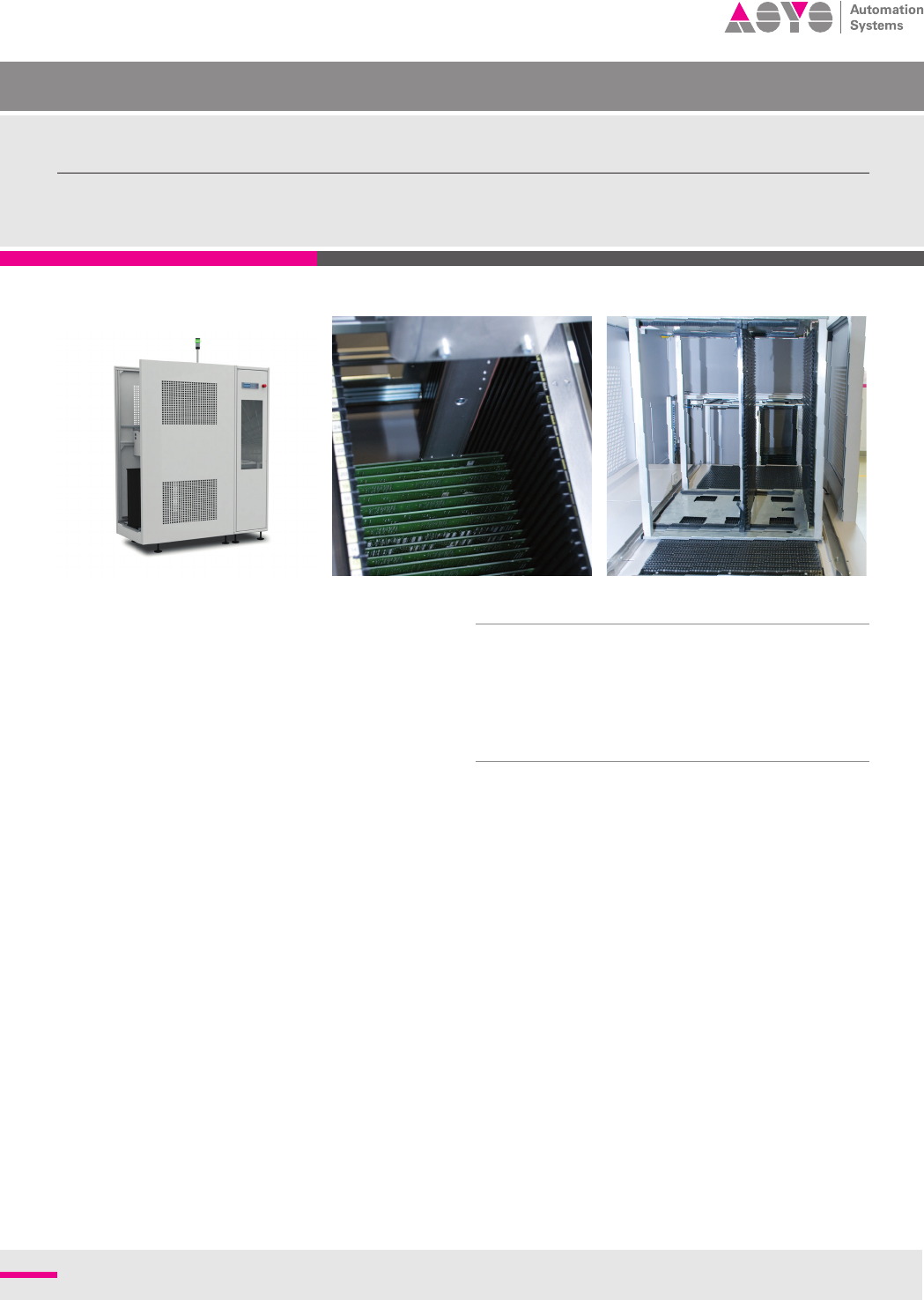

Line Loader loads PCBs from magazines into the production
line. It is equipped with an automatic magazine change for a
continuing production process. It can easily be adapted to any
magazine size. 3 to 5 magazines can be loaded in a row.
The machine consists of a loading and unloading conveyor
for magazines, a lifting axis with a magazine platform and an
electrically-driven pusher. The pusher pushes the PCB out of
the magazine and into the next system.
Features
_ Electrical pusher with adjustable force limiter
_ Electrical width adjustment of the pusher
_ Automatic magazine change with pneumatic magazine
clamping at bottom and top
_ Variable magazine size
_ Loading and unloading buffer on top of each other
_ LCO control panel
_ Single-color signal lamp and horn
_ SMEMA Interface
VEGO BLO 04
Line Loader for 3-5 magazines with automatic magazine change
ASYS Automatisierungssysteme GmbH
Benzstrasse 10,
89160 Dornstadt, Germany
Tel (+49) 7348 9855 0
Fax (+49) 7348 9855 91
info@asys.de
For more information visit
www.asys-group.com
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical specications are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany
VEGO BLO 04
Typ 1 Typ 2
Machine Conguration
Transport height
Max. transport width
Interface
Transfer direction
Operating side
Fixed rail
950 mm ± 50 mm
260 mm
SMEMA
from left to right
Front of the machine
Front of the machine
950 mm ± 50 mm
460 mm
SMEMA
from left to right
Front of the machine
Front of the machine
Magazine Size
Magazine length
Magazine width
Magazine heigth
Slot spacing
Buffer spacing
Single Magazine weight
Magazine quantity
400 mm
320 mm
570 mm
5- 20 mm
1- 50 Slots
30 kg
3 Magazines (2 on transition belt)
535 mm
530 mm
570 mm
5- 20 mm
1- 50 Slots
30 kg
5 Magazines Magazine-length 355 mm (4 on transition belt)
4 Magazines Magazine-length 420 mm (3 on transition belt)
3 Magazines Magazine-length 535 mm (2 on transition belt)
Panel Dimensions
Panel length
Panel width
Panel thickness
Component clearance
Panel weight
70 to 400 mm
50 to 260 mm
0.8 to 4.5 mm
± 40 mm
to 3 kg
70 to 460 mm
50 to 460 mm
0.8 to 4.5 mm
± 40 mm
to 3 kg
Installation Requirements
Power supply
Power supply system
Power consumption
Air supply
Air consumption
230 V / 115 V, 50 / 60 Hz, ± 10%
L1 + N + PE
0,3 kW
6 bar
5 Nl/min
230 V / 115 V, 50 / 60 Hz, ± 10%
L1 + N + PE
0,3 kW
6 bar
5 Nl/min

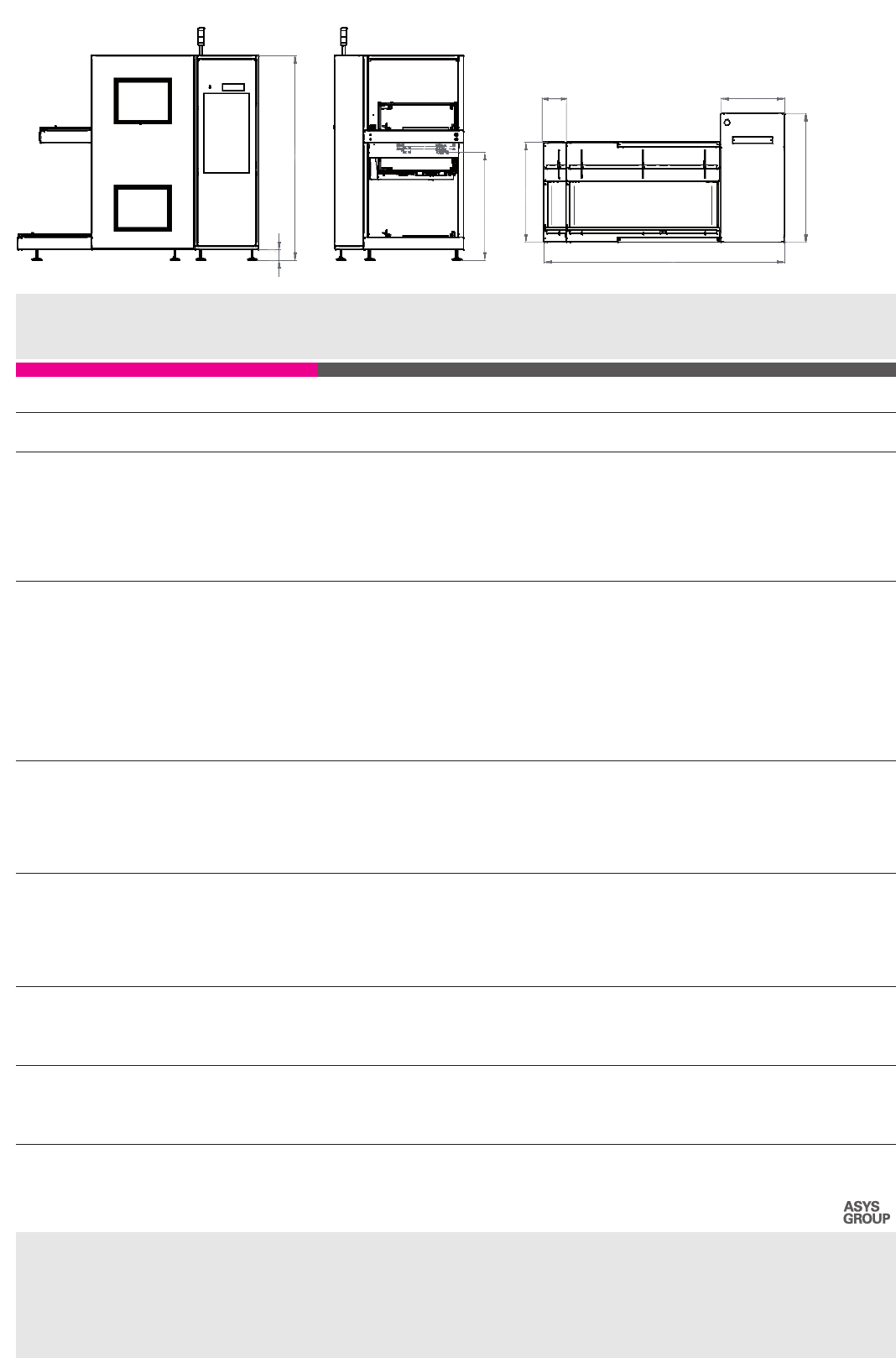

Machine Description
Length x Width x Height
Netto weight
Noise Level
1432 x 930 x 1800 mm
< 280 kg
< 75 dB
2120 x 1130 x 1800 mm
< 360 kg
< 75 dB
Upgrades
Additional interface protocol
Automatic width adjustment
Machine networking via IC Net
113 0
95
TH 950
880
1800
2120
570200
