Installing a Second Human Machine Interface Installing the HMI Tower Kit 2.4.2 Step 2: Mounting the HMI Fram e Kit to the Base Machine 22 Assembly Instructions SIPLACE E ► Secure th e keyboard cable to th e frame us ing …
Installing a Second Human Machine Interface
2.4.1 Step 1: Mounting the Keyboard onto the HMI Frame Kit Installing the HMI Tower Kit
Assembly Instructions SIPLACE E 21
► Route the keyboard USB cable through the frame to the cable outlet at the top of the frame.
► Bundle the excess keyboard cable using a cable tie (1).
Installing a Second Human Machine Interface
Installing the HMI Tower Kit 2.4.2 Step 2: Mounting the HMI Frame Kit to the Base Machine
22 Assembly Instructions SIPLACE E

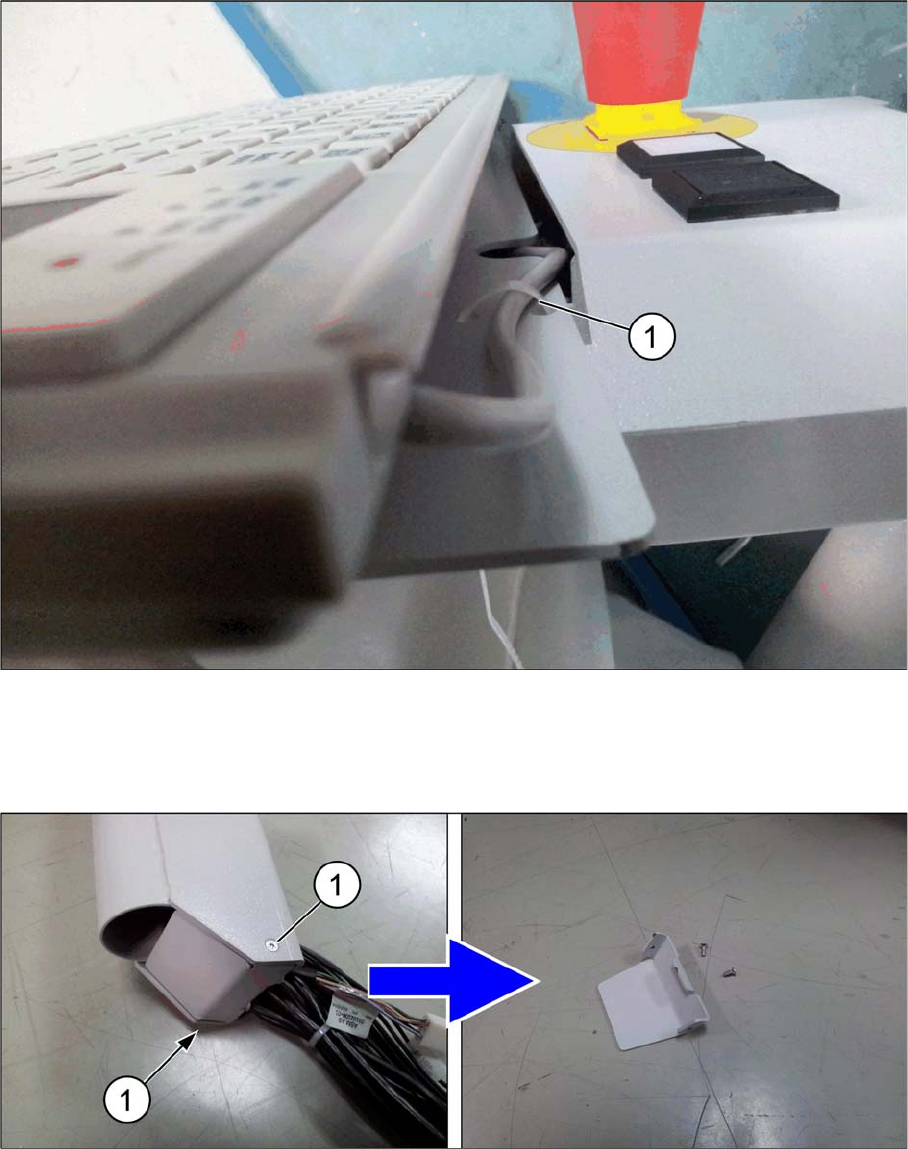

► Secure the keyboard cable to the frame using a cable tie (1).
► Replace the four ISO 7380 M6x10 cap screws that you removed earlier.
2.4.2
2.4.2 Step 2: Mounting the HMI Frame Kit to the Base Machine
Step 2: Mounting the HMI Frame Kit to the Base Machine
► Remove the two ISO 10642 M3x8 cap screws (1) at the bottom of the HMI frame.
Installing a Second Human Machine Interface
2.4.2 Step 2: Mounting the HMI Frame Kit to the Base Machine Installing the HMI Tower Kit
Assembly Instructions SIPLACE E 23
► Route the cable bundle at bottom of the HMI frame into the base machine cable inlet hole.
► Secure the two ISO 4762 M6x12 base machine screws on the outside of the base machine.
► Align and mount the HMI frame onto the two screws.
