Installing a Second Human Machine Interface
Circuit Diagrams for the 2nd HMI Installation Kit 2.6.6 Cable, DVI Extension: Monitor 2
34 Assembly Instructions SIPLACE E
2.6.6
2.6.6 Cable, DVI Extension: Monitor 2
Cable, DVI Extension: Monitor 2
Cable, DVI extension: monitor 2, 03102207-010401FX3
Installing a Second Human Machine Interface
2.6.7 Cable, DVI-VGA: Monitor 1/2 Circuit Diagrams for the 2nd HMI Installation Kit
Assembly Instructions SIPLACE E 35
2.6.7

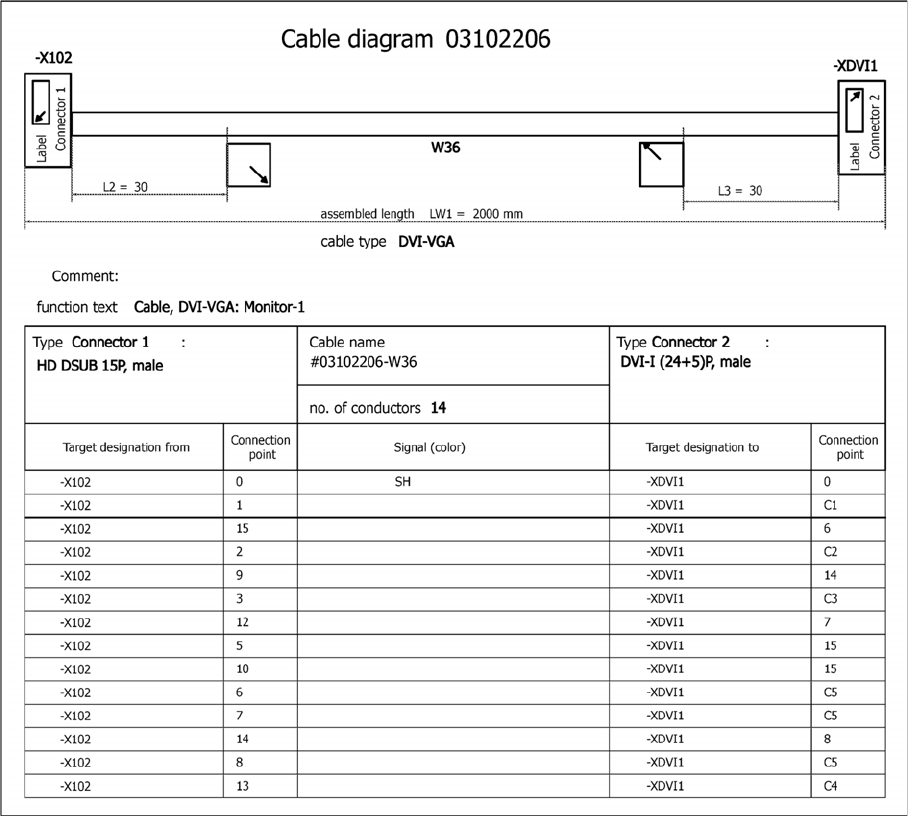

2.6.7 Cable, DVI-VGA: Monitor 1/2
Cable, DVI-VGA: Monitor 1/2
Cable, DVI-VGA: monitor 1/2, 03102206-010102FX3
Installing a Second Human Machine Interface
Circuit Diagrams for the 2nd HMI Installation Kit 2.6.8 Cable, USB: Touch Screen 1/2
36 Assembly Instructions SIPLACE E
2.6.8

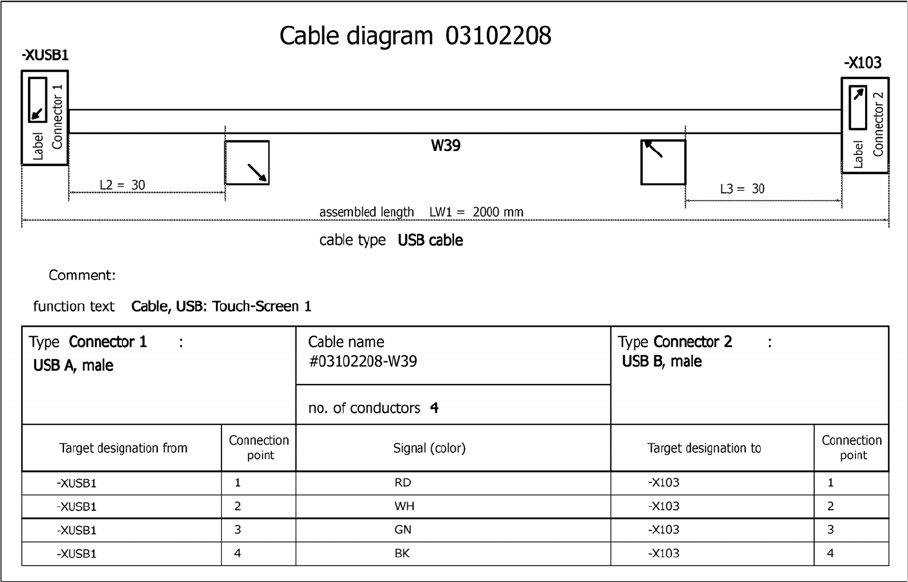

2.6.8 Cable, USB: Touch Screen 1/2
Cable, USB: Touch Screen 1/2
Cable, USB: touch screen 1/2, 03102208-010102FX3
