Installation Final Work Inner Illumination Innenraumbeleuchtung 39 3.3 3 . 3 F in a l W o r k Final Work ► Switch on the machine ► Move the component trolley into the mach ine. ► Close the cover. Activating/Deactivating …
Installation
Installing the Inner Illumination
38 Inner Illumination Innenraumbeleuchtung
► In the machine interior, find the provided power sup-
ply cable and run it out of the machine.
► Run the cable of the light bar out of the machine.

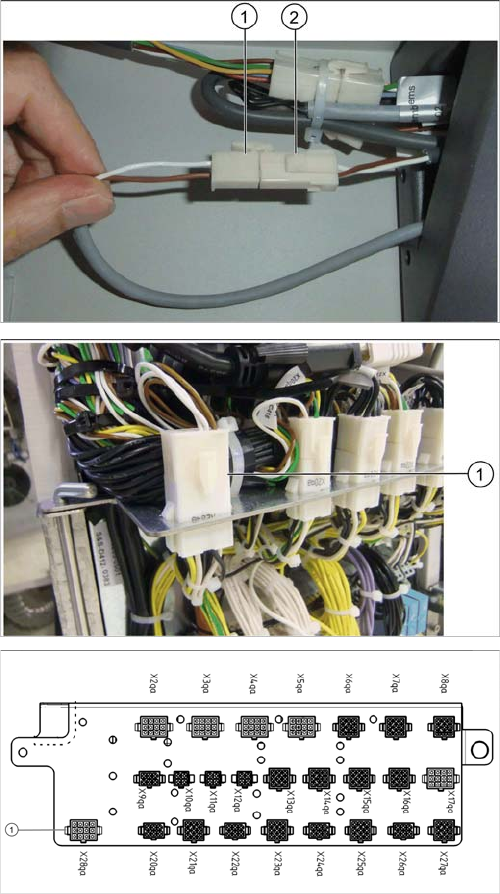

► Connect one Mini-Mate connector [00354616-xx]
each to the cable ends.
► Connect the two cables (1 and 2).
Ensure the correct polarity of the lines.
► Open the distributor door.
► Find the provided power supply cable [03106366-01].
► Connect the Mini-Mate connector [03002124-xx ] to
cable [03106366-01]. Connect the cable to connector
X28qa (1).
► Close the distributor door.
Installation
Final Work
Inner Illumination Innenraumbeleuchtung 39
3.3
3.3 Final Work
Final Work
► Switch on the machine
► Move the component trolley into the machine.
► Close the cover.
Activating/Deactivating the light bar
The light bar is switched on and off via the station software. You can choose between two options: having
the light bar always switched on as long as the machine is not in production mode or switching the light
bar explicitly on when work has to be carried out in the machine.
For both options, proceed as follows:

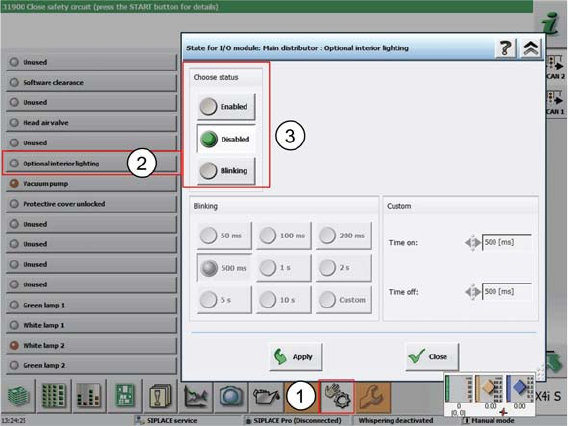

► In the stations software, select Manual operations (1).
► Select the individual function Optional interior lighting (2).
⇨ The dialog box for activating and deactivating the interior lighting (3) opens.
► In the Choose status field, select Enabled to activate the interior lighting.
⇨ The interior lighting will be switched on as long as the machine is not in production mode.
- or -
► Select Disabled.
⇨ The interior lighting will not be switched on at all.
► Confirm with Apply.
► If the light bar does not function as expected, check the cable connections and make sure that the
wiring is correct.
