ASM Performance Monitor 2.1 / Installation Manual 01/2021 Edition 25 ► Enter the client port numb er to set up the Post Master. ► Click the Next button. The default values are displayed in t he wizard. The Post Master Po…
ASM Performance Monitor 2.1 / Installation Manual 01/2021 Edition
24

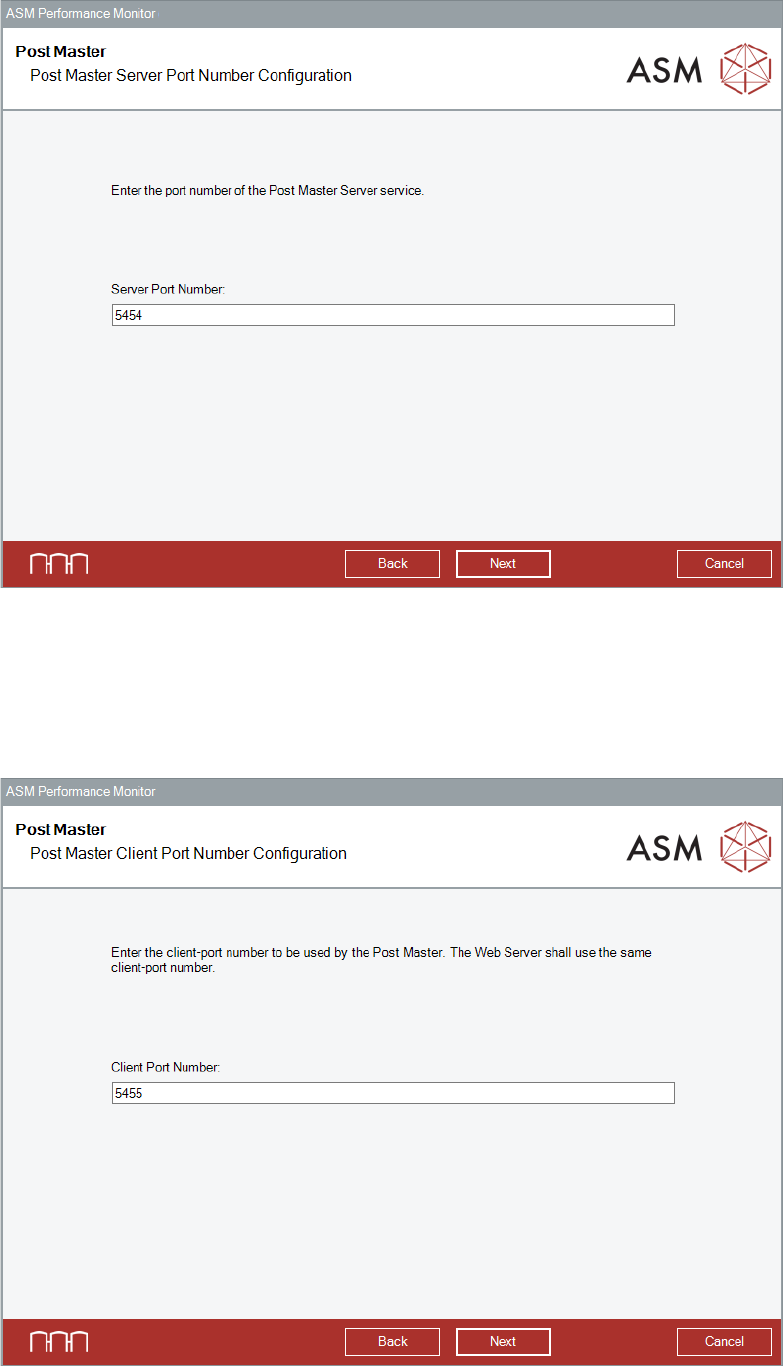

Figure 4-12: Post Master Server Port Number Configuration dialog
► Enter the server port number to set up the Post Master.
► Click the Next button.
The default values are displayed in the wizard.
The Post Master Client Port Number Configuration dialog is displayed.
Figure 4-13: Post Master Client Post Number Configuration dialog
ASM Performance Monitor 2.1 / Installation Manual 01/2021 Edition
25
► Enter the client port number to set up the Post Master.
► Click the Next button.
The default values are displayed in the wizard.
The Post Master Port Numbers dialog is displayed.

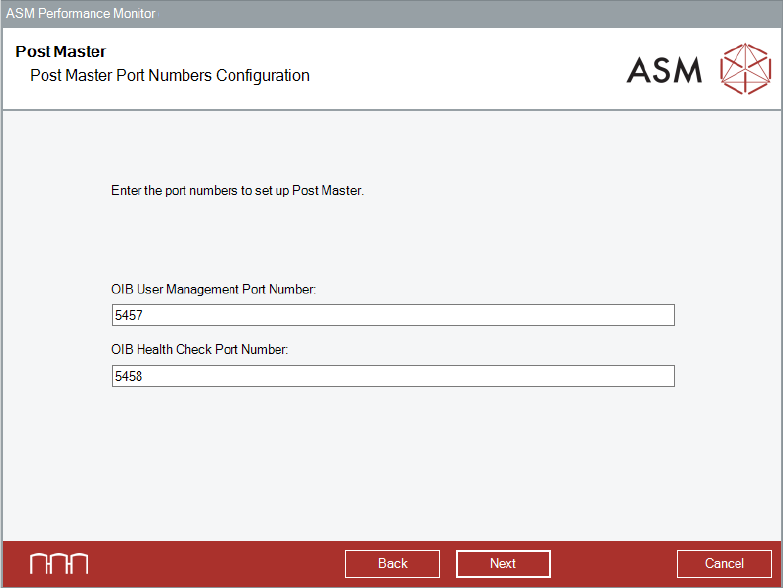

Figure 4-14: Post Master Port Numbers Configuration dialog
► Enter the OIB User Management port number and the OIB Health Check port number in the
respective dialog to set up the Post Master.
► Click the Next button.
The default values are displayed in the wizard.
The Web Server Port Number Configuration dialog is displayed.
ASM Performance Monitor 2.1 / Installation Manual 01/2021 Edition
26
4.8 Specifying Web Server Configuration

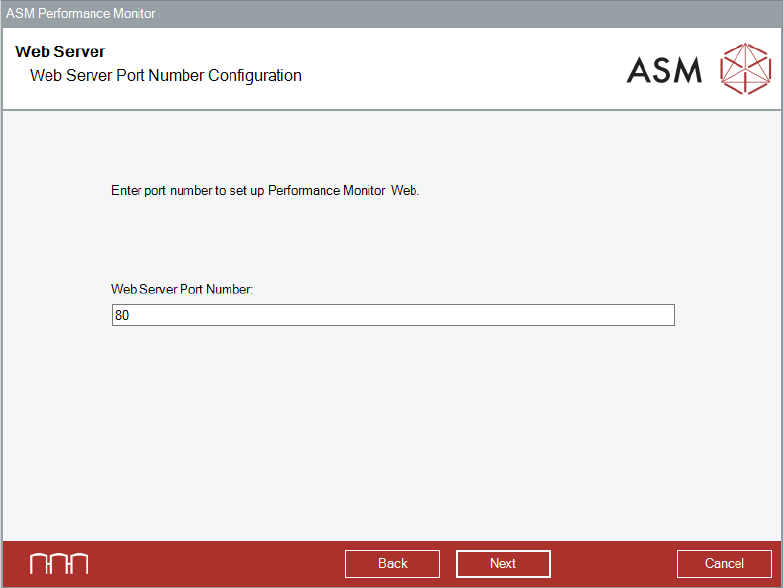

Figure 4-15: Web Server Port Number Configuration dialog
► Enter the Web Server port number to set up the Performance Monitor Web server.
► Click the Next button.
The default values are displayed in the wizard.
If you have selected to install Optional Features in the Packages and Features dialog, the
corresponding dialogs are displayed. If you have not selected any additional features, the
APMDBA User and APM_SSIS User dialogs are displayed, see section 4.11.
