ww w .pemtron.com 3D Automated Optical Inspection system EAGLE 3D 8800 Series
www.pemtron.com

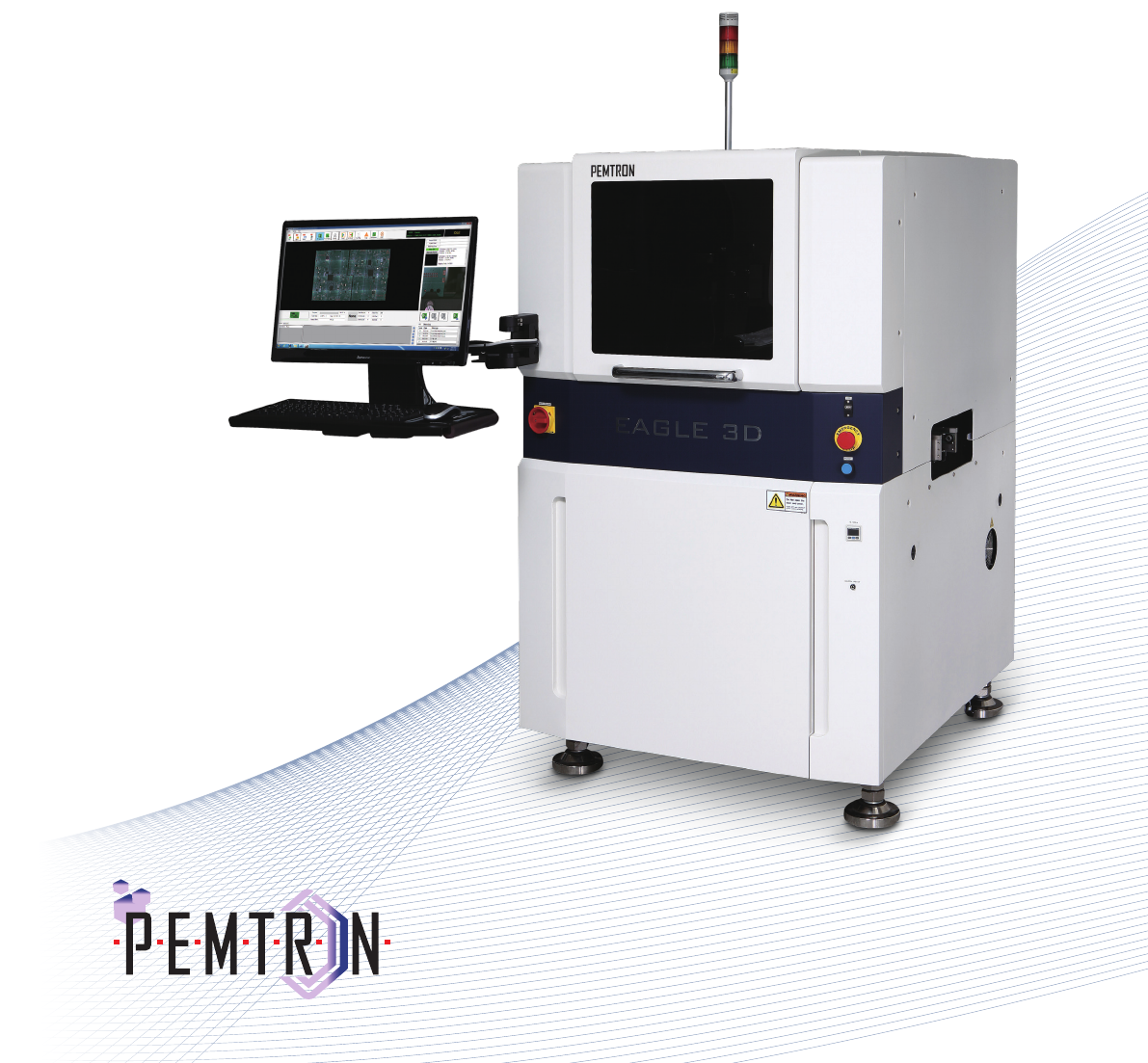

3D Automated Optical Inspection system
EAGLE 3D 8800
Series

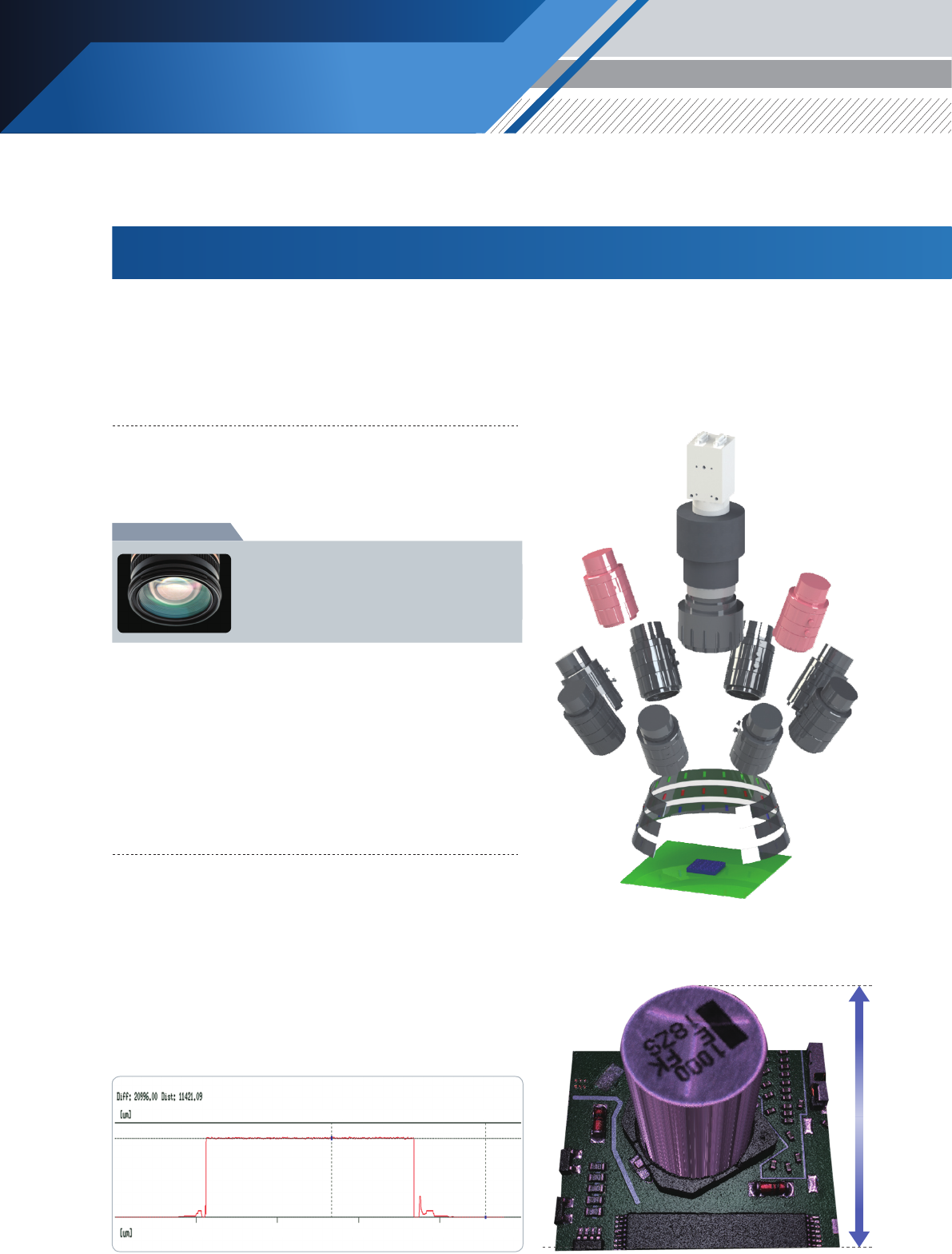

Technology and Features
Advanced High Speed Inspection and Measurement Technology
High Component Inspection Technology
EAGLES optional new 10-Way Projection Technology oers an
industry rst 40mm component height inspection in 100% 3D.
20996.00 0.00
30000.002400018000120006000
Shadowless Phase Measuring Prolometry
EAGLES 4MP 8 Projector 3D AOI inspects 100% of the PCB in 2D
and 3D. Combining the 2 technologies gives a complete optical
inspection of a PCB shadow free and low false calls maintaining a
high exibility in system functionality.
High Speed Inspection Technology
EAGLES High Speed Option inspects in 40.5cm sq. per sec. by utilizing
an advanced network of more robust CPU, controller boards and our
proprietary developed 9MP 15um 150fps camera with telecentric lens.
8 Projection + Three stage lighting
2D and 3D simultaneous inspection algorithms
Telecentric Lens oers higher accuracy and detection
High Speed CPU and Image Processing
User Friendly Graphical Interface
Built in Library Management System
Oine Real Time Debug Station (Optional)
Over 10 years of integrating Phase Measuring
Prolometry Technology into our TROI Solder
Paste Inspection Systems has proven the most
advanced 3D technology available.
Moiré Technology
EAGLE 3D AOI 8800 Series
3D Automated Optical
Inspection system

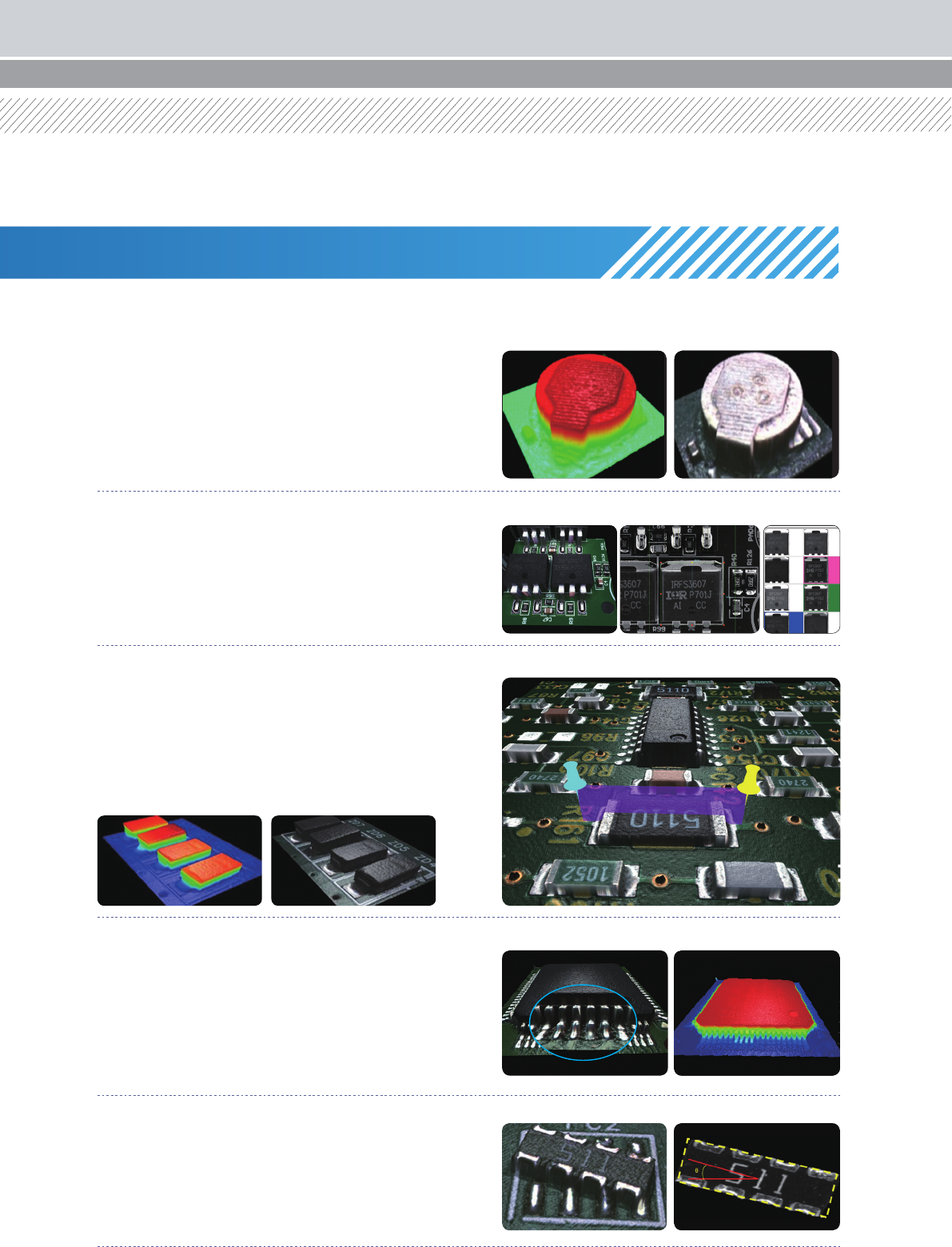

Tilt & Rotate Measurement
Advanced algorithms can extract, detect and differentiate
diverse component body patterns automatically.
Shadow Free 3D Technology
Eliminates shadow issues on highly populated PCBs and tall
components
Optical Character Recognition
Recognizes component part characteers by using color and pattern
algorithms. Ability to add & modify OCR font to optimize inspection
condition.
3D Solder & Height Measurement
Using our advanced 3D technology, the EAGLE is able to take
inspection to levels that are limited by conventional 2D systems.
Adding solder height, volume and part co-planarity inspection
provides enhanced defect detection capabilities.
3D Lead Inspection
3D measurement algorithms enable the EAGLE to measure lead height
and volume of solder proving full-high quality 3D images.
