Parts 1 1 -6 Part 1121836_03 E 1 1/2014 Nordson Corporation Pail Clamp Figure 11-3 Item Part Description Quantity Note Melter - 74 03813 Pail clamp VP D280/286 1 1 7407065 SERVICE KIT,PAIL CLAMP LATCH,ALTA PAIL I I 1

Parts

11-5

Part 1121836_03

E 11/2014 Nordson Corporation

Spare Parts and Service Kits

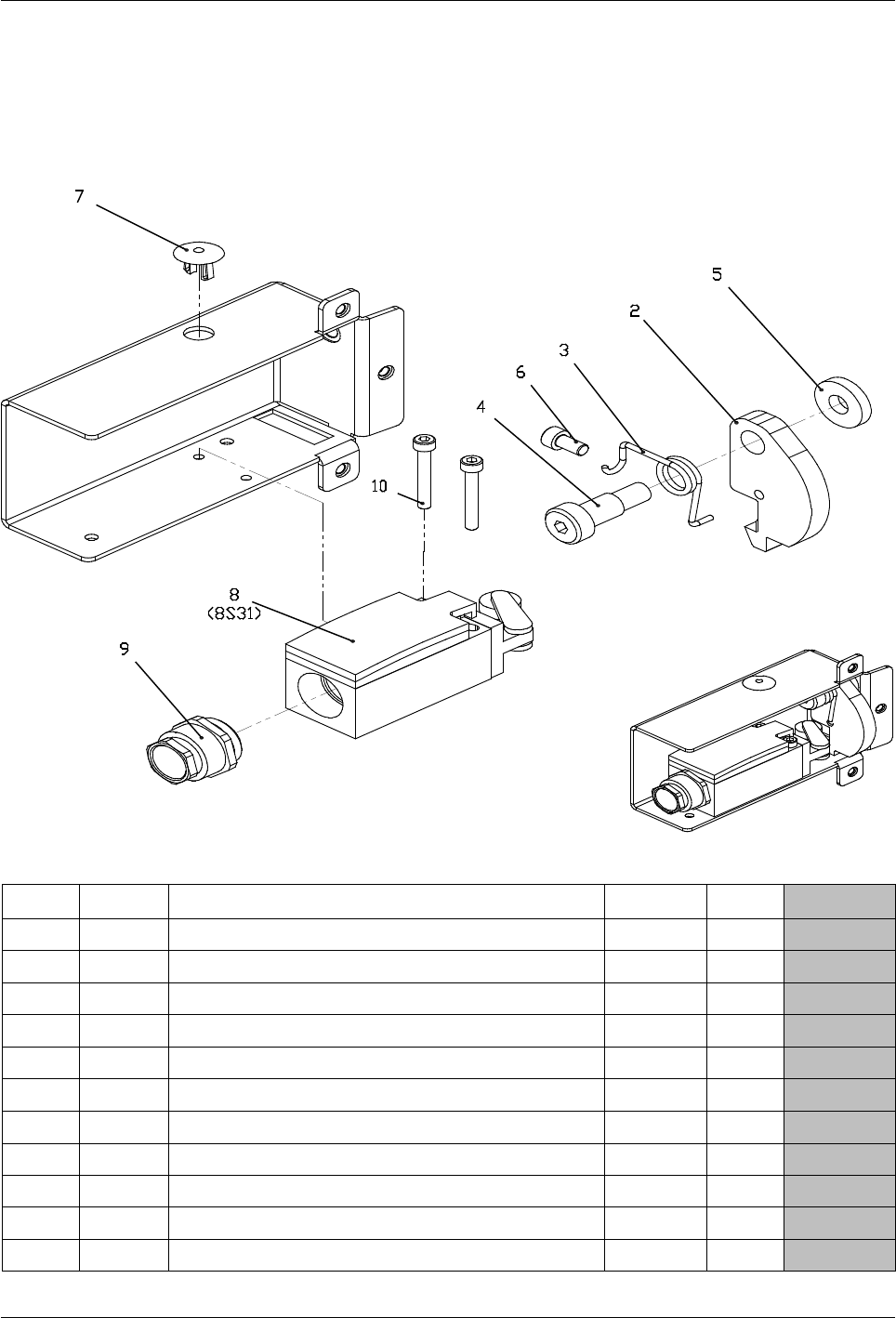

Device, Container Detection

Figure 11-2

Item Part Description Quantity Note Melter

- 7407051 Device container detection VP/VD compl. 1

1 ------ S Base plate,device container detect.VP/VD 1

2 ------ S PLATE,INTIATOR VX DEVICE CONT.DETECTION 1

3 ------ S Leg spring d2xDi11 n=2,25 VP/VD 1

4 ------ S TIGHT-FIT SCREW ISO7379 M8X16 D10/12.9 1

5 ------ S WASHER,FLT,M,REG,8,SSTL 1

6 ------ S SCR,SKT,M5X10,BL 1

7 ------ S Cover black D9,5-11 1

8 7140289 Position switch, roller lever IP66 1

9 ------ Cable gland membrane M20x1,5 1

10 ------ SCR, SKT, M4X30, BL 2

Parts

11-6

Part 1121836_03

E 11/2014 Nordson Corporation

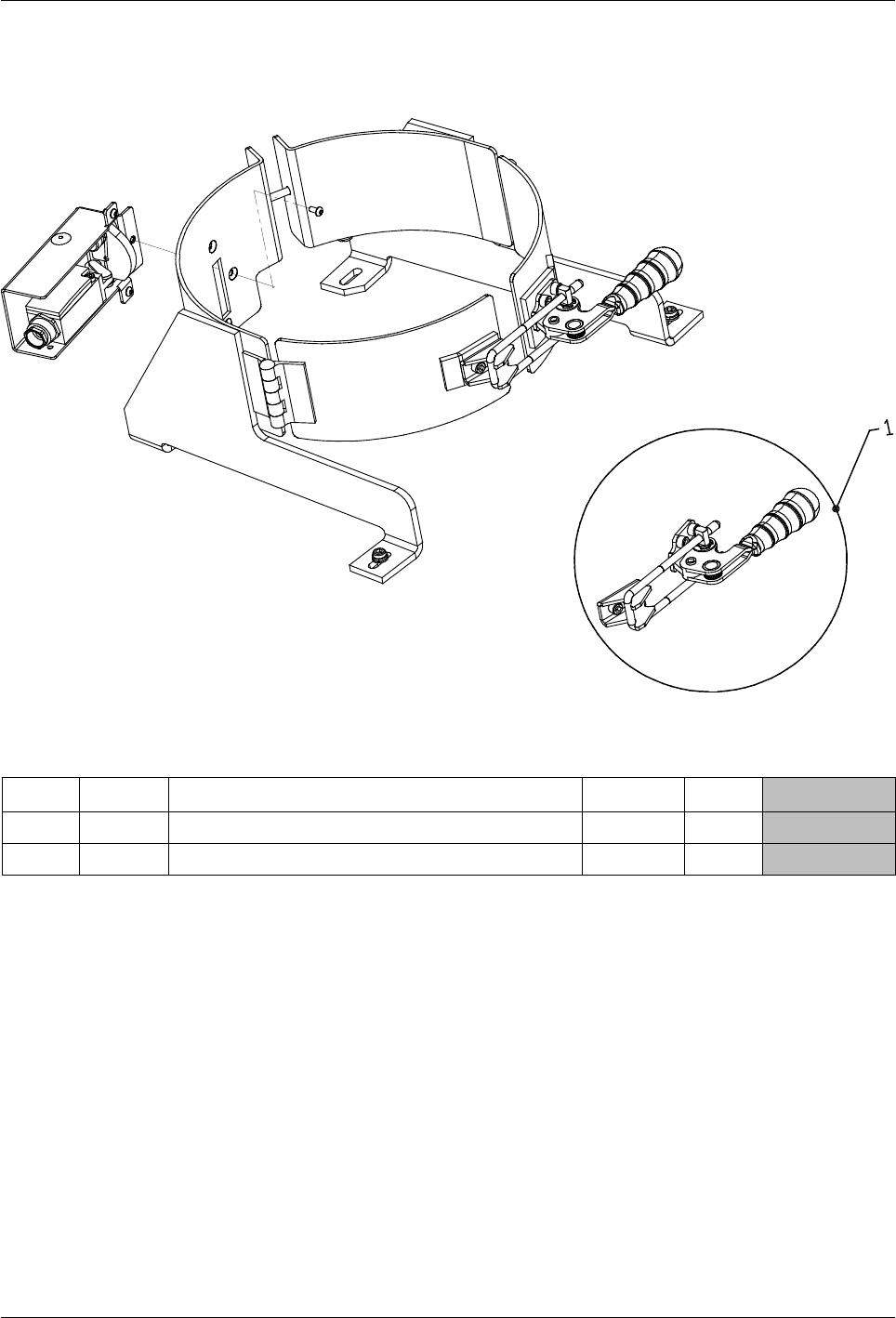

Pail Clamp

Figure 11-3

Item Part Description Quantity Note Melter

- 7403813 Pail clamp VP D280/286 1

1 7407065 SERVICE KIT,PAIL CLAMP LATCH,ALTA PAIL II 1

Parts

11-7

Part 1121836_03

E 11/2014 Nordson Corporation

Device, Platen Position Inquiry

Figure 11-4

Item Part Description Quantity Note Melter

1 ------ PLATE,POSITION SWITCH MOUNTING 1

2 ------ S CONTACT MAKER BAR L810 M10 1

3 ------ S PLATE, MOUNTING POSITION SWITCH 1

4 7140289 S Position switch, roller lever IP66 1

5 ------ S Mounting kit BT16 2

6 ------ S Cable gland, membrane M20x1,5 1
