Parts

11-15

Part 1121836_03

E 11/2014 Nordson Corporation

Aeration (Manual)

Figure 11-8

Parts

11-16

Part 1121836_03

E 11/2014 Nordson Corporation

Item Part Description Quantity Note Melter

------ 7407070 SERVICE KIT,AERATION MANUAL,ALTAPAIL II ------

1 ------ AERATION PIPE,MANUAL AERATION 1

2 ------ PIPE,DOUBLE END R3/8",L=400 1

3 ------ PIPE CONNECTOR,STRAIGHT,i=G3/8",i=G3/8" 1

4 ------ BARB FITTING,SWIVEL,G3/8",Di=9,L=54 1

5 ------ hose clamp D10-16/9 DIN3017 1

6 ------ hose grey type:801-9,5 0.7M

7 ------ BARB FITTING,G1/4 MALE, Di=9,L=38 1

8 ------ ball valve 2ways iG1/4-iG1/4 DN8 PN10 1

9 ------ double nipple aR1/4-aR1/4 1

10 ------ quick thread-in fitting -W-d06-G1/8-TURN 1

11 ------ bulkhead connection iG1/4 1

12 ------ PUSH IN FITTING, QSL-1/4-12 1

------ 7407071 SERVICE KIT,PUNCH PLUG,ALTAPAIL II ------

13 ------ PLUG ASSY,PUNCH,ALTAPAIL II 1

14 ------ O-RING 11x2 VITON 1

AR: As Required

Parts

11-17

Part 1121836_03

E 11/2014 Nordson Corporation

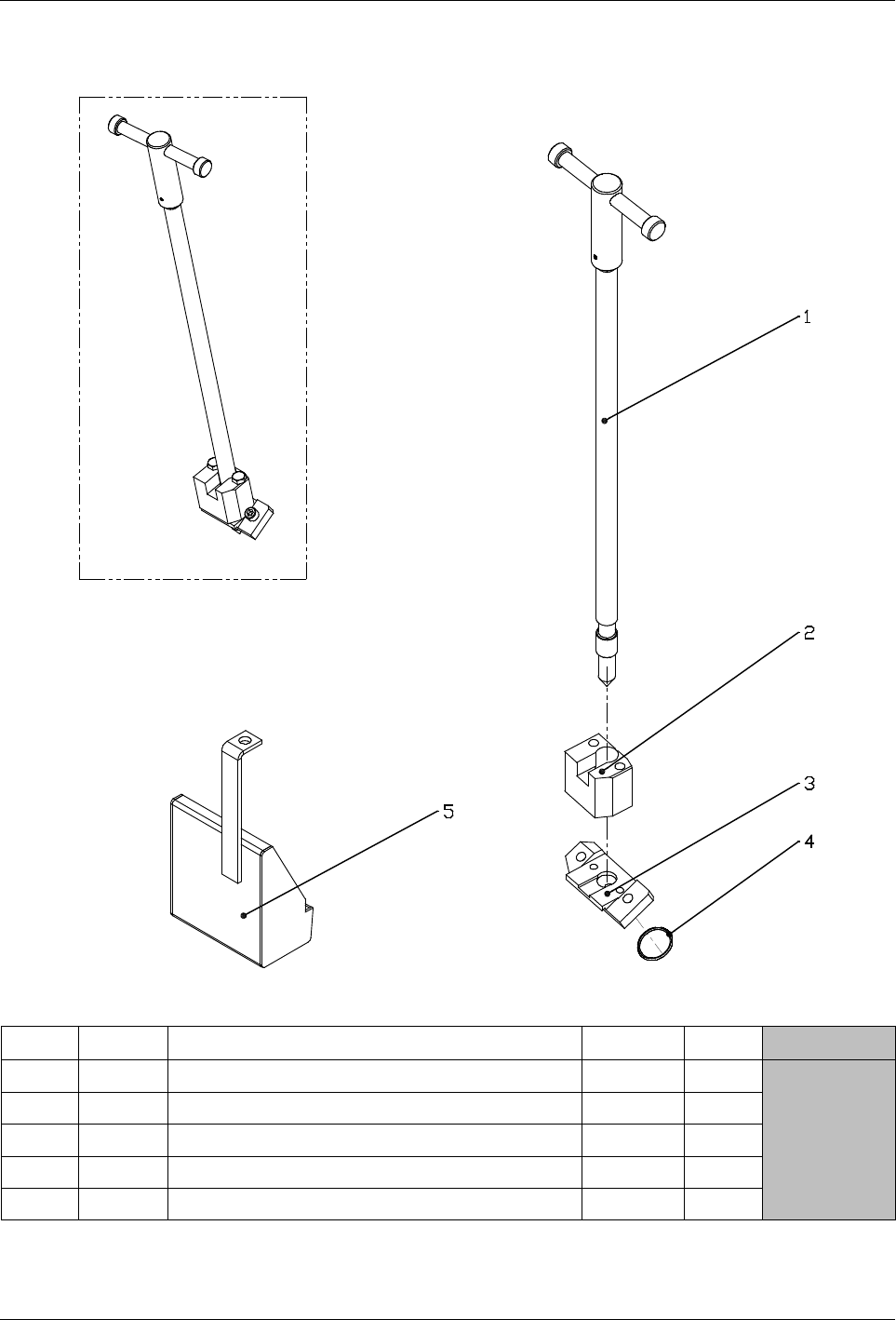

Deaeration

Figure 11-9

Item Part Description Quantity Page Melter

1 7403871 Deaeration handle VP/VD 1

2 7403868 bracket deaeration plug VP/VD SN 1

3 7403869 seat f.deaeration plug VP/VD SN small 1

4 401566 O-ring 21x1,5 Viton 1

5 7403849 Catch pan VP VX 1
