Parts 1 1 -19 Part 1121836_03 E 1 1/2014 Nordson Corporation Pressure Control Valve 1 2 3 Figure 11-11 Item Part Description Quantity Page Melter ------ 1031222 SERVICE KIT PCV 1 1 ------ S VALVE,PCV,1100 PSI 1 2 940201 …
Parts
11-18
Part 1121836_03
E 11/2014 Nordson Corporation

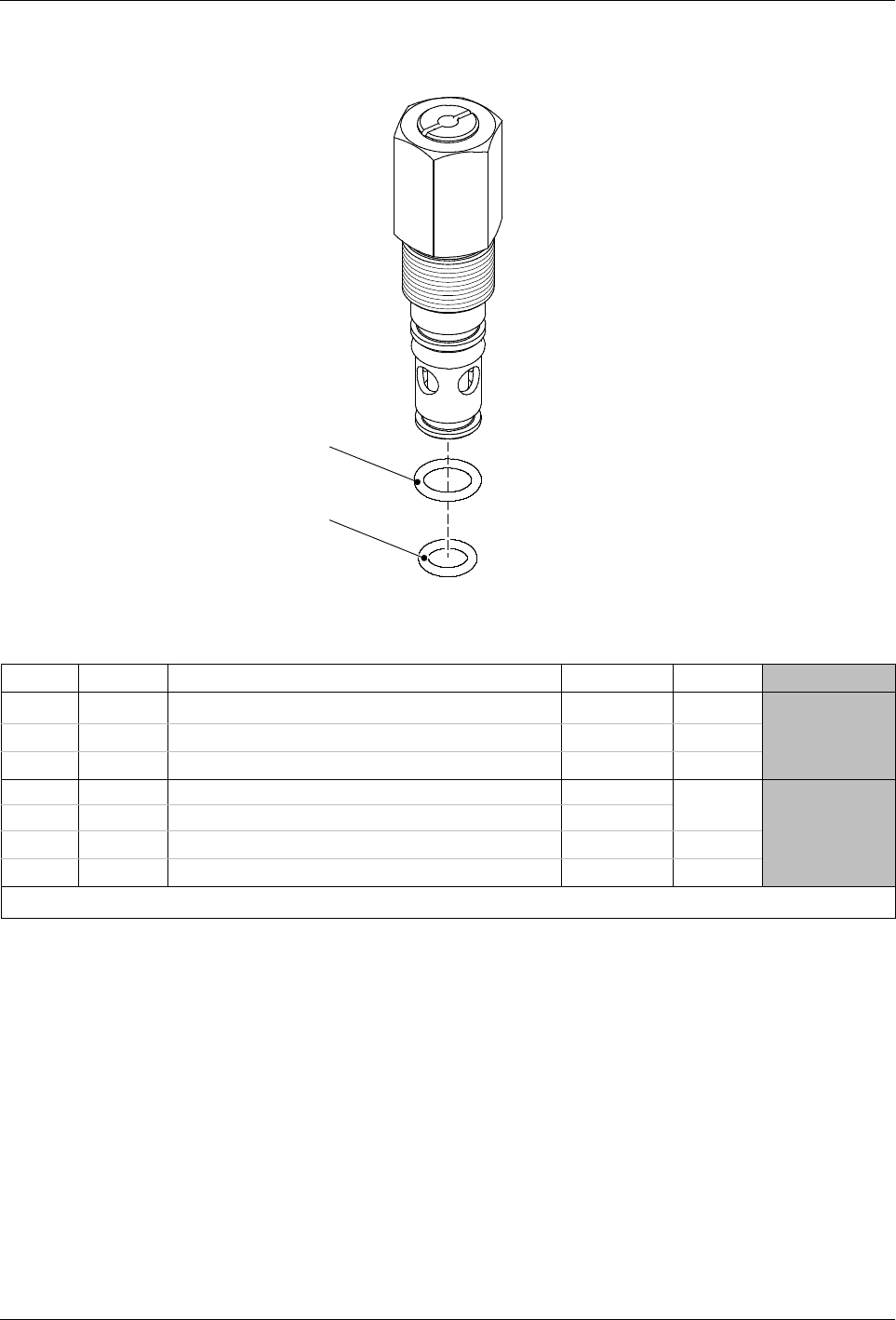

Safety Valve (Adapter Plate)
1
2
Figure 11-10
Item Part Description Quantity Note Melter
- 203419 Safety valve 100bar VB/DB fix 1
1
- - - - -
S O-ring 11x2 1
2
- - - - -
S O-ring 9x2 1
- 394592 SERVICE KIT,SAFETY VALVE 1
1
- - - - -
S O-ring 11x2 1
2
- - - - -
S O-ring 9x2 1
-
- - - - -
S high-temp.grease GLS 595/N2 can:10g 1 NS
NS: Not Shown
Parts
11-19
Part 1121836_03
E 11/2014 Nordson Corporation
Pressure Control Valve
1
2
3
Figure 11-11
Item Part Description Quantity Page Melter
------ 1031222 SERVICE KIT PCV 1
1 ------ S VALVE,PCV,1100 PSI 1
2 940201 S O RING,VITON,.864ID X .070W,BR 1
3 945035 S O RING,VITON,7/8 TUBE 1 NS
NS: Not Shown
Parts
11-20
Part 1121836_03
E 11/2014 Nordson Corporation
Gear Pump
3
2
1
1
Figure 11-12
Item Part Description Quantity Note Melter
1
729107 Gear pump SN0773 1 7407041
7407042
729106 Gear pump SN0371 1 7407039
7407040
- 394589 SERVICE KIT 1
-
- - - - -
S O-ring 10x1,5 1
-
- - - - -
S Sealing paste ”Stucarit” 203 10ml 1
-
- - - - -
S High-temp. grease, GLS 595/N2, 10g 1 NS
NS: Not Shown
Pump Sealing Kits & Assembly Tools for Variseal
Pumps
NOTE: The assembly tools are used to slide new seals over the shaft journal and the pump shaft pulley key
groove without damaging the seals.
Item Part Description Quantity Note Melter
2 7136920 Sealing Kit 1
3 7136915 Assembly Tool & Instructions 1
