Parts
11-33
Part 1121836_03
E 11/2014 Nordson Corporation

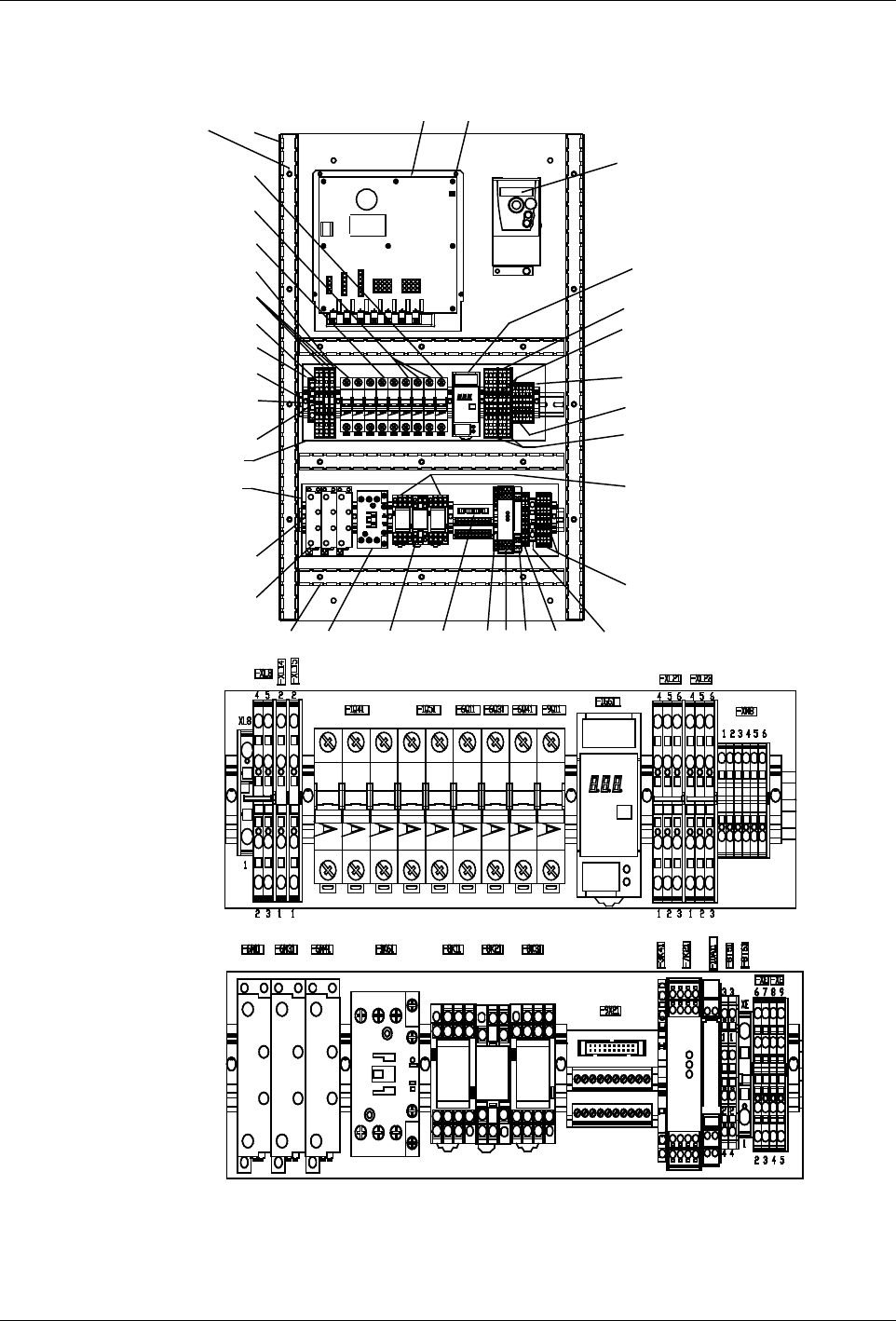

Back Panel (400V)
Detail View A
Scale 1:1
Detail View B
Scale 1:1
35, 36, 4
37, 38, 39
47
48
12
5
45
14
13
7
46, 18, 17
29, 30
26, 2523
22
A
B
45
4
15
1
11
10
9
8
7
2124
5
6
4
3
162
27,28
46, 20, 19
Figure 11-20
Parts
11-34
Part 1121836_03
E 11/2014 Nordson Corporation
Item Part Description Quantity Note
Melter
1 ------ STOCK WIREWAY 25X65 ALTABLUE 1.5
2 ------ STOCK WIREWAY 25X65 ALTABLUE 1.2
3 ------ RAIL,DIN 35mm×7.5mm 0.8
4 ------ END STOP,TERMINAL BLOCK 11
5 ------ TERMINAL BLOCK,ZDU 4/4AN 10
6 ------ terminal block,pot.distributor ZEI 6 1
7 ------ TERMINAL BLOCK,END PLATE,ZAP/TW4/4AN 15
8 256144 circuit breaker 32A 3-pole FAZ-B32/3 1
9 254251 circuit breaker 10A 2-pole FAZ-C10/2 1
10 251364 circuit breaker 16A 1-pole FAZ-B16/1 3
11 457659 circuit breaker 16A 1-pole FAZ-D16/1 1
12 7403805 SWITCHING POWER SUPPLY 230V/N/24V,120W 1
13 ------ TERMINAL BLOCK ZDU 2,5 6
14 ------ TERMINAL BLOCK,END PLATE ZAP/TW1 1
15 207397 solid-state relay G3PE 100-260V MAX. 25A 3
16 7116738 Contactor DILM17-10(230V50/60HZ) 1
17 777403 RELAY. DPDT, 24VDC,MY4N/24VDC 2
18 777630 BASE, RELAY (OMRON) 2
19 777404 REALY,DC24V,MY2NJ 1
20 777395 BASE, RELAY, DPDT, 1
21 7104924 relay coupler 24VDC 1
22 7403812 TWO HAND RELAY,24VDC,PSR-THC4 1
23 1053122 MODULE,CONDITIONER,SIGNAL,0-10V,1K ohm 1
24 ------ BOARD,BREAKOUT,VIP-2/SC/FLK20,TB,20POS 1
25 ------ terminal block XLPE DP/DD 2
26 ------ terminal-end-plate ZAP/TW ZDK2,5/1,5 1
27 ------ TERMINAL BLOCK ZPE 6 1
28 ------ TERMINAL BLOCK,END PLATE ZAP/TW5 1
29 ------ terminal block ZPE 2,5/4AN 4
30 ------ terminal block,end plate ZAP/TW3 1
32 ------ SCR,BTN,SKT,M5X10,ZN 4
33 ------ WASHER,FLT,M,REG,M5,STL,ZN 4
34 ------ WASHER,LK,M,SPT,M5,STL,ZN 4
35 7402954 MOTOR DRIVE, 1PH, 240V, 1HP,ATV312H 1
36 ------ NUT,HEX W/EXT TOOTH WASHER,M4 2
37 ------ WASHER,FLT,M,REG,M3,ZINC PLATE 17
38 ------ WASHER,LK,M,SPT,M3,STL,ZN 17
39 ------ NUT,ACORN,M3,STL,ZN 17
40 ------ RAIL,DIN 35mm×7.5mm 0.2M
Parts
11-35
Part 1121836_03
E 11/2014 Nordson Corporation
Item
Melter
NoteQuantityDescriptionPart
41 ------ HEXNUT,FLANGED,SERRATED,M5 6
45 ------ TERMINAL,CONNECTOR,ZQV 4N/3 GE 3
46 ------ CLIP,RELAY 6
47 1078624 Service Kit, DURABLUE, Main, PCA 1
48 ------ SCR,PAN,REC,W/WASHER,M4X10,ZN 4
49 ------ SPACER SLEEVE, ALTABLUE 4
