Parts
11-47
Part 1121836_03
E 11/2014 Nordson Corporation
Service Kits

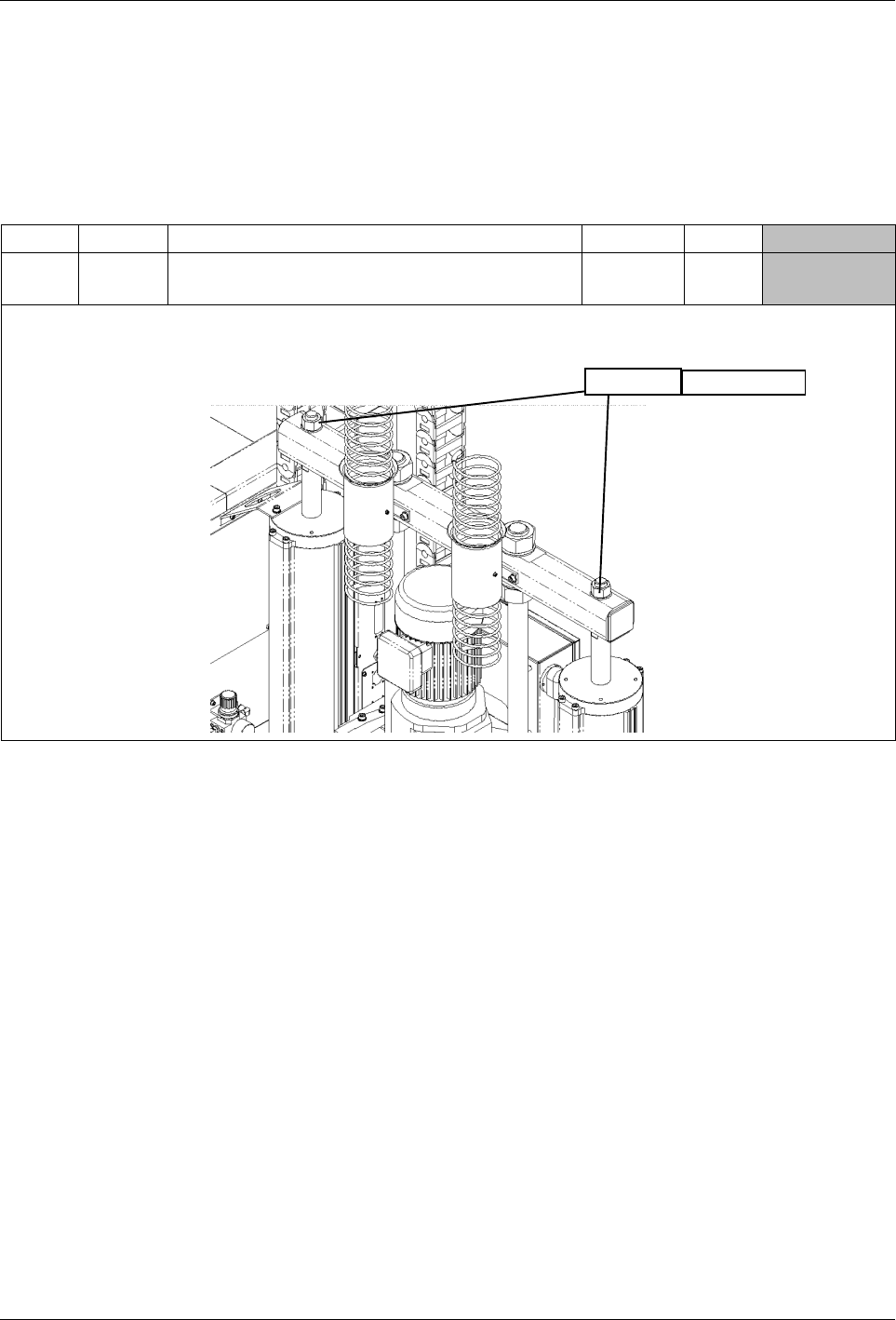

Pressure Cylinders
Item Part Description Quantity Note Melter
— 7140192 SERVICE KIT Seals & O-rings
for pressure cylinders P/N 7403857
1 A
NOTE A: Allow only qualified personnel to replace service parts. Follow the safety instructions here and in the
entire documentation. Observe the final torques:
200 Nm
Loctite 243
Parts
11-48
Part 1121836_03
E 11/2014 Nordson Corporation
Exhaust Hood
Figure 11-26
Item Part Description Quantity Note Melter
— 7407684 KIT EXHAUST HOOD,ALTAPAIL II 1
1 ------ container,exhaust hood VP/DP 1
2 ------ bracket exhaust hood VP 1
3 ------ SCR,SKT,M8X20,ZN 2
4 ------ WASHER,FLT,M,REG,M8,STL,ZN 2
5 ------ LOCKWASHER,M8 2
6 ------ SECHSKANTSCHRAUBE M16 X 30 DIN933 8.8 VZ 4
7 ------ WASHER,FLT,REG.M16,STL,ZI 8
8 ------ BOX,HOPPER & HM 1
Parts
11-49
Part 1121836_03
E 11/2014 Nordson Corporation
Recommended Spare Parts
Item Description
7140582
SERVICE KIT Terminal connection
394589
SERVICE KIT,gear pump, single
1031201
SVCE KIT,DURABLUE,EXPANSION PCA
1078624
Service Kit, DURABLUE, Main, PCA
7403315
Service Kit,PCA Motor Control, Touch
7407065
SERVICE KIT,PAIL CLAMP LATCH,ALTA PAIL II
7407066
SERVICE KIT,ADAPTER,ALTA PAIL II
7407067
SERV KIT,MOTOR ,BG06-31/D06LA4-TOF-D/UL
7407068
SERVICE KIT,SEAL,PLATEN, 280MM, 5 GALLON
7407069
SERVICE KIT,SEAL,PLATEN, 286MM, 5 GALLON
7407691
SERVICE KIT,SEAL,AXIAL PLATEN, 286MM
7407070
SERVICE KIT,AERATION MANUAL,ALTAPAIL II
7407071
SERVICE KIT,PUNCH PLUG,ALTAPAIL II
7407072
SERVICE KIT,CASTOR,ALTAPAIL II
7407073
SERVICE KIT,LCD MODULE,ALTAPAIL II
1107260
BATTERY,COIN CELL,3.0V,24MM,LITHIUM
7407074
SERV KIT,FAN,DC24V,120x120x38mm,138CFM
7407051
DEVICE,CONTAINER DETECTION VP/VD COMPL.
7140289
Position switch, roller lever IP66
7403813
PAIL CLAMP VP D280/286
250273
O-RING 44x3 Viton
250252
O-RING 11x2 VITON
729107
gear pump SN0773
729106
gear pump SN0371
973591
PLUG,O RING,STR THD,1 1/16-12
7403875
hose connect.ftg.a9/16UNF-a1 1/16UNF
7403866
protection cover VP coupling
7403865
Shaft Joint,Extractable Type:2ga D12,7
250263
O-RING 22x2 viton
7116633
Heating punch VP/DP, GP, VX
7403942
INTERLEAVER,INSULATION,PUNCH,ALTAPAIL II
120167
RTD,TEMP SENSOR 1/4X1.25NICKEL
7126361
THERMOSTAT 210°C,24V,1A,FASTON 90°
7403868
bracket deaeration plug VP/VD SN
7403869
seat f.deaeration plug VP/VD SN small
401566
O-RING 21x1,5 Viton
7403849
CATCH PAN VP VX
203419
safety valve 100bar VB/DB fix
394592
SERVICE KIT,SAFETY VALVE
Continued on next page
