About the Touch Screen Display and User Interface
5-17
Part 1121836_03
E 11/2014 Nordson Corporation
About the Screen Saver
Once the melter is running, the screen saver appears after 5 minutes (the
default) of no user interaction with the touchscreen. The Home screen
re-appears when you touch anywhere on the screen saver.
System Status:
Ready/OK

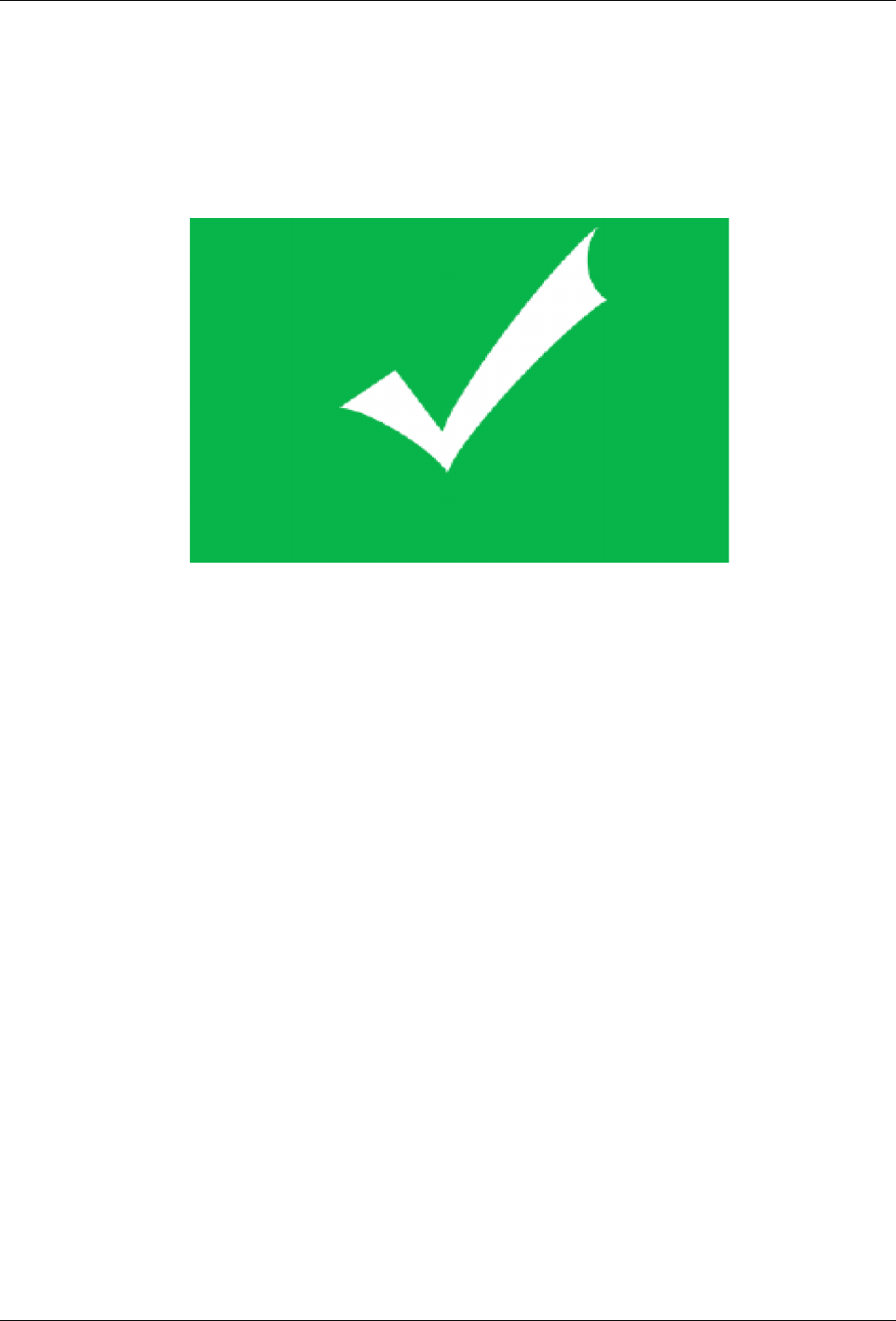

Figure 5-5 The Screen Saver
About the Touch Screen Display and User Interface
5-18
Part 1121836_03
E 11/2014 Nordson Corporation
This page intentionally left blank.
Basic Software Melter Configuration
6-1
Part 1121836_03
E 11/2014 Nordson Corporation
Section 6
Basic Software Melter Configuration
WARNING! Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
Overview - Getting the Melter into Production
The melter is shipped from the factory with most temperature, pump and
melter (system) settings pre-configured and ready to use. However, there are
some settings that you must configure and fine-tune to best fit your
manufacturing environment.
Two conditions must be met before you can start using the melter in a
production environment.
Condition Description
#1
Getting to the
System Status:
Ready/OK
S
The Master Heater Control is On
#2
Getting the Pump
to run
S
The Platen is Enabled
S
At least one hose and applicator zone pair is
Enabled
S
The Master Pump Control is On
NOTE: The following assumes you have installed melter and the adhesive
container is lowered the platen into position. Refer to Installation for more
information.
