YSP20 - 第17页

8 27 13 44 31 5 1 6 16 32 33 49 6 5 45 10 44 41 48 22 8 47 18 3 48 4 6 47 9 11 10 40 34 20 45 19 7 47 31 49 4 10 17 10 32 3 6 48 9 6 20 6 4 15 19 7 48 28 35 46 46 5 8 2 21 29 39 2 38 8 30 37 46 14 12 36 8 23 14 23 12 42 …

23

41

8

42

1

10

6

29

34

4

24

21

14

19

30

14

37

38

12

42

16

43

35

5

37

11

2

44

7

28

32

6

33

17

15

31

17

39

25

27

9

13

26

22

39

36

18

3

33

40

20

36

SZ-Load Cell

Moving-axis

KKX-1305

3-1

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

90990-26J002

BEARING

1

2

90990-28J092

WASHER,PLAIN

1

3

90990-28J156

WASHER,PLAIN

2

4

90K63-331447

AC SERVO MOTOR

1

5

91312-04008

BOLT HEX,SOCKET HEAD

4

6

91312-04010

BOLT HEX,SOCKET HEAD

6

7

91312-04012

BOLT HEX,SOCKET HEAD

1

8

91312-04016

BOLT HEX,SOCKET HEAD

4

9

91312-04025

BOLT HEX,SOCKET HEAD

8

10

KG2-M9173-00

LOCK NUT

1

11

KG7-M9111-01

PULLEY 1

1

12

KGJ-M3159-01

PLATE R, BRG.

1

13

KGJ-M3169-00

DAMPER,R

2

14

KGY-M7152-00

SPACER,L.C.

2

15

KHT-M2207-00

SHAFT,SPRING

2

16

KHT-M2210-00

PLATE 2,SZ AXIS

1

17

KHT-M2212-00

SPRING,SZ

4

18

KHT-M2213-00

DAMPER,SZ

2

19

KHT-M2217-00

HOLDER,BRG.

1

20

KHT-M2245-00

HOLDER BRKT.2,SHAFT

1

21

KHT-M6533-A0

LOAD CELL ASSY

1

22

KHT-M7531-00

COLLAR

2

22-1

90990-41J156

COLLAR

2

OK

MJY0091-2013/2/14

23

KHT-M9D00-02

BALL SCREW,SZ

1

24

KKX-M2203-00

PLATE,SZ 1

1

25

KKX-M2204-00

PLATE,SZ 2

1

26

KKX-M2207-00

BUSH

2

27

KKX-M2208-00

SHAFT,BUSH

2

28

KKX-M2209-00

BELT,SZ

1

29

KKX-M2210-00

DAMPER,SZ

2

30

KKX-M2219-00

PLATE,SZ MOTOR

1

31

KKX-M2225-00

HOLDER,SPRING

2

32

KKX-M2228-00

BRKT.,HNS.

1

33

KKX-M2230-00

HOLDER,SPRING

4

34

KKX-M2251-00

PLATE,LC

1

35

KV7-M9205-01

PULLEY 1:P22-3GT

1

36

91312-05012

BOLT HEX,SOCKET HEAD

10

37

91312-05014

BOLT HEX,SOCKET HEAD

7

38

91312-05016

BOLT HEX,SOCKET HEAD

2

39

91312-05020

BOLT HEX,SOCKET HEAD

6

40

91312-06012

BOLT HEX,SOCKET HEAD

2

41

91312-06014

BOLT HEX,SOCKET HEAD

2

42

91312-06025

BOLT HEX,SOCKET HEAD

4

43

92902-05200

WASHER,PLAIN

3

44

92A08-04306

SCREW SET

2

8

27

13

44

31

5

1

6

16

32

33

49

6

5

45

10

44

41

48

22

8

47

18

3

48

4

6

47

9

11

10

40

34

20

45

19

7

47

31

49

4

10

17

10

32

3

6

48

9

6

20

6

4

15

19

7

48

28

35

46

46

5

8

2

21

29

39

2

38

8

30

37

46

14

12

36

8

23

14

23

12

42

26

25

24

8

27

13

44

31

5

1

6

16

32

33

49

6

5

45

10

44

41

48

22

8

47

18

3

48

4

6

47

9

11

10

40

34

20

45

19

7

47

31

49

4

10

17

10

32

3

6

48

9

6

20

6

4

15

19

7

48

28

35

46

46

5

8

2

21

29

39

2

38

8

30

37

46

14

12

36

8

23

14

23

12

42

26

25

24

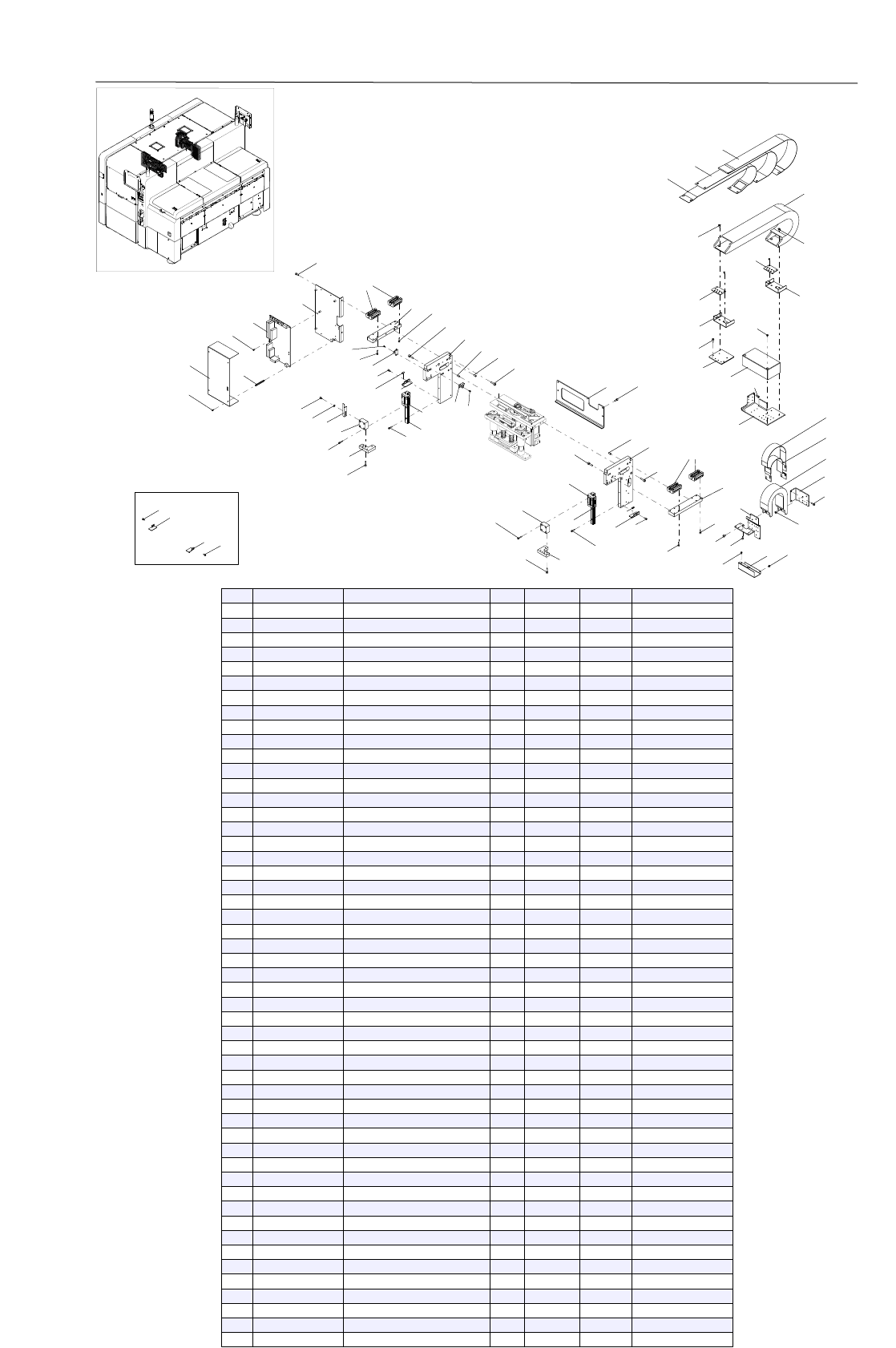

SZ-Guide / Duct

Moving-axis

KKX-1305

3-2

OLD

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

90563-13J500

SPACER

4

2

90990-01J032

BOLT HEX,SOCKET HEAD

4

3

90K71-0U0165

LM RAIL 15

2

4

91312-04008

BOLT HEX,SOCKET HEAD

6

5

91312-04010

BOLT HEX,SOCKET HEAD

8

6

91312-04016

BOLT HEX,SOCKET HEAD

22

7

91312-04020

BOLT HEX,SOCKET HEAD

8

8

91312-05012

BOLT HEX,SOCKET HEAD

12

9

91312-05020

BOLT HEX,SOCKET HEAD

6

10

91312-06020

BOLT HEX,SOCKET HEAD

10

11

92902-04200

WASHER,PLAIN

2

12

KGY-M2475-00

PLATE,NUT CY

2

13

KGY-M4572-00

I/O SHEAD BOARD ASSY

1

14

KHT-M2623-00

BRACKET,TAPE

2

15

KKX-M2201-00

PLATE,SY GUIDE R

1

16

KKX-M2201-10

PLATE,SY GUIDE L

1

17

KKX-M2202-00

PLATE,SIDE L

1

18

KKX-M2202-10

PLATE,SIDE R

1

19

KKX-M2205-00

BLOCK,SZ GUIDE 1

2

20

KKX-M2206-00

BLOCK,SZ GUIDE 2

2

21

KKX-M2211-00

CABLE DUCT,SZ

1

22

KKX-M2212-00

PLATE,BACK

1

23

KKX-M2213-00

CABLE DUCT,SY

1

24

KKX-M2214-00

TAPE,SY DUCT 1

1

25

KKX-M2215-00

TAPE,SY DUCT 2

1

26

KKX-M2216-00

TAPE,SY DUCT 3

1

27

KKX-M2220-00

BRKT.,HEAD I/O

1

28

KKX-M2221-00

BRKT.,SZ DUCT 1

1

29

KKX-M2222-00

BRKT.,SZ DUCT 2

1

30

KKX-M2223-00

BRKT.,SY DUCT

1

30-1

KKX-M2223-01

BRKT.,SY DUCT

1

OK

MJ70098-2012/8/2

31

KKX-M2226-00

COVER,GUIDE SZ

1

31-1

KKX-M2226-01

COVER,GUIDE SZ

1

NG

MP50087-2017/6/1

32

KKX-M2226-10

COVER,GUIDE SZ

1

32-1

KKX-M2226-11

COVER,GUIDE SZ

1

NG

MP50087-2017/6/1

33

KKX-M2227-00

COVER,HEAD I/O

1

34

KKX-M2229-00

DOG,SZ

1

35

KKX-M2231-00

COVER,SZ HNS.

1

36

KKX-M2232-00

BRKT.,SY DUCT 2

1

37

KKX-M2233-00

COVER,SY HNS.

1

38

KKX-M2234-00

TAPE,SZ DUCT 1

1

39

KKX-M2235-00

TAPE,SZ DUCT 2

1

40

KKX-M653J-00

SENSOR SYORG ASSY

1

41

KKX-M653J-10

SENSOR SZORG ASSY

1

42

98702-05010

SCREW FLAT HEAD

4

44

98902-03006

SCREW BINDING HEAD

5

45

98902-03008

SCREW BINDING HEAD

4

46

98902-04006

SCREW BINDING HEAD

5

47

99480-06012

PIN,PARALLEL

8

48

90K80-S15LW0

LM BLOCK

6

49

KGS-M6701-000

UNIVERSAL BUSH

2

MP50087-2017/6/1

15

21

23

29

10

50

43

31

9

14

48

11

8

17

44

35

47

17

30

20

16

28

4

37

13

13

4

27

44

38

25

14

18

12

49

3

7

6

19

17

32

45

1

40

33

5

24

44

46

34

26

48

19

2

22

42

45

7

15

28

23

41

44

21

4

13

19

39

48

9

36

11

SY-Drive

Moving-axis

KKX-1305

3-3

NO

Parts_No.

Parts_Name

Q_ty

Remarks

Compati

Revision_No._date

1

90933-01J002

BEARING

2

2

90933-01J201

BEARING

4

3

90933-01J800

BEARING

4

4

90990-28J007

WASHER,PLAIN

3

5

90990-41J012

COLLAR

2

6

90990-41J142

COLLAR

2

7

90990-41J145

COLLAR

2

8

90K63-411446

AC SERVO MOTOR

1

9

90K71-0U0830

LM RAIL 15

2

10

91312-04010

BOLT HEX,SOCKET HEAD

2

11

91312-04014

BOLT HEX,SOCKET HEAD

28

12

91312-04016

BOLT HEX,SOCKET HEAD

4

13

91312-05010

BOLT HEX,SOCKET HEAD

3

14

91312-05014

BOLT HEX,SOCKET HEAD

6

15

91312-05016

BOLT HEX,SOCKET HEAD

4

16

91312-05065

BOLT HEX,SOCKET HEAD

1

17

91312-06016

BOLT HEX,SOCKET HEAD

8

18

91312-06030

BOLT HEX,SOCKET HEAD

4

19

91312-06035

BOLT HEX,SOCKET HEAD

6

20

KGJ-M3237-00

BRACKET 2,Z

1

21

KGY-M7177-00

DAMPER 3

4

22

KHT-M3165-00

HEXAGON BOLT

1

23

KHT-M7531-00

COLLAR

4

23-1

90990-41J156

COLLAR

4

OK

MJY0091-2013/2/14

24

KHU-M3216-00

BRACKET 2, PU

1

25

KKX-M2292-00

HOLDER,SY SHAFT

1

26

KKX-M2293-00

SHAFT,SY DRIVE

1

27

KKX-M2294-00

HOLDER,SY SHAFT 2

2

28

KKX-M2295-00

PULLEY,SY DRIVE 1

2

29

KKX-M2296-00

PULLEY,SY DRIVE 2

1

30

KKX-M2298-00

COLLAR,SY MOTOR

1

31

KKX-M2299-00

DOG,SY

1

32

KKX-M229A-00

HOLDER,BELT 1

1

33

KKX-M229C-00

FITTING,BELT

1

34

KKX-M229D-00

PLATE,BELT CLAMP

1

35

KKX-M229F-00

BRKT.,SY MOTOR

1

36

KKX-M229G-00

BELT,SY Ｌ

1

37

KKX-M229H-00

BELT,SY MOTOR

1

38

KKX-M229J-00

COVER,SY CENTER

1

39

KKX-M229K-00

COVER,SY GUIDE

1

40

KKX-M229L-00

PULLEY,SY IDLER

2

41

91312-08040

BOLT HEX,SOCKET HEAD

2

42

91B00-05614

KEY,STRAIGHT

2

43

92902-04200

WASHER,PLAIN

2

44

92902-06200

WASHER,PLAIN

10

45

92902-08200

WASHER,PLAIN

4

46

95302-05600

NUT HEXAGON

1

47

95302-05700

NUT HEXAGON

1

48

98902-04008

SCREW BINDING HEAD

12

49

99480-06012

PIN,PARALLEL

2

50

KKX-M229K-10

COVER,SY GUIDE

1
