YSP20 - 第21页

lane 1 lane 2 26 35 21 2 44 22 3 28 34 33 5 1 36 1 32 12 21 16 20 37 16 7 38 43 35 16 4 5 13 19 25 14 31 10 40 41 17 11 22 5 29 1 6 30 1 21 27 9 21 29 26 6 5 8 8 39 18 15 11 24 23 17 42 31 41 X-Screw / Guide Moving-axis …

100%1 / 75
lane 1
lane 2
16
49
29
33
40
35
37
42
32
13
11
41
26
43
44
20
47
3
45
6
48
37
34
46
5
41
7
50
14
2
15
1
4
38
1
17
8
12
38
36
38
8
27
10
36
36
36
9
22
24
10
36
38
12
30
19
40
9
17
16
38
36
38
36
39
31
39
9
3
6
18
40
9
X-Sensor / Valve / Plate
Moving-axis
KKX-1305
3-5
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$BF4U
JOINT
8
2
$KM-11
MUFFLER
1
3
$NK-3N
NYLON CLIP
13
4
$TF
JOINT
4
5
$TL8-01
JOINT
1
6
90990-11J003
SCREW, PAN HEAD W/W
13
7
91312-03025
BOLT HEX,SOCKET HEAD
4
8
91312-04008
BOLT HEX,SOCKET HEAD
4
9
91312-04010
BOLT HEX,SOCKET HEAD
16
10
91312-04020
BOLT HEX,SOCKET HEAD
4
11
91312-05006
BOLT HEX,SOCKET HEAD
4
12
91312-05008
BOLT HEX,SOCKET HEAD
11
13
98902-03006
SCREW BINDING HEAD
1
14
KHW-M8582-40
VALVE
6
15
KHY-M266D-00
JOINT
4
16
KKX-M310C-00
DOG,Y ORG
2
17
KKX-M310D-00
DOG,Y LIMIT
2
18
KKX-M310E-50
COVER,X BALL SCREW
1
19
KKX-M310J-00
COVER,Y COUPLING
1
20
KKX-M310K-00
BRKT.,JOINT
3
21
KKX-M310M-00
BRKT.,JOINT
1
22
KKX-M311A-00
COVER,Y SENSOR
1
23
KKX-M311A-10
COVER,Y SENSOR
1
24
KKX-M311C-00
COVER,X GUIDE
4
25
KKX-M314A-00
BRKT.,Y 1 HNS.
1
lane 1
26
KKX-M314C-00
BRKT.,Y 3 CABLE DUCT
1
lane 1
27
KKX-M314D-00
BRKT.,HNS.
1
28
KKX-M314E-00
COVER,VALVE
1
29
KKX-M314F-00
COVER,HNS.
1
30
KKX-M3151-00
BRKT.,X 1 CABLE DUCT
1
lane 1
31
KKX-M3161-00
BRKT.,HNS.
1
lane 1
32
KKX-M3182-00
BRKT.,Y SENSOR
1
33
KKX-M318A-00
COVER,Y BACK 1
1
lane 1
34
KKX-M318B-00
COVER,Y BACK 2
1
35
KKX-M318D-00
COVER,Y BACK 3
1
36
91312-05010
BOLT HEX,SOCKET HEAD
16
37
91312-05012
BOLT HEX,SOCKET HEAD
10
38
92902-05200
WASHER,PLAIN
11
39
98702-05008
SCREW FLAT HEAD
2
40
98902-04006
SCREW BINDING HEAD
10
41
98902-04010
SCREW BINDING HEAD
7
42
KKX-M652D-00
SENSOR Y SAFE ASSY
1
43
KKX-M314A-50
BRKT.,Y 2 HNS.
1
lane 2
44
KKX-M314C-50
BRKT.,Y 4 CABLE DUCT
1
lane 2
45
KKX-M3151-50
BRKT.,X 2 CABLE DUCT
1
lane 2
46
KKX-M3161-50
BRKT.,HNS.
1
lane 2
47
KKX-M3183-00
DOG,Y SAFE
1
lane 2
48
KKX-M318A-50
COVER,Y BACK 1
1
lane 2
49
$UP4
JOINT
1
50
KKE-M8582-10
VALVE
1
lane 1
lane 2
35
2
44
22
3
28
34
33
5
1
36
1
32
12
21
16
20
37
16
7
38
43
35
16
4
5
13
19
14
31
10
40
41
17
11
22
5
1
6
30
1
21
9
21
6
5
8
8
39
18
15
11
23
17
42
31
41

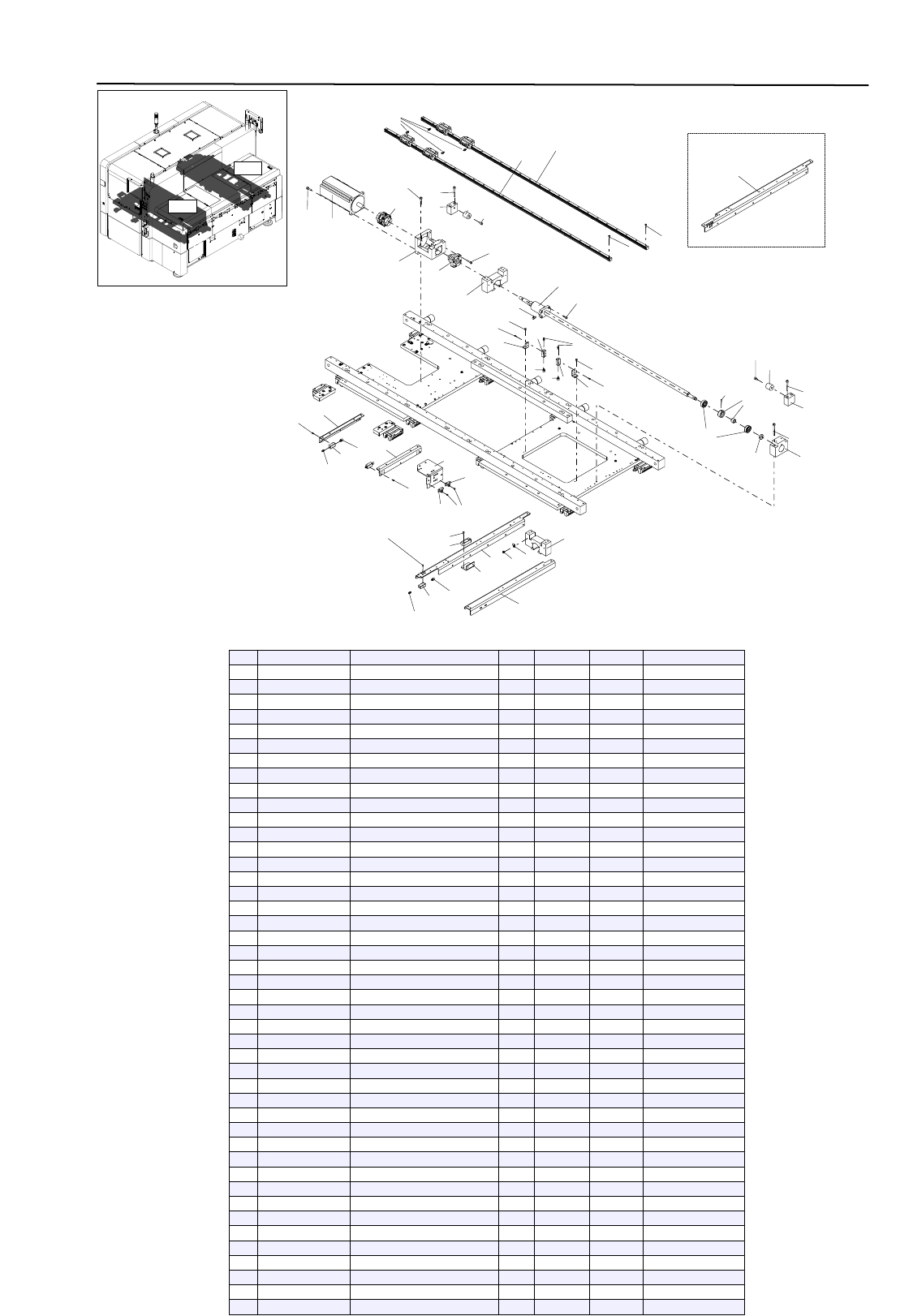

X-Screw / Guide
Moving-axis
3-6
KKX-1305
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$BF4U
JOINT
5
2
$NK-XN
NYLON CLIP
2
3
90990-11J003
SCREW, PAN HEAD W/W
2
4
90K63-531303
AC SERVO MOTOR
1
5
91312-03008
BOLT HEX,SOCKET HEAD
16
6
91312-04008
BOLT HEX,SOCKET HEAD
4
7
91312-04010
BOLT HEX,SOCKET HEAD
2
8
91312-04014
BOLT HEX,SOCKET HEAD
47
9
91312-05016
BOLT HEX,SOCKET HEAD
4
10
91312-05020
BOLT HEX,SOCKET HEAD
4
11
91312-06010
BOLT HEX,SOCKET HEAD
4
12
91312-06020
BOLT HEX,SOCKET HEAD
4
13
KGR-M2611-00
COUPLING, Y-AXIS
1
14
KGS-M2604-00
SUPPORT UNIT
1
15
KGS-M2628-00
LOCK NUT
1
16
KHN-M22AD-00
GREASE NIPPLE
5
17
KHT-M3112-00
DAMPER,Y
4
18
KHW-M2645-00
BRG.,ANGULAR
1
19
KHW-M264L-01
SPACER,BRG.SET
1
20
KLB-M5126-00
SAFETY SW
1
21
KHY-M266C-00
BLOCK,JOINT
5
22
KKX-M3106-00
HOLDER,Y NUT
2
23
KKX-M311G-50
BRKT.,X 1L
1
lane 2
24
KKX-M3108-00
HOUSING,BRG.
1
25
KKX-M310A-00
BRKT.,MOTOR Y
1
26
KKX-M310L-00
BRKT.,NIPPLE
2
27
KKX-M310P-00
JOINT
1
28
KKX-M310R-00
JOINT
4
29
KKX-M3111-00
GUIDE,X AXIS
2
30
KKX-M3113-00
BALL SCREW,X AXIS
1
31
KKX-M3114-00
STOPPER,X AXIS
4
32
KKX-M311D-00
BRKT.,Y SENSOR
1
33
KKX-M311G-00
BRKT.,X 1L
1
lane 1
34
KKX-M311H-00
BRKT.,X 1R
1
35
KKX-M3172-00
BRKT.,CLEANER
2
36
KKX-M3185-00
BRKT.,SAFETY KEY
1
37
KKX-M652A-01
SENSOR Y ORG ASSY
1
38
KKX-M652B-01
SENSOR Y OT ASSY
1
39
99480-05010
PIN,PARALLEL
1
40
91312-06030
BOLT HEX,SOCKET HEAD
4
41
91312-06045
BOLT HEX,SOCKET HEAD
8
42
91312-06055
BOLT HEX,SOCKET HEAD
2
43
98702-03010
SCREW,FLAT HEAD
4
44
98902-03006
SCREW BINDING HEAD
4
lane 1
lane 2
36
1
31
15
32
34
33
1
36
31
15
32
34
33
35
37
38
40
39
18
4
8
11
4
18
3
4
10
2
3
10
5
10
6
2
4
18
9
27
17
7
22
9
4
10
3
5
4
18
18
19
3
4
2
22
3
16
19
12
21
20
21
29
22
4
30
18
21
21
22
22
13
24
18
10
25
18
3
14
22

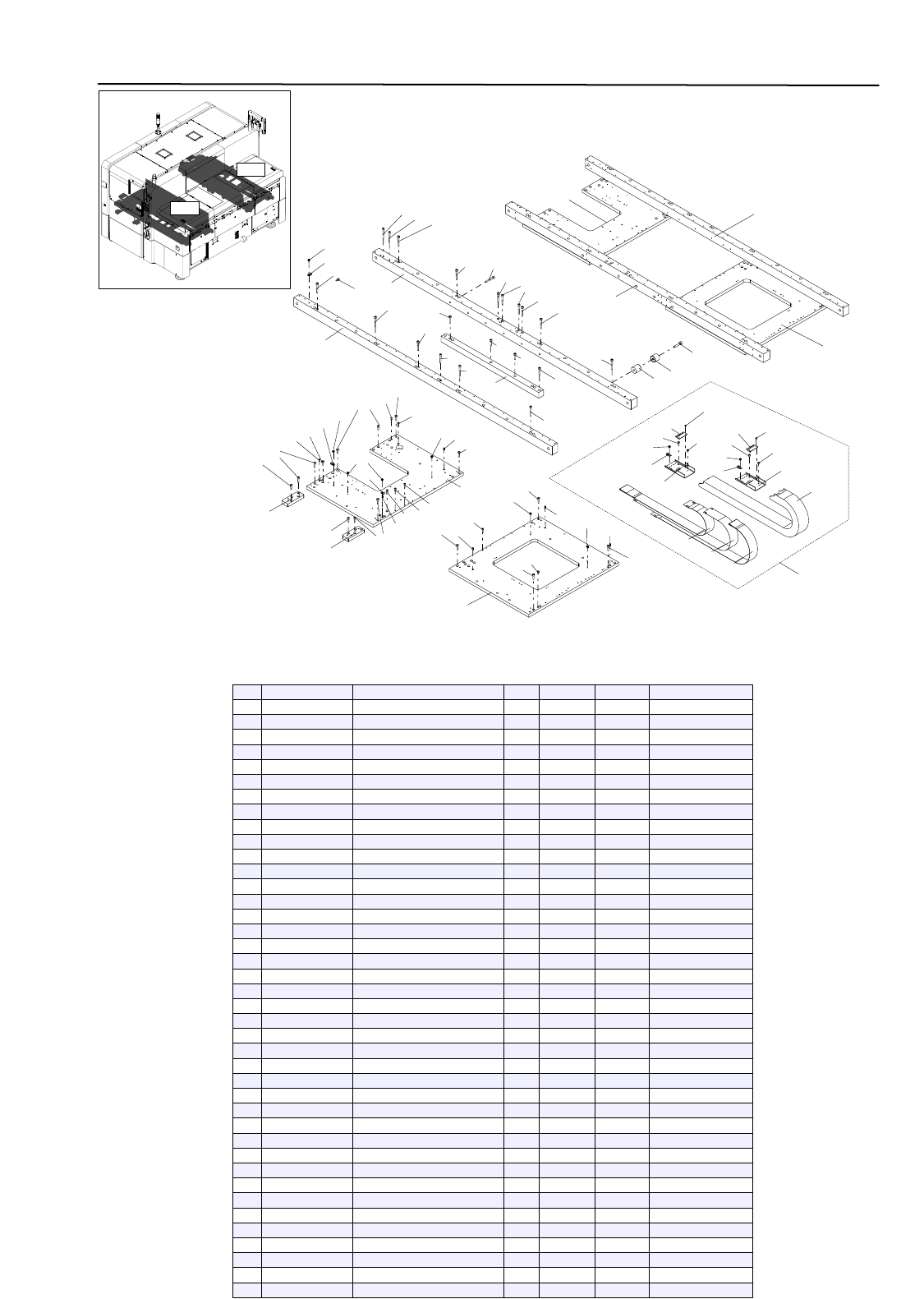

X-Base / Block / Duct
Moving-axis
3-7
KKX-1305
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$CTAM1
ANCHOR MOUNT
16
2
$NK-3N
NYLON CLIP
7
3
90990-11J003
SCREW, PAN HEAD W/W
13
4
90990-20J011
PIN,DOWEL
8
5
91312-04020
BOLT HEX,SOCKET HEAD
2
6
91312-05008
BOLT HEX,SOCKET HEAD
2
7
91312-05012
BOLT HEX,SOCKET HEAD
2
8
91312-05016
BOLT HEX,SOCKET HEAD
2
9
91312-05050
BOLT HEX,SOCKET HEAD
2
10
91312-06014
BOLT HEX,SOCKET HEAD
12
11
KKX-M3101-00
PLATE,Y 1L
1
lane 1
12
KKX-M3101-10
PLATE,Y 1R
1
lane 1
13
KKX-M3101-50
PLATE,Y 2L
1
lane 2
14
KKX-M3101-60
PLATE,Y 2R
1
lane 2
15
90990-11J001
SCREW, PAN HEAD W/W
16
16
KKX-M3110-00
FRAME,X 1F
1
lane 1
17
KKX-M3110-10
FRAME,X 1R
1
lane 1
18
91312-06020
BOLT HEX,SOCKET HEAD
20
19
91312-06025
BOLT HEX,SOCKET HEAD
2
20
91312-06030
BOLT HEX,SOCKET HEAD
4
21
91312-06040
BOLT HEX,SOCKET HEAD
6
22
91312-06045
BOLT HEX,SOCKET HEAD
26
23
91312-08035
BOLT HEX,SOCKET HEAD
5
24
KKX-M3110-50
FRAME,X 2F
1
lane 2
25
KKX-M3110-60
FRAME,X 2R
1
lane 2
26
KKX-M3112-00
PLATE,X
1
27
KKX-M3171-01
BLOCK,BASE 1
1
28
KKX-M3171-11
BLOCK,BASE 2
1
29
KKX-M3181-00
DAMPER,Y
5
30
KKX-M3187-00
SPACER
5
31
91312-05006
BOLT HEX,SOCKET HEAD
4
32
98702-05008
SCREW FLAT HEAD
4
33
98902-03004
SCREW BINDING HEAD
4
34
KKE-M226D-00
PLATE,NUT
2
35
KKX-M3153-00
CABLE DUCT,X
1
36
KKX-M3154-00
BRKT.,X CABLE DUCT
2
37
KKX-M3156-00
TAPE,X 1 DUCT
1
38
KKX-M3157-00
TAPE,X 2 DUCT
1
39
KKX-M3158-00
TAPE,X 3 DUCT
1
40
KKX-M31D0-00
X CABLE DUCT ASSY.
1
