YSP20 - 第27页

3 9 26 10 8 22 25 15 34 32 17 19 13 34 18 13 37 35 24 11 23 34 16 27 4 27 12 27 14 21 12 7 36 9 30 6 2 5 1 20 31 1 7 29 2 28 33 3S-Motor / Sensor Head KKX-1305 4-2 NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No…

100%1 / 75
9
12
26
39
37
3
4
4
5
32
32
14
35
36
36
34
17
30
31
14
3
4
36
1
41
18
25
2
7
39
10
24
28
16
33
3
42
7
29
40
2
6
15
21
19
8
38
13
20
11

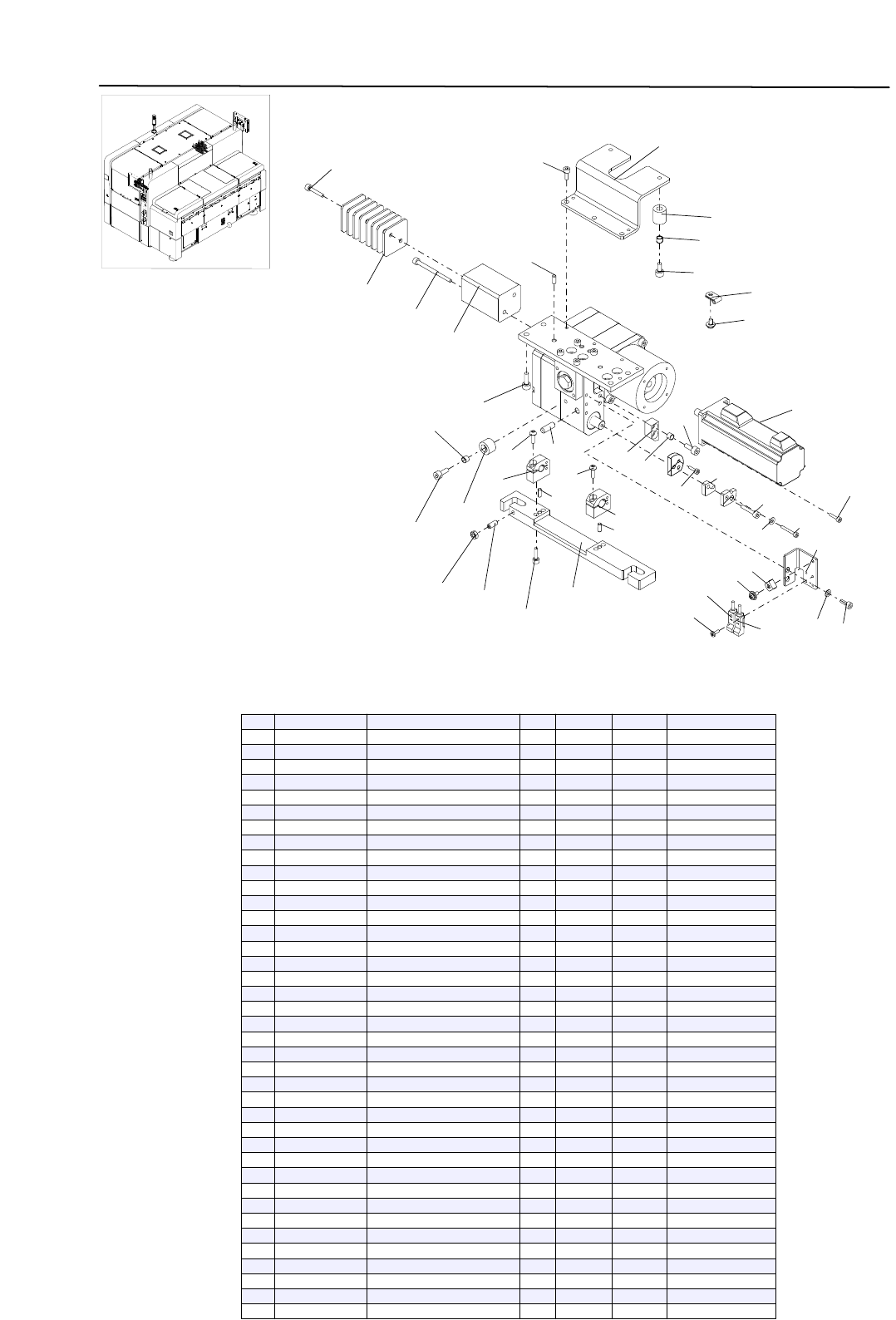

3S-Gear Box
Head
KKX-1208
4-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90185-01J000
NUT, U
1
2
90933-01J001
BEARING
2
3
90933-01J900
BEARING
3
4
90933-02J698
BEARING
3
5
90990-28J058
WASHER,PLAIN
1
6
90990-28J059
WASHER,PLAIN
2
7
90990-29J040
SHIM
2
8
91312-03008
BOLT HEX,SOCKET HEAD
2
9
91312-03045
BOLT HEX,SOCKET HEAD
3
10
91312-04010
BOLT HEX,SOCKET HEAD
6
11
91312-04014
BOLT HEX,SOCKET HEAD
4
12
91312-04045
BOLT HEX,SOCKET HEAD
4
13
91312-05016
BOLT HEX,SOCKET HEAD
4
14
91B00-03616
KEY, STRAIGHT
2
15
92902-03200
WASHER,PLAIN
2
16
92A08-04305
SCREW SET
1
17
99009-08400
CIRCLIP
1
18
KGY-M7155-00
HOLDER R,BRG.
1
19
KGY-M7155-10
HOLDER F,BRG.
1
20
KGY-M7156-00
SHAFT,BRG.
1
21
KGY-M7157-00
HARMONIC DRIVE,3S
1
22
KGY-M7181-00
OIL SEAL(AG 0256 E0)
1
23
KHT-M7101-00
PLATE,LC
1
24
KHT-M7102-00
HOLDER BLOCK
1
25
KHT-M7103-00
GEAR BOX 1
1
26
KHT-M7104-00
GEAR BOX 2
1
27
KHT-M7105-00
HOLDER,HARMONIC
1
28
KHT-M7106-00
FRANGE SHAFT
1
29
KHT-M7107-00
DAMPER 2
1
30
KHT-M7110-00
SHAFT 1
1
31
KHT-M7111-00
SHAFT 2
1
32
KHT-M7112-00
COLLAR 1,SHAFT 2
2
33
KHT-M7113-00
COLLAR 2,SHAFT 2
1
34
KHT-M7114-00
SHAFT 3
1
35
KHT-M7115-00
GEAR 1
1
36
KHT-M7116-00
GEAR 2
3
37
KHT-M7117-00
OIL SEAL(AG 0141 E2)
1
38
99480-04008
PIN,PARALLEL
2
39
99480-04010
PIN,PARALLEL
3
40
KHT-M7118-00
WAVE WASHER,BRG.
1
41
90200-01J500
O-RING
1
42
90200-01J560
O-RING
1
3
9
10
8
22
15
34
32
17
19
13
34
18
13
37
35
11
34
16
4
27
12
14
21
12
7
36
9
30
6
2
5
1
31
1
7
29
2
33
3S-Motor / Sensor
Head
KKX-1305
4-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-2N
NYLON CLIP
3
2
90990-11J003
SCREW, PAN HEAD W/W
3
3
90K63-021448
AC SERVO MOTOR
1
4
91312-03010
BOLT HEX,SOCKET HEAD
1
5
91312-03012
BOLT HEX,SOCKET HEAD
4
6
91312-03020
BOLT HEX,SOCKET HEAD
1
7
91312-04010
BOLT HEX,SOCKET HEAD
5
8
91312-04014
BOLT HEX,SOCKET HEAD
4
9
91312-04020
BOLT HEX,SOCKET HEAD
3
10
91312-04050
BOLT HEX,SOCKET HEAD
2
11
91312-05010
BOLT HEX,SOCKET HEAD
2
12
91312-05012
BOLT HEX,SOCKET HEAD
3
13
92012-04012
BOLT, BOTTON HEAD
2
14
KGJ-M3169-00
DAMPER,R
2
15
KGJ-M7116-01
BALL PLUNGER
1
16
KGY-M7177-00
DAMPER 3
1
17
KHT-M7119-00
HOLDER R,SHAFT 2
1
18
KHT-M7119-10
HOLDER L,SHAFT 2
1
19
KHT-M7120-00
PLATE,SQG.
1
20
KHT-M7121-00
BRKT.,3S ORG. SENSOR
1
21
KHT-M7122-00
DOG,SR
1
22
KHT-M7123-00
SPACER,DOG SR
1
23
KHT-M7124-00
DOG,FX SAFETY
1
23-1
KKX-M7124-00
DOG,FX SAFETY
1
OK
MJ70080-2012/7/31
24
KHT-M7125-00
DAMPER,SR
1
25
KHT-M7128-00
WEIGHT 1,3S
1
26
KHT-M7129-00
WEIGHT 2,3S
8
27
KHT-M7531-00
COLLAR
5
27-1
90990-41J156
COLLAR
1
OK
MJY0091-2013/2/14
28
KKX-M653K-00
SENSOR SRORG ASSY
1
29
KKX-M653L-00
SENSOR SRSAFE ASSY
1
30
92902-03200
WASHER,PLAIN
1
31
92902-04600
WASHER,PLAIN
2
32
95302-05700
NUT HEXAGON
1
33
98902-03008
SCREW BINDING HEAD
2
34
99480-04010
PIN,PARALLEL
4
35
99480-06018
PIN,PARALLEL
1
36
KKX-M7108-00
PLATE,3S STOPPER
1
37
91312-05014
BOLT HEX,SOCKET HEAD
4

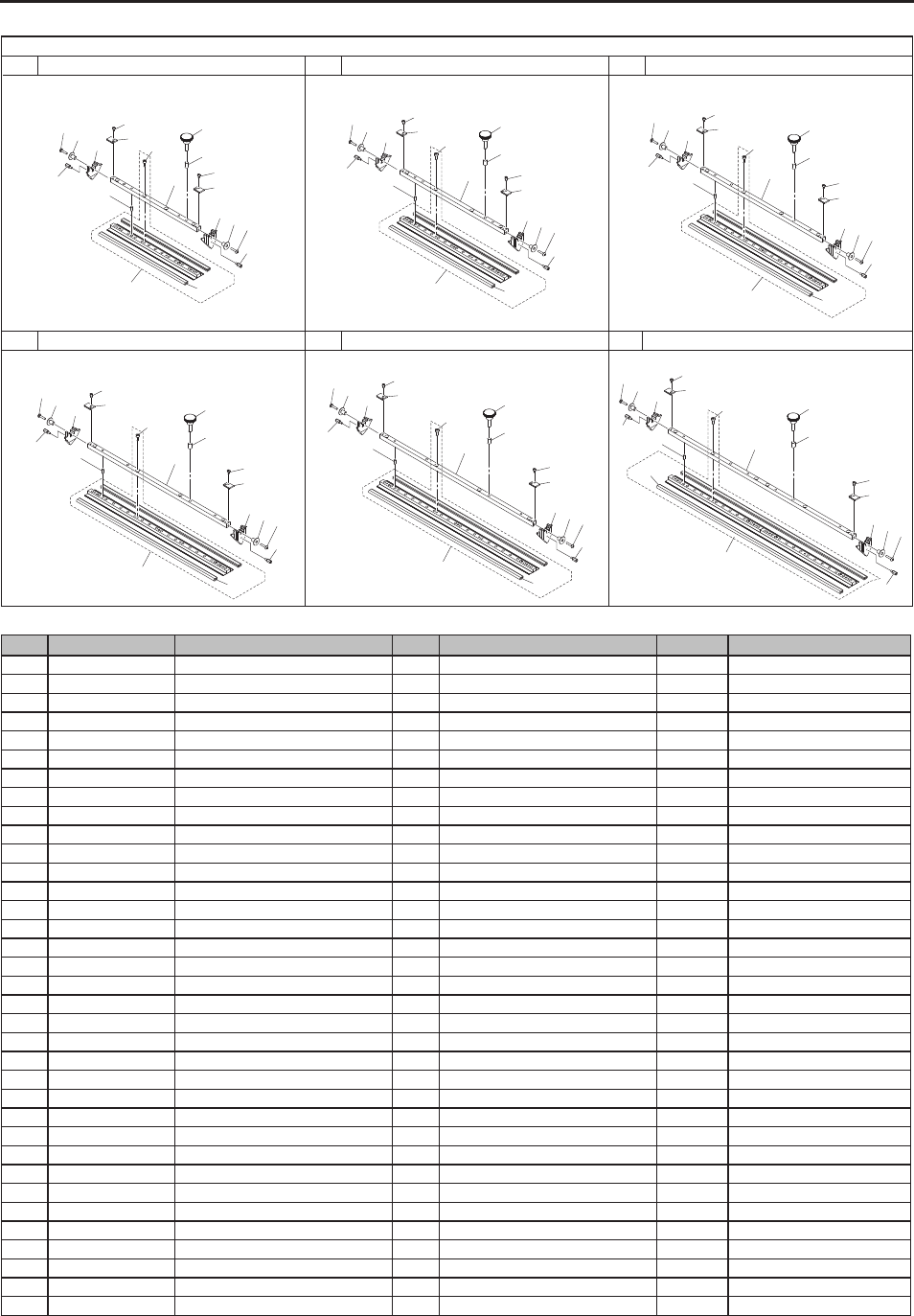

SQG-3S-Metal
Head
KKX-1208
METAL ASSY,3S 250
1
METAL 3S SQG. SELECTION
METAL ASSY,3S 300
14
METAL ASSY,3S 400
20
METAL ASSY,3S 440
23
METAL ASSY,3S 530
26
METAL ASSY,3S 350
17
2
4
5
12
9
9
5
12
6
7
8
6
4
10
10
11
3
35
15
4
5
12
9
9
5
12
6
7
8
6
4
10
10
11
16
35
18
4
5
12
9
9
5
12
6
7
8
6
4
10
10
11
19
35
21
4
5
12
9
9
5
12
6
7
8
6
4
10
10
11
22
35
24
4
5
12
9
9
5
12
6
7
8
6
4
10
10
11
25
35
27
4
5
12
9
9
5
12
6
7
8
6
4
10
10
11
28
13
29
30
31
32
33
34
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M71A0-50 METAL ASSY,3S 250 1
2 KGY-M71A1-02 METAL HOLDER 1,3S 25 1
3 KGY-M71AA-A0 METAL SQG.WELD,3S 25 1
4 KGY-M71A4-00 STOPPER,3S SIDE PLAT 12
5 KGY-M71A5-00 BUSH,SQG.SIDE PLATE 12
6 KHT-M71A6-00 SIDE PLATE,3S 12
7 KGJ-M710B-C0 SPACER PIPE 12
8 KGJ-M710B-D1 KNOB 1 12
9 90563-03J100 SPACER BOLT 12
10 91312-03005 BOLT HEX.SOCKET HEAD 24 M3X5
11 91312-04010 BOLT HEX.SOCKET HEAD 26 M4X10
12 92012-04016 BOLT,BUTTON HEAD 12 M4X16
13 99480-04012 PIN PARALLEL 4 4X12
14 KHT-M71A0-40 METAL ASSY,3S 300 1 φ4X12
15 KGY-M71B1-02 METAL HOLDER 1,3S 30 1
16 KGY-M71BA-A0 METAL SQG.WELD,3S 30 1
17 KHT-M71A0-30 METAL ASSY,3S 350 1
18 KGY-M71C1-02 METAL HOLDER 1,3S 35 1
19 KGY-M71CA-A0 METAL SQG.WELD,3S 35 1
20 KHT-M71A0-20 METAL ASSY,3S 400 1
21 KGY-M71D1-02 METAL HODLER 1,3S 40 1
22 KGY-M71DA-A0 METAL SQG.WELD,3S 40 1
23 KHT-M71A0-10 METAL ASSY,3S 440 1
24 KGY-M71E1-02 METAL HOLDER 1,3S 44 1
25 KGY-M71EA-A0 METAL SQG.WELD,3S 44 1
26 KHT-M71A0-00 METAL ASSY,3S 530 1
27 KHT-M71A1-00 METAL HOLDER 1,3S 530 1
28 KHT-M71AA-A0 METAL SQG.3S 530 1
29 KGY-M71AB-00 TRIM, 250 2
30 KGY-M71BB-00 TRIM, 300 2
31 KGY-M71CB-00 TRIM, 350 2
32 KGY-M71DB-00 TRIM, 400 2
33 KGY-M71EB-00 TRIM, 440 2
34 KHT-M71A5-00 TRIM, 530 2
35 99480-04010 PIN PARALLEL 2
4-4
