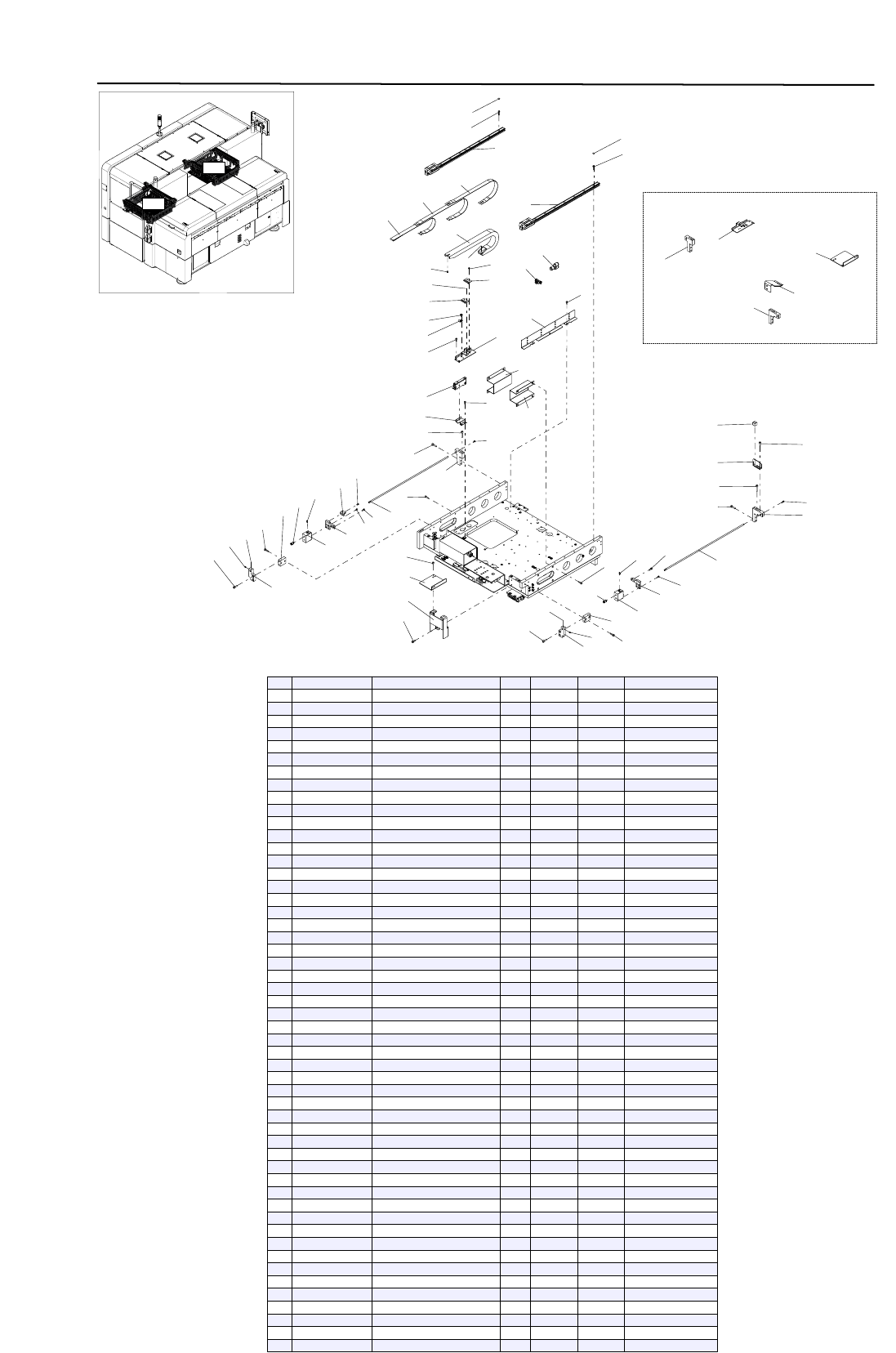

Clamp Unit 2
Conveyor
KKX-1305
8-8
lane 2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
1
2
90990-11J003
SCREW, PAN HEAD W/W
1
3
91312-03004
BOLT HEX,SOCKET HEAD
8
4
91312-03006
BOLT HEX,SOCKET HEAD
6
5
91312-03008
BOLT HEX,SOCKET HEAD
2
6
91312-03010
BOLT HEX,SOCKET HEAD
2
7
91312-03020
BOLT HEX,SOCKET HEAD
2
8
91312-04006
BOLT HEX,SOCKET HEAD
4
9
91312-04008
BOLT HEX,SOCKET HEAD
2
10
91312-04012
BOLT HEX,SOCKET HEAD
16
11
91312-04016
BOLT HEX,SOCKET HEAD
6
12
91312-05012
BOLT HEX,SOCKET HEAD
2
13
KHT-M7635-00
PLATE,NUT
1
14
KKX-M653D-00
SENS.BACKUPPIN ASSY
1
15
KKX-M653Y-00
SENS.W BRAKE ENT
1
16
KKX-M653Y-10
SENS.W BRAKE EXIT
1
17
KKX-M9204-00
BLOCK,E-CLAMP F
2
lane 1
18
KKX-M920G-10
COVER,W GUIDE
1
lane 1
19
KKX-M920J-01
BRKT.,PCB CHECK
2
20
KKX-M920K-01
FIBER
2
21
KKX-M920M-00
BRKT.,CLAMP UNIT 1L
1
lane 1
22
KKX-M920P-00
BRKT.,SENSOR W1
1
23
KKX-M920R-00
BRKT.,SENSOR W2R
1
24
KKX-M920R-10
BRKT.,SENSOR W2L
1
25
90K41-001320
LABEL,CAUTION
2
26
KKX-M920T-00
COVER,SENSOR R
1
27
KKX-M920T-10
COVER,SENSOR L
1
28
KKX-M920U-00
BRKT.,COVER
1
29
KKX-M920X-00
COVER,FIBER
1
30
KKX-M920X-10
COVER,FIBER
1
31
KKX-M9212-00
LEG,E-CLAMP MOV. 1R
1
lane 1
32
KKX-M9212-10
LEG,E-CLAMP MOV. 1L
1
lane 1
33
KKX-M9213-00
BRKT.,E-CLAMP MOV.R
1
34
KKX-M9213-10
BRKT.,E-CLAMP MOV.L
1
35
KKX-M9216-00
PLATE,RAIL 1
2
36
KKX-M9217-00
PLATE,RAIL 2
2
37
KKX-M9227-01
BRKT.,PIN SENSOR R
1
lane 1
38
KKX-M922B-01
BRKT.,PIN SENSOR L
1
39
KKX-M9232-00
BRKT.,W CABLE DUCT 2
1
lane 1
40
KKX-M923E-00
BRKT.,HNS.
1
lane 1
41
KKX-M923F-00
BRKT.,HNS.
1
lane 1
42
91312-05014
BOLT HEX,SOCKET HEAD
15
43
91312-05016
BOLT HEX,SOCKET HEAD
3
44
92012-03006
BOLT BUTTON HEAD
2
45
92902-03600
WASHER,PLAIN
16
46
98702-03008
SCREW,FLAT HEAD
4
47
98902-03004
SCREW BINDING HEAD
2
48
98902-03008
SCREW BINDING HEAD
4
49
98902-03012
SCREW BINDING HEAD
4
50
98902-04006
SCREW BINDING HEAD
7
51
99480-04012
PIN,PARALLEL
4
52
90K41-001330
LABEL,CAUTION
4
53
KKX-M920G-00
COVER,W GUIDE
1
lane 1
54
KKX-M9204-50
BLOCK,E-CLAMP R
1
lane 2
55
KKX-M920G-50
COVER,W GUIDE
1
lane 2
56
KKX-M920G-60
COVER,W GUIDE
1
lane 2
57
KKX-M920M-50
BRKT.,CLAMP UNIT 1L
1
lane 2
58
KKX-M9212-50
LEG,E-CLAMP MOV. 1R
1
lane 2
59
KKX-M9212-60
LEG,E-CLAMP MOV. 1L
1
lane 2
60
KKX-M9227-51
BRKT.,PIN SENSOR R
1
lane 2
61
KKX-M9232-50
BRKT.,W CABLE DUCT 2
1
lane 2
62
KKX-M923E-50
BRKT.,HNS.
1
lane 2
63
KKX-M923F-50
BRKT.,HNS.
1
lane 2
64
KW3-M9139-00
MASK 1
1
Slit
ML20057-2014/2/18
lane 1
lane 2
40
7
19
41
44
40
22
7
7
6
10
18
28
41
27
9
36
25
13
12
46
22
26
30
4
15
2
24
10
9
7
2
44
31
13
16
10
1
46
5
29
14
38
12
43
14
37
42
43
13
37
2
2
3
39
13
32
8
42
35
11
50
45
51
17
34
48
33
11
47
45
17
49

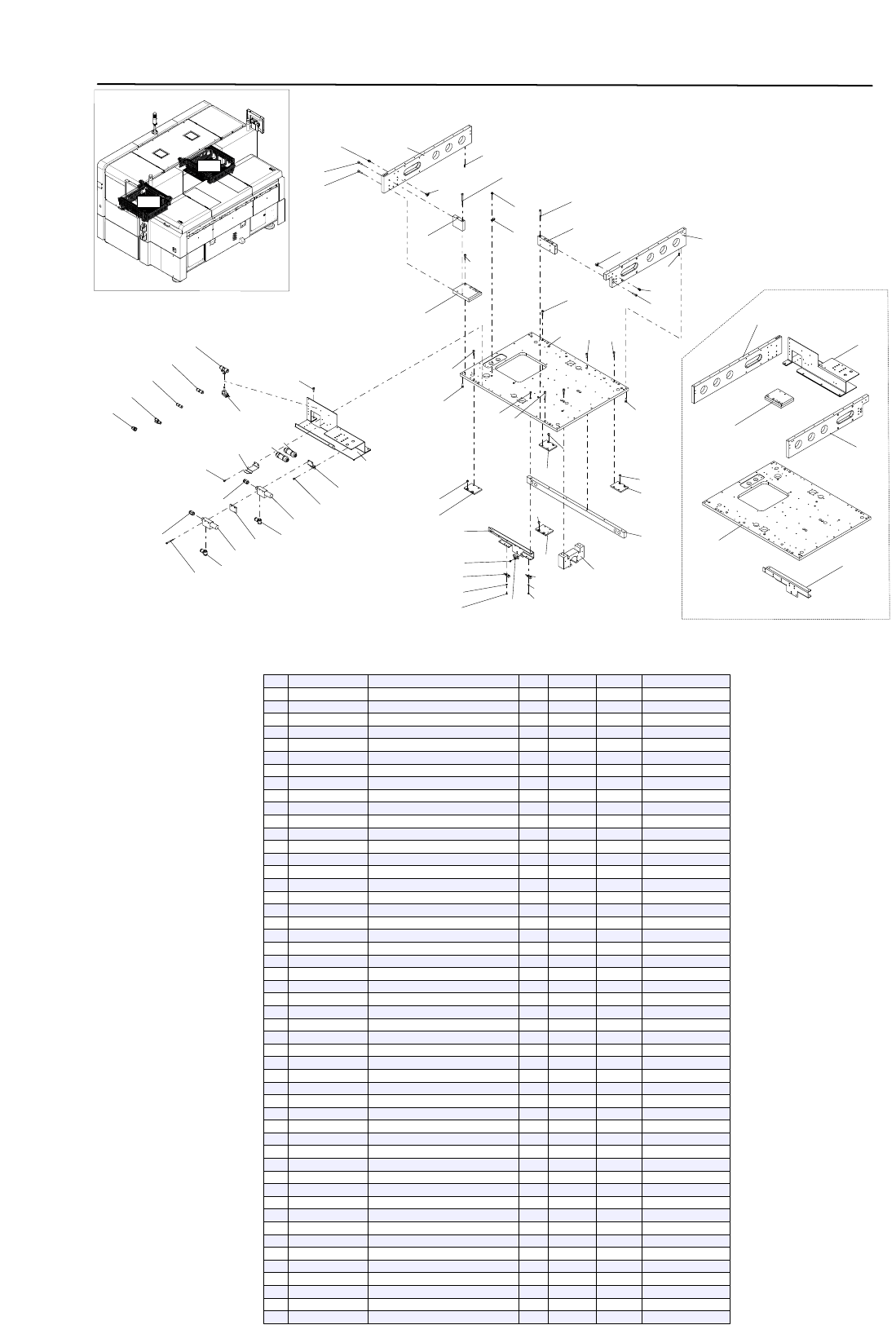

Clamp Unit 3
Conveyor
KKX-1311
8-9
lane 2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
2
2
90152-04J06
SCREW SET
4
3
$UT6M
JOINT
1
4
$UYD8-6
JOINT
1
5
90990-11J003
SCREW, PAN HEAD W/W
2
5-1
98902-04006
SCREW BINDING HEAD
2
OK
MK90019-2013/9/27
6
91312-03006
BOLT HEX,SOCKET HEAD
2
7
91312-03008
BOLT HEX,SOCKET HEAD
10
8
91312-04006
BOLT HEX,SOCKET HEAD
4
9
91312-04008
BOLT HEX,SOCKET HEAD
5
10
91312-04010
BOLT HEX,SOCKET HEAD
6
11
91312-04016
BOLT HEX,SOCKET HEAD
16
12
91312-05012
BOLT HEX,SOCKET HEAD
6
13
91312-05016
BOLT HEX,SOCKET HEAD
8
14
KHT-M7635-00
PLATE,NUT
2
15
KHT-M7657-00
BRKT.,AMP
1
16
KKX-M652U-01
SENSOR PCB CHK ASSY
1
17
KKX-M9105-00
GUIDE,WL
2
18
KKX-M9205-00
HOLDER,SHAFT 1R
1
lane 1
19
KKX-M9205-10
HOLDER,SHAFT 1L
1
lane 1
20
KKX-M9206-00
BRKT.,BRAKE R
1
21
KKX-M9206-10
BRKT.,BRAKE L
1
22
KKX-M9207-00
SHAFT,BRAKE
2
23
KKX-M9208-00
HOLDER,SHAFT 2R
1
24
KKX-M9208-10
HOLDER,SHAFT 2L
1
25
KKX-M9209-00
BRAKE,SHAFT GUIDE
2
26
KKX-M920H-00
BRKT.,SHAFT HOLDER
2
27
KKX-M920L-00
BRKT.,CLAMP UNIT 1R
1
lane 1
28
KKX-M920P-00
BRKT.,SENSOR W1
1
29
KKX-M920S-00
DOG,SHAFT BRAKE
2
30
KKX-M920W-00
SPACER,PCB CHECK
1
31
KKX-M9231-01
BRKT.,W CABLE DUCT 1
1
lane 1
32
KKX-M9233-00
DUCT,CABLE
1
33
KKX-M9234-01
TAPE 1,W DUCT
1
34
KKX-M9235-01
TAPE 2,W DUCT
1
35
KKX-M9236-01
TAPE 3,W DUCT
1
36
KKX-M923C-00
BRKT.,TUBE
1
37
KKX-M923G-02
COVER,GUIDE
2
38
KKX-M9247-00
BRKT.,X DUCT COVER
1
39
KKX-M9248-00
COVER,CABLE DUCT X
1
lane 1
40
91312-05020
BOLT HEX,SOCKET HEAD
4
41
91312-05025
BOLT HEX,SOCKET HEAD
2
42
98702-03006
SCREW,FLAT HEAD
4
43
98902-03004
SCREW BINDING HEAD
4
44
91312-04014
BOLT HEX,SOCKET HEAD
8
45
90K81-200004
CAP C4
16
46
$TSH4-M5M
JOINT
2
47
KKX-M9205-50
HOLDER,SHAFT 1R
1
lane 2
48
KKX-M9205-60
HOLDER,SHAFT 1L
1
lane 2
49
KKX-M920L-50
BRKT.,CLAMP UNIT 1R
1
lane 2
50
KKX-M9231-51
BRKT.,W CABLE DUCT 1
1
lane 2
51
KKX-M9248-50
COVER,CABLE DUCT X
1
lane 2
lane 1
lane 2
49
44
42
41
30
31
44
42
23
21
43
29
30
41
30
41
26
15
51
45
14
30
14
41
14
46
15
48
15
11
28
15
19
50
15
37
15
15
1
47
9
38
17
45
39
6
16
7
13
5
8
34
4
18
18
15
19
35
33
10
2
10
3
32
2
36
3
32
12
Clamp Unit 4
Conveyor
KKX-1305
8-10
lane 2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-XN
NYLON CLIP
18
2
$SL8-01
JOINT
2
3
$TS8-01
JOINT
2
4
$UC8
JOINT
1
5
$US4
JOINT
1
6
$US6
JOINT
1
7
$UTD8-6
JOINT
1
8
$UY4
JOINT
1
9
90990-11J003
SCREW, PAN HEAD W/W
20
10
91312-04006
BOLT HEX,SOCKET HEAD
4
11
91312-04012
BOLT HEX,SOCKET HEAD
2
12
91312-04040
BOLT HEX,SOCKET HEAD
2
13
91312-05014
BOLT HEX,SOCKET HEAD
4
14
91312-05016
BOLT HEX,SOCKET HEAD
16
15
91312-05020
BOLT HEX,SOCKET HEAD
18
16
91312-05050
BOLT HEX,SOCKET HEAD
3
17
91312-05055
BOLT HEX,SOCKET HEAD
2
18
KGJ-M9140-01
AIR FILTER
2
19
KHN-M22AD-00
GREASE NIPPLE
5
20
KHY-M266D-00
JOINT
5
21
KKX-M3106-00
HOLDER,Y NUT
1
22
KKX-M652E-00
SENSOR XORG ASSY
1
23
KKX-M652F-00
SENSOR X OT ASSY
1
24
KKX-M652G-00
SENSOR XMZ SAFE ASSY
1
25
KKX-M653C-00
SENSOR PCBVAC ASSY
1
26
KKX-M9201-00
PLATE,CLAMP UNIT 1
1
lane 1
27
KKX-M9202-00
PLATE,CLAMP UNIT 2R
1
lane 1
28
KKX-M9202-10
PLATE,CLAMP UNIT 2L
1
lane 1
29
KKX-M920E-00
PLATE,RIB
1
30
KKX-M920F-00
PLATE,X GUIDE SPACER
4
31
KKX-M9228-00
BRKT.,X AXIS SENSOR
1
lane 1
32
KKX-M922A-00
EJECTOR
2
33
KKX-M922D-00
BRKT.,FILTER
1
34
KKX-M9244-00
BRKT.,X CABLE DUCT
1
lane 1
35
KKX-M9245-00
BRKT.,EJECTOR
1
36
KKX-M9246-00
PLATE,SPACER
1
37
KKX-M924A-00
PLATE,RIB 1
1
lane 1
38
KKX-M924B-00
PLATE,RIB 2
1
39
KKX-M924C-00
PLATE,RIB 3
1
41
92012-05008
BOLT BUTTON HEAD
8
42
92902-03600
WASHER,PLAIN
2
43
97602-03306
SCREW PAN HEAD W/WASHER
2
44
98902-03010
SCREW BINDING HEAD
2
45
99480-05012
PIN,PARALLEL
7
46
KKX-M9201-50
PLATE,CLAMP UNIT 1
1
lane 2
47
KKX-M9202-50
PLATE,CLAMP UNIT 2R
1
lane 2
48
KKX-M9202-60
PLATE,CLAMP UNIT 2L
1
lane 2
49
KKX-M9228-50
BRKT.,X AXIS SENSOR
1
lane 2
50
KKX-M9244-50
BRKT.,X CABLE DUCT
1
lane 2
51
KKX-M924A-50
PLATE,RIB 1
1
lane 2
