YSP20 - 第67页
20 7 13 32 7 6 29 9 49 8 1 48 34 41 33 47 11 49 17 46 28 44 8 39 50 40 35 30 4 31 13 8 10 13 5 2 2 38 14 15 45 3 23 3 12 37 16 36 51 42 21 48 43 18 48 19 26 22 24 25 27 SYRINGE HEAD PSC KKX-1210 9-4 NO Parts_No. Parts_Na…
POT-Adpter, Ext.
PSC
KKX-1210
4
5
10
8
7
7
8
6
12
9 11
OLD
8
6
7
8
6
1
3
2
13

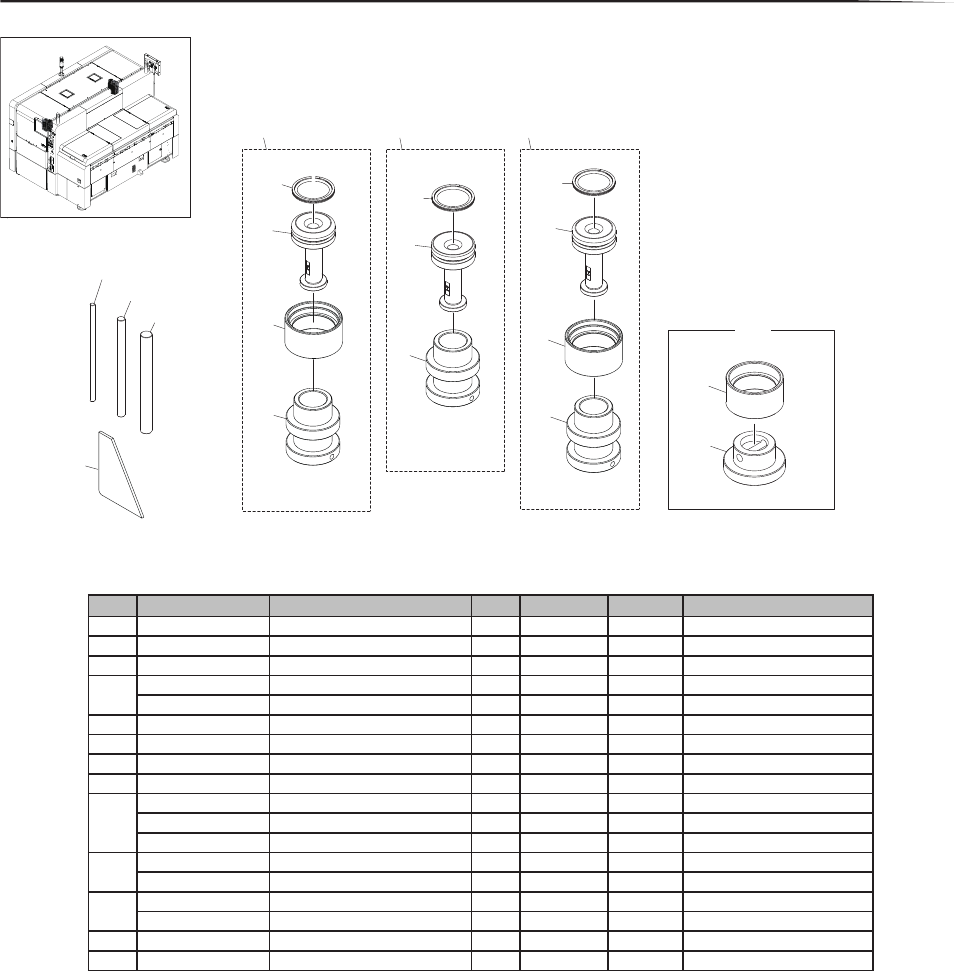

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KHT-M7396-10 CLEANER SHAFT 6 1 φ6X150mm
2 KHT-M7396-20 CLEANER SHAFT 10 1 φ10X150mm
3 KHT-M7396-30 CLEANER SHAFT 15 1 φ15X150mm
4
KHT-M734A-A1 ADAPTER ASSY,B-1 1 OK MK20098-2013/3/4
KHT-M734A-A0 ADAPTER ASSY,B-1 1 HI-Regist
5 KHT-M734A-00 ADAPTER,POT B-1 1
6 KHT-M734A-10 JIG,ADAPTER B-1 SET 1
7 KHT-M7341-B0 PACKING ASSY ADAPTER 2
8 KHT-M7342-00 JIG,ADAPTER SET 1
9
KHT-M734B-A2 ADAPTER ASSY,S-2 1 OK ML00073-2014/10/22
KHT-M734B-A1 ADAPTER ASSY,S-1 1 OK MK20098-2013/3/4
KHT-M734B-A0 ADAPTER ASSY,S-1 1 SENJU
10
KHT-M734B-01 ADAPTER,POT S-2 1 OK ML00073-2014/10/22
KHT-M734B-00 ADAPTER,POT S-1 1
11
KHT-M734C-A2 ADAPTER ASSY,T-1 1 OK MK20098-2013/3/4
KHT-M734C-A1 ADAPTER ASSY,T-1 1 TAMURA
12 KHT-M734C-01 ADAPTER,POT T-1 1
13 KHT-M7346-00 PLATE,CLEANER 1 MK20115-2013/2/28
9-3
20
7
13
32
7
6
29
9
49
8
1
48
34
41
33
47
11
49
17
46
28
44
8
39
50
40
35
30
4
31
13
8
10
13
5
2
2
38
14
15
45
3
23
3
12
37
16
36
51
42
21
48
43
18
48
19
26
22
24
25
27

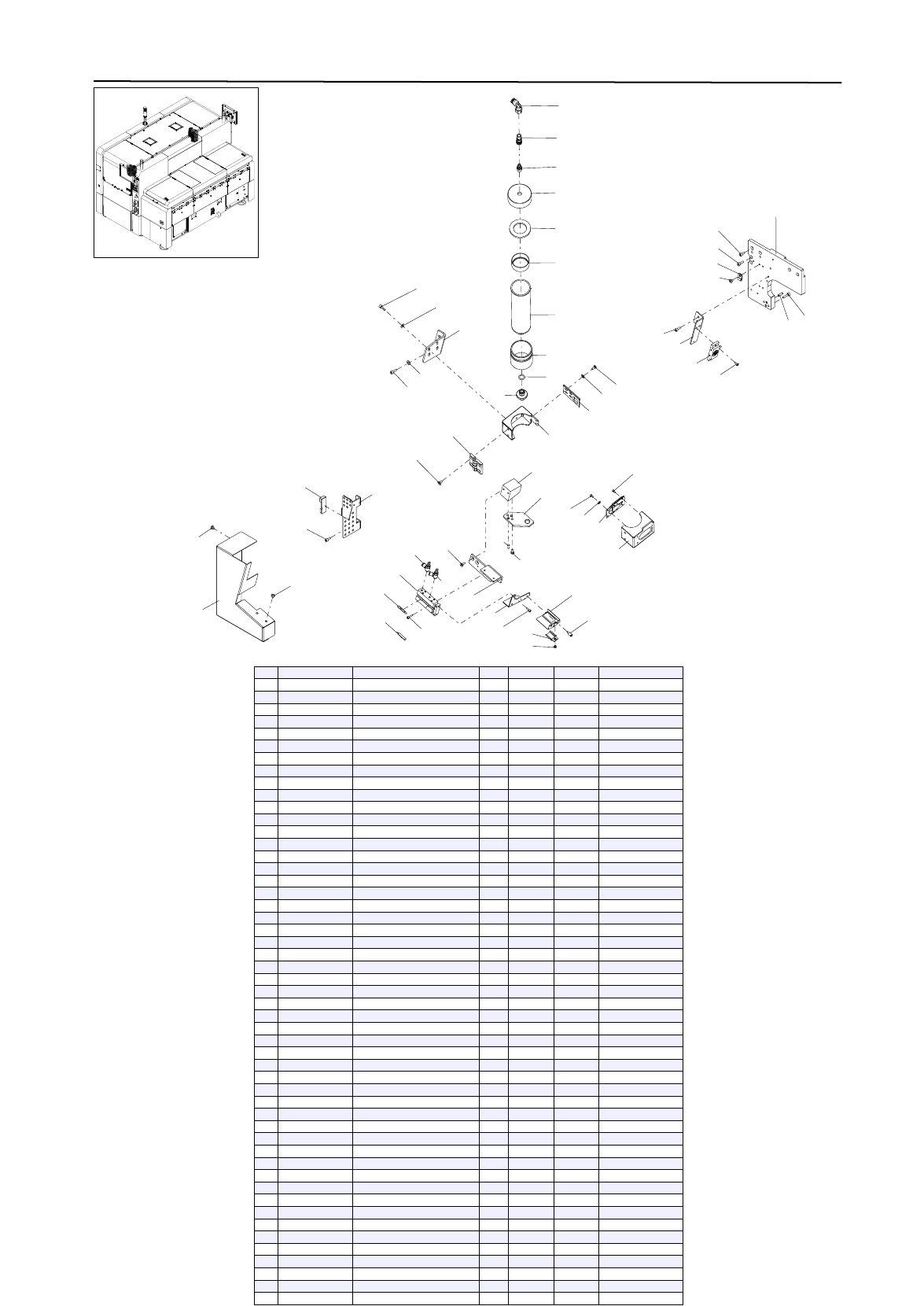

SYRINGE HEAD
PSC
KKX-1210
9-4
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-2N
NYLON CLIP
5
2
$SC4-M3MA
SPEED CONTROLLER
2
3
90112-2AJ005
BOLT, HEX.SOCKET HEAD
4
4
91312-03008
BOLT HEX,SOCKET HEAD
3
5
91312-03012
BOLT HEX,SOCKET HEAD
1
6
91312-04008
BOLT HEX,SOCKET HEAD
4
7
91312-04010
BOLT HEX,SOCKET HEAD
4
8
91312-04012
BOLT HEX,SOCKET HEAD
8
9
91312-04016
BOLT HEX,SOCKET HEAD
2
10
92012-04008
BOLT, BOTTON HEAD
4
11
92012-04012
BOLT, BOTTON HEAD
2
12
92902-03200
WASHER,PLAIN
4
13
92902-04200
WASHER,PLAIN
10
14
KHT-M7354-00
BASE,DISP. HOLDER
1
15
KHT-M7356-00
HINGE
1
16
KLF-M459H-00
PNP CHANGER BRD ASSY
1
17
KHT-M7363-00
NOZZLE BASE
1
18
KHT-M7367-00
BARREL,170
1
19
KHT-M7368-00
BARREL PLUNGER
1
20
KHT-M7371-01
CYLINDER
1
21
KHT-M7372-00
HOLDER,PLNJER
1
22
KHT-M7373-00
CAP,HOLD DIS.
1
23
KHT-M7374-00
NOZZLE 6,DISPENSER
1
24
KHT-M7375-00
JOINT
1
25
KHT-M7376-00
JOINT
1
26
KHT-M7377-00
PACCKING
1
27
KHT-M7378-00
JOINT
1
28
KHT-M7380-00
PASTE CUP
1
29
KHT-M7383-01
PASTE CUTTER
1
30
KHT-M7394-00
KNOBE,M3
2
31
KKX-M653S-00
SENS. CUT OPEN ASSY
1
32
KKX-M653S-10
SENS. CUT CLOSE ASSY
1
33
KKX-M653V-00
SENS.SYRSOL DET ASSY
1
34
KKX-M7351-00
PLATE,FX AXIS
1
35
KKX-M7352-00
BRKT.,HOLDER SYR.
1
36
KKX-M7355-00
CAP,DISP. HOLDER
1
37
KKX-M7357-00
LATCH
1
38
KKX-M7358-00
PLATE,LOCK
1
39
KKX-M7362-00
BLOCK,PEAST NOZZLE
1
40
KKX-M7364-00
BRKT.,CUTTER
1
41
KKX-M7365-00
BRKT.,SENSOR
1
42
KKX-M7368-00
BRKT.,HNS
1
43
KKX-M7381-00
COVER,FP
1
44
98702-04010
SCREW,FLAT HEAD
2
45
98702-05008
SCREW FLAT HEAD
4
46
98902-03004
SCREW BINDING HEAD
1
47
98902-03008
SCREW BINDING HEAD
2
48
98902-04005
SCREW BINDING HEAD
8
49
99480-04012
PIN,PARALLEL
4
50
KKX-M7382-00
PLATE,CUTTER
1
51
90990-17J064
O-RING
1
8
12
23
4
6
21
13
8
16
6
10
10
24
20
5
10
14
9
11
1
7
22
15
19
13
3
18
17
3
2

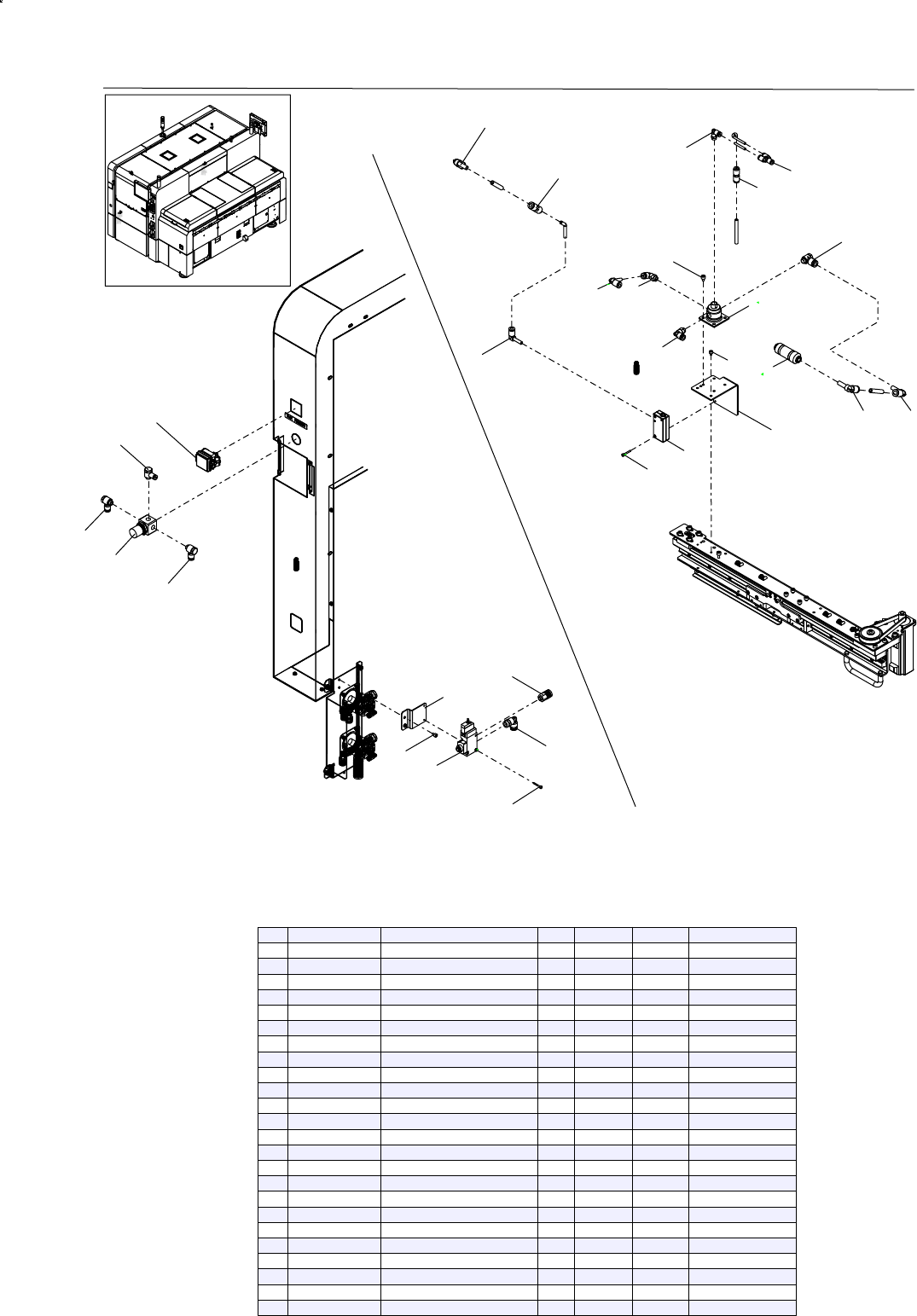

Disp.Supply / Vacuum Valve
PSC
KKX-1210
9-5
NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No._date
1 $KM-11 MUFFLER 2
2 $SL4-01 JOINT 2
3 $SL6-01 JOINT 4
4 $SL8-01 JOINT 1
5 $TL4-01 JOINT 1
6 $TL6-01 JOINT 2
7 $TL8-02 JOINT 3
8 $ULA6 JOINT 2
9 $USD6-4 JOINT 1
10 $ULA8 JOINT 3
11 $UY4 JOINT 1
12 $USD8-6 JOINT 1
13 91312-03020 BOLT HEX,SOCKET HEAD 10
14 91312-04005 BOLT HEX,SOCKET HEAD 2
15 91312-04006 BOLT HEX,SOCKET HEAD 5
16 91312-05006 BOLT HEX,SOCKET HEAD 4
17 KGJ-M3245-01 REGULATOR 2
18 KKX-M7235-00 PRESSURE GAUGE 2
19 KHT-M7232-A0 DISP. VALVE ASSY 2
20 KHT-M7236-00 VALVE,125A 1
21 KHT-M7237-00 VACUUM UNIT 1
22 KKX-M1142-00 BRKT.,VALVE 2
23 KKX-M7251-00 BRKT.,VACUUM VALVE 1
24 KGJ-M9140-01 AIR FILTER 1
