- 102 - 图 6-2-7 Pix 6-2-7 最后测试 100PCS 将图 E ，图 F 截图，放到 Word 中，打印出来即可。 Finally , te st 100 PCS and get the screensho t of pix E and pix F . Put the tw o screensh ots into Word and pri nt them out. THE E ND!
- 101 -

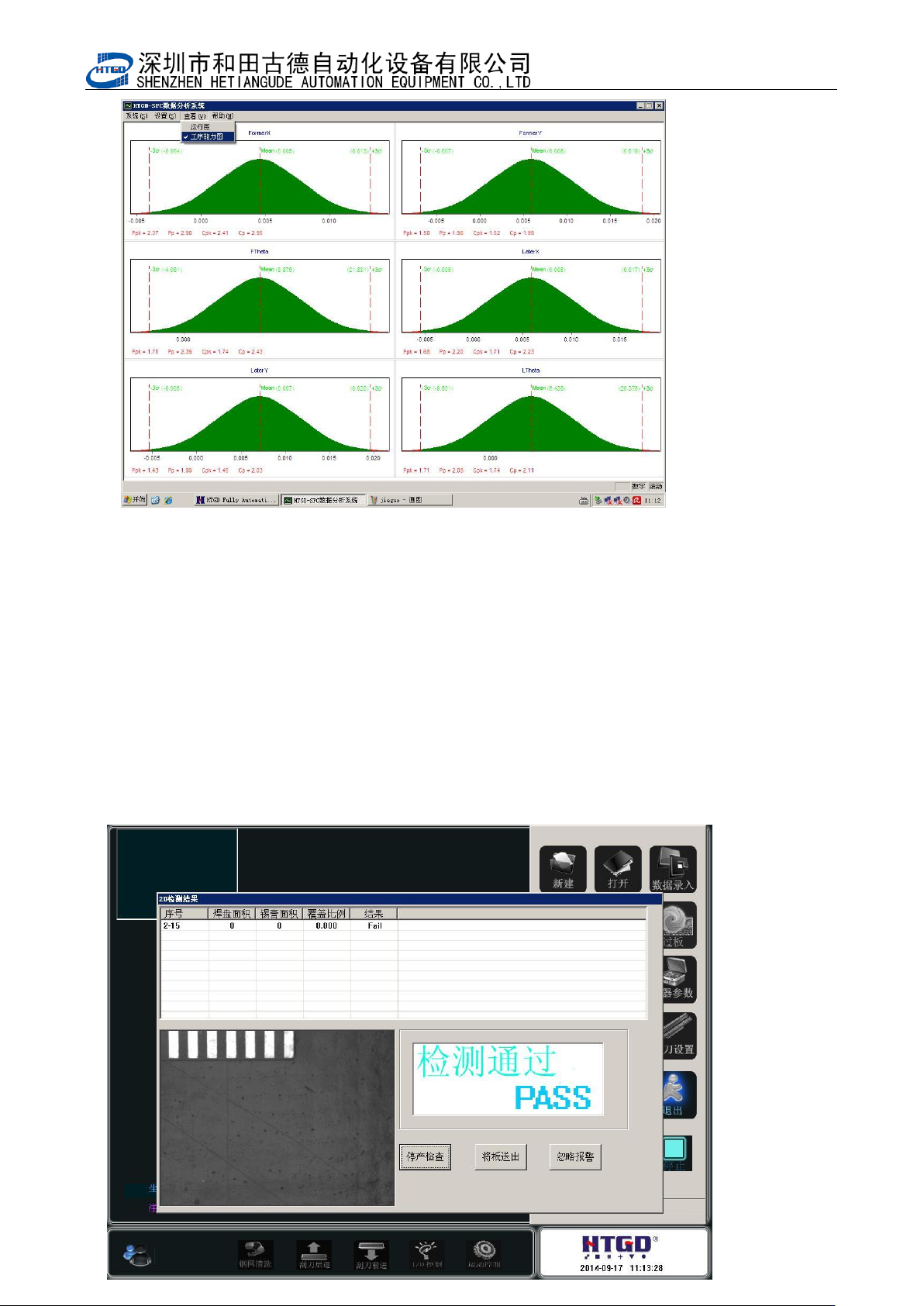

图 6-2-6
Pix 6-2-6
注意：测试期间会弹出图 6-2-7 显示测试 2D 的画面，这个不用管。软件要求是这样的。
Note: Pix 6-2-7 which is the 2D test picture will come out during the test. Please do not
worry about this. It is the requirement from the software.
- 102 -
图 6-2-7 Pix 6-2-7
最后测试 100PCS 将图 E，图 F 截图，放到 Word 中，打印出来即可。
Finally, test 100 PCS and get the screenshot of pix E and pix F. Put the two screenshots
into Word and print them out.
THE END!
