- 21 -
Automatic inspect the I/O fault and sound-light alarm and indicate the reason of the
fault
8) 报警记录
Alarm record
9) 生产设置
Production setting
10) 自动归零操作
Return to zero automatically
11) 在线 PCB 板计数
Online PCB board counting
12) 自动钢网定位
Automatic positioning of the stencil
13) 自动刮刀测高
Automatically measure the height of the scraper
2.6.2 软件安装 Software installation
机器出厂前已经安装了驱动软件和操作系统软件。在使用过程中，如须重新安装，请按
下列步骤进行。
The equipment has installed the driving software and operating system software. If
the software need be reinstalled during the operation, please do it according to the
following steps.
1) 打开电脑 F 盘。Open the Disk F in the computer.
2)把 HTGD 文件复制到电脑 C 盘的根目录下。 Copy the HTGD files to the root directory
of the Disk C.
3) 打开 HTGD 文件， Open the HTGD files.
4) 完成后把“ ”图标用快捷方式放到桌面上。Put the “ ”icon on the desktop
with shortcut.
5) 在桌面上双击“ ”图标即可打开 GD450+驱动软件。Open the GD450+ driving
software by double clicking the “ ”icon
- 22 -
第三章 生产工作流程
Chapter 3 Production flow
3.1 开机前检查 Check before turning on the equipment
检查所输入电源的电压、气源的气压是否符合要求；
Checking all the input voltage of the power and pressure of the air power meets
the requirements.
检查机器各接线是否连接好；
Check whether all lines are connected.
检查设备是否良好接地；
Check whether the equipment is grounded.
检查气动系统是否漏气，空气输入口过滤装置有无积水，是否正常工作。
Check whether pneumatic system leaks and whether there is water in the air input
port filter and normally work.
检查机器各传送皮带松紧是否适宜；
Check whether the transmission belt is loose.
检查是否有无关的碎物留在电控箱内，电控箱内各接线插座是否插接良好；
Check whether there is residue inside the electric control case and whether all the
sockets are connected.
检查有无工具等物遗留在机器内部；
Check whether there is any tool lost inside the equipment.
根据所要印刷的 PCB 板要求，准备好相应的网板和锡膏；
Prepare the stencil and solder paste according to the requirements of the PCB
board printing.
检查磁性顶针是否按所要生产的 PCB 尺寸大小摆放到工作台板上;
Check whether the magnetic thimble is put on the worktable according to size of
PCB board.
检查清洗用卷纸有无装好，检查酒精箱的液位（液面应超出液位感应器）；
Check whether the rolled paper is installed and the liquid level inside the alcohol
- 23 -
tank (Liquid level should be beyond the liquid level sensor).
检查机器的紧急制动开关是否弹起；
Check whether the emergency switch bounces.
检查三色灯工作是否正常，检查机器前后门是否关好。
Check whether tri-color light work normally and the doors in the front and back
are closed,
3.2 开始生产前准备 Preparation before the production
3.2.1 模板的准备 Template preparation
1) 模板基材厚度及窗口尺寸大小直接关系到焊膏印刷质量，从而影响到产品质量。模板
应具有耐磨、孔隙无毛刺无锯齿、孔壁平滑、焊膏渗透性好、网板拉伸小、回弹性好
等特点。
The thickness of base material of template and the size of window relate directly to
the printing quality of the solder paste and then relate to the production quality. The
template need has following features. Wearable. There is no burr and sawtooth on
the pore. Wall of hole need be smooth and even. Solder paste permeability is high.
The extension of stencil is small. Good resilience.
2) 根据网框尺寸大小移动网框支承板，将网框前后、左右方向的中心对准印刷机前横梁
及左、右支承板上的标尺“0”刻度位置，居中摆放后，再将网板锁紧。
Remove frame supporting plate according to the size of the frame. Let the centre in
the front/back/left/right direction of frame align at “0” position scale on the scale plate
of the front beam of printer and the left/right supporting plate. Place it in the centre
and fixed the stencil.

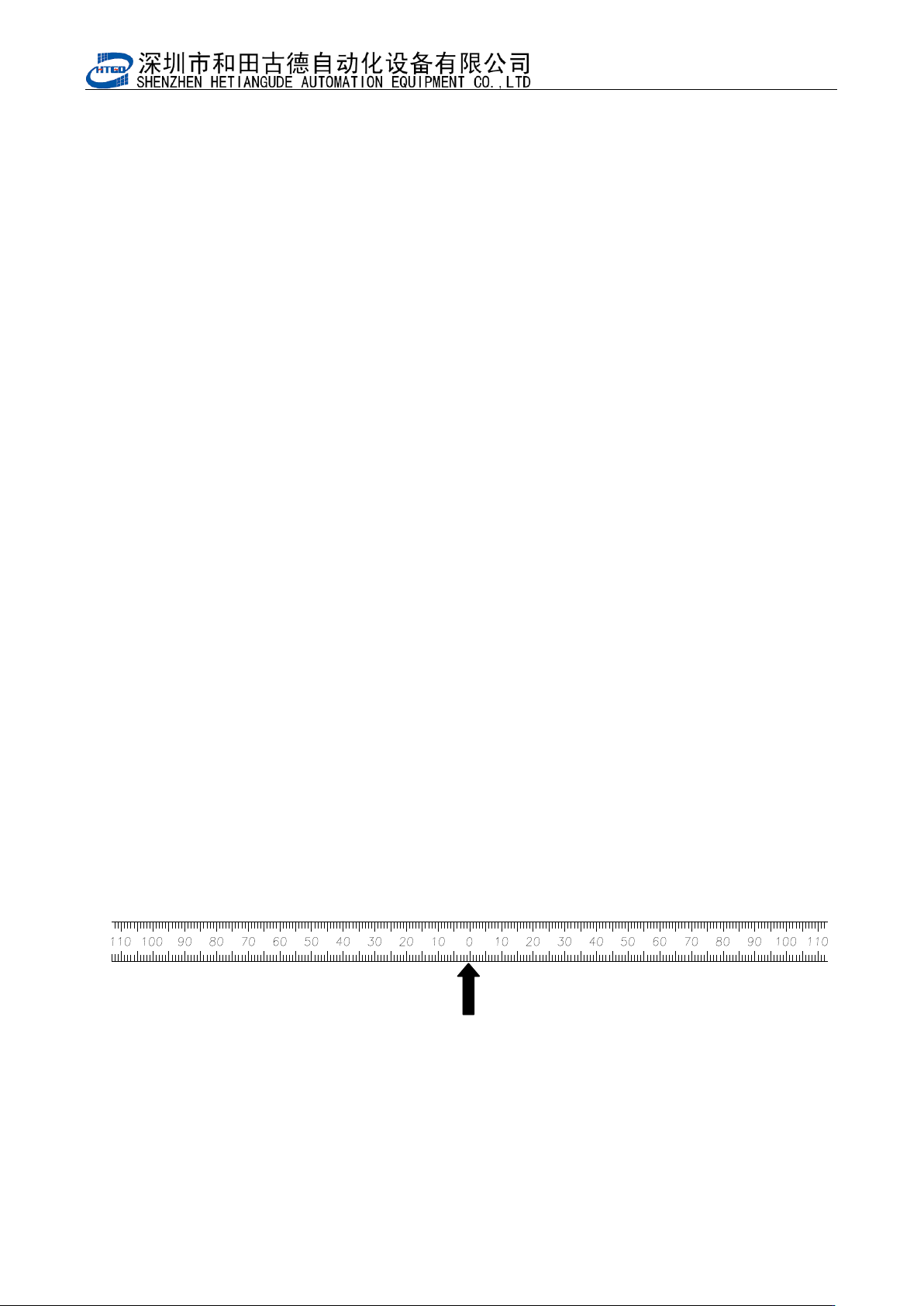

网框中心对准箭头指示处
The centre of the frame aims at the position remarked by the arrow
图 3-1
Pix 3-1
