- 41 - Pix 3-15(Enter into this interface by click (PCB mark 1) button and click “ 自动查找 ” (automatic searching) button) 图 3- 15 （在图 3- 13 上点 [ PCB 标志 1 ] 打开此界面， PCB Mark 点出 现在视域中， 点 [ 自 动查找 ] ， Mark 点捕捉到，如图） 。 Pix 3-15(E…
- 40 -
Pix 3-14(The saved interface after setting of mark point and click “是”（Yes）to come back
to the main interface.)
图 3-15（点[PCB 标志 1]打开此界面，点击自动查找）
- 41 -

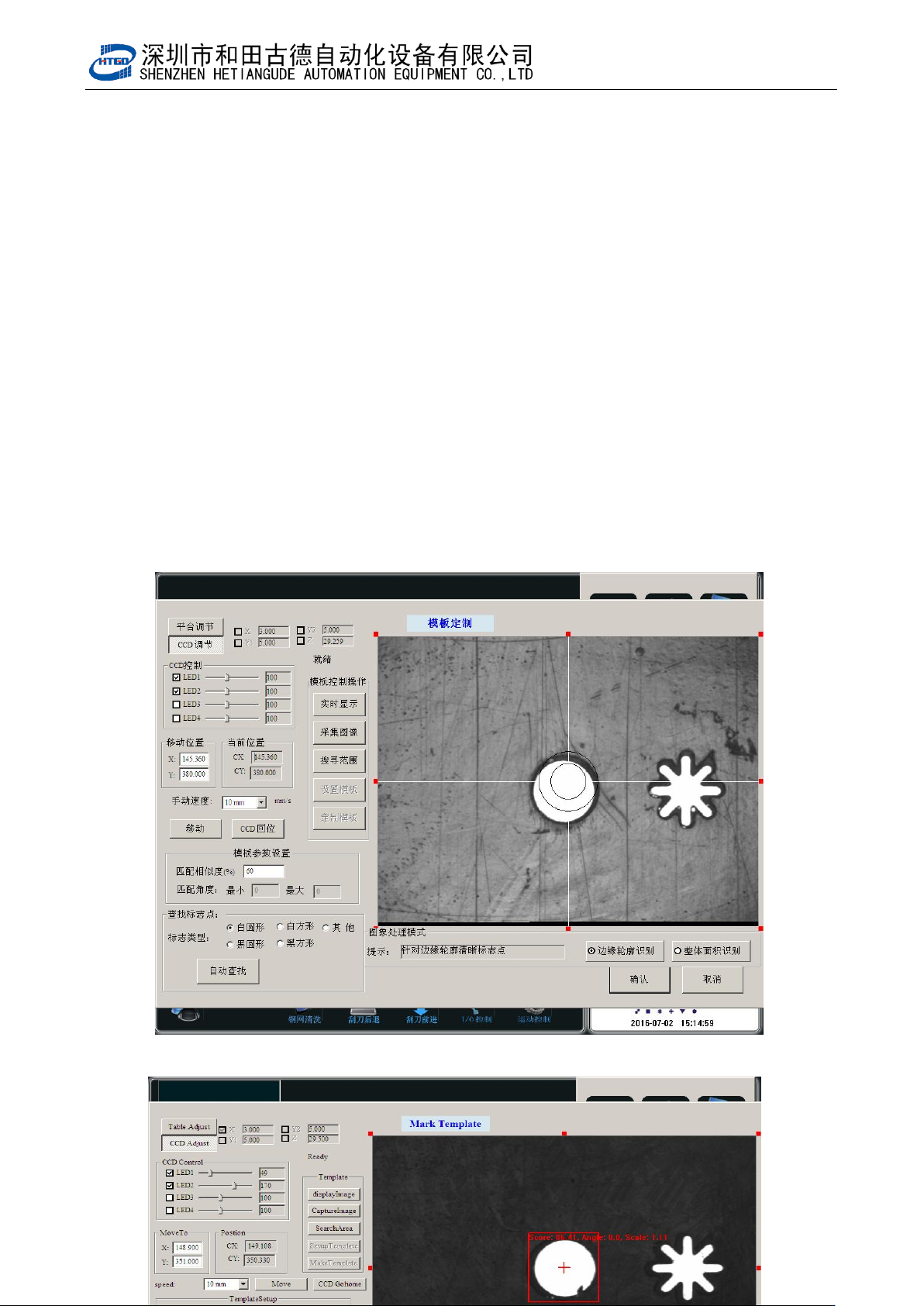

Pix 3-15(Enter into this interface by click (PCB mark 1) button and click “自动查找”
(automatic searching) button)
图 3-15（在图 3-13 上点[PCB 标志 1]打开此界面， PCB Mark 点出现在视域中，点[自
动查找]，Mark 点捕捉到，如图）。
Pix 3-15(Enter into this interface by click (PCB mark 1) button and the PCB mark
point will exist in the field of vision. Clicking “自动查找” (automatic searching)
button to capture the mark point. See in the pix.)
注：各按钮功能解释
Notice: The introduction of all the buttons.
A，[平台调节]：点击输入密码后调节平台的高度，平面位置等；
(platform adjustment): Adjust the height and position of the platform after clicking
“输入密码” （input password）button.
B，[CCD 调节]：移动 CCD 位置；
(CCD adjustment): Remove CCD.
C，[LED 1,2,3,4]：调节 LED 灯的亮度
[LED 1,2,3,4]: Adjust the brightness of the LED.
D，[手动速度]：使用键盘上方向键移动 CCD 的速度；
(manual speed): Adjust the CCD speed by pressing the direction keys on the
keyboard.
E，[匹配相似度]：MARK 点质量匹配分数设定分数越高，Mark 点越难设别，精度越
高；反之反是；
(matching degree of similarity):The setting score is higher for the mark point
matching, it is more difficult to set mark and the accuracy is more higher. And
- 42 -
vice versa.
F，[移动位置]：修改里面的参数后点[移动]，CCD 会移动到对应的坐标上去；
(position change): Revise the parameter and click “移动”（move）button, the CCD
will move to the corresponding position.
G，[当前位置]：显示当前 CCD 的坐标；
(current position): Show the current position of CCD.
H，[CCD 回位]：点击后 CCD 回到原点位置；
(CCD comes back to the origin): CCD will come back to origin after clicking this
button.
I, [移动]：点击后 CCD 从[当前位置]移动到[移动位置]；
(move): CCD will move from origin to the changed position after clicking this
button.
J，[标志点类型]：5 种选项供勾选；
(remark type):There are five options for selecting.
K，[自动查找]：系统自动识别选定类型 Mark 点；
(automatic searching): The system will automatic searching the selected mark
point.
L，[模板控制操作]：设定搜索范围，并当自动查找失败时手动设置 MARK 点；
(template control operation): Specify the searching scope. When the automatic
searching fails, operator sets the mark point manually.
M，[实时显示]：实时显示图像，手动设置 MARK 点使用；
(real-time display): Display the real-time image. Click this button when set the
mark point manually.
N，[采集图像]：采集当前图像，手动设置 MARK 点使用；
(image capture): Capture the current image. Click this button when set the mark
point manually.
O，[搜索范围]：在视域中划出一个区域后点击该按钮设定搜索范围，系统只在该范围
中识别 Mark 点，该功能用在视域中有 2 个以上相似 Mark 点时。用于过滤掉不需
要识别的 Mark 点；
(searching scope): Click this button to set the searching scope after drawing a
region in the field of vision. System only identifies mark point in this scope. This
function can be used when there are above 2 similar marks in the field of vision
