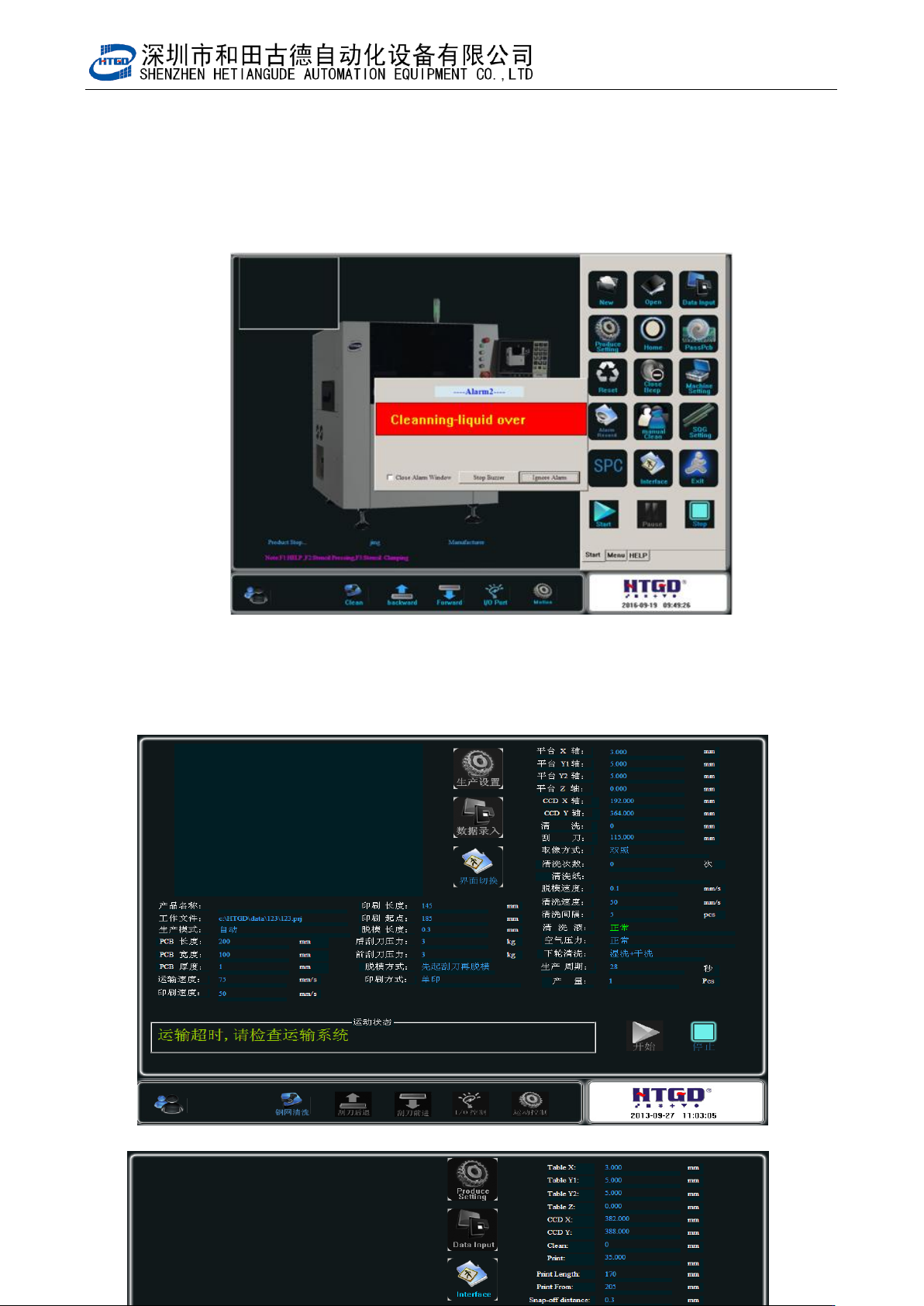

图 5-7（清洗液用完）
Pix 5-7(the cleaning liquid has been used up)
8 运输超时，请按复位键警示。如图 5-8 所示 Please press “reset” button when the
transmission is overtime.
图 5-8（运输超时）
Pix 5-8(transmission is overtime)
- 83 -
出现该状况主要有两种情况：There are two reasons when this situation happens.
1 运输马达启动时，运输导轨上没有 PCB；
There is no PCB on the transmission rail when the transmission motor start-up.
2 CCD 横梁上安装的到板电眼失效。
The board arrive magic eye which is assemble on the CCD beam fails.
解决办法：首先检查运输导轨上有没有 PCB。如果没有，请在运输导轨进板端放入正在生产
或测试的 PCB，按软件提示依次按“RESET”键，“START/STOP”键，机器正常工作；如果有
PCB，还出现该提示，那就是 CCD 横梁上安装的到板检测电眼失效，请检查电眼线路接触
是否良好，电眼的检测高度是否合适（电眼的有效检测距离会因 PCB 的颜色不同而有所变化）
排除这些原因后还不能解除该报警，请联系原厂售后。
Solution: Firstly check whether there is PCB on the transmission rail. If not, please place
the produced or tested PCB on the board passing point of the transmission rail. Press in
turn the “RESET” button and “START/STOP” button according to the indication from the
software and equipment can work normally. If there is PCB but still occurs the indication,
then the board arrive magic eye which is assemble on the CCD beam fails. Please check
whether the line connection of the magic eye is good and the inspection height of magic
eye is appropriate (The effective inspection distance will change as the different color of
PCB). If the alarm can not be released after all these reasons are excluded, please contact
with the after-sale staff from HTGD.
- 84 -
第六章 新增功能介绍说明
Chapter 6 Introduction of the new functions
6.1 2D 锡膏检测操作说明 Operating introduction of 2D solder paste
inspection
2D 锡膏印刷质量检查与分析功能，对偏移，少锡，漏印，连锡等印刷不良问题能快速检测， 检
查印刷效果，并确保印刷质量
2D solder paste printing quality check and analysis function can inspect fast on printing fails,
such as the offset, insufficient solder paste, missing printing and solder paste bridging etc. It
can check the printing performance and insure the printing quality.
6.1.1 .进入 2D 检测界面，建立检测点。Enter into the inspection interface of 2D.
1.打开做好的程序，然后重新抓捕标志点
Open the program and recapture remark.
