Retrofit Instructions - Special Design for Integrating the Punching Die Feeder for the HF series
11/2004 Edition
13
2.3 Retrofit

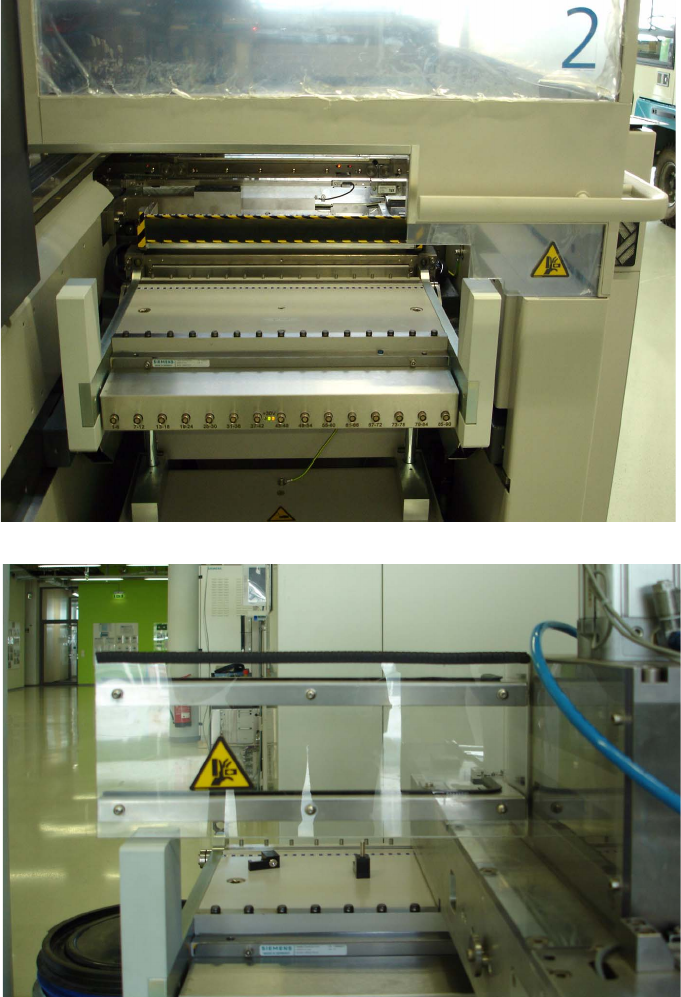

The feeder can only be set up on table 2, location 49 - 90. 2
: Bolt the feeder tight to the component table.
: Attach a suitably modified protective cover.
To do this, you will have to fit a hand guard to the feeder.
2
2
Retrofit Instructions - Special Design for Integrating the Punching Die Feeder for the HF series
11/2004 Edition
14

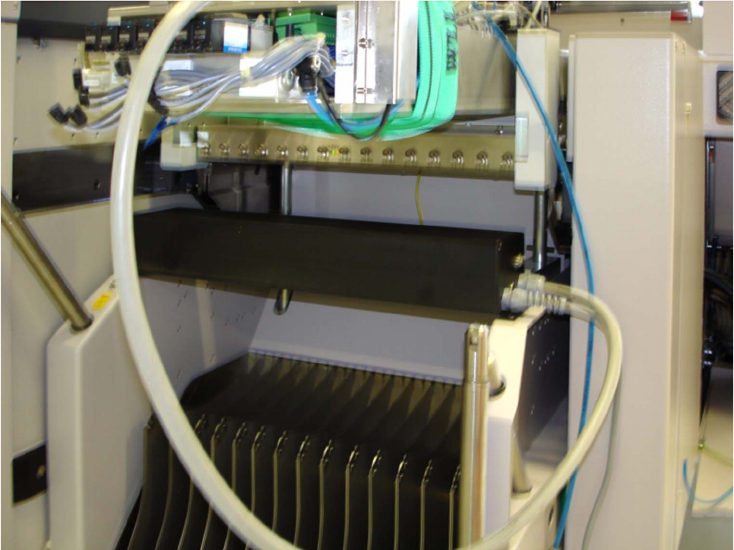

The component table must be mechanically secured to prevent the component table moving out
unintentionally. 2

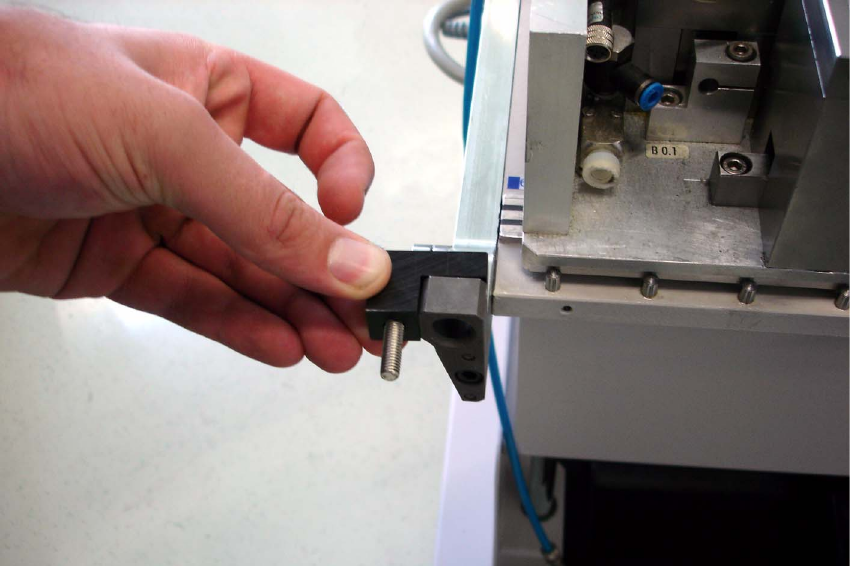

: To do this, fix the safety bracket to the component trolley.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Retrofit Instructions - Special Design for Integrating the Punching Die Feeder for the HF series
11/2004 Edition
15
: Fit the feeder control to the component trolley.
