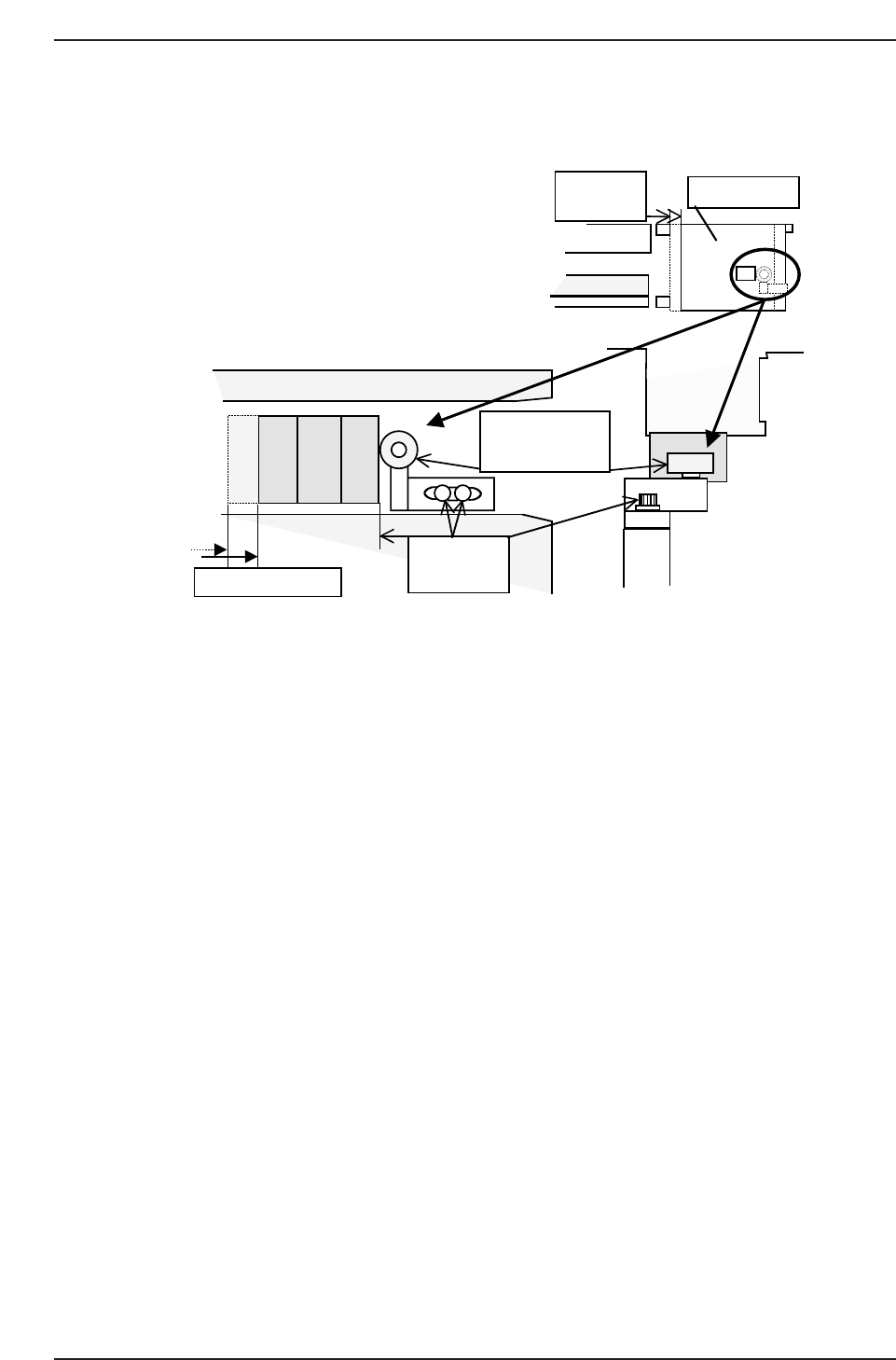

QP132T8001
10 mm shift cylinder
Adj. bolt
Jig
SS rail
Adjust the bolt so
that cylinder is in
contact with jig.
(1)
(2)
Chapter 9 9.1 Out Shifter Adjustment
Edition 1.1 9-2 QP-132 Level 3 Tutorial
9.1.2 Pallet Stopper
1. 8-inch Pallet Stopper must be in contact with the OUT prevention
stopper after the pallet shifts 10 mm to the OUT- pallet loader.
2. Change pallet size from 8 to 16-inch. Adjust the interlock sensor, so it is
not interrupted when the pallet shifts 10 mm. (Positioned to 1~2 mm
from the right edge of the pallet.)
3. 16-inch Pallet Out Prevention Stopper is in contact with the OUT
prevention stopper after a 10 mm shift.
QP132T9003
8-inch pallet
SS-rail
10 mm shift
cylinder
8-inch pallet arrival sensor
16-inch
pallet
Pallet interlock
sensor
QP132T9002
10 mm shifted pos.
Pallet stopper
8-inch pallet
8-inch pallet
10 mm
shifted pos.
OUT prevention stopper
Adjust so they
just contact
Chapter 9 9.1 Out Shifter Adjustment
Edition 1.1 9-3 QP-132 Level 3 Tutorial
4. Place the pallet and move the shift cylinder forward and backward to
check for any interference.
9.1.3 Pallet Shift
1. Adjust the pallet pushing jaw using the set screw. The jaw must be
parallel to the bracket when the cylinder is at the backward end position.
2. Adjust the forward and backward speed controller to:
Cylinder Forward : Fully open
Cylinder Backward : Fully open
Note: The Speed controllers are attached to the solenoid valve at the OUT- pallet loader box.
(M/C front)
QP132T9004
10 mm
shifted pos.
10 mm shifted pos.
Adjust so they
just contact
OUT prevention
stopper
16-inch pallet
Chapter 9 9.1 Out Shifter Adjustment
Edition 1.1 9-4 QP-132 Level 3 Tutorial
