CP-733E-03 - 第114页

18.第13ｽﾃｰｼｮﾝ(NGﾊﾟｰﾂ排出)(DCPK) 18.Station 13(Parts eject)(DCPK) 番号図番 & ｺｰﾄﾞ番号個数品名規格備考材質 No. Drg.No. & Code No. QTY Description Rating Remarks Material 1 DGPU0700 1 GUIDE, RAIL ｶﾞｲﾄﾞﾚｰﾙ RSR9NUUC1+75L FE 2 H527…

ﾀﾃx173.205

Ref.31-1

Ref.33-7

20%

1.5%

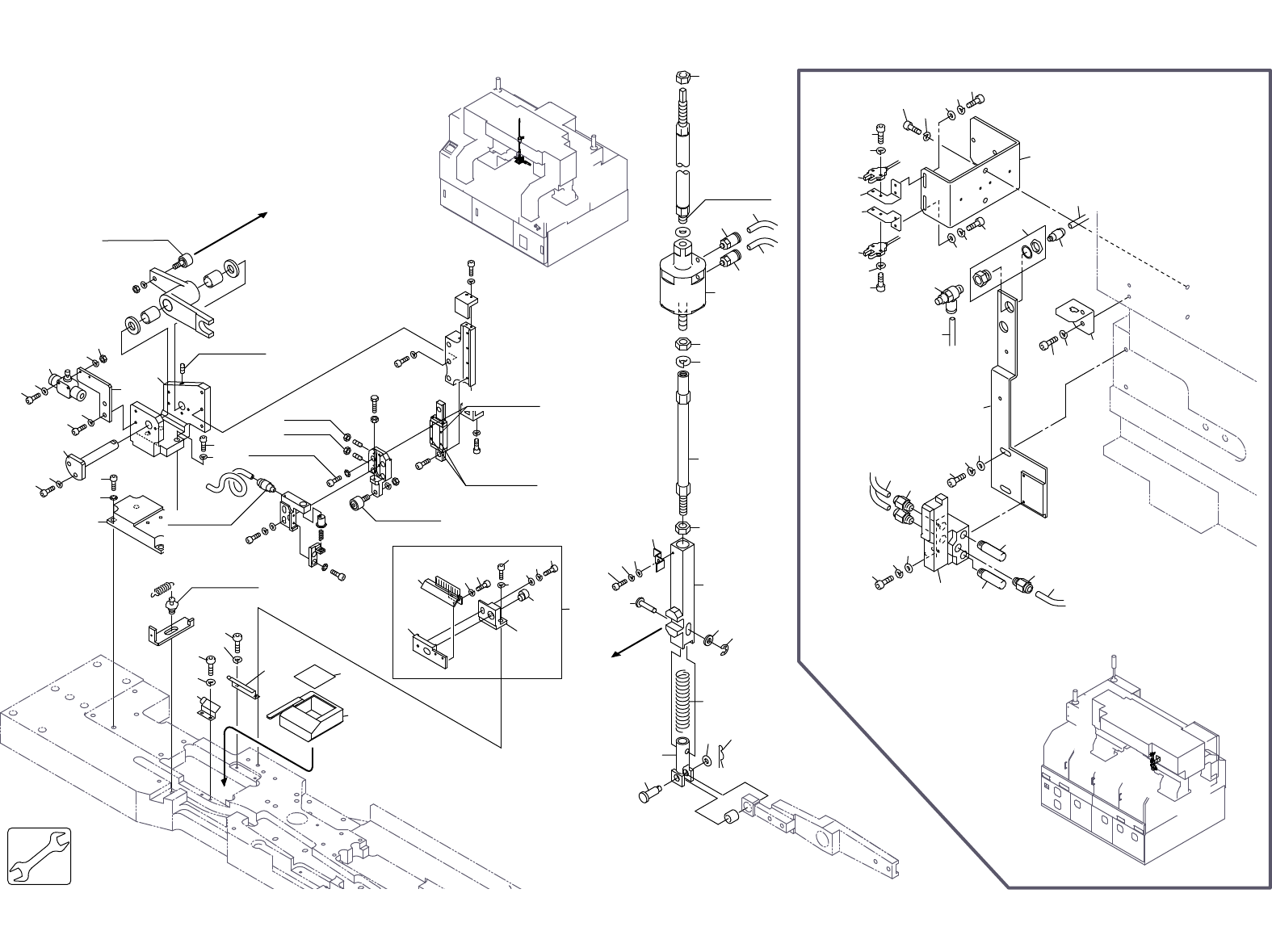

18.Station 13(Parts eject)(DCPU)

18.第13ステーション(NGパーツ排出)(DCPU)

18.Station 13(Parts eject)(DCPU)

18.第13ステーション(NGパーツ排出)(DCPU)

18 - 2

CP-733E,CP-732E PARTS LIST

LOCTITE262

3.92N･m

LOCTITE222

LOCTITE7471

LOCTITE221

1.96N･m

LOCTITE262

1.96N･m

3.92N･m

LOCTITE262

LOCTITE7649

LOCTITE222

18.第13ｽﾃｰｼｮﾝ(NGﾊﾟｰﾂ排出)(DCPK)

18.Station 13(Parts eject)(DCPK)

番号図番 & ｺｰﾄﾞ番号個数品名規格備考材質

No. Drg.No. & Code No. QTY Description Rating Remarks Material

1 DGPU0700 1

GUIDE, RAIL

ｶﾞｲﾄﾞﾚｰﾙ RSR9NUUC1+75L

2 H5275A 4

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M03×008

3 DGPU0730 2

COLLAR ｶﾗｰ CO

4 DGPU0753 1

BASE

ﾍﾞｰｽ

5 H5299A 4

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M05×012 HRC34-44

6 W1012A 4

WASHER, CONICAL ﾜｯｼｬ皿

M-5-L

7 DGPU0762 1

HOLDER ﾎﾙﾀﾞ FE

8 H5273A 4

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M03×005

9 W1010A 4

WASHER, CONICAL ﾜｯｼｬ皿

M-3-L

10 N4012A 2

SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め

M03×008

11 N1076A 3

NUT, HEX ﾅｯﾄ六角

M3 P=0.5

12 H5165A 1

BOLT, HEX ﾎﾞﾙﾄ六角

M03×010 BL

13 DGPU0771 1

HOLDER ﾎﾙﾀﾞ FE

14 H5290A 2

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M04×015

15 W1022A 2

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

4M/M

16 W1043A 2

WASHER, FLAT ﾜｯｼｬ平

4W-4

17 DGPU0802 1

JOINT

ｼﾞｮｲﾝﾄ

18 DGPU0810 1

ﾋﾟﾝ

19 DGPU0820 1

WASHER

ﾜｯｼｬ

20 DGPU0883 1

BKT

21 H5304A 3

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M05×025

22 W1023A 3

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

5M/M

23 DGPU0950 1

ﾋﾟﾝ

24 DGPU0970 1

GUIDE

ｶﾞｲﾄﾞ

25 H5274A 2

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M03×006

26 W1010A 2

WASHER, CONICAL ﾜｯｼｬ皿

M-3-L

27 DGPU0981 1

JOINT

ｼﾞｮｲﾝﾄ

28 N1091A 1

NUT, HEX ﾅｯﾄ六角

M8-L

29 DGPU0722 1

JOINT

ｼﾞｮｲﾝﾄ

30 DGPU1600 1

BKT

31 H5288A 2

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M04x010

32 W1022A 2

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

4M/M

33 DGPU1630 1

SHAFT

ｼｬﾌﾄ

34 H5289A 2

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M04x012

35 W1022A 2

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

4M/M

36 DGPU1611 1

HOSE, AIR

ﾎｰｽｴｱｰ TP-6

37 DGPU1562 1

BKT

CP-733E,CP-732E PARTS LIST

18 - 3

18.第13ｽﾃｰｼｮﾝ(NGﾊﾟｰﾂ排出)(DCPK)

18.Station 13(Parts eject)(DCPK)

18.第13ｽﾃｰｼｮﾝ(NGﾊﾟｰﾂ排出)(DCPK)

18.Station 13(Parts eject)(DCPK)

番号図番 & ｺｰﾄﾞ番号個数品名規格備考材質

No. Drg.No. & Code No. QTY Description Rating Remarks Material

38 N4031A 1

SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め

M04×010

39 H5301A 3

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M05×018

40 W1023A 3

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

5M/M

41 DGPU1572 1

LEVER ﾚﾊﾞｰ FE

42 DGPU1580 1

STOPPER ｽﾄｯﾊﾟ FE

43 H5276A 2

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M03×010

44 W1021A 2

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

3M/M

45 DGPU1590 1

STOPPER ｽﾄｯﾊﾟ FE

46 H5276A 2

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M03×010

47 W1021A 2

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

3M/M

48 DCPU0201 1

DOG

ﾄﾞｯｸﾞ

49 H5274A 1

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M03×006

50 W1021A 1

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

3M/M

51 W1040A 1

WASHER, FLAT ﾜｯｼｬ平

3M/M×0.5×7

52 DCPU0280 1

COLLAR

ｶﾗｰ

53 DCPU0300 1

SPRING

ｽﾌﾟﾘﾝｸﾞ

54 DCPU0690 1

ﾋﾟﾝ

55 K1112A 2

CAM FOLLOWER ｶﾑﾌｫﾛｱ

CF05UU-A

56 N1082A 2

NUT, HEX ﾅｯﾄ六角

M5 P=0.8

57 W1023A 2

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

5M/M

58 K5335R 1

CONTROLLER, SPEED ｺﾝﾄﾛｰﾗｽﾋﾟｰﾄﾞ

AS1000F-06(ｼﾛ)

59 H5280A 2

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M03×020

60 W1040A 2

WASHER, FLAT ﾜｯｼｬ平

3M/M×0.5×7

61 N1076A 2

NUT, HEX ﾅｯﾄ六角

M3 P=0.5

62 W1021A 2

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

3M/M

63 H2027A 1

PIN, SNAP

ﾋﾟﾝｽﾅｯﾌﾟ SSP-6

64 S30201 1

SPRING

ｽﾌﾟﾘﾝｸﾞ WH5-10

65 H4406A 2

BEARING, NEEDLE

ﾍﾞｱﾘﾝｸﾞﾆｰﾄﾞﾙ

TLA1012Z

66 Y3061W 1

UNION, HALF ﾕﾆｵﾝﾊｰﾌ

KJS06-M5(ｼﾛ)

67 S1023A 1

CIR-CLIP ｻｰｸﾘｯﾌﾟ

ST-EW-5

68 ADCPU8030 1

BRUSH ASSY

ﾌﾞﾗｼ ASSY

69 DGPU0390 1

BRUSH

ﾌﾞﾗｼ

70 H5274A 2

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M03×006

71 W1021A 2

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

3M/M

72 DCPU0400 1

BKT

73 H5288A 1

BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴

M04x010

74 W1022A 1

WASHER, LOCK ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ

4M/M

CP-733E,CP-732E PARTS LIST

18 - 4

18.第13ｽﾃｰｼｮﾝ(NGﾊﾟｰﾂ排出)(DCPK)

18.Station 13(Parts eject)(DCPK)
