23.1.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ(DCSD) 23.1.Device table(DCSD) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 145 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE 146 H5301A BOLT, HEX SOC…
23.1.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ(DCSD)
23.1.Device table(DCSD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DCSD0080 2 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
2 DCSD0140 2 BEARING, SLIDE ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ OT
7 DCSD0380 2 COLLAR ｶﾗｰ FE
8 DCSD0390 2 COLLAR ｶﾗｰ FE
16 GPT0792 34 RETAINER 押え #N/A
17 WSD4030 33 RETAINER, RAIL 押え ﾚｰﾙ FE
18 DCSD0030 2 BKT, MOTOR BKT ﾓｰﾀ FE
19 DCSD0090 2 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
20 DCSD0430 2 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
21 DCSD0441 2 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
22 DCSD0450 2 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
23 DCSD0460 2 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
24 DCSD0470 2 STOPPER ｽﾄｯﾊﾟ PL
25 DCSD0481 2 STOPPER ｽﾄｯﾊﾟ PL
26 DCSD0490 8 COLLAR ｶﾗｰ FE
27 DCSD0500 8 COLLAR ｶﾗｰ FE
28 DCSD0510 8 COLLAR ｶﾗｰ FE
56 DCSD0232 1 GUIDE ｶﾞｲﾄﾞ FE
85 DCSX0190 4 BOLT ﾎﾞﾙﾄ FE
86 DCSX0311 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
87 DCSX0321 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
88 DCSX0331 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
89 DCSX0341 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
90 DCSX0351 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
91 DCSX0361 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
92 DCSX0371 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
93 DCSX0381 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
94 DCSX0391 8 SPACER ｽﾍﾟｰｻ 注1. Note.1 FE
95 K10013 2 COUPLING ｶｯﾌﾟﾘﾝｸﾞ LCS-55B 15X25 OT
96 H20137 2 PIN ﾋﾟﾝ IY-G05 OT
101 H4159A 4 BEARING ﾍﾞｱﾘﾝｸﾞ 20TAC47BDBC10PN7A OT
106 K41370 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 05.10-028-38-10P OT
110 N1126A 4 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR20 OT
113 H2087A 8 PIN, TAPER ﾋﾟﾝ ﾃｰﾊﾟ 8ﾟX50ﾀｯﾌﾟｵﾄｼ OT
135 SAM6492 2 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ OT
138 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L FE
143 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L FE
CP-733E,CP-732E PARTS LIST
23 - 3
23.1.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ(DCSD)
23.1.Device table(DCSD)
23.1.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ(DCSD)
23.1.Device table(DCSD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
145 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
146 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X18L FE
149 H5307A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X40L FE
150 H5309A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X50L FE
151 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L FE
152 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X12L FE
158 H5342A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X25L FE
162 H5363A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M10X40L FE
166 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
169 W1025A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
170 W1015A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ M-10-H FE
175 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L FE
176 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-6-H FE
178 W1026A
WASHER, CONICAL
ﾜｯｼｬ 皿
10M/M FE
180 W1050A WASHER, FLAT ﾜｯｼｬ 平 5M/MX1.0X10(1W-5) FE
190 DCSD0980 1 COVER ｶﾊﾞｰ FE
191 DCSD1000 1 COVER ｶﾊﾞｰ FE
194 DCSD0860 2 COVER ｶﾊﾞｰ FE
195 DCSD0990 1 COVER ｶﾊﾞｰ FE
196 DCSD1010 1 COVER ｶﾊﾞｰ FE
197 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
198 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L FE
199 H5269A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M2.6X5L FE
200 W1020T
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2.6M/M FE
202 K5207A SCREW, C/R TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M4X5L . FE .
注1.(仕様選択部品)DCSX0311(t=0.9),DCSX0321(t=0.925),DCSX0331(t=0.95),DCSX0341(t=0.975),DCSX0351(t=1.0),DCSX0361(t=1.025)
DCSX0371(t=1.05),DCSX0381(t=1.075),DCSX0391(t=1.1)
Note.1:(Specified parts selection)DCSX0311(t=0.9),DCSX0321(t=0.925),DCSX0331(t=0.95),DCSX0341(t=0.975),DCSX0351(t=1.0),DCSX0361(t=1.025)
DCSX0371(t=1.05),DCSX0381(t=1.075),DCSX0391(t=1.1)
注2.(仕様選択部品)DCSD0891(t=0.7),DCSD0901(t=7.01),DCSD0911(t=7.02),DCSD0921(t=7.03),DCSD0931(t=6.99),DCSD0941(t=6.98),DCSD0951(t=6.97)
Note.2:(Specified parts selection)DCSD0891(t=0.7),DCSD0901(t=7.01),DCSD0911(t=7.02),DCSD0921(t=7.03),DCSD0931(t=6.99),DCSD0941(t=6.98),
DCSD0951(t=6.97)
CP-733E,CP-732E PARTS LIST
23 - 4
23.1.ﾃﾞﾊﾞｲｽﾃｰﾌﾞﾙ(DCSD)
23.1.Device table(DCSD)
23 - 5

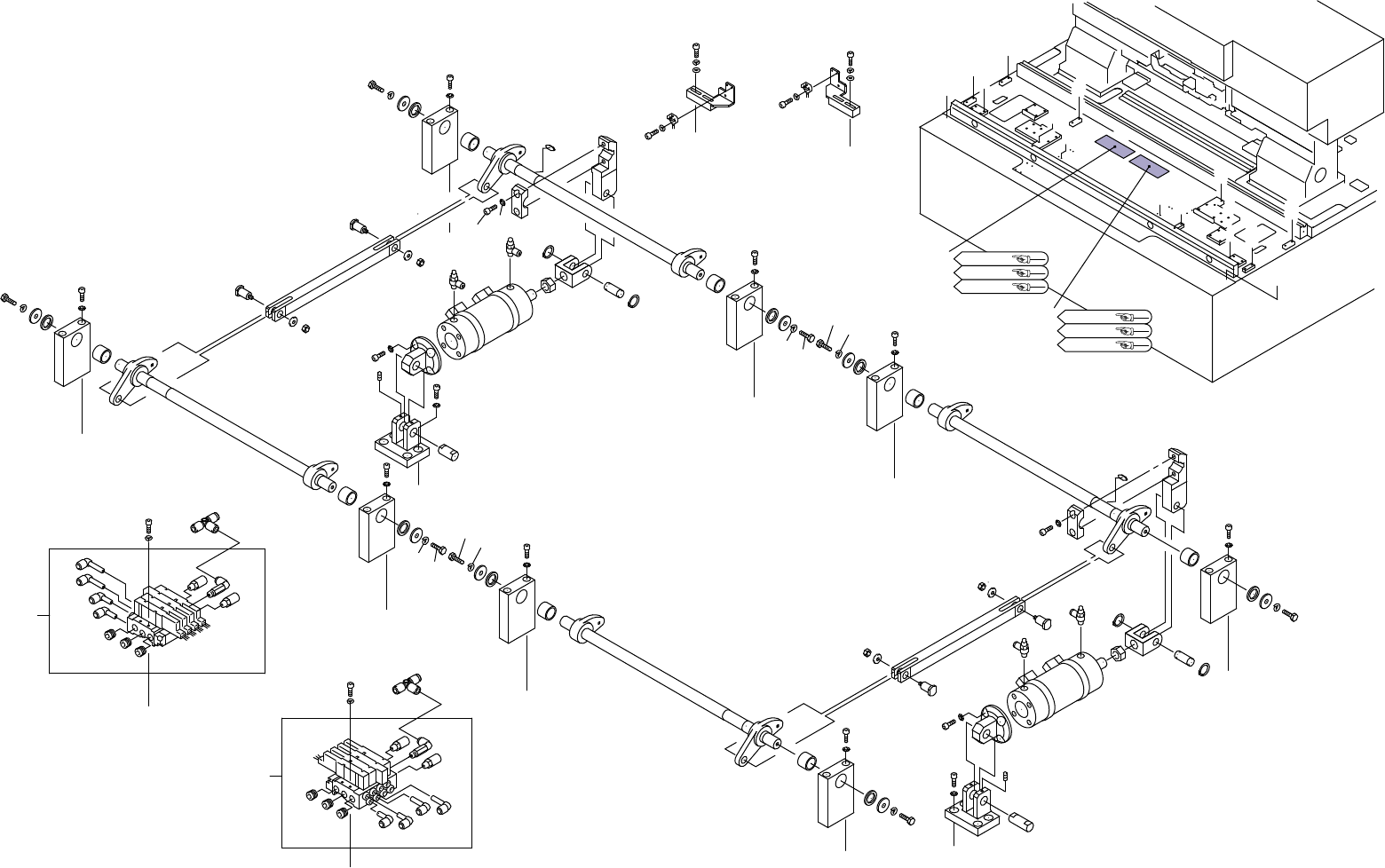

23.2.Device table(DCSD)
23.2.デバイステーブル(DCSD)
23.2.Device table(DCSD)
23.2.デバイステーブル(DCSD)
CP-733E,CP-732E PARTS LIST
Ref.P32-8
Ref.P32-10
Ref.P32-12
Ref.P32-8
Ref.P32-10
Ref.P32-12
Ref.P31-1
Ref.P31-1
Ref.P33-7
Ref.P32-12
x9
76
M
A
137
165
137
165
171
166
201
171
166
201
197
197
M
N
192
193
35
35
35
198
198
K
D
K
P
L
G
H
D
C
J
B
F
E
N
166
142
115
115
166
142
177
157
177
157
188
178
161
178
202
202
178
185
178
161
185
188
177
160
177
160
177
160
177
160
177
160
177
160
177
160
177
160
164
33
55
185
33
55
185
G
L
C
B
A
45
36
9
35
102
36
9
102
36
9
102
E
F
H
35
102
36
9
33
33
55
34
55
32
112
97
30
84
29
97
69
12
44
96
112
31
76
36
36
9
167
164
167
164
9
35
102
102
45
36
36
9
9
35
35
102
102
32
31
84
97
97
30
69
12
44
112
96
112
29
34
P
J
123
122
215
216
217
218
219
220
M
A
N
K
I
L
G
H
D
C
J
B
F
E
132
133
134
135
136
137
164
167
164
164
167
167
167
164
167
164
167
