2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(DCPH)
2.Placing head(DCPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
40 DCPH0160 1 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ FE
41 DCPH0080 1 SLIDER ｽﾗｲﾀﾞ FE
42 DCPH0140 1 JOINT ｼﾞｮｲﾝﾄ FE
43 ADCPH3233 16 SHAFT ASSY ｼｬﾌﾄ ASSY OT
44 WPL0232 2 NUT ﾅｯﾄ FE
45 WPH0870 16 BKT BKT FE
46 DCPH0601 16 SPRING ｽﾌﾟﾘﾝｸﾞ FE
47 WPH2120 16 PIN ﾋﾟﾝ FE
48 H3181E 2
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ MBWT5 FE
49 H3181Z 1
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBR8FN FE
50 S1021A 16
ｻｰｸﾘｯﾌﾟ ST-EW-3 FE
51 W1019T 48 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ BBY0062611AO FE
52 H4451A 16
ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-1680ZZ FE
53 H4407T 16 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA1015Z FE
54 H1163A 32 PACKING ﾊﾟｯｷﾝ MY-8 OT
55 A5054Y 32 O RING Oﾘﾝｸﾞ 4-1W OT
56 A5129T 16
Oﾘﾝｸﾞ S5 OT
57 ADCPH3262 16 HOLDER ﾎﾙﾀﾞ OT
58 DCPQ0260 1 DOG ﾄﾞｯｸﾞ FE
59 H2040A 1 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ ﾟ2X5 FE
60 DCPH0721 1 COLLAR ｶﾗｰ PL
61 H52681 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M2.5X18L FE
62 H5274A
ﾎﾞﾙﾄ 六角穴        
M3X6L FE
63 H5275A
ﾎﾞﾙﾄ 六角穴        
M3X8L FE
64 H5276A
ﾎﾞﾙﾄ 六角穴        
M3X10L FE
66 H5286A
ﾎﾞﾙﾄ 六角穴        
M4X6L FE
67 H5289A
ﾎﾞﾙﾄ 六角穴        
M4X12L FE
68 K52565
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M4X6L FE
69 H5298A
ﾎﾞﾙﾄ 六角穴        
M5X10L FE
70 H5299A
ﾎﾞﾙﾄ 六角穴        
M5X12L FE
71 K5261H
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M5X12L FE
72 H5343A
ﾎﾞﾙﾄ 六角穴        
M8X30L FE
73 H5195A
ﾎﾞﾙﾄ 六角         
M8X25L FE
74 W1020H
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2.5M/M FE
75 W1021A
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
76 W1022A
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
77 W1023A
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
CP-733E,732E PARTS LIST
2 - 4
2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(DCPH)
2.Placing head(DCPH)
2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(DCPH)
2.Placing head(DCPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
78 W1025A
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
79 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3 FE
80 N1082A
ﾅｯﾄ 六角         
M5 P=0.8 FE
81 N1085A
ﾅｯﾄ 六角         
M6 P=1.0 FE
82 N1089A
ﾅｯﾄ 六角         
M8 P=1.25 3種 FE
83 H5165A
ﾎﾞﾙﾄ 六角         
M3X10BL FE
84 H5266A
ﾎﾞﾙﾄ 六角穴        
M2X6L FE
85 W1020A
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2M/M FE
86 W1050A WASHER, FLAT ﾜｯｼｬ 平 5M/MX1.0X10(1W-5) FE
87 ADCPH3130 1 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ OT
88 ADCPH3140 1 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ OT
89 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L FE
91 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L FE
92 ADCPH3161 1 CAM, CYLINDRICAL ｶﾑ 円筒 OT
93 ADCPH3250 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ OT
94 ADCPH3181 1 DRUM ﾄﾞﾗﾑ OT
95 ADCPH3190 16 SHAFT ｼｬﾌﾄ OT
97 DCPH0270 1 GEAR, HELICAL ｷﾞﾔ ﾍﾘｶﾙ ∼XNo.48 注2．Note.2 FE
98 DCPH0280 1 RING, LOCKING ﾘﾝｸﾞ 締結 ETP-K-20-T4 ∼XNo.48 注2．Note.2 OT
99 DCPH0764 1 SHAFT ｼｬﾌﾄ 注3．Note.3 FE
100 DCPH0774 1 SHAFT ｼｬﾌﾄ 注3．Note.3 FE
101 DCPH0784 1 SHAFT ｼｬﾌﾄ 注3．Note.3 FE
102 DCPH0794 1 SHAFT ｼｬﾌﾄ 注3．Note.3 FE
104 DCWM0040 3 SEAL ｼｰﾙ Ref.P32-6 PL
105 DCPH1140 1 SEAL ｼｰﾙ PL
106 H5302A
ﾎﾞﾙﾄ 六角穴        
M5X20L FE
107 DCPH0040 GEAR, HELICAL ｷﾞﾔ ﾍﾘｶﾙ FE
108 W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-L FE
109 W1052A WASHER, FLAT ﾜｯｼｬ 平 8M/M(1W-8) FE .
注1.№1と№12と№14は組合わせ部品ですので同時に交換してください｡
注2.№97と№98は組合わせ部品ですので同時に交換してください｡
注3.(仕様選択部品)DCPH0762(φ=0.053),DCPH0772(φ=10.048),DCPH0782(φ=10.043),DCPH0792(φ=10.038)
Note.1:No.1,No.12,No.14 are used as set. If the replacement of one is necessary all must be replaced.
Note.2:No.97,No.98 are used as set. If the replacement of one is necessary both must be replaced.
Note.3:(Specified parts selection)DCPH0762(φ=0.053),DCPH0772(φ=10.048),DCPH0782(φ=10.043),DCPH0792(φ=10.038)
CP-733E,732E PARTS LIST
2 - 5
2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(DCPH)
2.Placing head(DCPH)
84
86
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
186
MQC-1061
PULLEY ASSY
MQC-1290
PULLEY ASSY
212
184
211
184
212
184
177
170
177
170
177
170
177
170
183
163
180
175
193
176
168
199
186
194
176
157
174
F
27
114
113
114
113
86
84
20
4
C
76
75
76
75
77
77
76
75
76
75
77
77
58
59
76
75
77
76
75
77
76
75
76
75
77
77
D
B
A
32
31
111
217
94
93
93
111
106
106
104
104
106
106
90
137
122
122
81
92
123
123
92
101
124
10
9
208
176
167
175
162
205
174
155
174
191
190
169
184
157
174
167
184
167
184
189
190
175
162
191
182
157
183
161
175
162
175
162
183
161
176
168
175
162
128
E
E
133
64
61
127
110
135
18
96
83
85
85
8
6
5
87
45
131
67
13
220
176
166
13
67
16
16
B
A
26
139
26
29
161
175
176
161
175
206
207
184
166
95
136
100
100
197
179
174
155
189
191
174
157
186
190
190
191
167
184
176
169
161
175
152
173
175
164
167
184
175
164
169
167
176
186
186
174
176
168
194
176
180
175
193
C
D
128
63
F
132
103
103
40
110
109
11
90
104
106
106
93
111
94
104
106
106
93
111
102
42
108
53
85
18
96
83
85
6
8
5
88
44
130
67
15
15
28
x8
218
174
156
179
179
179
220
176
166
標準
Standard
K
60
59
59
64
60
59
59
64
20
薄厚基板対応(オプション)
**********
K
標準
Standard
L
60
59
59
63
64
MQC1170
LF950ZZ
LF950ZZ
MQC1170
L
DCQC0810
薄厚基板対応(オプション)
**********
ADCQC8030
3 - 1

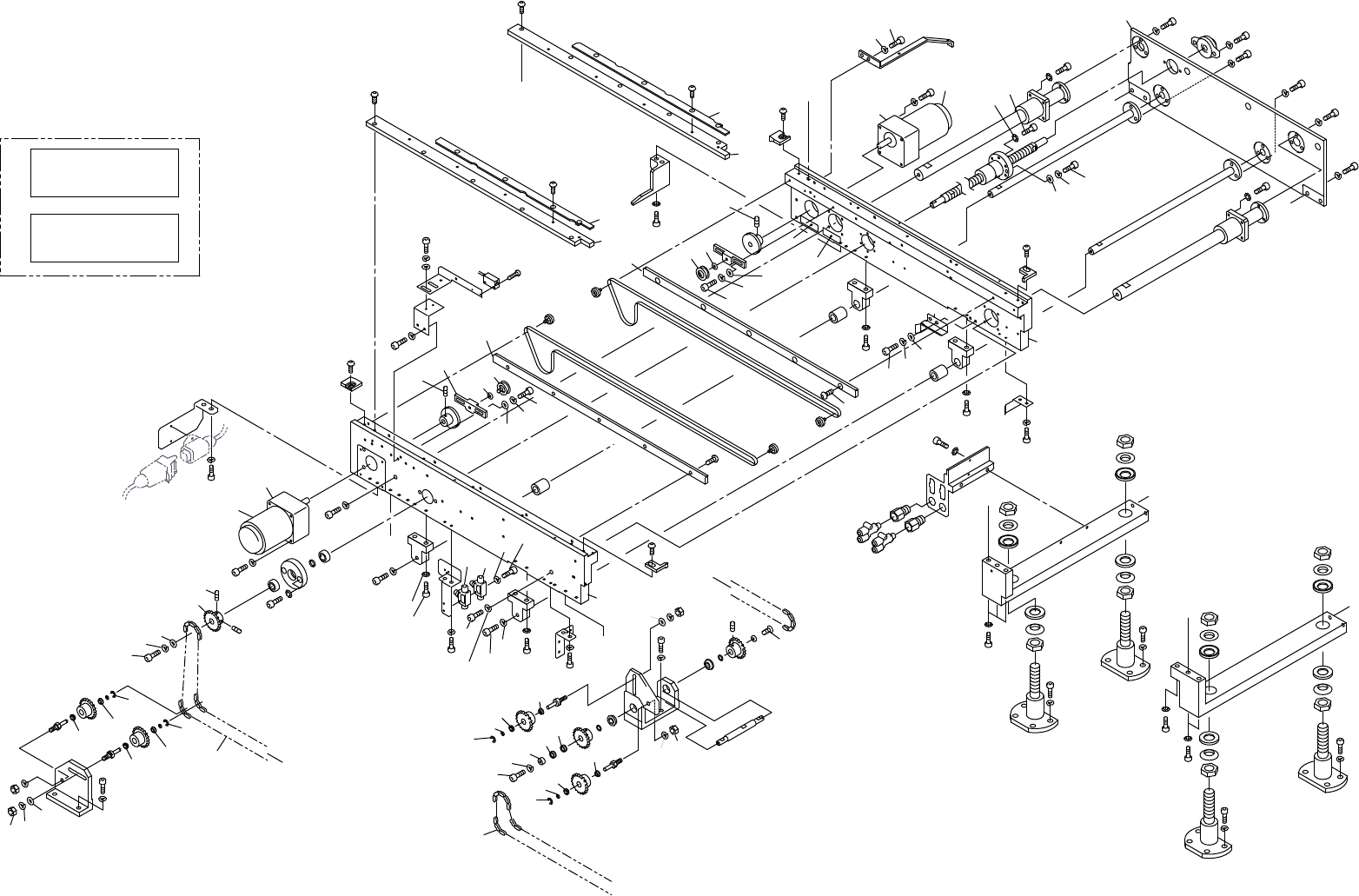

3.1.インコンベア(DCQC)
3.1.In conveyor(DCQC)
3.1.インコンベア(DCQC)
3.1.In conveyor(DCQC)
CP-733E,CP-732E PARTS LIST
