24.2.ｶﾑﾎﾞｯｸｽ(DCPA)
24.2.Cam box(DCPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
292 N1045A 4 NUT A ﾅｯﾄ A AN04(Aﾅｯﾄ) FE
298 DCWZ0120 7 BKT BKT FE
299 DCWZ0230 1 BKT BKT FE
300 DCWZ0080 1 BKT BKT FE
301 DCWZ0111 1 BKT BKT FE
302 DCWZ0071 1 BKT BKT FE
303 WPI0020 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ OT
304 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L FE
305 DCWZ0090 1 BKT BKT FE
306 DCWZ0140 1 BKT BKT FE
313 DCWM0240 1 SEAL ｼｰﾙ Japanese PL
314 DCWM0440 1 SEAL ｼｰﾙ English PL
315 DCWM0640 1 SEAL ｼｰﾙ French PL
316 DCWM0250 1 SEAL ｼｰﾙ Japanese PL
317 DCWM0450 1 SEAL ｼｰﾙ English PL
318 DCWM0650 1 SEAL ｼｰﾙ French PL .
CP-733E,CP-732E PARTS LIST
24 - 13
24.2.ｶﾑﾎﾞｯｸｽ(DCPA)
24.2.Cam box(DCPA)
100
80
60
40
20
500
600
700
800
900
1000
400
300
200
100
20%
x15
24
1
2
3
4
5
6
7
8
9
11
10
12
13
16
17
18
19
20
21
22
23
24
25
14
15
D
24.3.カムボックス(DCPA)
24.3.Cam box(DCPA)
24.3.カムボックス(DCPA)
24.3.Cam box(DCPA)
24 - 14
カムBOXシリンダ用給油ユニット
Cam box air cylinder lubrication unit.
CP-733E,CP-732E PARTS LIST

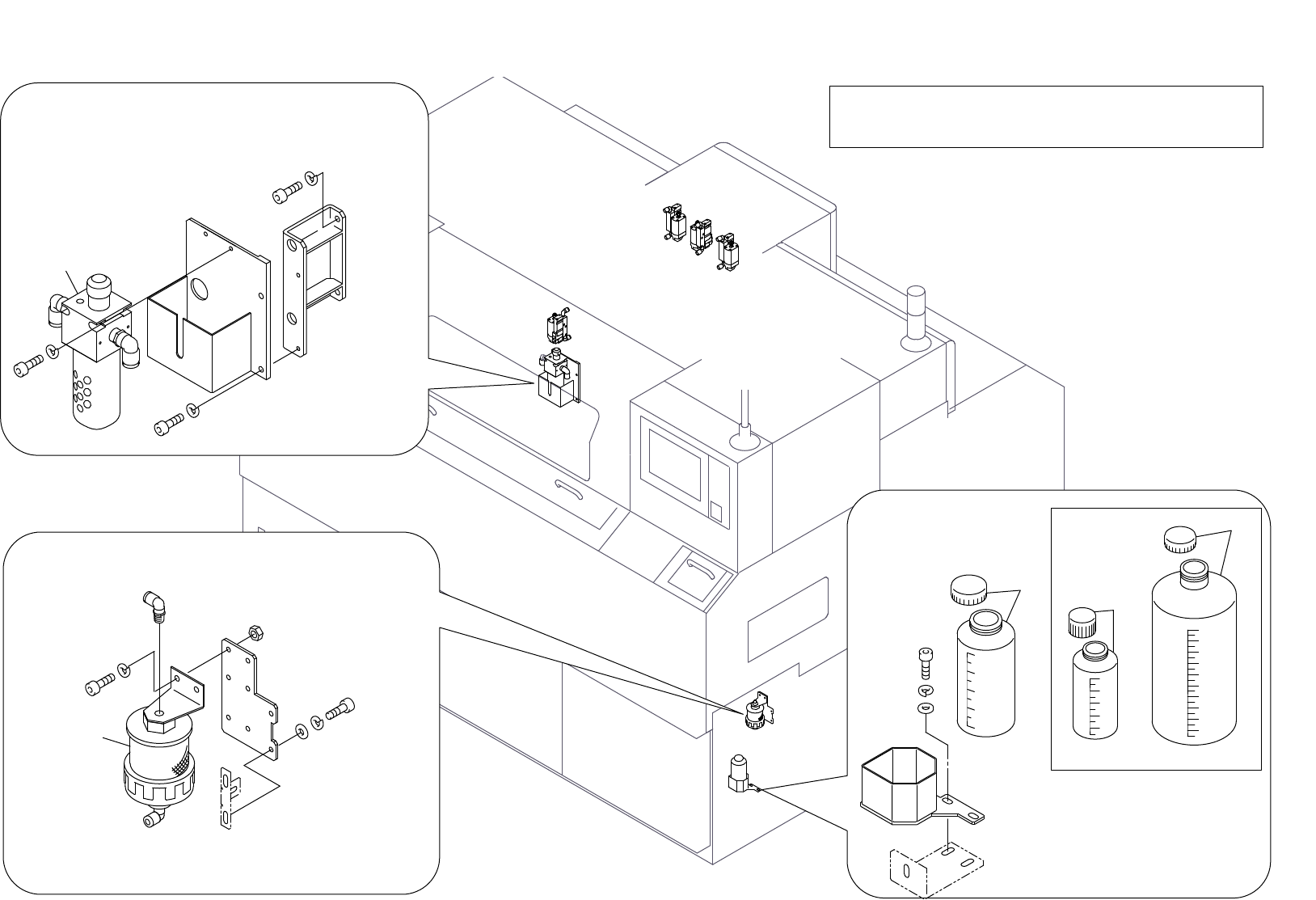

24.3.ｶﾑﾎﾞｯｸｽ(DCPA)
24.3.Cam box(DCPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Remarks Materials
1 DCPI0510 1 VALVE ﾊﾞﾙﾌﾞ OT
2 H5308A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X45L FE
3 W1023A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
4 DCWZ0383 1 BKT BKT FE
5 H5322A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L FE
6 W1024A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
7 DCPI0520 1 SILENCER ｻｲﾚﾝｻ OT
8 H5321A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X12L FE
9 W1024A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
10 N1085A 2 NUT, HEX ﾅｯﾄ 六角 M6 P=1.0 FE
11 Y3081A 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL10-03S-X15 OT
12 DCWZ0372 1 BKT BKT FE
13 H5288A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L FE
14 W1022A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
15 W1043A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
16 DCWZ0402 1 BKT BKT FE
17 H5323A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X18L FE
18 W1024A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
19 W1045A 2 WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
20 T10137 1 TANK ﾀﾝｸ PPｻﾝﾌﾟﾗﾎﾞﾄﾙ2044A PL
21 DCPI0530 1 TANK ﾀﾝｸ OT
22 DCPI0540 1 TANK ﾀﾝｸ OT
23 DCWZ0410 1 BKT BKT FE
24 H5320A 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10LB=5 FE
25 W1024A 2 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE .
CP-733E,CP-732E PARTS LIST
24 - 15
24.3.ｶﾑﾎﾞｯｸｽ(DCPA)
24.3.Cam box(DCPA)
