25.ｵｲﾙｸｰﾗ配管図(DCPA) 25.Oil cooler circuit diagram(DCPA) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 2 DCPA2180 1 BKT BKT FE 3 DCPA2170 1 BKT BKT FE 8 DCPA2100 1 MA…
68
A
139
x10
B
69
70
71
31
B
54
52
55
54
52
52
54
52
54
54
52
15
A
A
16
14
9
2
3
42
43
46
46
65
65
46
30
39
66
66
66
66
40
67
40
25
67
39
67
40
40
26
35
41
41
21
36
20
24
36
44
44
19
45
13
47
47
13
48
34
27
9
28
18
8
13
9
47
47
29
13
48
27
11
12
28
23
58
59
57
65
65

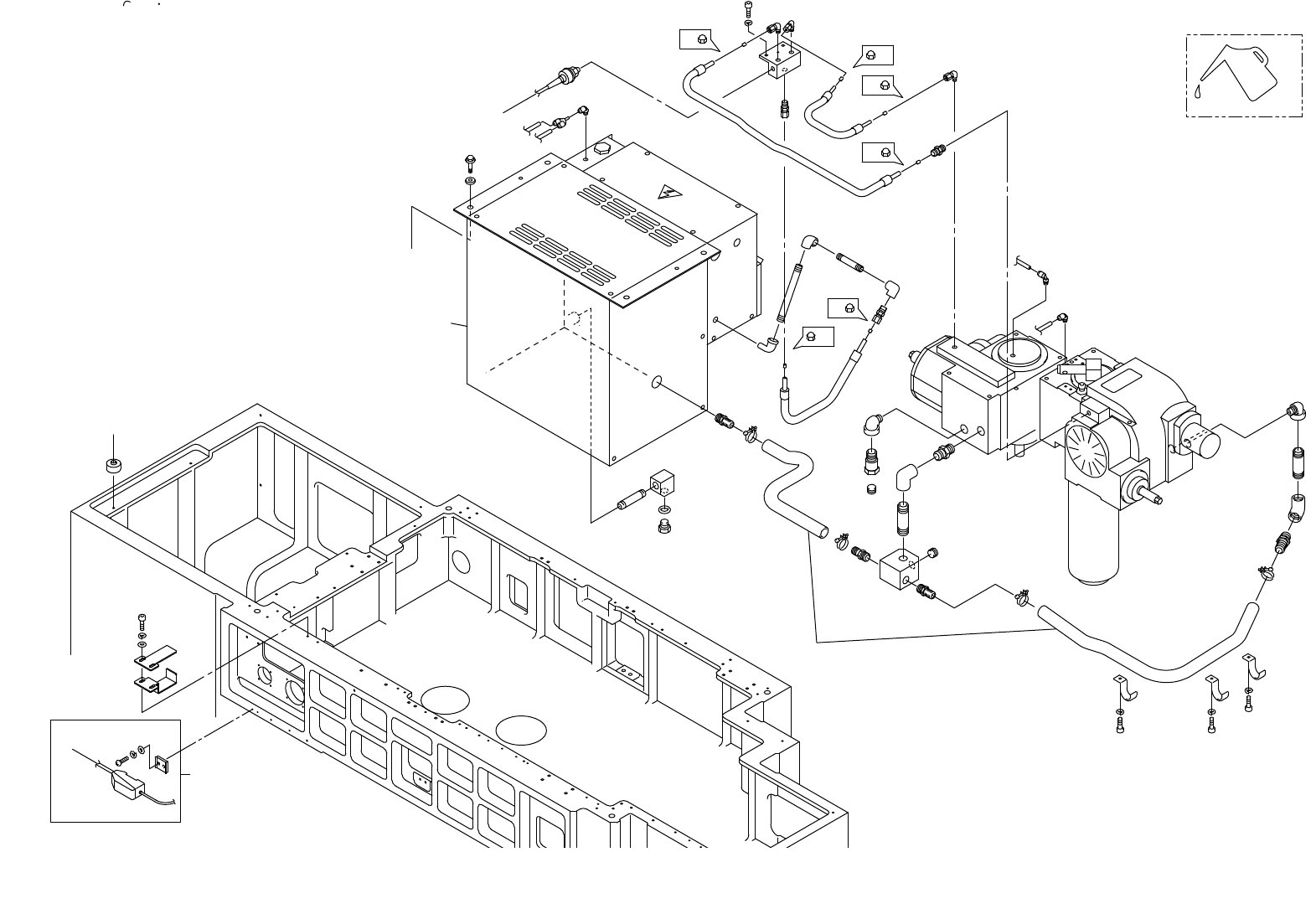

25.オイルクーラ配管図(DCPA)
25.Oil cooler circuit diagram(DCPA)
25.オイルクーラ配管図(DCPA)
25.Oil cooler circuit diagram(DCPA)
25 - 1
CP-733E,CP-732E PARTS LIST
25.ｵｲﾙｸｰﾗ配管図(DCPA)
25.Oil cooler circuit diagram(DCPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
2 DCPA2180 1 BKT BKT FE
3 DCPA2170 1 BKT BKT FE
8 DCPA2100 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ FE
9 DCPA2111 3 HOLDER 受け FE
11 DCPA2010 1 PIPE ﾊﾟｲﾌﾟ FE
12 DCPA2140 2 PIPE ﾊﾟｲﾌﾟ FE
13 DCPA2150 4 NIPPLE ﾆｯﾌﾟﾙ FE
14 DCPA2060 4 BOLT ﾎﾞﾙﾄ FE
15 DCPA2070 4 BUSHING ﾌﾞｯｼｭ PL
16 DCPA2080 4 SHEET, RUBBER ｼｰﾄ ｺﾞﾑ PL
18 DCPA2130 1 PIPE ﾊﾟｲﾌﾟ FE
19 DCPA2020 1 PIPE ﾊﾟｲﾌﾟ FE
20 DCPA2030 1 PIPE ﾊﾟｲﾌﾟ FE
21 DCPA2190 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ FE
23 DCPA2092 1 COOLER ｸｰﾗｰ SCFB-500-CE-A OT
24 H5044K 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 718-600M OT
25 H5044C 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 716-215M OT
26 H5044F 1 HOSE, HYDRAULIC ﾎｰｽ 油圧 716-650M OT
27 A4022T 2 ELBOW ｴﾙﾎﾞ SLA04-000F OT
28 A4083A 3
ELBOW, MALE AND FEMALE
ｴﾙﾎﾞ ｵｽﾒｽ SLC04-000J OT
29 H50043 1 HOSE ﾎｰｽ ST-19、1.4M OT
30 S4033T 1
SENSOR, PRESSURE
ｾﾝｻ 圧力
AP-13 OT
31 A1038T 1
AMPLIFIER
ｱﾝﾌﾟ AP-70 OT
34 N2023M 1 NIPPLE ﾆｯﾌﾟﾙ SNP04-000F OT
35 K5708A 1
CONNECTOR, MALE
ｺﾈｸﾀ 雄
KCT06-011CE OT
36 K5079T 2
CONNECTOR, MALE
ｺﾈｸﾀ 雄
KCT08-021CE OT
39 N1110T 2
NUT, DOMED CAP
ﾅｯﾄ 六角袋
KKN08-000CE OT
40 S3073A 4
SLEEVE
ｽﾘｰﾌﾞ KK006-000CE OT
41 S3073T 2 SLEEVE ｽﾘｰﾌﾞ KKO08-000CE OT
42 H1288A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X70 OT
43 DCPA2120 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ FE
44 A40495 2 ELBOW ｴﾙﾎﾞ L1/4 OT
45 A4085K 1 ELBOW, MALE AND FEMALE ｴﾙﾎﾞ ｵｽﾒｽ SL1/4 OT
46 Y3049W 3
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-01S(ｼﾛ) OT
47 H1150L 4
BAND, HOSE
ﾊﾞﾝﾄﾞ ﾎｰｽ HS10 OT
48 H3113T 3 PLUG ﾌﾟﾗｸﾞ SPA04-000J OT
49 H5286A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X6L FE
CP-733E,CP-732E PARTS LIST
25 - 2
25.ｵｲﾙｸｰﾗ配管図(DCPA)
25.Oil cooler circuit diagram(DCPA)
25.ｵｲﾙｸｰﾗ配管図(DCPA)
25.Oil cooler circuit diagram(DCPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
51 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L FE
52 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
54 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
55 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
57 Y3034S 1
UNION
ﾕﾆｵﾝ KJU06-99(ｼﾛ) OT
58 S2034A 1 SEAL ｼｰﾙ KPC-03 OT
59 H3114H 1 PLUG ﾌﾟﾗｸﾞ SPE03-000J OT
65 WPA1810 2 HOSE ﾎｰｽ TU0604B-20 OT
66 N1109A 4
NUT, DOMED CAP
ﾅｯﾄ 六角袋
KKN06-000CE FE
67 N2003A 3 NIPPLE ﾆｯﾌﾟﾙ KLN06-011CE OT
68 A5009T 1 OIL, LUBRICATING ｵｲﾙ 潤滑 ﾎﾞﾝﾉｯｸM150(18L) OT
69 K5227A SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L FE
70 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
71 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3 . FE .
CP-733E,CP-732E PARTS LIST
25 - 3
25.ｵｲﾙｸｰﾗ配管図(DCPA)
25.Oil cooler circuit diagram(DCPA)
