30.3.真空ﾎﾟﾝﾌﾟ(DCPV)
30.3.Pump vacuum(DCPV)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 A4090T 1 ELEMENT ｴﾚﾒﾝﾄ 04A30159010(KHA750ﾖｳ) OT
2 H3018M 1 FILTER ﾌｨﾙﾀ KH750A用ﾌｨﾙﾀ 03037296060(RA05V-G6) OT
3 H3103T 6 BLADE ﾌﾞﾚｰﾄﾞ 04038284010(KHA750ﾖｳ) OT
4 H4044T 2 BEARING ﾍﾞｱﾘﾝｸﾞ 04038287010(6304ZZﾄｸ) OT
5 H4453H 1 BELT ﾍﾞﾙﾄ 35303430020(7M670ﾊﾞﾝﾌﾚｯｸｽ) OT
6 M5001M 1 MOTOR ﾓｰﾀ 0A000008000(KHA750A-305ﾖｳ) 0.75KW4P3φ200r OT
7 R1027A 2 LINER ﾗｲﾅ 04000040010(KHA750ﾖｳ) 注1.Note.1 OT .
注1.枚数は組立時の調整によりﾎﾟﾝﾌﾟ固体で異なり､6∼8枚使用します｡1ｾｯﾄは4枚組です｡
Note.1:The actual number varies between six and eight depending on the adjustment for the pump at the time of assembly.
One set contains four liners.
CP-733E,CP-732E PARTS LIST
30 - 8
30.3.真空ﾎﾟﾝﾌﾟ(DCPV)
30.3.Pump vacuum(DCPV)
0.5 1 2 10
見本
X15.5
90
90
93
23
1
7
83
24
17
18
97
34
93
28
86
8
7
6
8
7
7
6
16
20
16
20
14
14
39
37
33
19
37
39
32
89
28
25
26
38
36
41
41
36
38
26
25
29
4
85
6
7
10
14
20
16
14
20
16
39
37
33
39
37
33
16
20
16
20
2
84
9
7
6
14
14
30
25
26
38
36
41
25
26
38
36
41
96
37
39
12
37
39
96
13
5
6
7
11
33
37
39
14
20
16
14
52
62
62
66
66
53
54
54
51
37
59
61
33
22
54
22
22
54
22
54
22
57
33
59
59
37
60
65
65
63
59
60
60
60
60
37
37
37
20
16
H=912
H=930
67
74
H=920
68
74
69
74
F
F
F
H=935
70
74
94
48
30
28
88
3
8
7
24
6
14
17
13
80
29
86
87
87
85
42
92
95
H=962
965
H=980
72
74
73
74
H=950
71
74
79
80
81
77
H=920
H=912
H=900
H=965
H=950
H=980
H=930
935
75
76
78
When anti-vibration
pads are not used.
防振パット無しの場合
A
DA
C
B
B
C
D
Z
Z
Z
Y
Y
31 - 1

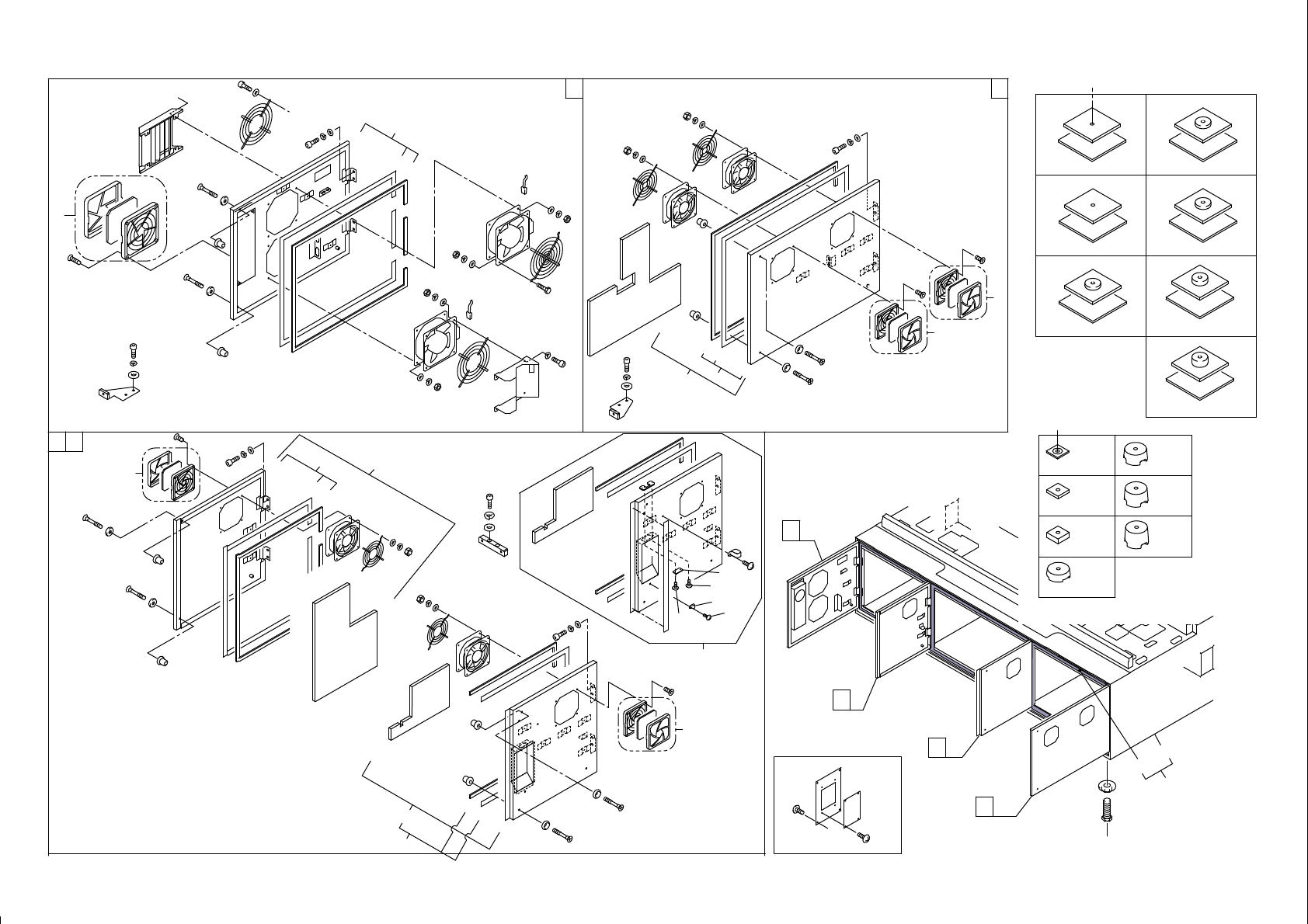

31.1.Body(DCAB)
31.1.本体(DCAB)
31.1.Body(DCAB)
31.1.本体(DCAB)
CP-733E,CP-732E PARTS LIST
31.1.本体(DCAB)
31.1.Body(DCAB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DCAB0016 1 BODY 本体 FE
2 ADCAB8011 1 COVER ｶﾊﾞｰ OT
4 ADCAB8031 1 COVER ｶﾊﾞｰ OT
5 ADCAB8045 1 COVER ｶﾊﾞｰ OT
6 K1152K 8 GASKET ｶﾞｽｹｯﾄ E02S130055B OT
7 T4047B 1 TAPE ﾃｰﾌﾟ E052020A OT
8 DCAB0230 1 COVER ｶﾊﾞｰ OT
9 DCAB0021 1 COVER ｶﾊﾞｰ OT
10 DCAB0041 1 COVER ｶﾊﾞｰ OT
11 DCAB0054 1 COVER ｶﾊﾞｰ OT
12 DCAB0061 1 BKT BKT FE
13 DCAB0070 1 BKT BKT FE
14 DCAB0090 8 COLLAR ｶﾗｰ FE
16 DCAB0100 8 BOLT, COUNTERSUNK ﾎﾞﾙﾄ 皿 OT
17 DCAB0110 2 COVER ｶﾊﾞｰ FE
18 DCAB0120 2 COVER ｶﾊﾞｰ FE
19 DCAB0081 2 BKT BKT OT
20 W10025 8 WASHER ﾜｯｼｬ TL-182-4(No.1414) OT
22 K5170N 16
小ﾈｼﾞ 十穴皿  M04X040L OT
23 WAB5540 8 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ OT
24 DCAB0131 8 NUT ﾅｯﾄ FE
25 H30120 4 FAN ﾌｧﾝ 109P1224H402 OT
26 K1141T 4
ｶﾞｰﾄﾞ ﾌｨﾝ 109-019C OT
28 DCAB0220 1 SEAL ｼｰﾙ OT
29 DCAB0160 1 SEAL ｼｰﾙ OT
30 DCAB0140 1 SEAL ｼｰﾙ OT
31 H5298A
ﾎﾞﾙﾄ 六角穴        
M5X10L OT
32 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L OT
33 H5302A
ﾎﾞﾙﾄ 六角穴        
M5X20L OT
34 K5215A
小ﾈｼﾞ ﾄﾗｽ M5X10L OT
35 K5215E
小ﾈｼﾞ ﾄﾗｽ M5X14L OT
36 W1022A
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M OT
37 W1023A
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M OT
38 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4) OT
39 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 OT
40 W1012A
ﾜｯｼｬ 皿         
M-5-L OT
41 N1080A
ﾅｯﾄ 六角         
M4 P=0.7 OT
CP-733E,CP-732E PARTS LIST
31 - 2
31.1.本体(DCAB)
31.1.Body(DCAB)
